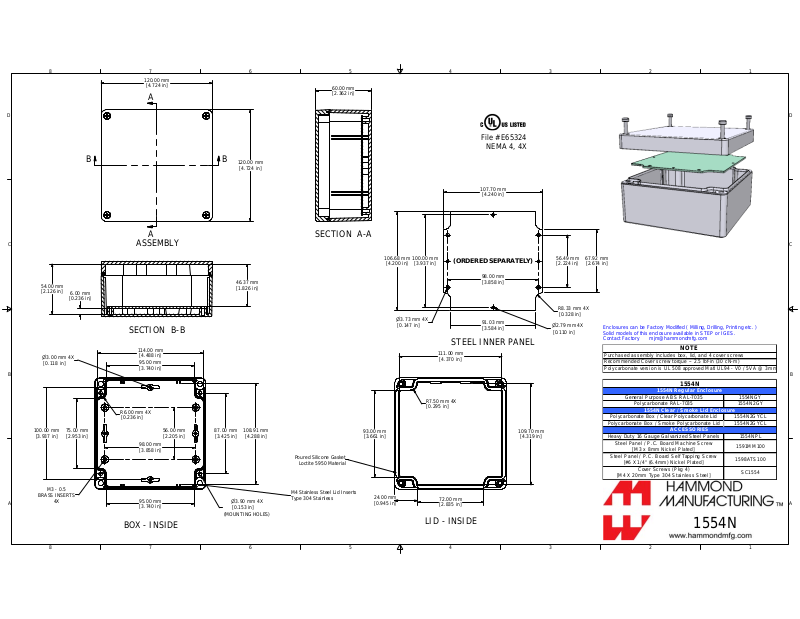

HAMMOND 1554N Service Manual
A
m
4
60.00 mm
[2.362 in]
5
8
7
120.00 mm
[4.724 in]
6
A
D D
3
2
1
File #E65324
NEMA 4, 4X
BB
120.00 mm
[4.724 in]
107.70 mm
[4.240 in]
A
C C
ASSEMBLY
54.00 mm
[2.126 in]
6.00 mm
[0.236 in]
46.37 mm
[1.826 in]
SECTION B-B
114.00 mm
R6.00 mm
[0.236 in]
[4.488 in]
95.00 mm
[3.740 in]
4X
98.00 mm
[3.858 in]
95.00 mm
[3.740 in]
56.00 mm
[2.205 in]
108.91 mm
87.00 mm
[3.425 in]
n3.90 mm
[0.153 in]
(MOUNTING HOLES)
[4.288 in]
4X
n3.00 mm
4X
[0.118 in]
B B
100.00 mm
A A
[3.937 in]
M3 - 0.5
BRASS INSERTS
4X
75.00 mm
[2.953 in]
BOX - INSIDE
8
7
6
SECTION A-A
Poured Silicone Gasket
Loctite 5950 Material
M4 Stainless Steel Lid Inserts
Type 304 Stainless
5
93.00 mm
[3.661 in]
24.00 mm
[0.945 in]
106.68 mm
[4.200 in]
n3.73 mm
[0.147 in]
100.00 mm
[3.937 in]
4X
111.00 mm
[4.370 in]
R7.50 mm
[0.295 in]
72.00 mm
[2.835 in]
LID - INSIDE
(ORDERED SEPARATELY)
98.00 mm
[3.858 in]
91.03 mm
[3.584 in]
STEEL INNER PANEL
4X
109.70 mm
[4.319 in]
4
56.49 mm
[2.224 in]
R8.33 mm
[0.328 in]
n2.79 mm
[0.110 in]
3
67.92 mm
[2.674 in]
4X
4X
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc. )
Solid models of this enclosure available in STEP or IGES.
Contact Factory mjm@hammondmfg.com
Purchased as s em bly includes box, l id, and 4 c over screws
Recomm ended Cover screw torque -- 2.5 lbf-in (30 cN-m)
Polyc arbonate version is UL 508 approved Matl UL94 - V0 / 5VA @ 3m
General Purpose AB S RAL-7035 1554NGY
Polyc arbonate RA L-7035 1554N2GY
Polyc arbonate B ox / Clear Poly carbonate Lid 1554N2GYCL
Polyc arbonate B ox / S m ok e P oly c arbonate Lid 1554N2GYCL
Heavy Duty 16 Gauge Galvanized Steel P anels 1554NPL
Steel Panel / P . C. B oard Sel f Tapping Screw
1554N Clea r / S moke L id Enclo sure
Steel Panel / P .C. B oard Mac hine S c rew
[M3 x 8m m Nic k el P lated]
[#6 X 1/4" (6.4mm) Nick el P lat ed]
Cover Screws (Pkg 4)
[M4 X 20mm Type 304 St ainles s S t eel]
NOTE
1554N
1554N Regul a r Encl osure
CCESSORIES
1554N
2
1591MM100
1598ATS100
SC1554
1
