Page 1

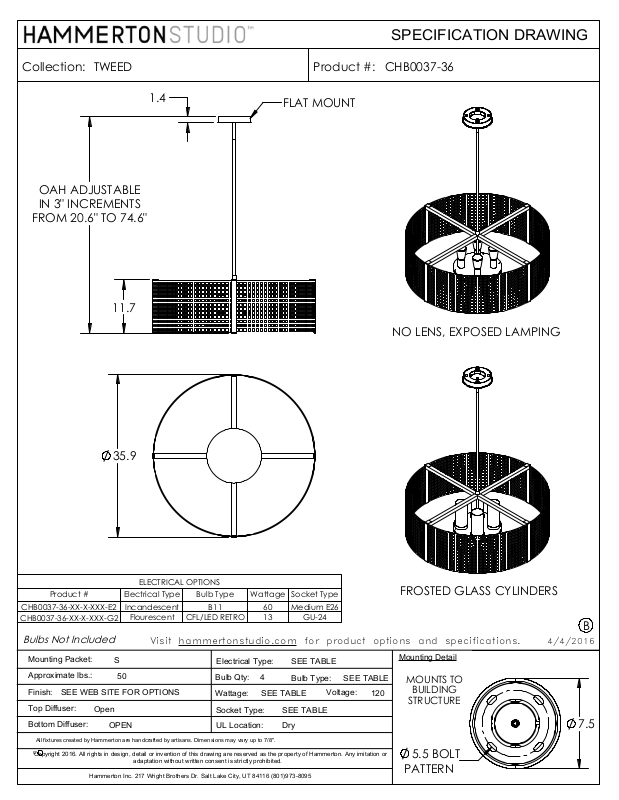

SPECIFICATION DRAWING
Collection:
TWEED
OAH ADJUSTABLE
IN 3" INCREMENTS
FROM 20.6" TO 74.6"
11.7
1.4
Product #:
FLAT MOUNT
CHB0037-36
NO LENS, EXPOSED LAMPING
35.9
ELECTRICAL OPTIONS
Product #
CHB0037-36-XX-X-XXX-E2
CHB0037-36-XX-X-XXX-G2
Bulbs Not Included
Mounting Packet:
Approximate lbs.:
Finish:
SEE WEB SITE FOR OPTIONS
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
C
Copyright 2016. All rights in design, detail or invention of this drawing are reserved as the property of Hammerton. Any imitation or
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
Open
OPEN
Electrical Type
Incandescent
Flourescent
Visit
S
50
adaptation without written consent is strictly prohibited.
Bulb Type
B11
CFL/LED RETRO
hammertonstudio.com
Electrical Type:
Bulb Qty:
Wattage:
Socket Type:
UL Location:
Wattage
60
13
4
SEE TABLE
Socket Type
Medium E26
GU-24
for product options and specifications.
SEE TABLE
Bulb Type:
SEE TABLE
Dry
SEE TABLE
Voltage:
FROSTED GLASS CYLINDERS
Mounting Detail
MOUNTS TO
120
BUILDING
STRUCTURE
5.5 BOLT
PATTERN
B
4/4/2016
7.5
