Page 1

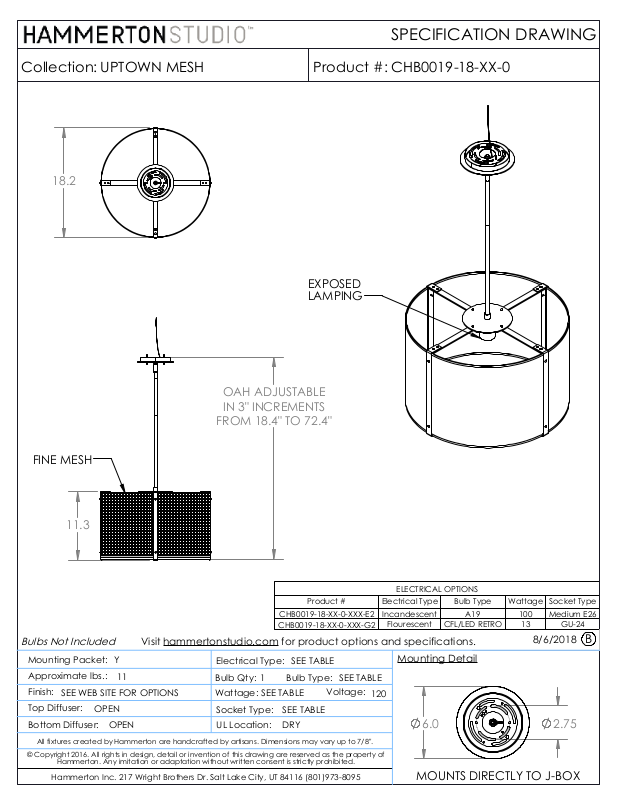

SPECIFICATION DRAWING
Collection:
18.2
UPTOWN MESH
Product #:
EXPOSED
LAMPING
CHB0019-18-XX-0
OAH ADJUSTABLE
IN 3" INCREMENTS
FROM 18.4" TO 72.4"
FINE MESH
11.3
Product #
CHB0019-18-XX-0-XXX-E2
CHB0019-18-XX-0-XXX-G2
Visit
Bulbs Not Included
Mounting Packet:
Approximate lbs.:
Finish:
Top Diffuser:
Bottom Diffuser:
© Copyright 2016. All rights in design, detail or invention of this drawing are reserved as the property of
SEE WEB SITE FOR OPTIONS
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
Y
11
OPEN
OPEN
hammertonstudio.com
Electrical Type:
Bulb Qty:
Wattage:
Socket Type:
UL Location:
for product options and specifications.
SEE TABLE
1
Bulb Type:
SEE TABLE
SEE TABLE
DRY
SEE TABLE
Voltage:
ELECTRICAL OPTIONS
Electrical Type
Incandescent
Flourescent
Mounting Detail
120
MOUNTS DIRECTLY TO J-BOX
CFL/LED RETRO
6.0
Bulb Type
A19
Wattage
100
13
8/6/2018
Socket Type
Medium E26
GU-24
2.75
B
