Page 1

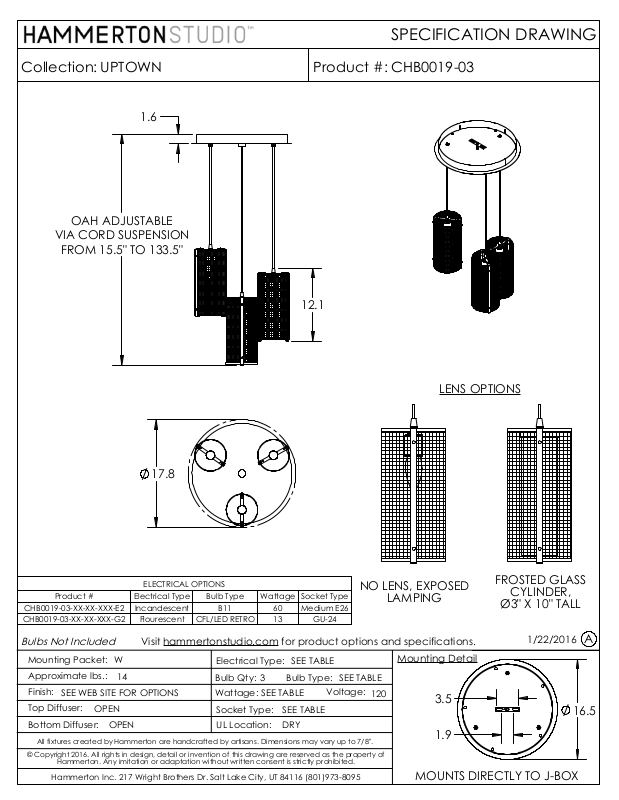

SPECIFICATION DRAWING
Collection:
OAH ADJUSTABLE
VIA CORD SUSPENSION
FROM 15.5" TO 133.5"
UPTOWN
1.6
Product #:
12.1
CHB0019-03
17.8
ELECTRICAL OPTIONS
Product #
CHB0019-03-XX-XX-XXX-E2
CHB0019-03-XX-XX-XXX-G2
Bulbs Not Included
Mounting Packet:
Approximate lbs.:
Finish:
Top Diffuser:
Bottom Diffuser:
© Copyright 2016. All rights in design, detail or invention of this drawing are reserved as the property of
SEE WEB SITE FOR OPTIONS
OPEN
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
W
14
OPEN
Electrical Type
Incandescent
Flourescent
Visit
hammertonstudio.com
Bulb Type
CFL/LED RETRO
Wattage
B11
Electrical Type:
Bulb Qty:
Wattage:
Socket Type:
UL Location:
3
SEE TABLE
Socket Type
60
Medium E26
13
GU-24
for product options and specifications.
SEE TABLE
Bulb Type:
SEE TABLE
DRY
SEE TABLE
Voltage:
LENS OPTIONS
NO LENS, EXPOSED
LAMPING
Mounting Detail
120
3.5
1.9
MOUNTS DIRECTLY TO J-BOX
FROSTED GLASS
CYLINDER,
Ø3" X 10" TALL
1/22/2016
16.5
A
