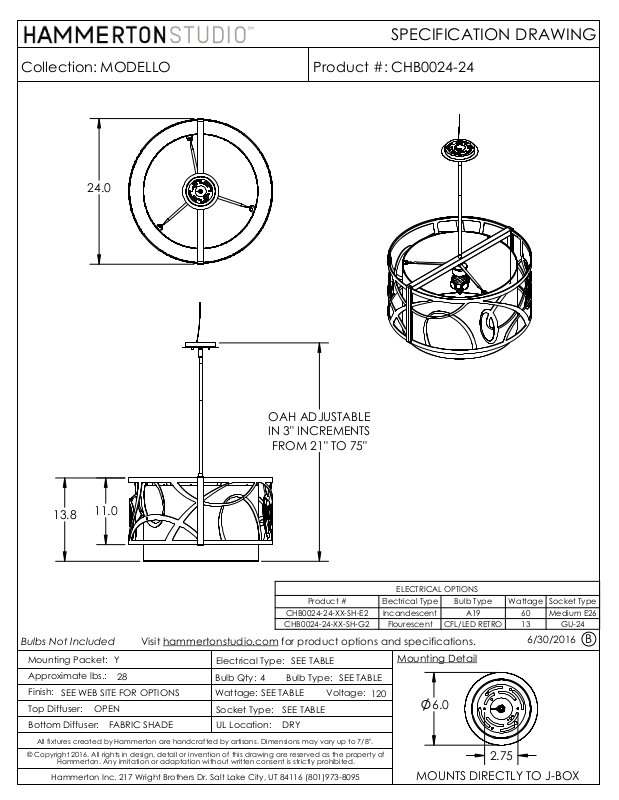

SPECIFICATION DRAWING
Collection: Product #:
MODELLO
24.0
CHB0024-24
OAH ADJUSTABLE
IN 3" INCREMENTS
FROM 21" TO 75"
13.8
Bulbs Not Included
Mounting Packet:
Approximate lbs.:
Finish:
Top Diffuser:
Bottom Diffuser:
© Copyright 2016. All rights in design, detail or invention of this drawing are reserved as the property of
SEE WEB SITE FOR OPTIONS
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
11.0
Y
28
OPEN
FABRIC SHADE
Visit hammertonstudio.com
Electrical Type:
Bulb Qty:
Wattage:
Socket Type:
UL Location:
4
SEE TABLE
Product # Electrical Type Bulb Type Wattage Socket Type
CHB0024-24-XX-SH-E2 Incandescent A19 60 Medium E26
CHB0024-24-XX-SH-G2
for product options and specifications.
SEE TABLE
SEE TABLEBulb Type:
Voltage:
SEE TABLE
DRY
ELECTRICAL OPTIONS
Flourescent CFL/LED RETRO 13 GU-24
6/30/2016
Mounting Detail
120
6.0
2.75
MOUNTS DIRECTLY TO J-BOX
B
