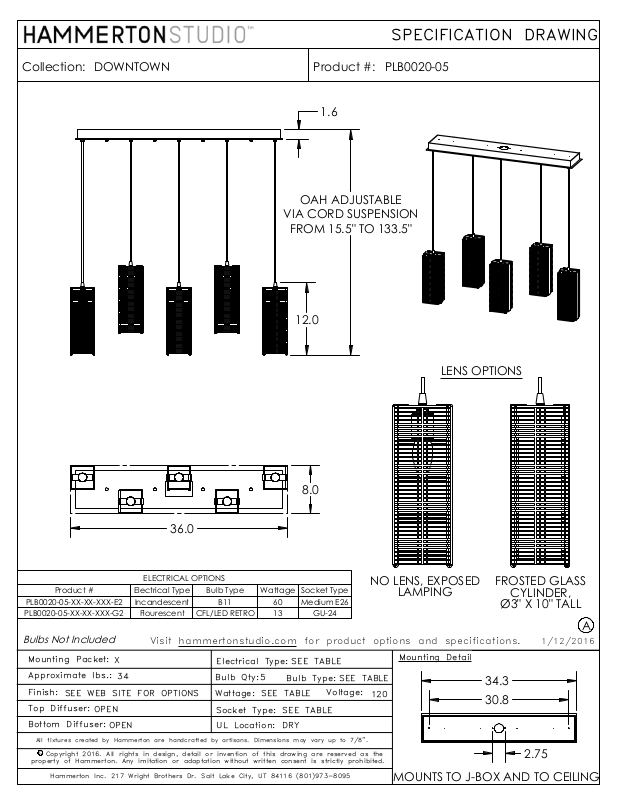

SPECIFICATION DRAWING
Collection:
DOWNTOWN
Product #:
PLB0020-05
1.6
OAH ADJUSTABLE
VIA CORD SUSPENSION
FROM 15.5" TO 133.5"
12.0
8.0
36.0
ELECTRICAL OPTIONS
Product #
PLB0020-05-XX-XX-XXX-E2
PLB0020-05-XX-XX-XXX-G2
Bulbs Not Included
Mounting Packet:
Approximate lbs.:
Finish:
SEE WEB SITE FOR OPTIONS
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
C
Copyright 2016. All rights in design, detail or invention of this drawing are reserved as the
property of Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
OPEN
X
34
OPEN
Electrical Type
Incandescent
Flourescent
Visit
hammertonstudio.com
Bulb Type
B11
CFL/LED RETRO
Electrical Type:
Bulb Qty:
Wattage:
Socket Type:
UL Location:
Wattage
60
13
for product options and specifications.
SEE TABLE
5
Bulb Type:
SEE TABLE
SEE TABLE
DRY
Socket Type
Medium E26
GU-24
SEE TABLE
Voltage:
LENS OPTIONS
NO LENS, EXPOSED
LAMPING
FROSTED GLASS
CYLINDER,
Ø3" X 10" TALL
1/12/2016
Mounting Detail
34.3
120
30.8
2.75
MOUNTS TO J-BOX AND TO CEILING
A
