Page 1

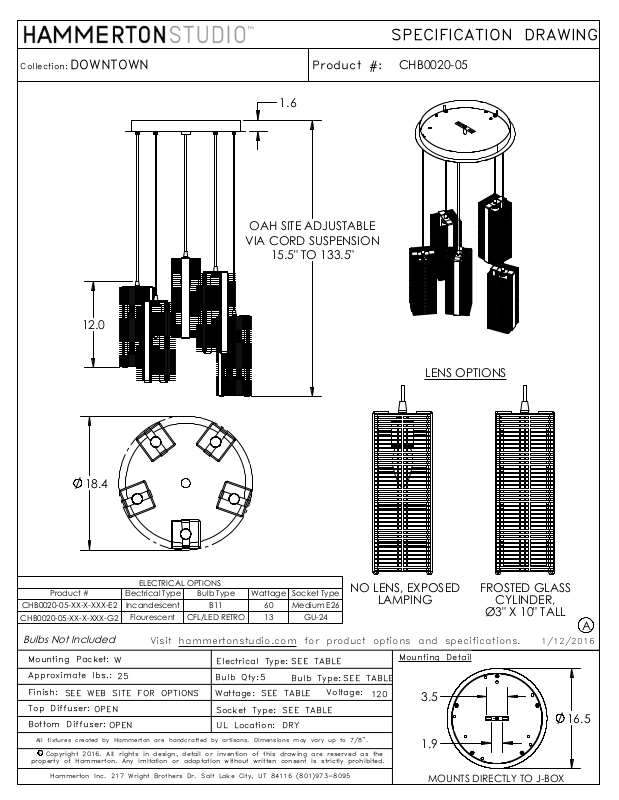

SPECIFICATION DRAWING
Collection:
DOWNTOWN
12.0
Product #:
1.6
OAH SITE ADJUSTABLE
VIA CORD SUSPENSION
15.5" TO 133.5"
CHB0020-05
18.4
ELECTRICAL OPTIONS
Product #
CHB0020-05-XX-X-XXX-E2
CHB0020-05-XX-X-XXX-G2
Bulbs Not Included
Mounting Packet:
Approximate lbs.:
Finish:
SEE WEB SITE FOR OPTIONS
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
C
Copyright 2016. All rights in design, detail or invention of this drawing are reserved as the
property of Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
OPEN
Electrical Type
Incandescent
Flourescent
W
25
OPEN
Bulb Type
B11
CFL/LED RETRO
Visit
hammertonstudio.com
Electrical Type:
Bulb Qty:
Wattage:
Socket Type:
UL Location:
Wattage
60
13
5
SEE TABLE
Socket Type
Medium E26
GU-24
for product options and specifications.
SEE TABLE
Bulb Type:
SEE TABLE
DRY
SEE TABLE
Voltage:
LENS OPTIONS
NO LENS, EXPOSED
LAMPING
Mounting Detail
120
3.5
1.9
MOUNTS DIRECTLY TO J-BOX
FROSTED GLASS
CYLINDER,
Ø3" X 10" TALL
1/12/2016
A
16.5
