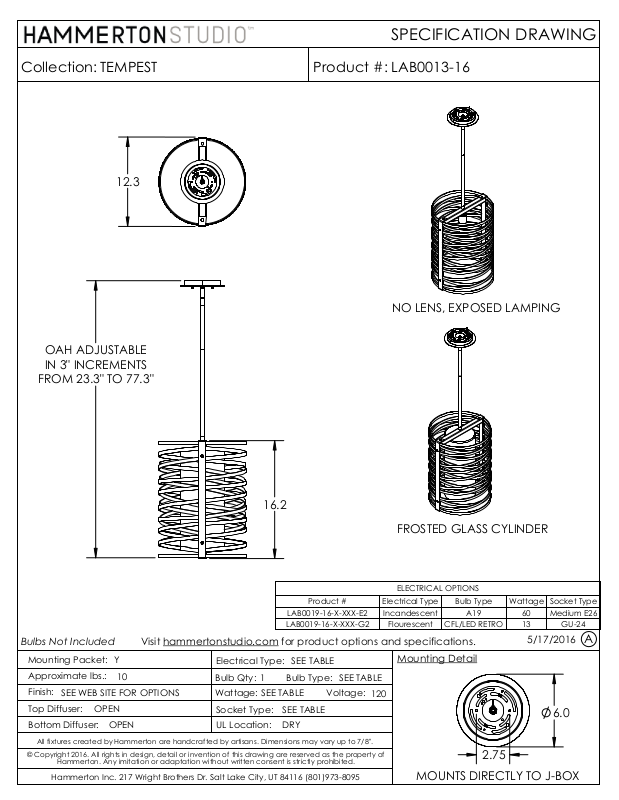

SPECIFICATION DRAWING
Collection: Product #:
TEMPEST
12.3
OAH ADJUSTABLE
IN 3" INCREMENTS
FROM 23.3" TO 77.3"
LAB0013-16
NO LENS, EXPOSED LAMPING
16.2
Product # Electrical Type Bulb Type Wattage Socket Type
LAB0019-16-X-XXX-E2 Incandescent A19 60 Medium E26
LAB0019-16-X-XXX-G2
Bulbs Not Included
Mounting Packet:
Approximate lbs.:
Finish:
Top Diffuser:
Bottom Diffuser:
© Copyright 2016. All rights in design, detail or invention of this drawing are reserved as the property of
SEE WEB SITE FOR OPTIONS
OPEN
OPEN
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
Visit hammertonstudio.com
Y
10
Electrical Type:
Bulb Qty:
Wattage:
Socket Type:
UL Location:
for product options and specifications.
SEE TABLE
1
SEE TABLE
SEE TABLE
DRY
SEE TABLEBulb Type:
Voltage:
FROSTED GLASS CYLINDER
ELECTRICAL OPTIONS
Flourescent CFL/LED RETRO 13 GU-24
5/17/2016
Mounting Detail
120
6.0
2.75
MOUNTS DIRECTLY TO J-BOX
A
