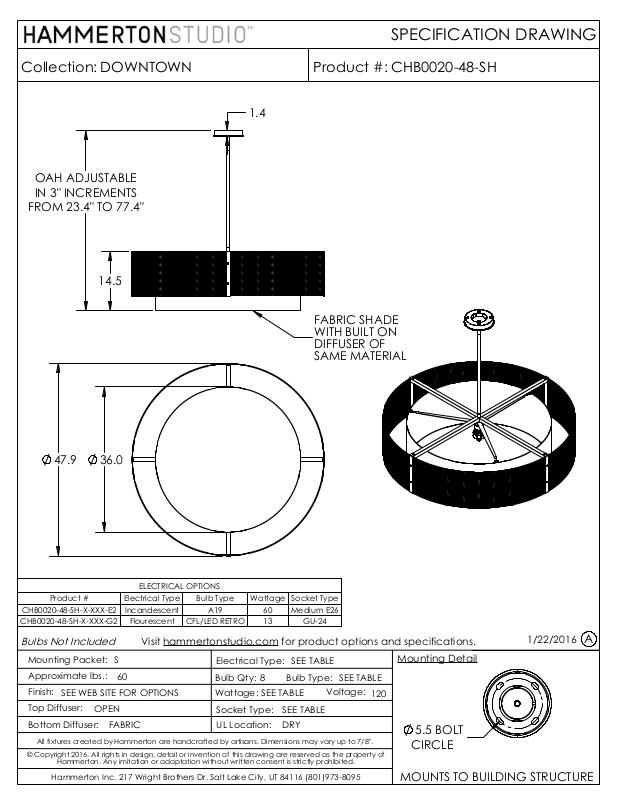

SPECIFICATION DRAWING
Collection:
DOWNTOWN
OAH ADJUSTABLE
IN 3" INCREMENTS
FROM 23.4" TO 77.4"
14.5
1.4
Product #:
CHB0020-48-SH
FABRIC SHADE
WITH BUILT ON
DIFFUSER OF
SAME MATERIAL
47.9
Product #
CHB0020-48-SH-X-XXX-E2
CHB0020-48-SH-X-XXX-G2
Bulbs Not Included
Mounting Packet:
Approximate lbs.:
Finish:
Top Diffuser:
Bottom Diffuser:
© Copyright 2016. All rights in design, detail or invention of this drawing are reserved as the property of
SEE WEB SITE FOR OPTIONS
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
36.0
OPEN
FABRIC
ELECTRICAL OPTIONS
Electrical Type
Incandescent
Flourescent
Visit
hammertonstudio.com
S
60
Bulb Type
A19
CFL/LED RETRO
Electrical Type:
Bulb Qty:
Wattage:
Socket Type:
UL Location:
Wattage
60
13
Socket Type
Medium E26
GU-24
for product options and specifications.
SEE TABLE
8
Bulb Type:
SEE TABLE
SEE TABLE
DRY
SEE TABLE
Voltage:
Mounting Detail
120
5.5 BOLT
CIRCLE
MOUNTS TO BUILDING STRUCTURE
1/22/2016
