Page 1

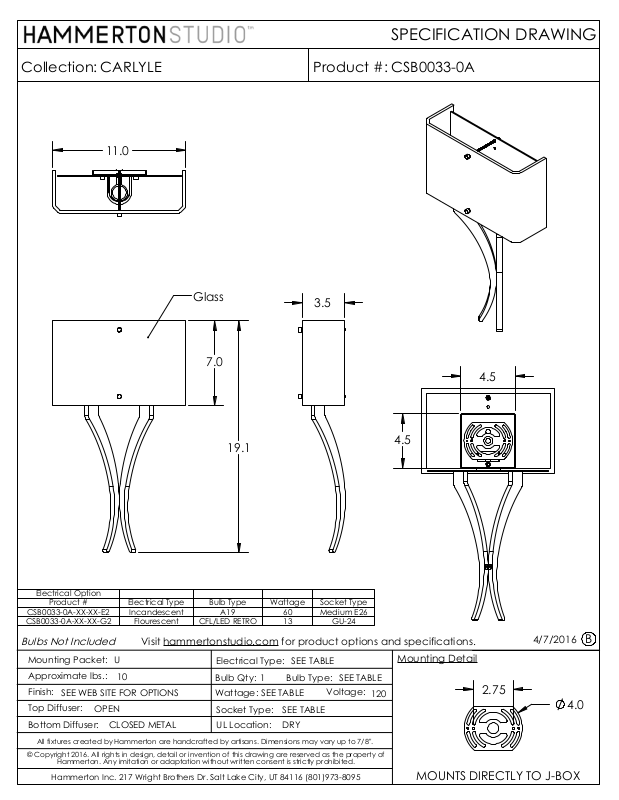

SPECIFICATION DRAWING
Collection:
CARLYLE
11.0
Glass
Product #:
3.5
CSB0033-0A
7.0
19.1
Electrical Option
Product #
CSB0033-0A-XX-XX-E2
CSB0033-0A-XX-XX-G2
Bulbs Not Included
Mounting Packet:
Approximate lbs.:
Finish:
SEE WEB SITE FOR OPTIONS
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2016. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
OPEN
Electrical Type
Incandescent
Flourescent
Visit
hammertonstudio.com
U
10
CLOSED METAL
Bulb Type
A19
CFL/LED RETRO
Electrical Type:
Bulb Qty:
Wattage:
Socket Type:
UL Location:
Wattage
60
13
Socket Type
Medium E26
GU-24
for product options and specifications.
SEE TABLE
1
Bulb Type:
SEE TABLE
SEE TABLE
DRY
SEE TABLE
Voltage:
4.5
Mounting Detail
120
4.5
4/7/2016
2.75
4.0
MOUNTS DIRECTLY TO J-BOX
B
