Page 1

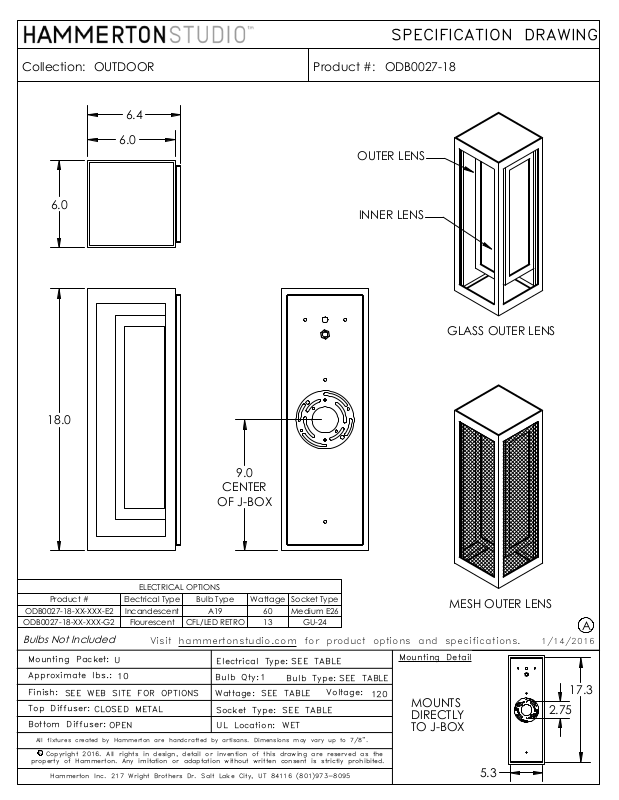

SPECIFICATION DRAWING
Collection:
6.0
OUTDOOR
6.4
6.0
Product #:
OUTER LENS
INNER LENS
ODB0027-18
GLASS OUTER LENS
18.0
9.0
CENTER
OF J-BOX
ELECTRICAL OPTIONS
Product #
ODB0027-18-XX-XXX-E2
ODB0027-18-XX-XXX-G2
Bulbs Not Included
Mounting Packet:
Approximate lbs.:
Finish:
SEE WEB SITE FOR OPTIONS
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
C
Copyright 2016. All rights in design, detail or invention of this drawing are reserved as the
property of Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
Electrical Type
Incandescent
Flourescent
Visit
U
10
CLOSED METAL
OPEN
Bulb Type
A19
CFL/LED RETRO
hammertonstudio.com
Electrical Type:
Bulb Qty:
Wattage:
Socket Type:
UL Location:
Wattage
60
13
1
SEE TABLE
SEE TABLE
WET
Socket Type
Medium E26
GU-24
for product options and specifications.
SEE TABLE
Bulb Type:
SEE TABLE
Voltage:
Mounting Detail
120
MESH OUTER LENS
MOUNTS
DIRECTLY
TO J-BOX
A
1/14/2016
17.3
2.75
5.3
