Hammerton Studio HMSO1668 Specifications

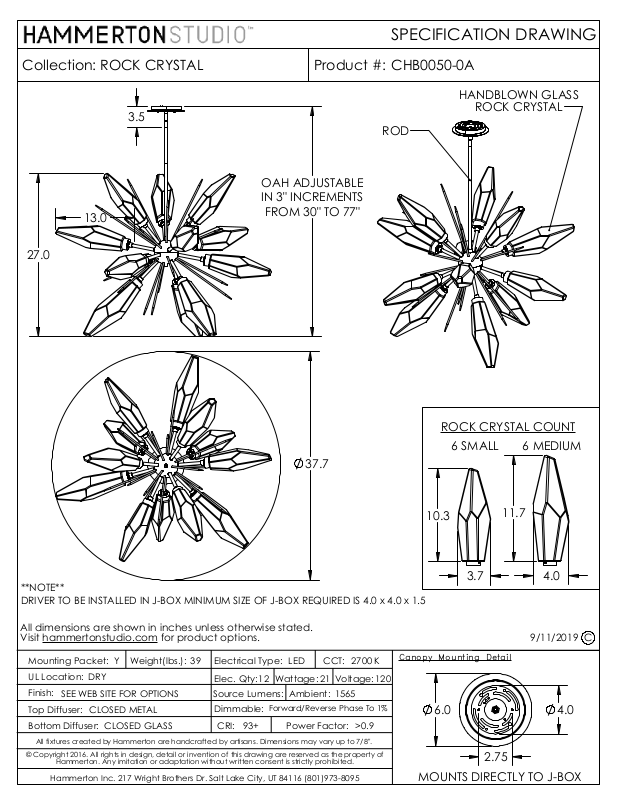

SPECIFICATION DRAWING
Collection:
13.0
27.0
ROCK CRYSTAL
3.5
Product #:
OAH ADJUSTABLE IN 3" INCREMENTS
FROM 30" TO 77"
CHB0050-0A
HANDBLOWN GLASS
ROD
37.7
**NOTE** DRIVER TO BE INSTALLED IN J-BOX MINIMUM SIZE OF J-BOX REQUIRED IS 4.0 x 4.0 x 1.5
All dimensions are shown in inches unless otherwise stated. Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
SEE WEB SITE FOR OPTIONS
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2016. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
Y
DRY
CLOSED METAL
CLOSED GLASS
for product options.
Weight(lbs.):
39
Electrical Type:
Elec. Qty:
Source Lumens:
Dimmable:
CRI:
Forward/Reverse Phase To 1%
93+
LED
Wattage:
Ambient:
Power Factor:
CCT:
2112
Voltage:
1565
2700 K
>0.9
Canopy Mounting Detail
120
ROCK CRYSTAL COUNT
6 SMALL
10.3
3.7
6.0
6 MEDIUM
11.7
4.0
9/11/2019
4.0
2.75
MOUNTS DIRECTLY TO J-BOX
C
