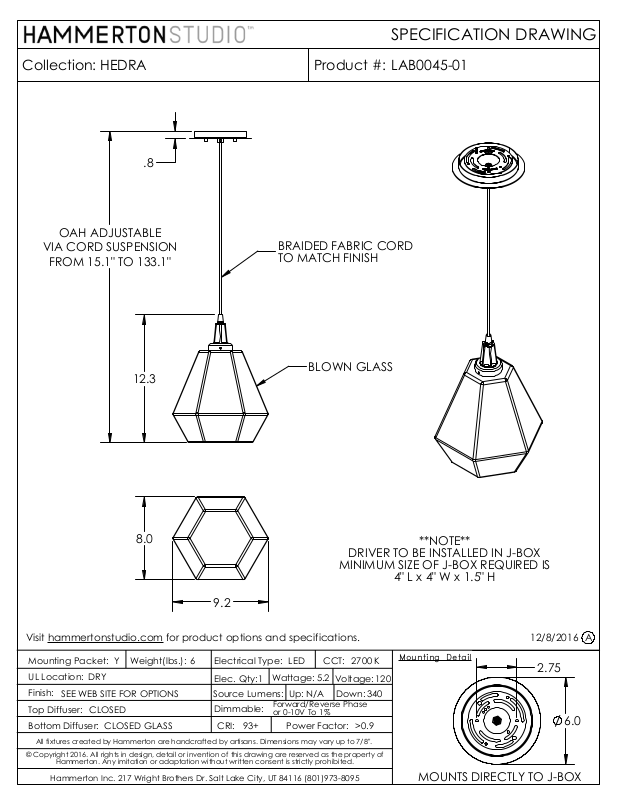

SPECIFICATION DRAWING
Collection:
HEDRA
OAH ADJUSTABLE
VIA CORD SUSPENSION
FROM 15.1" TO 133.1"
.8
Product #:
LAB0045-01
BRAIDED FABRIC CORD
TO MATCH FINISH
BLOWN GLASS
12.3
8.0
DRIVER TO BE INSTALLED IN J-BOX
MINIMUM SIZE OF J-BOX REQUIRED IS
9.2
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2016. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
DRY
SEE WEB SITE FOR OPTIONS
CLOSED
Weight(lbs.):
Y
CLOSED GLASS
for product options and specifications.
6
Electrical Type:
Elec. Qty:
Source Lumens:
Dimmable:
CRI:
LED
Wattage:
1
Up:
Forward/Reverse Phase
or 0-10V To 1%
93+
Power Factor:
N/A
CCT:
5.2
Voltage:
Down:
2700 K
340
>0.9
**NOTE**
4" L x 4" W x 1.5" H
Mounting Detail
120
MOUNTS DIRECTLY TO J-BOX
12/8/2016
2.75
6.0
A
