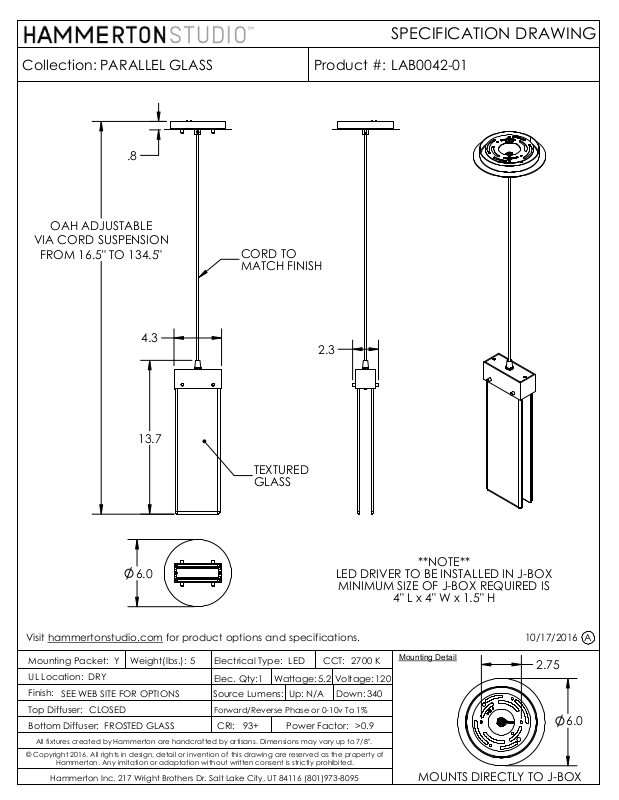

SPECIFICATION DRAWING
Collection: Product #:
PARALLEL GLASS
.8
OAH ADJUSTABLE
VIA CORD SUSPENSION
FROM 16.5" TO 134.5"
CORD TO
MATCH FINISH
4.3
2.3
LAB0042-01
13.7
TEXTURED
GLASS
6.0
LED DRIVER TO BE INSTALLED IN J-BOX
MINIMUM SIZE OF J-BOX REQUIRED IS
Visit hammertonstudio.com
Mounting Packet: Weight(lbs.):
UL Location:
Finish:
Bottom Diffuser:
© Copyright 2016. All rights in design, detail or invention of this drawing are reserved as the property of
SEE WEB SITE FOR OPTIONS
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
Y
DRY
CLOSEDTop Diffuser:
FROSTED GLASS
for product options and specifications.
5
Electrical Type:
Elec. Qty: Voltage:
Forward/Reverse Phase or 0-10v To 1%
CRI:
LED
Wattage:
Power Factor:
CCT:
2700 K
Down:Source Lumens: Up:
N/A 340
1205.21
>0.993+
**NOTE**
4" L x 4" W x 1.5" H
Mounting Detail
MOUNTS DIRECTLY TO J-BOX
10/17/2016
2.75
6.0
A
