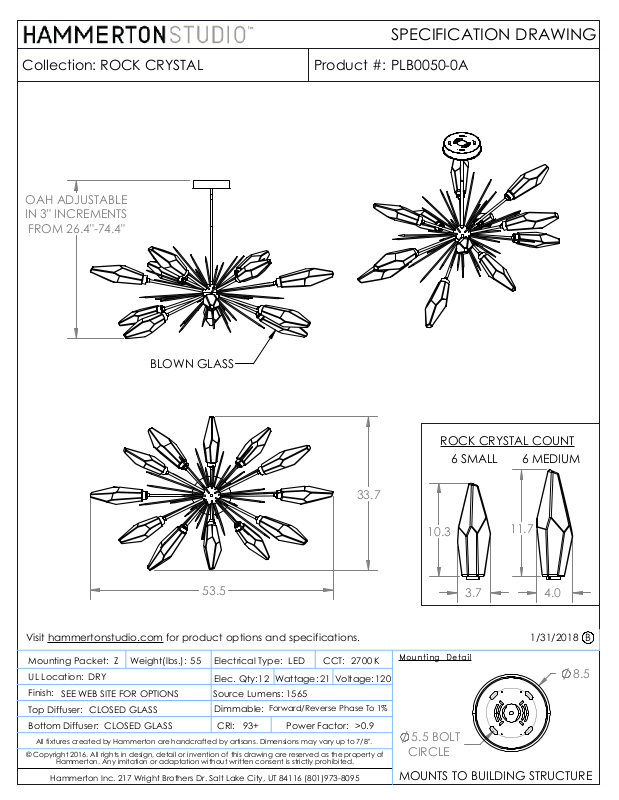

SPECIFICATION DRAWING
Collection:
ROCK CRYSTAL
OAH ADJUSTABLE
IN 3" INCREMENTS
FROM 26.4"-74.4"
Product #:
PLB0050-0A
BLOWN GLASS
33.7
53.5
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2016. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
DRY
SEE WEB SITE FOR OPTIONS
CLOSED GLASS
Weight(lbs.):
Z
CLOSED GLASS
for product options and specifications.
55
Electrical Type:
Elec. Qty:
Source Lumens:
Dimmable:
CRI:
LED
Wattage:
1565
Forward/Reverse Phase To 1%
93+
Power Factor:
CCT:
2112
Voltage:
2700 K
>0.9
ROCK CRYSTAL COUNT
6 SMALL
10.3
6 MEDIUM
11.7
3.7
1/31/2018
Mounting Detail
120
5.5 BOLT
CIRCLE
MOUNTS TO BUILDING STRUCTURE
4.0
B
8.5
