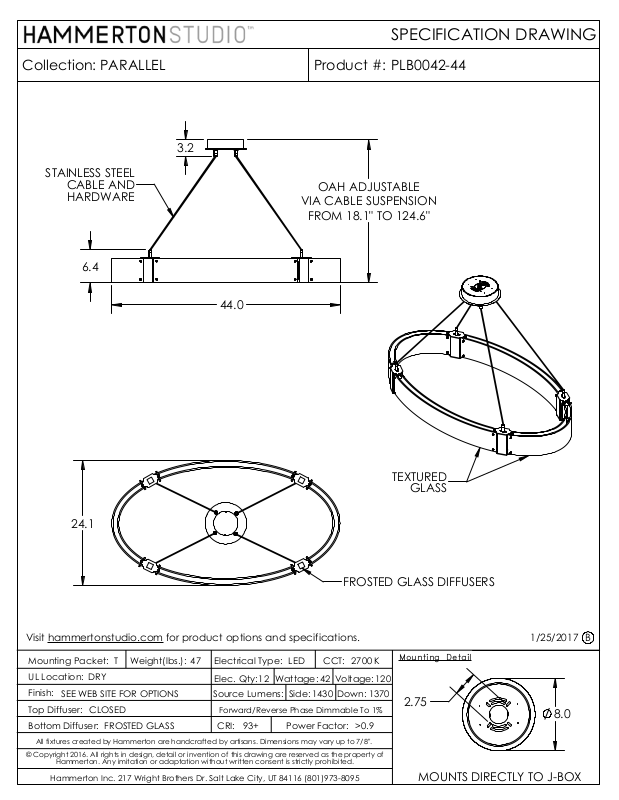

SPECIFICATION DRAWING
Collection:
STAINLESS STEEL
CABLE AND
HARDWARE
6.4
PARALLEL
3.2
44.0
Product #:
PLB0042-44
OAH ADJUSTABLE
VIA CABLE SUSPENSION
FROM 18.1" TO 124.6"
24.1
FROSTED GLASS DIFFUSERS
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2016. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
DRY
SEE WEB SITE FOR OPTIONS
CLOSED
Weight(lbs.):
T
FROSTED GLASS
for product options and specifications.
47
Electrical Type:
Elec. Qty:
Source Lumens:
Forward/Reverse Phase Dimmable To 1%
CRI:
93+
LED
Wattage:
Side:
Power Factor:
CCT:
4212
Voltage:
Down:
1430 1370
2700 K
>0.9
TEXTURED
GLASS
Mounting Detail
120
2.75
1/25/2017
8.0
MOUNTS DIRECTLY TO J-BOX
B
