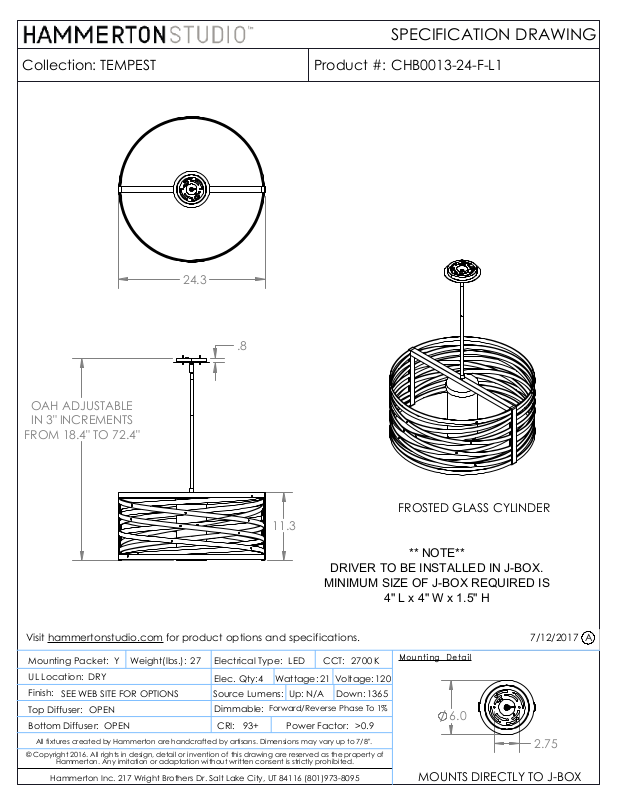

SPECIFICATION DRAWING
Collection:
TEMPEST
24.3
.8
Product #:
CHB0013-24-F-L1
OAH ADJUSTABLE
IN 3" INCREMENTS
FROM 18.4" TO 72.4"
11.3
DRIVER TO BE INSTALLED IN J-BOX.
MINIMUM SIZE OF J-BOX REQUIRED IS
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2016. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
DRY
SEE WEB SITE FOR OPTIONS
OPEN
Y
OPEN
Weight(lbs.):
for product options and specifications.
27
Electrical Type:
Elec. Qty:
Source Lumens:
Dimmable:
CRI:
LED
Wattage:
4
Up:
Forward/Reverse Phase To 1%
93+
Power Factor:
N/A
CCT:
21
Voltage:
Down:
2700 K
>0.9
FROSTED GLASS CYLINDER
** NOTE**
4" L x 4" W x 1.5" H
Mounting Detail
120
1365
MOUNTS DIRECTLY TO J-BOX
6.0
7/12/2017
2.75
A
