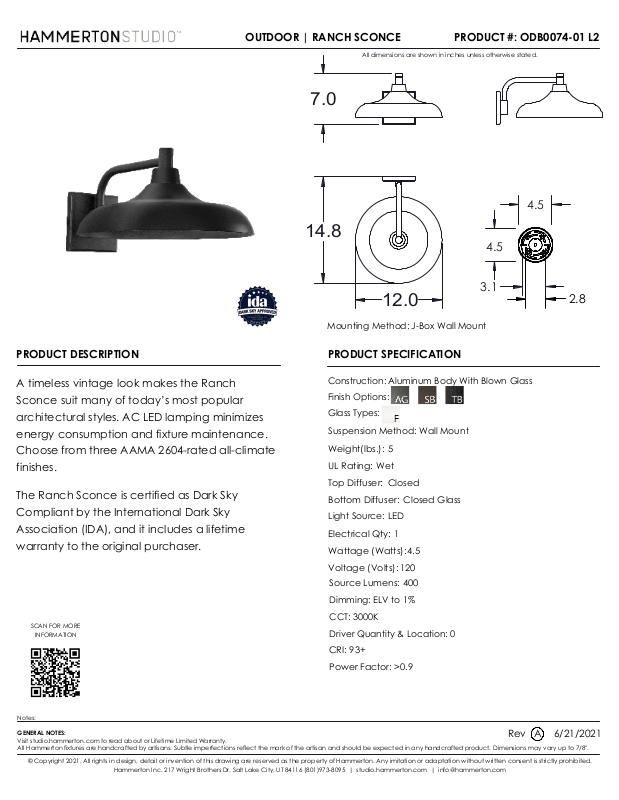

OUTDOOR | RANCH SCONCE
All dimensions are shown in inches unless otherwise stated.
7.0
14.8
12.0
PRODUCT #:
4.5
3.1
ODB0074-01 L2
4.5
2.8
PRODUCT DESCRIPTION
A timeless vintage look makes the Ranch
Sconce suit many of today’s most popular
architectural styles. AC LED lamping minimizes
energy consumption and fixture maintenance.
Choose from three AAMA 2604-rated all-climate
finishes.
The Ranch Sconce is certified as Dark Sky
Compliant by the International Dark Sky
Association (IDA), and it includes a lifetime
warranty to the original purchaser.
SCAN FOR MORE
INFORMATION
Mounting Method:
J-Box Wall Mount
PRODUCT SPECIFICATION
Construction:
Finish Options:
Glass Types:
Suspension Method:
Weight(lbs.):
UL Rating:
Top Diffuser:
Bottom Diffuser:
Light Source:
Electrical Qty:
Wattage (Watts):
Voltage (Volts):
Source Lumens:
Dimming:
CCT:
3000K
Driver Quantity & Location:
CRI: 93+
Power Factor: >0.9
Aluminum Body With Blown Glass
Wall Mount
5
Wet
Closed
Closed Glass
LED
1
4.5
120
400
ELV to 1%
0
Notes:
GENERAL NOTES:
Visit studio.hammerton.com to read about or Lifetime Limited Warranty.
All Hammerton fixtures are handcrafted by artisans. Subtle imperfections reflect the mark of the artisan and should be expected in any handcrafted product. Dimensions may vary up to 7/8".
© Copyright 2021. All rights in design, detail or invention of this drawing are reserved as the property of Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095 | studio.hammerton.com | info@hammerton.com
Rev
A
6/21/2021
