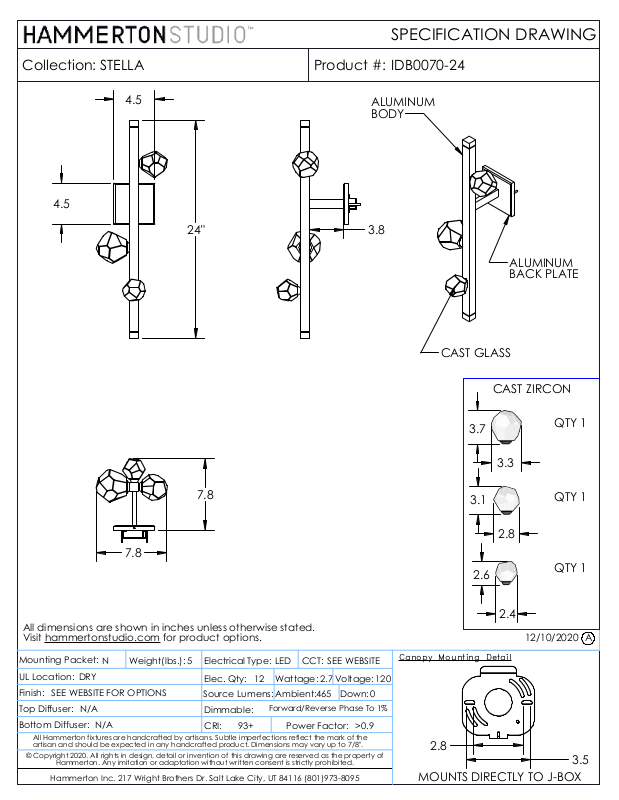

SPECIFICATION DRAWING
Collection:
4.5
STELLA
4.5
24"
Product #:
ALUMINUM
BODY
3.8
IDB0070-24
ALUMINUM
BACK PLATE
CAST GLASS
7.8
7.8
All dimensions are shown in inches unless otherwise stated.
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
SEE WEBSITE FOR OPTIONS
Top Diffuser:
Bottom Diffuser:
All Hammerton fixtures are handcrafted by artisans. Subtle imperfections reflect the mark of the
artisan and should be expected in any handcrafted product. Dimensions may vary up to 7/8".
© Copyright 2020. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
DRY
N/A
N
N/A
Weight(lbs.):
for product options.
5
Electrical Type:
Elec. Qty:
Source Lumens:
Dimmable:
CRI:
93+
CCT:
LED
Wattage:
12
Ambient:
Forward/Reverse Phase To 1%
Power Factor:
SEE WEBSITE
2.7
Voltage:
465
Down:
>0.9
Canopy Mounting Detail
120
0
2.8
MOUNTS DIRECTLY TO J-BOX
CAST ZIRCON
3.7
3.3
3.1
2.8
2.6
2.4
QTY 1
QTY 1
QTY 1
12/10/2020
3.5
A
