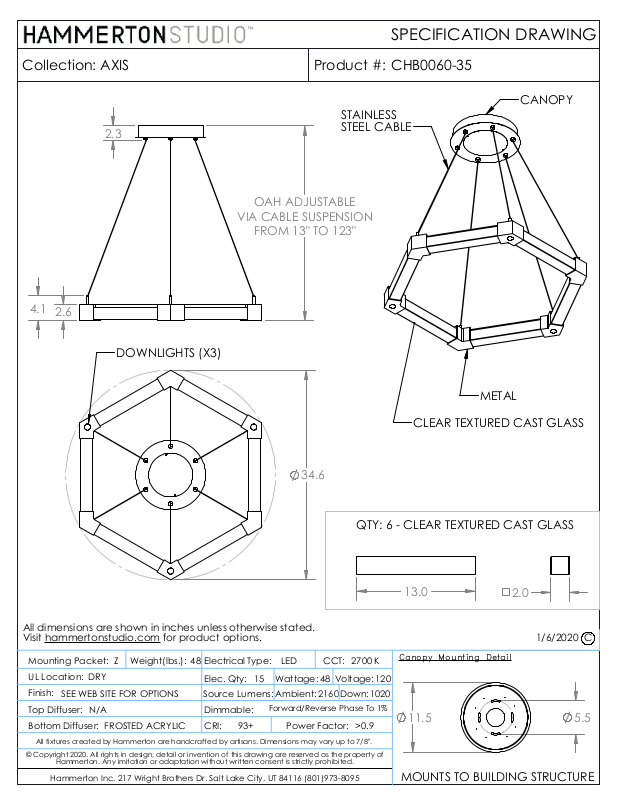

SPECIFICATION DRAWING
Collection:
4.1
2.6
AXIS
2.3
DOWNLIGHTS (X3)
Product #:
STAINLESS
STEEL CABLE
OAH ADJUSTABLE
VIA CABLE SUSPENSION
FROM 13" TO 123"
CHB0060-35
CANOPY
34.6
QTY: 6 - CLEAR TEXTURED CAST GLASS
All dimensions are shown in inches unless otherwise stated.
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
SEE WEB SITE FOR OPTIONS
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2020. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
Z
DRY
N/A
FROSTED ACRYLIC
for product options.
Weight(lbs.):
48
Electrical Type:
Elec. Qty:
Source Lumens:
Dimmable:
CRI:
93+
LED
Wattage:
Ambient:
Forward/Reverse Phase To 1%
Power Factor:
CCT:
4815
2160
2700 K
Voltage:
Down:
>0.9
CLEAR TEXTURED CAST GLASS
13.0
Canopy Mounting Detail
120
1020
11.5
MOUNTS TO BUILDING STRUCTURE
METAL
2.0
1/6/2020
C
5.5
