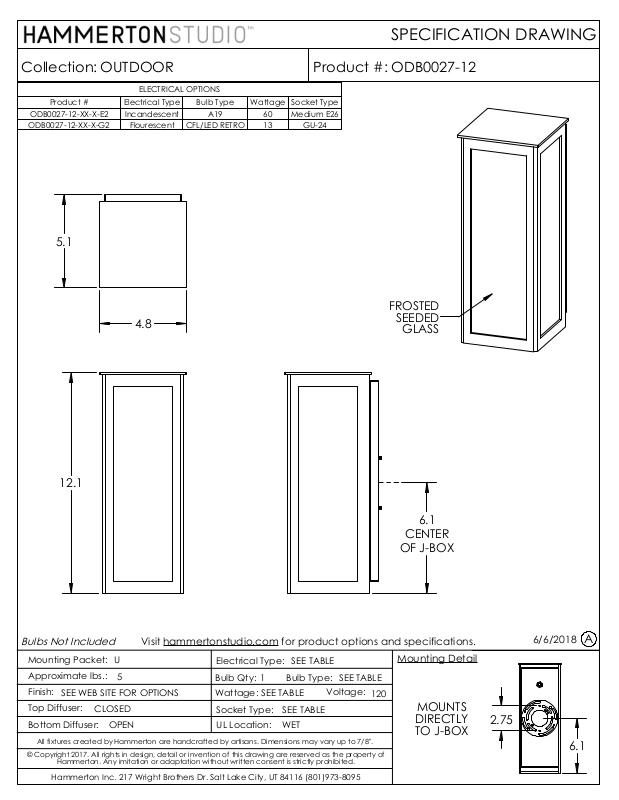

SPECIFICATION DRAWING
Collection:
Product #
ODB0027-12-XX-X-E2
ODB0027-12-XX-X-G2
5.1
OUTDOOR
ELECTRICAL OPTIONS
Electrical Type
Incandescent
Flourescent
4.8
Bulb Type
A19
CFL/LED RETRO
Wattage
60
13
Product #:
Socket Type
Medium E26
GU-24
ODB0027-12
FROSTED
SEEDED
GLASS
12.1
Visit
Bulbs Not Included
Mounting Packet:
Approximate lbs.:
Finish:
Top Diffuser:
Bottom Diffuser:
© Copyright 2017. All rights in design, detail or invention of this drawing are reserved as the property of
SEE WEB SITE FOR OPTIONS
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
U
5
CLOSED
OPEN
hammertonstudio.com
Electrical Type:
Bulb Qty:
Wattage:
Socket Type:
UL Location:
for product options and specifications.
SEE TABLE
1
Bulb Type:
SEE TABLE
SEE TABLE
WET
SEE TABLE
Voltage:
CENTER
OF J-BOX
Mounting Detail
120
6.1
MOUNTS
DIRECTLY
TO J-BOX
2.75
6/6/2018
6.1
A
