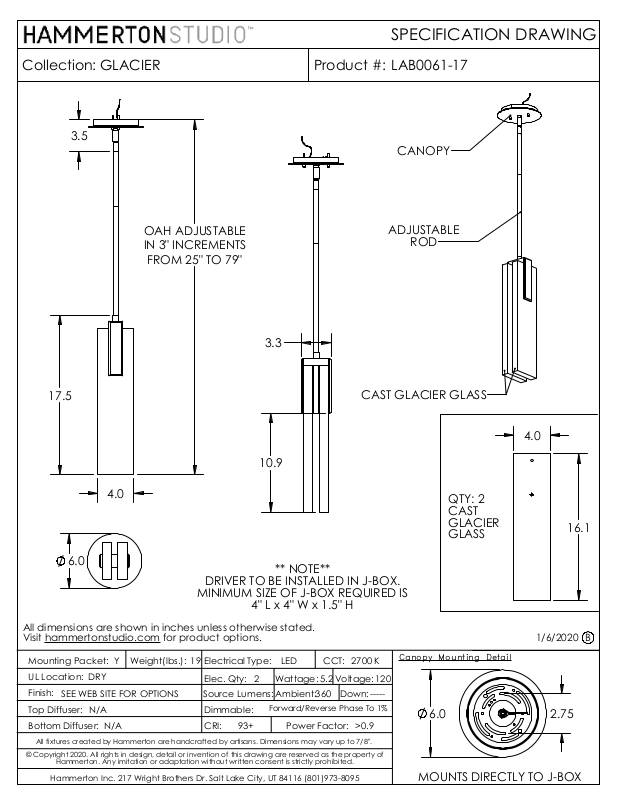

SPECIFICATION DRAWING
Collection:
3.5
GLACIER
OAH ADJUSTABLE
IN 3" INCREMENTS
FROM 25" TO 79"
3.3
Product #:
LAB0061-17
CANOPY
ADJUSTABLE
ROD
17.5
10.9
4.0
6.0
** NOTE**
DRIVER TO BE INSTALLED IN J-BOX.
MINIMUM SIZE OF J-BOX REQUIRED IS
4" L x 4" W x 1.5" H
All dimensions are shown in inches unless otherwise stated.
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
SEE WEB SITE FOR OPTIONS
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2020. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
Y
DRY
N/A
N/A
for product options.
Weight(lbs.):
19
Electrical Type:
Elec. Qty:
Source Lumens:
Dimmable:
CRI:
2
93+
LED
Wattage:
Ambient:
Forward/Reverse Phase To 1%
Power Factor:
CCT:
5.2
360
2700 K
Voltage:
Down:
>0.9
CAST GLACIER GLASS
QTY: 2
CAST
GLACIER
GLASS
Canopy Mounting Detail
120
-----
6.0
MOUNTS DIRECTLY TO J-BOX
4.0
1/6/2020
16.1
B
2.75
