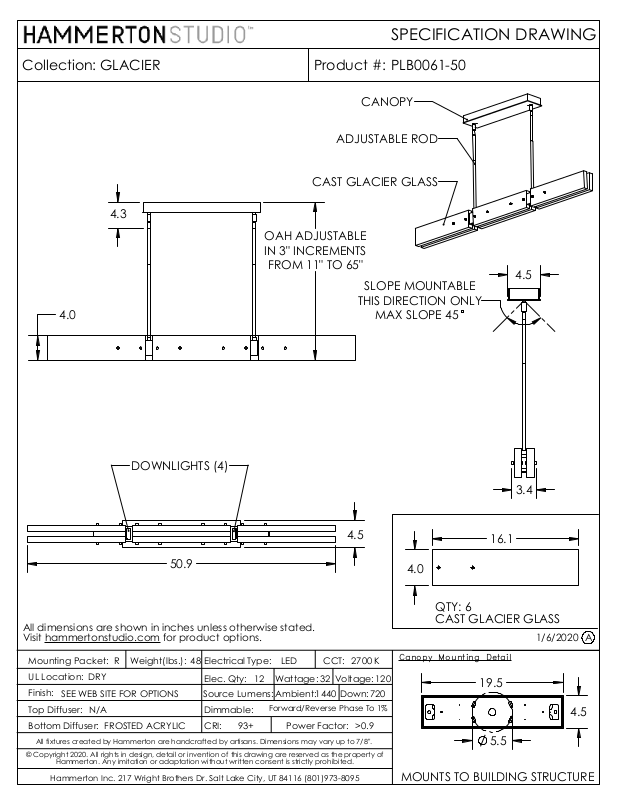

SPECIFICATION DRAWING
Collection:
4.0
GLACIER
4.3
Product #:
ADJUSTABLE ROD
CAST GLACIER GLASS
OAH ADJUSTABLE
IN 3" INCREMENTS
FROM 11" TO 65"
THIS DIRECTION ONLY
PLB0061-50
CANOPY
4.5
SLOPE MOUNTABLE
MAX SLOPE 45
DOWNLIGHTS (4)
4.5
50.9
All dimensions are shown in inches unless otherwise stated.
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
SEE WEB SITE FOR OPTIONS
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2020. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
R
DRY
N/A
FROSTED ACRYLIC
for product options.
Weight(lbs.):
48
Electrical Type:
Elec. Qty:
Source Lumens:
Dimmable:
CRI:
93+
LED
Wattage:
Ambient:
Forward/Reverse Phase To 1%
Power Factor:
CCT:
3212
1440
2700 K
Voltage:
Down:
>0.9
4.0
QTY: 6
CAST GLACIER GLASS
Canopy Mounting Detail
120
720
MOUNTS TO BUILDING STRUCTURE
16.1
19.5
5.5
3.4
1/6/2020
4.5
A
