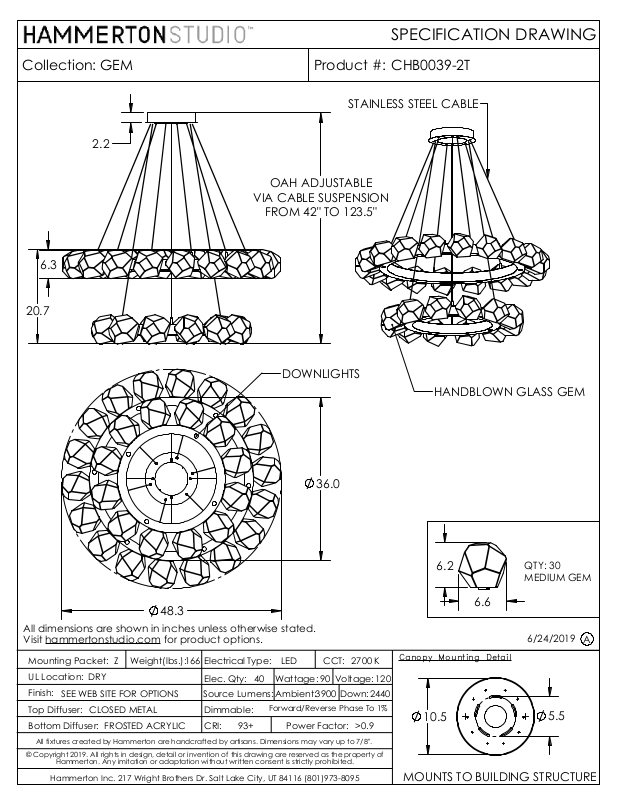

SPECIFICATION DRAWING
Collection:
6.3
20.7
GEM
2.2
Product #:
STAINLESS STEEL CABLE
OAH ADJUSTABLE
VIA CABLE SUSPENSION
FROM 42" TO 123.5"
CHB0039-2T
DOWNLIGHTS
36.0
48.3
All dimensions are shown in inches unless otherwise stated.
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
SEE WEB SITE FOR OPTIONS
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2019. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
Z
DRY
CLOSED METAL
FROSTED ACRYLIC
for product options.
Weight(lbs.):
166
Electrical Type:
Elec. Qty:
Source Lumens:
Dimmable:
CRI:
93+
LED
Wattage:
Ambient:
Forward/Reverse Phase To 1%
Power Factor:
CCT:
2700 K
9040
Voltage:
3900 2440
Down:
>0.9
HANDBLOWN GLASS GEM
6.2
QTY: 30
MEDIUM GEM
6.6
6/24/2019
Canopy Mounting Detail
120
10.5
MOUNTS TO BUILDING STRUCTURE
A
5.5
