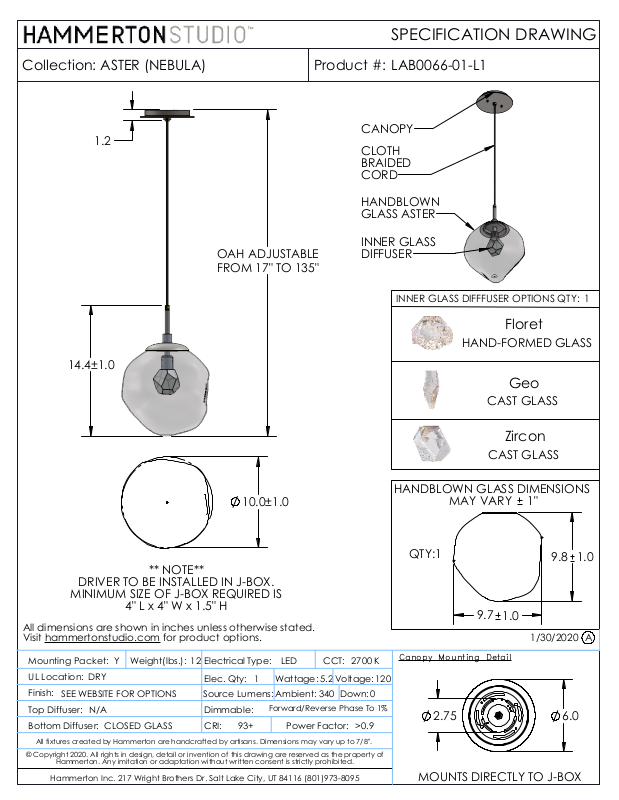

SPECIFICATION DRAWING
Collection:
ASTER (NEBULA)
1.2
OAH ADJUSTABLE
FROM 17" TO 135"
Product #:
CANOPY
CLOTH
BRAIDED
CORD
HANDBLOWN
GLASS ASTER
INNER GLASS
DIFFUSER
LAB0066-01-L1
INNER GLASS DIFFFUSER OPTIONS QTY:
Floret
HAND-FORMED GLASS
1
14.4±1.0
10.0±1.0
** NOTE**
DRIVER TO BE INSTALLED IN J-BOX.
MINIMUM SIZE OF J-BOX REQUIRED IS
4" L x 4" W x 1.5" H
All dimensions are shown in inches unless otherwise stated.
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
SEE WEBSITE FOR OPTIONS
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2020. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
Y
DRY
N/A
CLOSED GLASS
for product options.
Weight(lbs.):
12
Electrical Type:
Elec. Qty:
Source Lumens:
Dimmable:
CRI:
1
93+
LED
Wattage:
Ambient:
Forward/Reverse Phase To 1%
Power Factor:
CCT:
5.2
340
2700 K
Voltage:
Down:
>0.9
Geo
CAST GLASS
Zircon
CAST GLASS
HANDBLOWN GLASS DIMENSIONS
1"
1.0
1/30/2020
QTY:1
Canopy Mounting Detail
120
0
2.75
MOUNTS DIRECTLY TO J-BOX
MAY VARY
9.7
9.8
1.0
A
6.0
