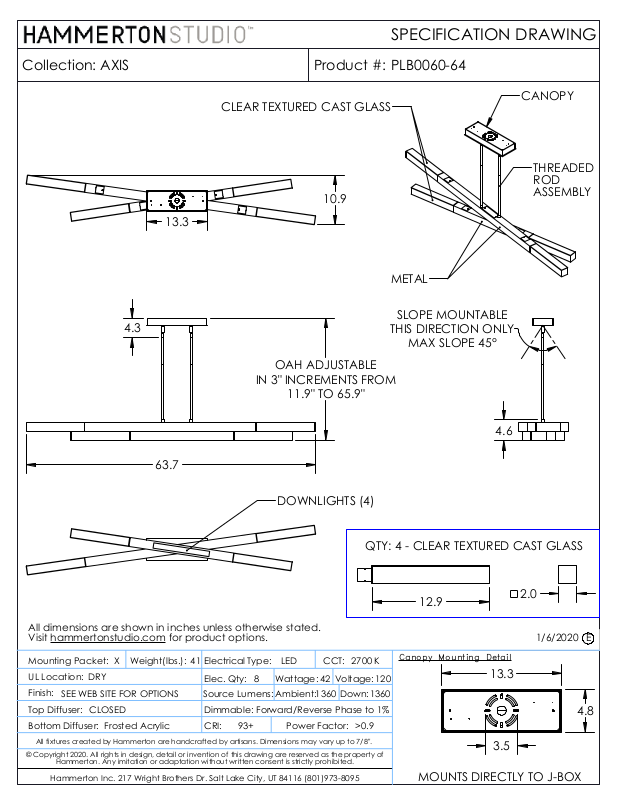

SPECIFICATION DRAWING
Collection:
AXIS
4.3
13.3
Product #:
CLEAR TEXTURED CAST GLASS
10.9
PLB0060-64
CANOPY
THREADED
ROD
ASSEMBLY
METAL
SLOPE MOUNTABLE
THIS DIRECTION ONLY
MAX SLOPE 45°
OAH ADJUSTABLE
IN 3" INCREMENTS FROM
11.9" TO 65.9"
63.7
DOWNLIGHTS (4)
QTY: 4 - CLEAR TEXTURED CAST GLASS
All dimensions are shown in inches unless otherwise stated.
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2020. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
DRY
SEE WEB SITE FOR OPTIONS
CLOSED
Weight(lbs.):
X
Frosted Acrylic
for product options.
41
Electrical Type:
Elec. Qty:
Source Lumens:
Dimmable: Forward/Reverse Phase to 1%
CRI:
8
93+
LED
Wattage:
Ambient:
1360 1360
Power Factor:
CCT:
42
Voltage:
2700 K
Down:
>0.9
12.9
Canopy Mounting Detail
120
MOUNTS DIRECTLY TO J-BOX
4.6
13.3
3.5
2.0
1/6/2020
E
4.8
