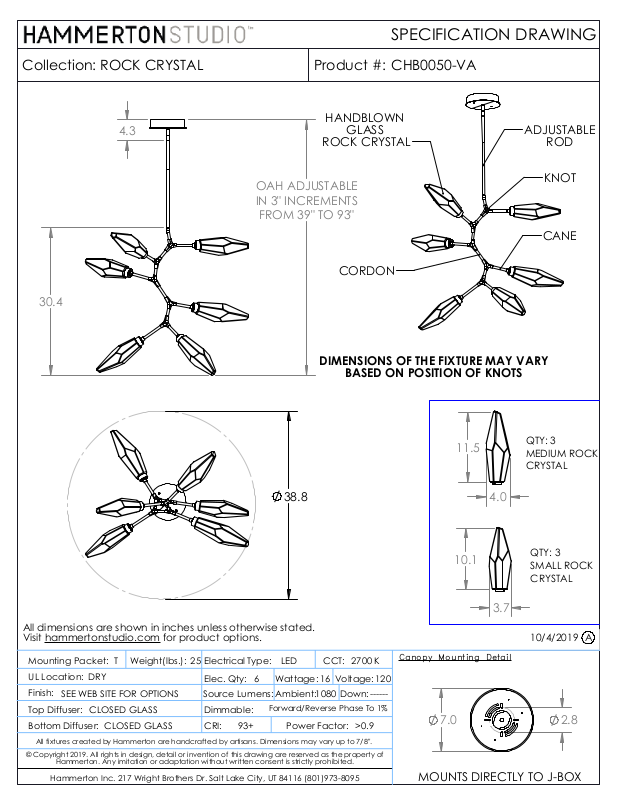

SPECIFICATION DRAWING
Collection:
30.4
ROCK CRYSTAL
4.3
Product #:
HANDBLOWN
GLASS
ROCK CRYSTAL
OAH ADJUSTABLE
IN 3" INCREMENTS
FROM 39" TO 93"
CORDON
CHB0050-VA
ADJUSTABLE
ROD
KNOT
CANE
38.8
All dimensions are shown in inches unless otherwise stated.
Visit
hammertonstudio.com
for product options.
DIMENSIONS OF THE FIXTURE MAY VARY
BASED ON POSITION OF KNOTS
11.5
QTY: 3
MEDIUM ROCK
CRYSTAL
4.0
10.1
QTY: 3
SMALL ROCK
CRYSTAL
3.7
10/4/2019
A
Mounting Packet:
UL Location:
Finish:
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2019. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
DRY
SEE WEB SITE FOR OPTIONS
CLOSED GLASS
Weight(lbs.):
T
CLOSED GLASS
25
Electrical Type:
Elec. Qty:
Source Lumens:
Dimmable:
CRI:
93+
LED
Wattage:
6
Ambient:
Forward/Reverse Phase To 1%
Power Factor:
CCT:
16
1080
Voltage:
Down:
2700 K
>0.9
Canopy Mounting Detail
120
------
7.0
MOUNTS DIRECTLY TO J-BOX
2.8
