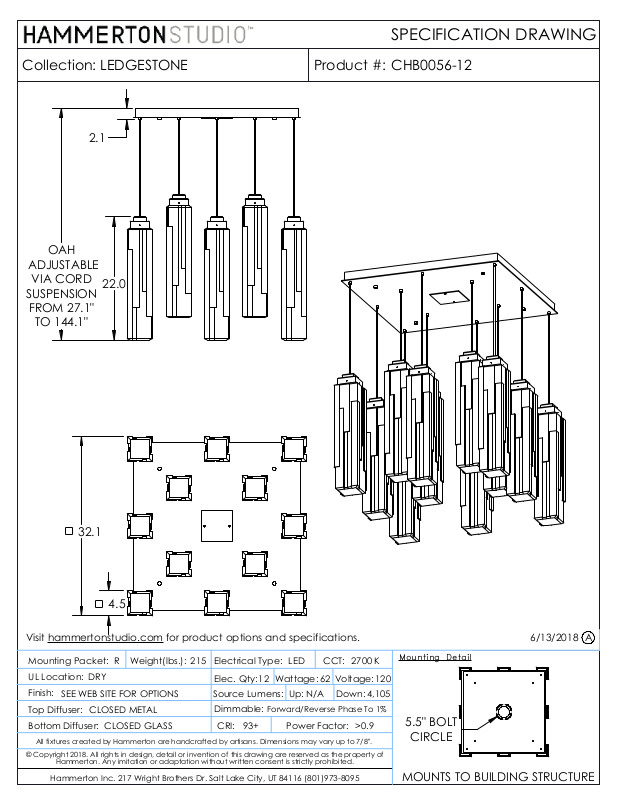

SPECIFICATION DRAWING
Collection:
2.1
OAH
ADJUSTABLE
VIA CORD
SUSPENSION
FROM 27.1"
TO 144.1"
LEDGESTONE
22.0
Product #:
CHB0056-12
32.1
4.5
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2018. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
DRY
SEE WEB SITE FOR OPTIONS
CLOSED METAL
Weight(lbs.):
R
CLOSED GLASS
for product options and specifications.
215
Electrical Type:
Elec. Qty:
Source Lumens:
Dimmable:
CRI:
LED
Wattage:
Up:
Forward/Reverse Phase To 1%
93+
Power Factor:
N/A
CCT:
6212
Voltage:
Down:
2700 K
4,105
>0.9
6/13/2018
Mounting Detail
120
5.5" BOLT
CIRCLE
MOUNTS TO BUILDING STRUCTURE
A
