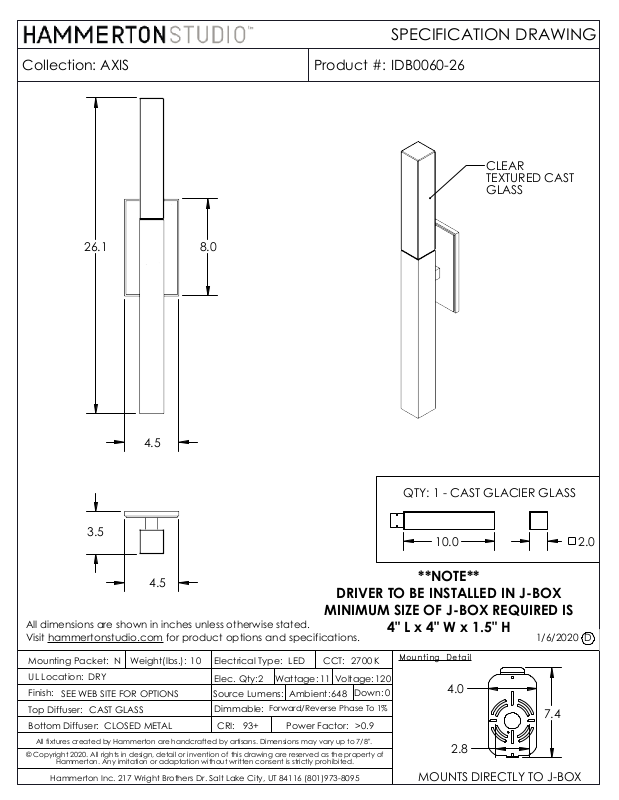

SPECIFICATION DRAWING
Collection:
26.1
AXIS
8.0
Product #:
IDB0060-26
CLEAR
TEXTURED CAST
GLASS
4.5
3.5
4.5
DRIVER TO BE INSTALLED IN J-BOX
MINIMUM SIZE OF J-BOX REQUIRED IS
All dimensions are shown in inches unless otherwise stated.
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2020. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
DRY
SEE WEB SITE FOR OPTIONS
CAST GLASS
Weight(lbs.):
N
CLOSED METAL
for product options and specifications.
10
Electrical Type:
Elec. Qty:
Source Lumens:
Dimmable:
CRI:
LED
Wattage:
2
Ambient:
Forward/Reverse Phase To 1%
93+
Power Factor:
CCT:
11
Voltage:
648
2700 K
Down:
>0.9
QTY: 1 - CAST GLACIER GLASS
10.0
**NOTE**
4" L x 4" W x 1.5" H
Mounting Detail
120
0
4.0
2.8
MOUNTS DIRECTLY TO J-BOX
1/6/2020
7.4
2.0
D
