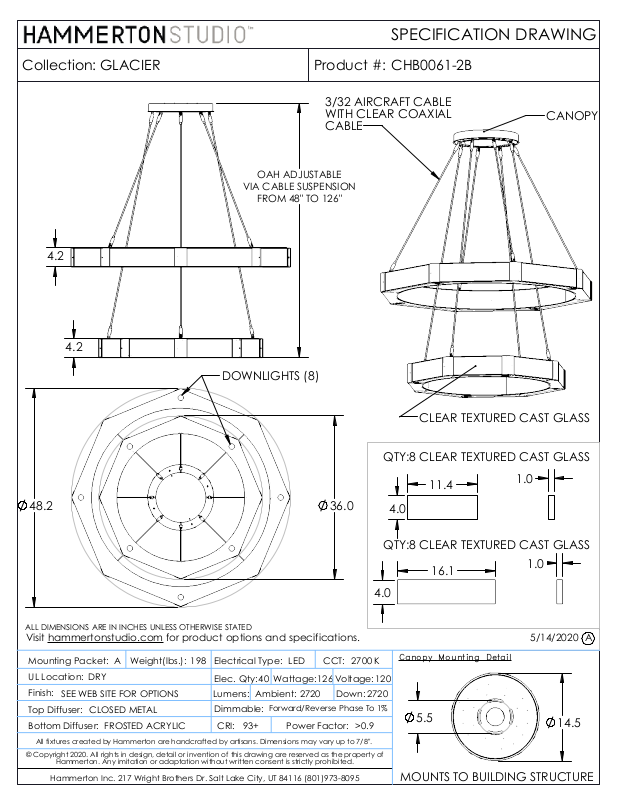

SPECIFICATION DRAWING
Collection:
4.2
4.2
GLACIER
Product #:
3/32 AIRCRAFT CABLE
WITH CLEAR COAXIAL
CABLE
OAH ADJUSTABLE
VIA CABLE SUSPENSION
FROM 48" TO 126"
CHB0061-2B
CANOPY
DOWNLIGHTS (8)
48.2
ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE STATED
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2020. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
DRY
SEE WEB SITE FOR OPTIONS
CLOSED METAL
Weight(lbs.):
A
FROSTED ACRYLIC
for product options and specifications.
198
Electrical Type:
Elec. Qty:
Lumens:
Dimmable:
CRI:
Ambient:
93+
LED
Wattage:
40
Forward/Reverse Phase To 1%
Power Factor:
36.0
CCT:
Voltage:
2720 2720
Down:
4.0
2700 K
>0.9
CLEAR TEXTURED CAST GLASS
QTY:8 CLEAR TEXTURED CAST GLASS
11.4
1.0
4.0
QTY:8 CLEAR TEXTURED CAST GLASS
16.1
Canopy Mounting Detail
120126
5.5
1.0
5/14/2020
14.5
MOUNTS TO BUILDING STRUCTURE
A
