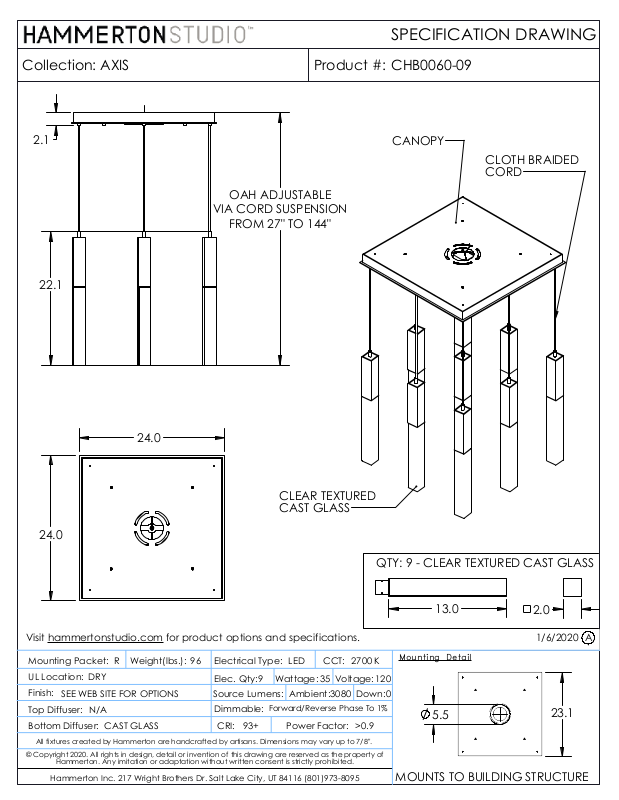

SPECIFICATION DRAWING
Collection:
2.1
22.1
AXIS
Product #:
OAH ADJUSTABLE
VIA CORD SUSPENSION
FROM 27" TO 144"
CHB0060-09
CANOPY
CLOTH BRAIDED
CORD
24.0
CLEAR TEXTURED
CAST GLASS
24.0
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2020. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
DRY
SEE WEB SITE FOR OPTIONS
N/A
Weight(lbs.):
R
CAST GLASS
for product options and specifications.
96
Electrical Type:
Elec. Qty:
Source Lumens:
Dimmable:
CRI:
LED
Wattage:
9
Ambient:3080
Forward/Reverse Phase To 1%
93+
Power Factor:
CCT:
35
Voltage:
2700 K
Down:
>0.9
QTY: 9 - CLEAR TEXTURED CAST GLASS
Mounting Detail
120
0
13.0
5.5
2.0
1/6/2020
23.1
MOUNTS TO BUILDING STRUCTURE
A
