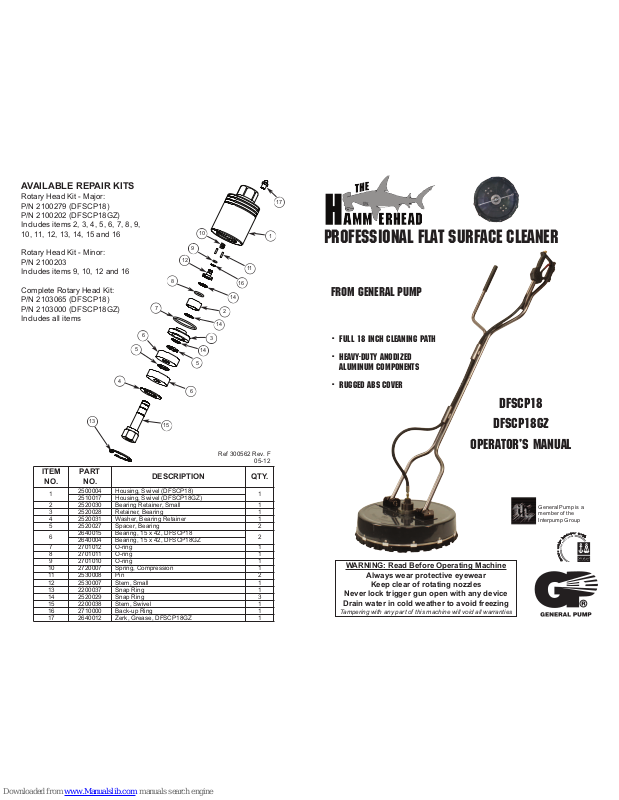

Page 1
PROFESSIONAL FLAT SURFACE CLEANER
8
DFSCP18
DFSCP18GZ
OPERATOR’S MANUAL
General Pump is a
member of the
Interpump Group
WARNING: Read Before Operating Machine
Always wear protective eyewear
Keep clear of rotating nozzles
Never lock trigger gun open with any device
Drain water in cold weather to avoid freezing
Tampering with any part of this machine will void all warranties
FROM GENERAL PUMP
• FULL 18 Inch CLEANING PATH
• HEAVY-DUTY ANODIZED
ALUMINUM COMPONENTS
• RUGGED ABS COVER
AVAILABLE REPAIR KITS
Rotary Head Kit - Major:
P/N 2100279 (DFSCP18)
P/N 2100202 (DFSCP18GZ)
Includes items 2, 3, 4, 5, 6, 7, 8, 9,
10, 11, 12, 13, 14, 15 and 16
Rotary Head Kit - Minor:
P/N 2100203
Includes items 9, 10, 12 and 16
Complete Rotary Head Kit:
P/N 2103065 (DFSCP18)
P/N 2103000 (DFSCP18GZ)
Includes all items

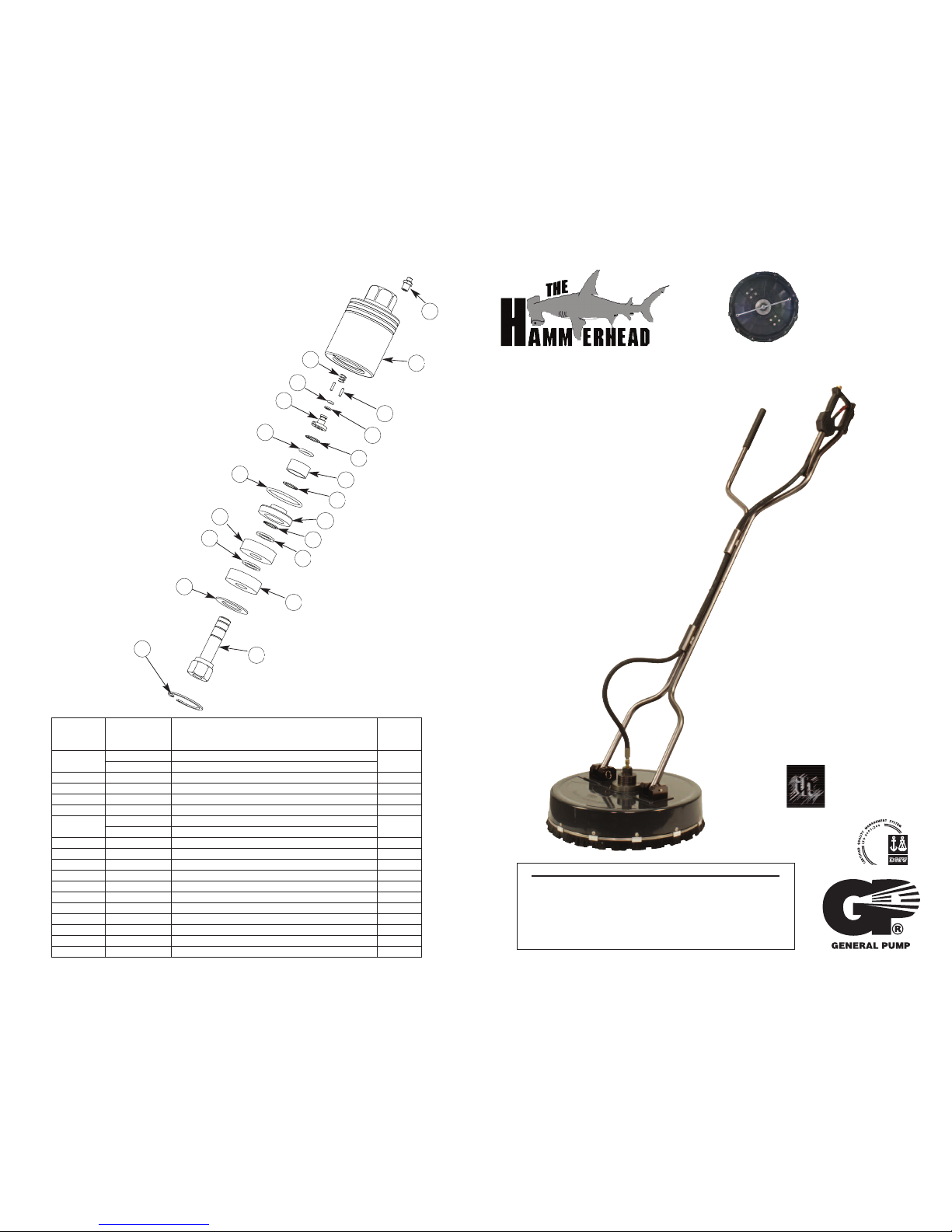

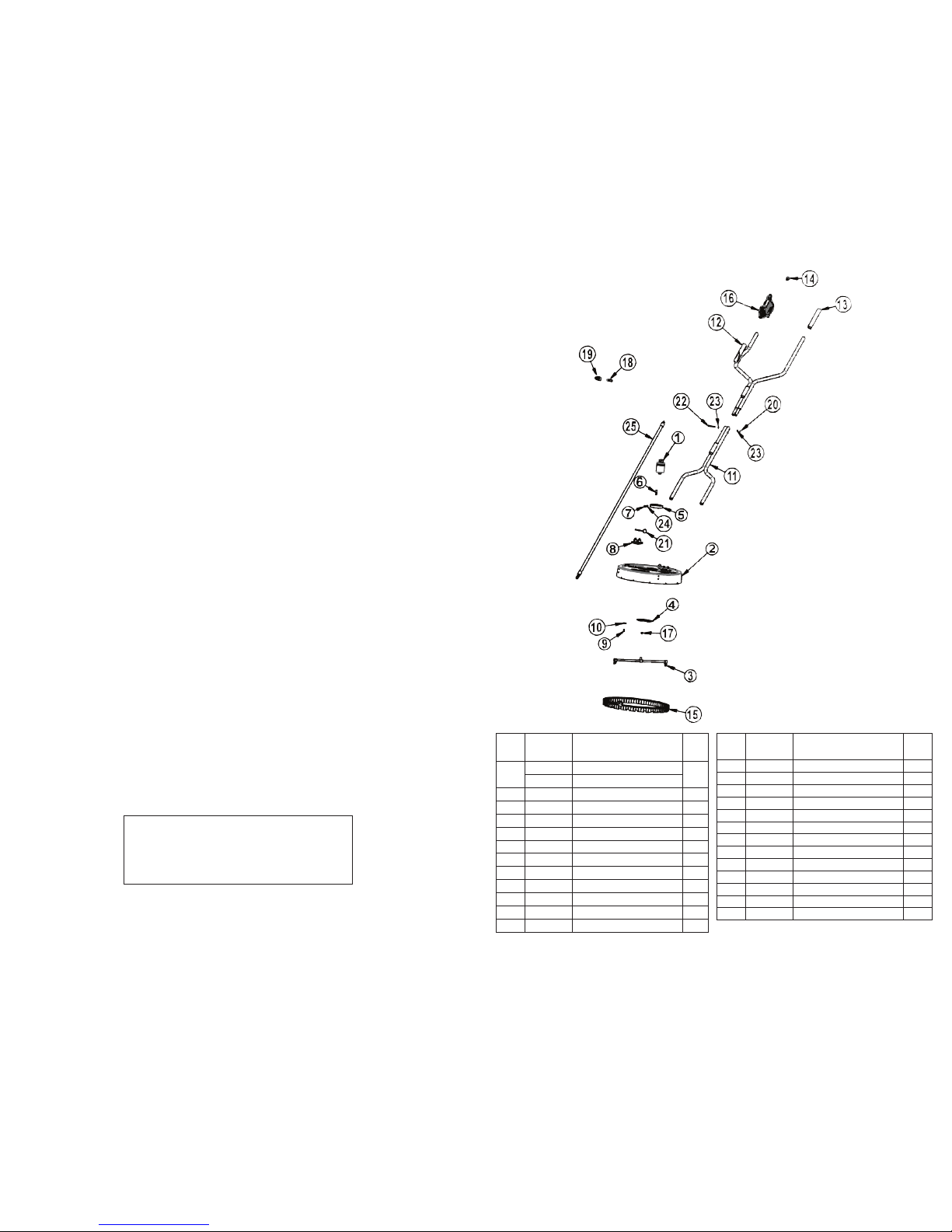

ITEM
NO.
PART
NO.
DESCRIPTION QTY.
1
2500004 Housing, Swivel (DFSCP18)
1
2510017 Housing, Swivel (DFSCP18GZ)
2 2520030 Bearing Retainer, Small 1
3 2520028 Retainer, Bearing 1
4 2520031 Washer, Bearing Retainer 1
5 2520027 Spacer, Bearing 2
6
2640015 Bearing, 15 x 42, DFSCP18
2
2640004 Bearing, 15 x 42, DFSCP18GZ
7 2701012 O-ring 1
8 2701011 O-ring 1
9 2701010 O-ring 1
10 2720007 Spring, Compression 1
11 2530008 Pin 2
12 2530007 Stem, Small 1
13 2200037 Snap Ring 1
14 2520029 Snap Ring 3
15 2200038 Stem, Swivel 1
16 2710000 Back-up Ring 1
17 2640012 Zerk, Grease, DFSCP18GZ 1
13
15
4
6
6
5
5
14
3
7
14
2
8
14
12
1
6
9
1
1
10
1
17
Ref 300562 Rev. F
05-12
Page 2
ITEM
NO.
PART
NO.
DESCRIPTION
QTY.
1
2103065 Swivel (DFSCP18)
1
2103000 Swivel (DFSCP18GZ)
2
2660119 Deck, GP
1
3
2530052 Arm, Rotary, Assy.
1
4
2630010 Plate, Retaining
1
5
2540023 Collar, Split
1
6
2200055
SHCS, M8 4
7
2200054
SHCS, M8 1
8
2540020 Block, Handle
2
9
2200047 Bolt, M6
8
10
2203406 Washer, M6
8
11
2540021 Handle, Lower
1
12
2540022 Handle, Upper
1
ITEM
NO.
PART
NO.
DESCRIPTION
QTY.
13
2660047 Grip, Handle
1
14
2660046 Plug, Handle
1
15
2660049 Brush Assy.
1
16
DG4000FSC
Gun, Flat Surface Cleaner
1
17 2200053
Nut, M8 x 1.25
4
18 D10009
Plug
1
19 D10004
Coupler, 3/8 x 3/8-M
1
20
2200026
Nut, M6, Nylok 2
21
2202010
Pin, 55mm, w/Ring, SST
2
22
2200058
HHCS 2
23
2200018 Washer, M6
4
24
2203507 Washer
1
25
2702026 Hose, FSC, 18”
1
General Pump
1174 Northland Drive • Mendota Heights, MN 55120
Phone: 651.686.2199 • Fax: 800.535.1745
www.generalpump.com • [email protected]
Ref 300562 Rev. F
05-12
Operating Pressures: 1,000 to 4,000 PSI
Max Flow: 8.0 GPM
Dimensions: 70” x 18.3” x 18.3”
Weight: 17 lbs.
Operating Instructions
1. Connect to Pressure Washer.
2. Turn water on and open valve. Open trigger gun for flow of water
through nozzles. Nozzles must have flowing spray. If not, remove
tips and clean; reassemble, making sure that groove of nozzle is
parallel to spray bar. Use thread sealant when installing nozzles.
3. Start Pressure Washer. The Hammerhead is ready for operation.
4. Walk slowly behind the Hammerhead cleaning as you go. If
striping occurs, slow down your pace.
5. Periodically check weep hole on bottom of swivel. Water will
seep slowly; if water shoots out, stop and replace seals. Swivel
assembly can be rebuilt.
6. For maximum effectiveness keep spray tips clean. If the machine
vibrates, stop and clean spray tips.
7. DFSCP18GZ ONLY: Use No. 2 general purpose waterproof lithium
grease. Grease swivel as needed depending on usage. Contact your
dealer with questions about greasing.
DO NOT ALLOW MACHINE TO REMAIN STATIONARY
ON SOFT SURFACES SUCH AS WOOD.
Caution: Striking any raised obstacle during operation will damage
machine. If contact does occur and results in vibration when
operating machine, STOP and replace spray bar. Continued
operation could result in serious injury or damage to machine.
