Wireless PCI Card
IEEE 802.11n 300Mbps
USER MANUAL
www.hamletcom.com
HNW300CI User Manual
Dear Customer,
thanks for choosing an Hamlet product. Please carefully follow the instructions for its use and
maintenance and, once this item has run its life span, we kindly ask You to dispose of it in an
environmentally friendly way, by putting it in the separate bins for electrical/electronic waste, or to
bring it back to your retailer who will collect it for free.
We inform You this product is manufactured with materials and components in compliance with
ROHS directives: 2002/95/CE; with RAEE Directives: 2003/96/CE, Italian Legislative Decree
2005/151 and below EEC Directives:
EN 62311: 2008
EN 300 328 (2006-10)
EN 301 489-1 (2008-04)
EN 301 489-17 (2008-04)
EN 55022: 2006+A1: 2007, Class B
EN 61000-4-2: 1995+A1: 1998+A2:2001
EN 61000-4-3: 2006+A1: 2008
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
Trademarks
All trademarks and company names mentioned in this manual are used for description purpose
only and remain property of their respective owners.
Changes
The material in this document is for information only and subject to change without notice. While
reasonable efforts have been made in the preparation of this document to assure its accuracy,
Hamlet assumes no liability resulting from errors or omissions in this document, or from the use of
the information contained herein. Hamlet reserves the right to make changes or revisions in the
product design or the product manual without reservation and without obligation to notify any
person of such revisions and changes.
2
Wireless PCI Ca rd
HNW300CI User Manual
Table of contents
INTRODUCTION............................................................................................................................4
1.
1.1 FEATURES & BENEFITS..............................................................................................................5
1.2 PACKAGE CONTENTS .................................................................................................................5
1.3 PCI CARD DESCRIPTION ..........................................................................................................5
1.4 SYSTEM REQUIREMENTS ........................................................................................................... 5
2. PCI CARD ADAPTER FOR WINDOWS 2000/XP/VISTA .......................................................... 6
2.1 BEFORE YOU BEGIN .................................................................................................................. 6
2.2 INSTALLING TH E DRIVERS ..........................................................................................................6
2.3 PROFILES................................................................................................................................... 8
2.4 AUTHENTICATION AND SECURITY .............................................................................................10
2.5 NETWORK ................................................................................................................................12
2.6 SITE SURVEY............................................................................................................................13
2.7 STATISTICS ..............................................................................................................................14
2.8 WPS .......................................................................................................................................14
2.9 ABOUT .....................................................................................................................................15
2.10 UNINSTALL THE DRIVERS & CLIENT UTILITY ...........................................................................15
3. PCI CARD ADAPTER FOR WINDOWS 2000/XP ....................................................................16
3.1 BEFORE YOU BEGIN ................................................................................................................16
3.2 INSTALLING TH E DRIVERS ........................................................................................................16
3.3 PROFILES.................................................................................................................................17
3.4 AUTHENTICATION AND SECURITY .............................................................................................20
3.5 NETWORK ................................................................................................................................27
3.6 ADVANCED CONFIGURATION ....................................................................................................29
3.7 STATISTICS ..............................................................................................................................29
3.8 WMM (WIRELESS MULTIMEDIA) ..............................................................................................30
3.9 WPS .......................................................................................................................................31
3.10 ABOUT ...................................................................................................................................32
3.11 RADIO ....................................................................................................................................32
3.12 UNINSTALL THE DRIVERS & CLIENT UTILITY ...........................................................................33
4. APPENDIX A – GLOSSARY ......................................................................................................34
5. APPENDIX B – SPECIFICATIONS............................................................................................44
6. APPENDIX C – FCC INTERFERENC E STATEMENT .............................................................45
Wireless PCI Ca rd
3
HNW300CI User Manual
1. Introduction
The high-speed wireless PCI CARD is the most convenient way to let you put a
desktop/notebook computer almost anywhere without the hassle of running network cables.
Now you don’t need to suffer from drilling holes and exposed cables. Once you are connected,
you can do anything, just like the wired network. This PCI CARD operates seamlessly in 2.4GHz
frequency spectrum supporting the 802.11b, 802.11g, and 802.11nwireless standards. It’s the
best way to add wireless capability to your existing wired network or simply surf the web.
To protect your wireless connectivity, the high-speed wireless PCI CARD can encrypt all
wireless transmissions through 64/128-bit WEP, WPA, WPA-PSK and WPA-AES encryption and
authentication allowing you to experience the most secure wireless connectivity available.
The Hamlet 802.11n PCI CARD (HNW300CI) implements the latest 11n 2.0 technology which
extremely improves wireless signal for your computer than existing wireless 802.11g technology.
It supports the 1T2R architecture with fully forward compatibility with IEEE802.11n. The
incredible speed of HNW300CI PCI CARD makes heavy traffic networking activities more flexible
and takes the wireless into practical road. You could enjoy the racing speed of wireless
connection, surfing on Internet without string wires.
Adding Hamlet HNW300CI to your Computer, it provides an excellent performance and costeffective solution for doing media-centric activities such as streaming video, gaming, and
enhances the QoS (WMM) without any reduction of performance. It extends 3 times network
coverage and boosts 6 times transmission throughput than existing 11g product. Advanced
power management and low power consumption among 11n products.
For more security-sensitive application, HNW300CI supports Hardware-based IEEE 802.11i
encryption/decryption engine, including 64-bit/128-bit WE P, TKIP, and AES. Also, it supports
Wi-Fi alliance WPA and WPA2 encryption.
4
Wireless PCI Ca rd
HNW300CI User Manual
1.1 Features & Benefits
Features Benefits
Racing Speed up to 300Mbps* data
rate (2.4GHz 11N technology)
Advanced power management Low power consumption
WPA/WPA2 (IEEE 802.11i), WEP
64/128 Support
Support 1Tx * 2Rx Radios With two external Antennas
WMM (IEEE 802.11e) standard
support
PCI 2.2 Fits in any PCI standard slot
* Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g, n chipset used. Actual
throughput may vary. Network conditions and environmental factors lower actual throughput rate. All
specifications are subject to change without notice.
Enjoy the Internet connection in crazyfast speed, without the bottleneck of
stringing wires
Powerful data security
Wireless Multimedia Enhancements
Quality of Service support (QoS) /
enhanced power saving for Dynamic
Networking
1.2 Package Contents
Open the package carefully, and make sure that none of the items listed below are missing. Do
not discard the packing materials, in case of return; the unit must be shipped in its original
package.
• One Wireless 802.11b/g/n PCI CARD
• One CD-ROM with Drivers and User’s Manual Included
• TWO SMA antennas
• One Quick Installation Guide and User’s Manual
1.3 PCI CARD Description
The PCI CARD support PCI 2.2 standard PCI
The PCI CARD has two LED indicators with two SMA external antennas.
1.4 System Requirements
The following are the minimum system requirements in order to use the PCI CARD
• The computer with a PCI 2.2 interface.
• Windows 2000/XP/Vista operating system.
• 30 MB of free disk space for installing the PCI CARD driver and utility program.
Wireless PCI Ca rd
5
HNW300CI User Manual
2. PCI Card Adapter for Windows 2000/XP/Vista
2.1 Before You Begin
During the installation, Vista may need to copy systems files from its installation CD. Therefore,
you may need a copy of the Windows installation CD at hand before installing the drivers.
2.2 Installing the Drivers
Follow the steps below in order to install the PCI CARD drivers:
• Insert the CD-ROM that was provided to you in this package. The setup should run
automatically. If the setup does not run automatically, then you must manually select the
Hamlet HNW300CI_v1.0.1.exe file from the CD-ROM drive.
• Once the setup begins you will see the InstallShield Wizard.
• Click on the Install button to begin the installation.
6
Wireless PCI Ca rd
HNW300CI User Manual
• The installation is complete. Click on the Finish button.
• Carefully insert the PCI Card into the PCI slot. Windows will then detect and install the new
hardware.
• An Hamlet icon will then appear in the system tray. Right click on the icon and then click on
Launch Config Utilities.
Note: Click on Use Zero Configuration as Configuration Utility if you would like to use
Windows Zero Config.
Wireless PCI Ca rd
7
HNW300CI User Manual

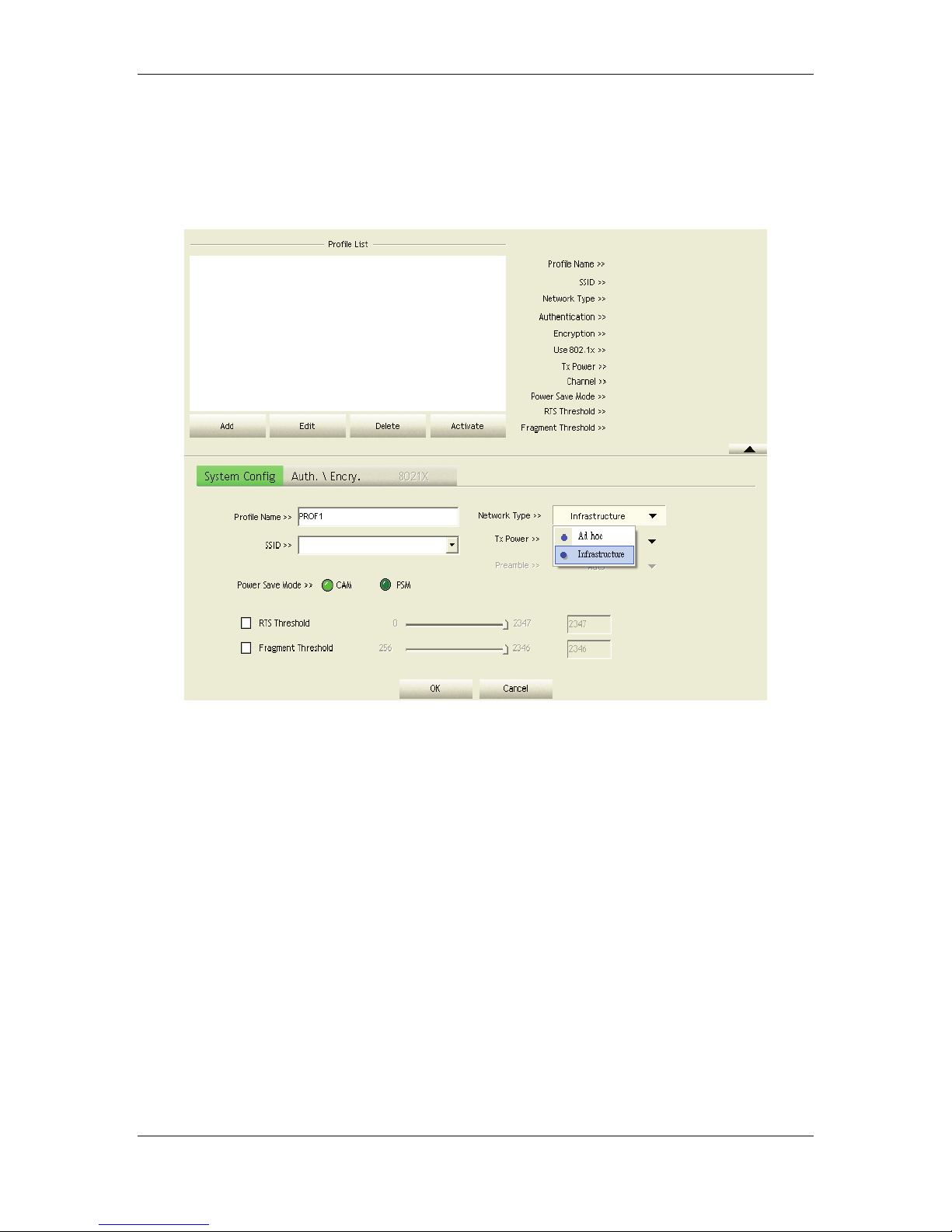

2.3 Profiles
The Profile tab is used to store the settings of multiple Access Points such as home, office, café,
etc. When adding a profile you are required to enter a profile name and SSID as well as
configure the power-saving mode, network type, RTS/fragmentation threshold and
encryption/authentication settings. A profile can be configured as Infrastructure or Ad-hoc
mode. The configuration settings for each mode are described below.
2.3.1 Infrastructure Mode
The infrastructure mode requires the use of an Access Point (AP). In this mode, all
wireless communication between two computers has to be via the AP. It doesn’t matter if
the AP is stand-alone or wired to an Ethernet network. If used in stand-alone, the AP can
extend the range of independent wireless LANs by acting as a repeater, which effectively
doubles the distance between wireless stations.
8
Wireless PCI Ca rd
HNW300CI User Manual
• Profile: Enter a name for the profile; this does not need to be the same as the SSID.
• SSID: Enter the SSID of the network or select one from the drop-down list. The SSID is
a unique name shared among all points in your wireless network. The SSID must be
identical for all points in the network, and is case-sensitive.
• Network Type: Select Infrastructure from the drop-down list.
• TX Power: Select a transmit power from the drop-down list. If your notebook is
connected to external power then select 100% or auto, if not, select one of the lower
values for power saving.
• Click on the Apply button to save the changes.
2.3.2 Ad-hoc Mode
This is the simplest network configuration with several computers equipped with the PC
Cards that form a wireless network whenever they are within range of one another. In adhoc mode, each client is peer-to-peer, would only have access to the resources of the
other client and does not require an access point. This is the easiest and least expensive
way for the SOHO to set up a wireless network.
• Profile: Enter a name for the profile; this does not need to be the same as the SSID.
• SSID: Enter the SSID of the network or select one from the drop-down list. The SSID is
a unique name shared among all points in your wireless network. The SSID must be
identical for all points in the network, and is case-sensitive.
• Network Type: Select Ad-hoc from the drop-down list.
• TX Power: Select a transmit power from the drop-down list. If your notebook is
connected to external power then select 100% or auto, if not, select one of the lower
values for power saving.
• Click on the Apply button to save the changes.
Wireless PCI Ca rd
9
HNW300CI User Manual
2.4 Authentication and Security
The Security tab allows you to configure the authentication and encryption settings such as:
WEP, WPA, WPA-PSK. Each security option is described in detail below.
2.4.1 WEP Encryption
The WEP tab displays the WEP settings. Encryption is designed to make the data
transmission more secure. You may select 64 or 128-bit WEP (Wired Equivalent Privacy)
key to encrypt data (Default setting is Disable). WEP encrypts each frame transmitted from
the radio using one of the Keys from a panel. When you use WEP to communicate with
the other wireless clients, all the wireless devices in this network must have the same
encryption key or pass phrase. The following information is included in this tab, as the
image depicts below.
• Authentication Type: Select Open or Shared from the drop-down list.
• Encryption: Select WEP from the drop-down list.
• WEP Key: Type a character string into the field.
For 64-bit enter 5 alphanumeric or 10 hexadecimal characters.
For 128-bit enter 13 alphanumeric or 26 hexadecimal characters.
• Click on the Apply button to save the changes.
• Show Password check box. If you want to make sure the accuracy of password you
type, click the Show Password box to check it.
2.4.2 WPA, WPA2 Authentication & TKIP, AES Encryption
WPA (Wi-Fi Protected Access) was designed to improve upon the security features of
WEP (Wired Equivalent Privacy). The technology is designed to work with existing Wi-Fi
products that have been enabled with WEP. WPA provides improved data encryption
through the Temporal Integrity Protocol (TKIP), which scrambles the keys using a hashing
algorithm and by adding an integrity-checking feature which makes sure that keys haven’t
been tampered with. EAP (Extensible Authentication Protocol) is an extension to the PPP
protocol that enables a variety of authentication protocols to be used. It passes through
the exchange of authentication messages, allowing the authentication software stored in a
server to interact with its counterpart in the client.
10
Wireless PCI Ca rd
HNW300CI User Manual
• Authentication Type: Select WPA or WPA2 from the drop-down list.
• Encryption: Select TKIP or AES from the drop-down list.
• Click on the Apply button to save the changes.
• Show Password check box. If you want to make sure the accuracy of password you
type, click the Show Password box to check it.
2.4.3 WPA-PSK Authentication & TKIP, AES Encryption
WPA – PSK (Pre-shared Key) is used in a Pre Shared Key mode that does not require an
authentication server. Access to the Internet and the rest of the wireless network services
is allowed only if the pre-shared key of the computer matches that of the Access Point.
This approach offers the simplicity of the WEP key, but uses stronger TKIP encryption.
EAP (Extensible Authentication Protocol) is an extension to the PPP protocol that enables
a variety of authentication protocols to be used. It passes through the exchange of
authentication messages, allowing the authentication software stored in a server to
interact with its counterpart in the client.
• Authentication Type: Select WPA or WPA2 from the drop-down list.
• Encryption: Select TKIP or AES from the drop-down list.
• WPA Preshared key: Enter a pass phrase which is between 8 and 32 characters long.
• Click on the Apply button to save the changes.
• Show Password check box. If you want to make sure the accuracy of password you
type, click the Show Password box to check it.
Wireless PCI Ca rd
11
HNW300CI User Manual
2.5 Network
The Network tab displays the current status of the wireless radio. The following information is
included in this tab, as the image depicts below.
• Status: This indicates the state of the client. There are three options:
o Associated: Indicates that the wireless client is connected to an Access Point (AP).
The BSSID is shown in the form of 12 HEX digits, which is the MAC address of the AP.
o Scanning: Indicates that the wireless client is searching for an AP in the area.
o Disconnected: Indicates that there are no APs or clients in the area.
• Extra Info: Displayed here are information about the link stats and the percent of output
power.
• Current Channel: The operating frequency channel that the client is using (infrastructure
mode).
• Link Speed: The current rate at which the client is transmitting and receiving.
• Throughput (bytes/sec): Displays the Tx (transmit) and Rx (receive) kilo-bytes per second.
• Link Quality: In infrastructure mode, this bar displays the transmission quality between an
AP and a client. In Ad-hoc mode, this bar displays the transmission quality between one
client, and another.
• Signal Strength: This bar displays the strength of the signal received from an AP or client.
• Noise Level: Displays the background noise level; a lower level indicates less interference.
• Click on the OK button to close this window.
• dBm Check Box. When you click on the check box as the drawing below. The signal
strength and noise level will be shown as the dBm measurements.
12
Wireless PCI Ca rd
HNW300CI User Manual
2.6 Site survey
The Network tab also displays a list of Access Points and Stations in the area, and allows you to
connect to a specific one. The following information is included in this tab, as the image depicts
below.
• SSID: Displays the SSID of the Access Point. The SSID is a unique name shared among all
points in your wireless network. The SSID must be identical for all points in the network, and
is case-sensitive.
• BSSID: Displays the MAC address of the Access Point.
• Signal: Displays the receiving signal strength from the Access Point.
• Channel: Displays the channel number of the Access Point.
• Encryption: Displays the encryption on the Access Point, this includes WEP, TKIP, AES or
None.
• Authentication: displays the authentication on the Access Point, this includes WPA, WPA-
PSK, WPA2, or Unknown.
• Network Type: Indicates whether the SSID is a Station (Ad-hoc) or Access Point
(Infrastructure).
• Rescan: Click on this button to view a list of Access Points in the area.
• Connect: to connect with a specific Access Point, select the SSID from the list, and then
click on the Connect button.
• Add to Profile: Click on this button to add the SSID and its associated settings into a profile.
• Click on the OK button if you have made any changes.
Wireless PCI Ca rd
13
HNW300CI User Manual
2.7 Statistics
The Statistics tab displays transmit and receive packet statistics in real-time. Information
included is frames transmitted/received successfully, transmitted successfully without and after
retry, received with CRC error, duplicate frames received, etc.
2.8 WPS
Click on the WPS Configuration tab. WPS is used for WiFi Protected Setup. By pressing this
button, the security settings of the device will automatically synchronize with other wireless
devices on your network that support Wi-Fi Protected Setup.
• Rescan: Click on this button to view a list of Access Points in the area.
• Click on the OK button if you have made any changes.
14
Wireless PCI Ca rd
HNW300CI User Manual
2.9 About
The About tab displays information about the device, such as: the network driver version and
date, configuration utility version and date, and the NIC (Network Interface Card) firmware
version and date.
2.10 Uninstall the Drivers & Client Utility
If the PCI CARD installation is unsuccessful for any reason, the best way to solve the problem
may be to completely uninstall the PCI CARD and its utility and repeat the installation procedure
again.
Follow the steps below in order to uninstall the client utility:
Click on Start > Hamlet HNW300CI > Uninstall Hamlet HNW300CI
The un-installation process will then begin.
Once un-installation process is completed, select Yes, I want to restart my computer now
radio button and then click on the Finish button. Finally remove the PCI Card adapter.
Wireless PCI Ca rd
15
HNW300CI User Manual
3. PCI Card Adapter for Windows 2000/XP
3.1 Before You Begin
During the installation, XP may need to copy systems files from its installation CD. Therefore,
you may need a copy of the Windows installation CD at hand before installing the drivers. On
many systems, instead of a CD, the necessary installation files are archived on the hard disk in
C:\WINDOWS\OPTIONS\CABS directory.
3.2 Installing the Drivers
Follow the steps below in order to install the PCI CARDadapter drivers:
• Insert the CD-ROM that was provided to you in this package. The setup should run
automatically. If the setup does not run automatically, then you must manually select the
setup.exe file from the CD-ROM drive.
• Once the setup begins you will see the InstallShield Wizard.
• Click on the Install button to begin the installation.
• Wait for a few seconds until the driver and client utility is installed.
• The installation is complete. Click on the Finish button.
• Carefully insert the PCI CARD into the PCI slot . Windows will then detect and install
the new hardware.
• An Hamlet icon will then appear in the system tray. Right click on the icon and then click on
Launch Config Utilities.
Note: Click on Use Zero Configuration as Configuration Utility if you would like to use
Windows Zero Config.
16
Wireless PCI Ca rd
HNW300CI User Manual
3.3 Profiles
The Profile tab is used to store the settings of multiple Access Points such as home, office, café,
etc. When adding a profile you are required to enter a profile name and SSID as well as
configure the power-saving mode, network type, RTS/fragmentation threshold and
encryption/authentication settings. A profile can be configured as Infrastructure or Ad-hoc
mode. The configuration settings for each mode are described below.
Wireless PCI Ca rd
17
HNW300CI User Manual
3.3.1 Infrastructure Mode
The infrastructure mode requires the use of an Access Point (AP). In this mode, all
wireless communication between two computers has to be via the AP. It doesn’t matter if
the AP is stand-alone or wired to an Ethernet network. If used in stand-alone, the AP can
extend the range of independent wireless LANs by acting as a repeater, which effectively
doubles the distance between wireless stations.
• Profile: Enter a name for the profile; this does not need to be the same as the SSID.
• SSID: Enter the SSID of the network or select one from the drop-down list. The SSID is
a unique name shared among all points in your wireless network. The SSID must be
identical for all points in the network, and is case-sensitive.
• Power Save Mode: Select a power saving mode (PSM) option.
o CAM (Continuously Awake Mode): Select this option if your notebook is
always connected to the power supply.
o PSM (Power Saving Mode): Select this option if your notebook uses its battery
power. This option minimizes the battery usage while the network is idle.
• Network Type: Select Infrastructure from the drop-down list.
• TX Power: Select a transmit power from the drop-down list. If your notebook is
connected to external power then select 100% or auto, if not, select one of the lower
values for power saving.
• RTS Threshold: Place a check in this box if you would like to enable RTS Threshold.
Any packet in the RTS/CTS handshake larger than the specified value (bytes) will be
discarded.
• Fragment Threshold: Place a check in this box if you would like to enable Fragment
Threshold. Any packet larger than the specified value (bytes) will be discarded.
• Click on the OK button to save the changes.
3.3.2 Ad-hoc Mode
This is the simplest network configuration with several computers equipped with the PC
Cards that form a wireless network whenever they are within range of one another. In adhoc mode, each client is peer-to-peer, would only have access to the resources of the
18
Wireless PCI Ca rd
HNW300CI User Manual
other client and does not require an access point. This is the easiest and least expensive
way for the SOHO to set up a wireless network.
• Profile: Enter a name for the profile; this does not need to be the same as the SSID.
• SSID: Enter the SSID of the network or select one from the drop-down list. The SSID is
a unique name shared among all points in your wireless network. The SSID must be
identical for all points in the network, and is case-sensitive.
• Network Type: Select Ad-hoc from the drop-down list.
• TX Power: Select a transmit power from the drop-down list. If your notebook is
connected to external power then select 100% or auto, if not, select one of the lower
values for power saving.
• Click on the OK button to save the changes.
Wireless PCI Ca rd
19
HNW300CI User Manual
3.4 Authentication and Security
The Security tab allows you to configure the authentication and encryption settings such as:
WEP, WPA, WPA-PSK, WPA2, and 802.1x. Each security option is described in detail below.
3.4.1 WEP Encryption
The WEP tab displays the WEP settings. Encryption is designed to make the data
transmission more secure. You may select 64 or 128-bit WEP (Wired Equivalent Privacy)
key to encrypt data (Default setting is Disable). WEP encrypts each frame transmitted from
the radio using one of the Keys from a panel. When you use WEP to communicate with
the other wireless clients, all the wireless devices in this network must have the same
encryption key or pass phrase. The following information is included in this tab, as the
image depicts below.
• Authentication Type: Select Open or Shared from the drop-down list.
• Encryption: Select WEP from the drop-down list.
• WEP Key: Type a character string into the field.
For 64-bit enter 5 alphanumeric or 10 hexadecimal characters.
For 128-bit enter 13 alphanumeric or 26 hexadecimal characters.
• Click on the Apply button to save the changes.
• Show Password check box. If you want to make sure the accuracy of password you
type, click the Show Password box to check it.
20
Wireless PCI Ca rd
HNW300CI User Manual
3.4.2 WPA, WPA2 Authentication & TKIP, AES Encryption
WPA (Wi-Fi Protected Access) was designed to improve upon the security features of
WEP (Wired Equivalent Privacy). The technology is designed to work with existing Wi-Fi
products that have been enabled with WEP. WPA provides improved data encryption
through the Temporal Integrity Protocol (TKIP), which scrambles the keys using a hashing
algorithm and by adding an integrity-checking feature which makes sure that keys haven’t
been tampered with. EAP (Extensible Authentication Protocol) is an extension to the PPP
protocol that enables a variety of authentication protocols to be used. It passes through
the exchange of authentication messages, allowing the authentication software stored in a
server to interact with its counterpart in the client.
• Authentication Type: Select WPA or WPA2 from the drop-down list.
• Encryption: Select TKIP or AES from the drop-down list.
• Click on the Apply button to save the changes.
• Show Password check box. If you want to make sure the accuracy of password you
type, click the Show Password box to check it.
Wireless PCI Ca rd
21
HNW300CI User Manual
3.4.3 WPA-PSK Authentication & TKIP, AES Encryption
WPA – PSK (Pre-shared Key) is used in a Pre Shared Key mode that does not require an
authentication server. Access to the Internet and the rest of the wireless network services
is allowed only if the pre-shared key of the computer matches that of the Access Point.
This approach offers the simplicity of the WEP key, but uses stronger TKIP encryption.
EAP (Extensible Authentication Protocol) is an extension to the PPP protocol that enables
a variety of authentication protocols to be used. It passes through the exchange of
authentication messages, allowing the authentication software stored in a server to
interact with its counterpart in the client.
• Authentication Type: Select WPA or WPA2 from the drop-down list.
• Encryption: Select TKIP or AES from the drop-down list.
• WPA Preshared key: Enter a pass phrase which is between 8 and 32 characters long.
• Click on the Apply button to save the changes.
• Show Password check box. If you want to make sure the accuracy of password you
type, click the Show Password box to check it.
22
Wireless PCI Ca rd
HNW300CI User Manual
3.4.4 LEAP Authentication
LEAP (Lightweight Extensible Authentication Protocol) also known as Cisco-Wireless EAP
provides username/password-based authentication between a wireless client and a
RADIUS server. LEAP is one of several protocols used with the IEEE 802.1X standard for
LAN port access control. LEAP also delivers a session key to the authenticated station, so
that future frames can be encrypted with a key that is different than keys used by others
sessions. Dynamic key delivery eliminates one big vulnerability; static encryption keys that
are shared by all stations in the WLAN. EAP (Extensible Authentication Protocol) is an
extension to the PPP protocol that enables a variety of authentication protocols to be
used. It passes through the exchange of authentication messages, allowing the
authentication software stored in a server to interact with its counterpart in the client.
• Authentication Type: Select LEAP from the drop-down list.
• Identity: Enter the user name.
• Password: Enter the password.
• Domain: Enter a domain name.
• Encryption: Select WEP, WPA-TKIP or WPA2-AES encryption.
• Click on the OK button to save the changes.
Wireless PCI Ca rd
23
HNW300CI User Manual
3.4.5 802.1x with PEAP
802.1X provides an authentication framework for wireless LANs allowing a user to be
authenticated by a central authority. 802.1X uses an existing protocol called EAP. EAP
(Extensible Authentication Protocol) is an extension to the PPP protocol that enables a
variety of authentication protocols to be used. It passes through the exchange of
authentication messages, allowing the authentication software stored in a server to
interact with its counterpart in the client.
3.4.5.1 PEAP AUTHENTICATION WITH EAP/TLS SMARTCARD
EAP/TLS Smartcard provides for certificate-based and mutual authentication of the client
and the network. It relies on client-side and server-side certificates to perform
authentication and can be used to dynamically generate user-based and session-based
WEP keys to secure subsequent communications between the WLAN client and the
access point.
• Authentication Type: Select PEAP from the drop-down list.
• Protocol: If your network uses TLS or Smart Card to authenticate its users, select
TLS/Smartcard from the drop down list. TLS (Transport Layer Security) is an IETF
standardized authentication protocol that uses PKI (Public Key Infrastructure)
certificate-based authentication of both the client and authentication server.
• Identity: Enter the user name.
• Click on the OK button to save the changes.
24
Wireless PCI Ca rd
HNW300CI User Manual
3.4.6 802.1x with TTLS with EAP-MD5, MS-CHA P, MS-CHAPv2
802.1X provides an authentication framework for wireless LANs allowing a user to be
authenticated by a central authority. 802.1X uses an existing protocol called EAP. EAP
(Extensible Authentication Protocol) is an extension to the PPP protocol that enables a
variety of authentication protocols to be used. It passes through the exchange of
authentication messages, allowing the authentication software stored in a server to
interact with its counterpart in the client. TLS (Transport Layer Security) is an IETF
standardized authentication protocol that uses PKI (Public Key Infrastructure) certificate
based authentication of both the client and authentication server.
• Authentication Type: Select TTLS from the drop-down list.
• Protocol: Select EAP-MSCHAP v2, MS-CHAP, or CHAP from the drop-down list.
• Identity: Enter the user name.
• Password: Enter the password.
• Click on the OK button to save the changes.
Wireless PCI Ca rd
25
HNW300CI User Manual
3.4.7 802.1x CA Server
Depending on the EAP in use, only the server or both the server and client may be
authenticated and require a certificate. Server certificates identify a server, usually an
authentication or RADIUS server to clients. Most EAPs require a certificate issued by a
root authority or a trusted commercial Certificate Authority.
• Use certificate chain: Place a check in this to enable the certificate use.
• Certificate issuer: Select the Certification Authority from the drop-down list.
• Allow intermediate certificates: During tunnel creation the client must verify the
server’s certificate. When checking this certificate the signature is verified against a list
of trusted certificate authorities. If this parameter is true then the client will also accept
a signature from a trusted intermediate certificate authority, otherwise it will not.
• Server name: Enter the server name if not selected from the existing drop-down list
above.
• Click on the OK button to save the changes.
26
Wireless PCI Ca rd
HNW300CI User Manual
3.5 Network
The Network tab displays the current status of the wireless radio. The following information is
included in this tab, as the image depicts below.
• Status: This indicates the state of the client. There are three options:
o Associated: Indicates that the wireless client is connected to an Access Point (AP).
The BSSID is shown in the form of 12 HEX digits, which is the MAC address of the
AP.
o Scanning: Indicates that the wireless client is searching for an AP in the area.
o Disconnected: Indicates that there are no APs or clients in the area.
• Extra Info: Displayed here are information about the link stats and the percent of output
power.
• Channel: The operating frequency channel that the client is using (infrastructure mode).
• Authentication: Displays the authentication type.
• Encryption: Displays the encryption type.
• Network Type: Displays the network type; infrastructure or ad-hoc.
• IP Address: Displays the IP address.
• Sub Mask: Displays the subnet mask IP address.
• Default Gateway: Displays the IP address of the default gateway.
• Link Speed: The current rate at which the client is transmitting and receiving.
• Transmit/Receive Throughput: Displays the Tx (transmit) and Rx (receive) kilo-bytes
per second.
• Link Quality: In infrastructure mode, this bar displays the transmission quality between
an AP and a client. In Ad-hoc mode, this bar displays the transmission quality between
one client, and another.
• Signal Strength: This bar displays the strength of the signal received from an AP or
client.
• Noise Level: Displays the background noise level; a lower level indicates less
interference.
• Click on the OK button to close this window.
Wireless PCI Ca rd
27
HNW300CI User Manual
3.5.1 Site Survey
The Network tab also displays a list of Access Points and Stations in the area, and allows
you to connect to a specific one. The following information is included in this tab, as the
image depicts below.
• SSID: Displays the SSID of the Access Point. The SSID is a unique name shared
among all points in your wireless network. The SSID must be identical for all points in
the network, and is case-sensitive.
• Channel: Displays the channel number of the Access Point.
• Encryption: Displays the encryption on the Access Point, this includes WEP, TKIP,
AES or None.
• Signal: Displays the receiving signal strength from the Access Point.
• Rescan: Click on this button to view a list of Access Points in the area.
• Connect: to connect with a specific Access Point, select the SSID from the list, and
then click on the Connect button.
• Add to Profile: Click on this button to add the SSID and its associated settings into a
profile.
• Click on the OK button if you have made any changes.
28
Wireless PCI Ca rd
HNW300CI User Manual
3.6 Advanced Configuration
The Advanced tab is used to configure the wireless mode (802.11g, 802.11b/g-mixed, or
802.11b/g/n-mixed), Tx burst, and CCX.
• Wireless mode: Select 802.11 b/g/n mix if the wireless network uses both 11b, 11g, and
11n stations and APs. B/G Protection: This is the ERP protection mode of 802.11g.
Selecting auto will dynamically send frames with and without protection. Select On to send
a frame without protection, and Off to send it with protection.
• Enable Tx BURST: Click the check box will enhance the throughput
• Enable TCP Window Size: Enhance the throughput if enable this function.
• CCX: Enable this option if the network supports Cisco Compatible Extensions.
• Click on the Apply button to close this window.
3.7 Statistics
The Statistics tab displays transmit and receive packet statistics in real-time. Information
included is frames transmitted/received successfully, transmitted successfully without and after
retry, received with CRC error, duplicate frames received, etc.
Wireless PCI Ca rd
29
HNW300CI User Manual
3.8 WMM (Wireless Multimedia)
Click on the WMM tab. Wireless Multimedia Extensions (WME), also known as Wi-Fi Multimedia
(WMM) is a Wi-Fi Alliance interpretability certification, based on the IEEE 802.11e draft standard.
It provides basic Quality of service (QoS) features to IEEE 802.11 networks. WMM prioritizes
traffic according to 4 AC (Access Categories), however it does not provide guaranteed
throughput. It is suitable for simple applications that require QoS, such as Wi-Fi Voice over IP
(VoIP) phone.
• WMM Enable: Choose to enable or disable WMM.
• WMM Power Save Enable: Choose to enable or disable power save mode on WMM.
• Direct Link Setup Enable: Specify a MAC address and timeout value.
• Click on the Apply button to close this window.
30
Wireless PCI Ca rd
HNW300CI User Manual
3.9 WPS
WPS is used for WiFi Protected Setup. By pressing this button, the security settings of the
device will automatically synchronize with other wireless devices on your network that support
Wi-Fi Protected Setup.
• Rescan: Click on this button to view a list of Access Points in the area.
• WPS Information: Display the information about WPS on the selected network. List
information include Authentication Type, Encryption Type, Config Methods, Device
Password ID, Selected Registrar, State, Version, AP Setup Locked, UUID-E and RF Bands
• Pin Code: 8-digit numbers. It is required to enter PIN Code into Registrar using PIN method.
When HNW300CI is Enrollee, you can use "Renew" button to re-generate new PIN Code.
• Config Mode: The HNW300CI role-playing as an Enrollee or an external Registrar
• Detail: Information about Security and Key in the credential.
• Connect: Command to connect to the selected network inside credentials. The active
selected credential is as like as the active selected Profile.
• Rotate: Command to rotate to connect to the next network inside credentials.
• Disconnect: Stop WPS action and disconnect this active link. And then select the last
profile at the Profile Page of RaUI if exist. If there is an empty profile page, the driver will
select any non-security AP.
• Export Profile: Export all credentials to Profile.
• PBC: Start to add to AP using PBC configuration method.
• WPS Associate IE: Send the association request with WPS IE during WPS setup. It is
optional for HNW300CI.
• WPS Probe IE: Send the probe request with WPS IE during WPS setup. It is optional for
HNW300CI.
• Click on the OK button if you have made any changes.
Wireless PCI Ca rd
31
HNW300CI User Manual
3.10 About
The About tab displays information about the device, such as: the network driver version and
date, configuration utility version and date, and the NIC (Network Interface Card) firmware
version and date.
3.11 Radio
The Radio tab allows you to enable or disable the radio.
32
Wireless PCI Ca rd
HNW300CI User Manual
3.12 Uninstall the Drivers & Client Utility
If the PCI CARD installation is unsuccessful for any reason, the best way to solve the problem
may be to completely uninstall the PCI Card Adapter and its utility and repeat the installation
procedure again.
Follow the steps below in order to uninstall the client utility:
• Click on Start > Hamlet HNW300CI > Uninstall Hamlet HNW300CI
• The un-installation process will then begin.
• Click on the Ye s button to confirm the un-installation process.
• Then click on the Finish button. Then remove the PCI CARD.
Wireless PCI Ca rd
33
HNW300CI User Manual
4. Appendix A – Glossary
8
802.11
A family of specifications for wireless local area networks (WLANs) developed by a working
group of the Institute of Electrical and Electronics Engineers (IEEE).
A
Access Control List
ACL. This is a database of network devices that are allowed to access resources on the
network.
Access Point
AP. Device that allows wireless clients to connect to it and access the network
ActiveX
A Microsoft specification for the interaction of software components.
Address Resolution Protocol
ARP. Used to map MAC addresses to IP addresses so that conversions can be made in
both directions.
Ad-hoc network
Peer-to-Peer network between wireless clients
ADSL
Asymmetric Digital Subscriber Line
Advanced Encryption Standard
AES. Government encryption standard
Alphanumeric
Characters A-Z and 0-9
Antenna
Used to transmit and receive RF signals.
AppleTalk
A set of Local Area Network protocols developed by Apple for their computer systems
AppleTalk Address Resolution Protocol
AARP. Used to map the MAC addresses of Apple computers to their AppleTalk network
addresses, so that conversions can be made in both directions.
Application layer
7th Layer of the OSI model. Provides services to applications to ensure that they can
communicate properly with other applications on a network.
ASCII
American Standard Code for Information Interchange. This system of characters is most
commonly used for text files
Attenuation
The loss in strength of digital and analog signals. The loss is greater when the signal is
being transmitted over long distances.
Authentication
To provide credentials, like a Password, in order to verify that the person or device is really
who they are claiming to be
Automatic Private IP Addressing
APIPA. An IP address that that a Windows computer will assign itself when it is configured
to obtain an IP address automatically but no DHCP server is available on the network
B
Backward Compatible
The ability for new devices to communicate and interact with older legacy devices to
guarantee interoperability
34
Wireless PCI Ca rd
HNW300CI User Manual
Bandwidth
The maximum amount of bytes or bits per second that can be transmitted to and from a
network device
Basic Input/Output System
BIOS. A program that the processor of a computer uses to startup the system once it is
turned on
Baud
Data transmission speed
Beacon
A data frame by which one of the stations in a Wi-Fi network periodically broadcasts
network control data to other wireless stations.
Bit rate
The amount of bits that pass in given amount of time
Bit/sec
Bits per second
BOOTP
Bootstrap Protocol. Allows for computers to be booted up and given an IP address with no
user intervention
Bottleneck
A time during processes when something causes the process to slowdown or stop all
together
Broadband
A wide band of frequencies available for transmitting data
Broadcast
Transmitting data in all directions at once
Browser
A program that allows you to access resources on the web and provides them to you
graphically
C
Cable modem
A device that allows you to connect a computer up to a coaxial cable and receive Internet
access from your Cable provider
CardBus
A newer version of the PC Card or PCMCIA interface. It supports a 32-bit data path, DMA,
and consumes less voltage
CAT 5
Category 5. Used for 10/100 Mbps or 1Gbps Ethernet connections
Client
A program or user that requests data from a server
Collision
When do two devices on the same Ethernet network try and transmit data at the exact
same time.
Cookie
Information that is stored on the hard drive of your computer that holds your preferences to
the site that gave your computer the cookie
D
Data
Information that has been translated into binary so that it can be processed or moved to
another device
Data Encryption Standard
Uses a randomly selected 56-bit key that must be known by both the sender and the
receiver when information is exchanged
Database
Organizes information so that it can be managed updated, as well as easily accessed by
users or applications.
Wireless PCI Ca rd
35
HNW300CI User Manual
Data-Link layer
The second layer of the OSI model. Controls the movement of data on the physical link of a
network
DB-25
A 25 ping male connector for attaching External modems or RS-232 serial devices
DB-9
A 9 pin connector for RS-232 connections
dBd
Decibels related to dipole antenna
dBi
Decibels relative to isotropic radiator
dBm
Decibels relative to one milliwatt
Decrypt
To unscramble an encrypted message back into plain text
Default
A predetermined value or setting that is used by a program when no user input has been
entered for this value or setting
Demilitarized zone
DMZ: A single computer or group of computers that can be accessed by both users on the
Internet as well as users on the Local Network, but that is not protected by the same
security as the Local Network.
DHCP
Dynamic Host Configuration Protocol: Used to automatically assign IP addresses from a
predefined pool of addresses to computers or devices that request them
Digital certificate:
An electronic method of providing credentials to a server in order to have access to it or a
network
Direct Sequence Spread Spectrum
DSSS: Modulation technique used by 802.11b wireless devices
DMZ
"Demilitarized Zone". A computer that logically sits in a "no-mans land" between the LAN
and the WAN. The DMZ computer trades some of the protection of the router's security
mechanisms for the convenience of being directly addressable from the Internet.
DNS
Domain Name System: Translates Domain Names to IP addresses
Domain name
A name that is associated with an IP address
Download
To send a request from one computer to another and have the file transmitted back to the
requesting computer
DSL
Digital Subscriber Line. High bandwidth Internet connection over telephone lines
Duplex
Sending and Receiving data transmissions at the sane time
Dynamic DNS service
Dynamic DNS is provided by companies to allow users with Dynamic IP addresses to
obtain a Domain Name that will always by linked to their changing IP address. The IP
address is updated by either client software running on a computer or by a router that
supports Dynamic DNS, whenever the IP address changes
Dynamic IP address
IP address that is assigned by a DHCP server and that may change. Cable Internet
providers usually use this method to assign IP addresses to their customers.
E
EAP
Extensible Authentication Protocol
Email
Electronic Mail is a computer-stored message that is transmitted over the Internet
36
Wireless PCI Ca rd
HNW300CI User Manual
Encryption
Converting data into cyphertext so that it cannot be easily read
Ethernet
The most widely used technology for Local Area Networks.
F
Fiber optic
A way of sending data through light impulses over glass or plastic wire or fiber
File server
A computer on a network that stores data so that the other computers on the network can
all access it
File sharing
Allowing data from computers on a network to be accessed by other computers on the
network with different levels of access rights
Firewall
A device that protects resources of the Local Area Network from unauthorized users
outside of the local network
Firmware
Programming that is inserted into a hardware device that tells it how to function
Fragmentation
Breaking up data into smaller pieces to make it easier to store
FTP
File Transfer Protocol. Easiest way to transfer files between computers on the Internet
Full-duplex
Sending and Receiving data at the same time
G
Gain
The amount an amplifier boosts the wireless signal
Gateway
A device that connects your network to another, like the internet
Gbps
Gigabits per second
Gigabit Ethernet
Transmission technology that provides a data rate of 1 billion bits per second
GUI
Graphical user interface
H
H.323
A standard that provides consistency of voice and video transmissions and compatibility
for videoconferencing devices
Half-duplex
Data cannot be transmitted and received at the same time
Hashing
Transforming a string of characters into a shorter string with a predefined length
Hexadecimal
Characters 0-9 and A-F
Hop
The action of data packets being transmitted from one router to another
Host
Computer on a network
HTTP
Hypertext Transfer Protocol is used to transfer files from HTTP servers (web servers) to
HTTP clients (web browsers)
HTTPS
HTTP over SSL is used to encrypt and decrypt HTTP transmissions
Wireless PCI Ca rd
37
HNW300CI User Manual
Hub
A networking device that connects multiple devices together
I
ICMP
Internet Control Message Protocol
IEEE
Institute of Electrical and Electronics Engineers
IGMP
Internet Group Management Protocol is used to make sure that computers can report their
multicast group membership to adjacent routers
IIS
Internet Information Server is a WEB server and FTP server provided by Microsoft
IKE
Internet Key Exchange is used to ensure security for VPN connections
Infrastructure
In terms of a wireless network, this is when wireless clients use an Access Point to gain
access to the network
Internet
A system of worldwide networks which use TCP/IP to allow for resources to be accessed
from computers around the world
Internet Explorer
A World Wide Web browser created and provided by Microsoft
Internet Protocol
The method of transferring data from one computer to another on the Internet
Internet Protocol Security
IPsec provides security at the packet processing layer of network communication
Internet Service Provider
An ISP provides access to the Internet to individuals or companies
Intranet
A private network
Intrusion Detection
A type of security that scans a network to detect attacks coming from inside and outside of
the network
IP
Internet Protocol
IP address
A 32-bit number, when talking about Internet Protocol Version 4, that identifies each
computer that transmits data on the Internet or on an Intranet
IPsec
Internet Protocol Security
IPX
Internetwork Packet Exchange is a networking protocol developed by Novel to enable their
Netware clients and servers to communicate
ISP
Internet Service Provider
J
Java
A programming language used to create programs and applets for web pages
K
Kbps
Kilobits per second
Kbyte
Kilobyte
38
Wireless PCI Ca rd
HNW300CI User Manual
L
L2TP
Layer 2 Tunneling Protocol
LAN
Local Area Network
Latency
The amount of time that it takes a packet to get from the one point to another on a network.
Also referred to as delay
LED
Light Emitting Diode
Legacy
Older devices or technology
Local Area Network
A group of computers in a building that usually access files from a server
LPR/LPD
"Line Printer Requestor"/"Line Printer Daemon". A TCP/IP protocol for transmitting streams
of printer data.
M
MAC Address
A unique hardware ID assigned to every Ethernet adapter by the manufacturer.
Mbps
Megabits per second
MDI
Medium Dependent Interface is an Ethernet port for a connection to a straight-through
cable
MDIX
Medium Dependent Interface Crossover, is an Ethernet port for a connection to a
crossover cable
MIB
Management Information Base is a set of objects that can be managed by using SNMP
Modem
A device that Modulates digital signals from a computer to an analog signal in order to
transmit the signal over phone lines. It also Demodulates the analog signals coming from
the phone lines to digital signals for your computer
MPPE
Microsoft Point-to-Point Encryption is used to secure data transmissions over PPTP
connections
MTU
Maximum Transmission Unit is the largest packet that can be transmitted on a packetbased network like the Internet
Multicast
Sending data from one device to many devices on a network
N
NAT
Network Address Translation allows many private IP addresses to connect to the Internet,
or another network, through one IP address
NetBEUI
NetBIOS Extended User Interface is a Local Area Network communication protocol. This is
an updated version of NetBIOS
NetBIOS
Network Basic Input/Output System
Wireless PCI Ca rd
39
HNW300CI User Manual
Netmask
Determines what portion of an IP address designates the Network and which part
designates the Host
Network Interface Card
A card installed in a computer or built onto the motherboard that allows the computer to
connect to a network
Network Layer
The third layer of the OSI model which handles the routing of traffic on a network
Network Time Protocol
Used to synchronize the time of all the computers in a network
NIC
Network Interface Card
NTP
Network Time Protocol
O
OFDM
Orthogonal Frequency-Division Multiplexing is the modulation technique for both 802.11a
and 802.11g
OSI
Open Systems Interconnection is the reference model for how data should travel between
two devices on a network
OSPF
Open Shortest Path First is a routing protocol that is used more than RIP in larger scale
networks because only changes to the routing table are sent to all the other routers in the
network as opposed to sending the entire routing table at a regular interval, which is how
RIP functions
P
Password
A sequence of characters that is used to authenticate requests to resources on a network
Personal Area Network
The interconnection of networking devices within a range of 10 meters
Physical layer
The first layer of the OSI model. Provides the hardware means of transmitting electrical
signals on a data carrier
Ping
A utility program that verifies that a given Internet address exists and can receive
messages. The utility sends a control packet to the given address and waits for a response.
PoE
Power over Ethernet is the means of transmitting electricity over the unused pairs in a
category 5 Ethernet cable
POP3
Post Office Protocol 3 is used for receiving email
Port
A logical channel endpoint in a network. A computer might have only one physical channel
(its Ethernet channel) but can have multiple ports (logical channels) each identified by a
number.
PPP
Point-to-Point Protocol is used for two computers to communicate with each over a serial
interface, like a phone line
PPPoE
Point-to-Point Protocol over Ethernet is used to connect multiple computers to a remote
server over Ethernet
40
Wireless PCI Ca rd
HNW300CI User Manual
PPTP
Point-to-Point Tunneling Protocol is used for creating VPN tunnels over the Internet
between two networks
Preamble
Used to synchronize communication timing between devices on a network
Q
QoS
Quality of Service
R
RADIUS
Remote Authentication Dial-In User Service allows for remote users to dial into a central
server and be authenticated in order to access resources on a network
Reboot
To restart a computer and reload it's operating software or firmware from nonvolatile
storage.
Rendezvous
Apple's version of UPnP, which allows for devices on a network to discover each other and
be connected without the need to configure any settings
Repeater
Retransmits the signal of an Access Point in order to extend it's coverage
RIP
Routing Information Protocol is used to synchronize the routing table of all the routers on a
network
RJ-11
The most commonly used connection method for telephones
RJ-45
The most commonly used connection method for Ethernet
RS-232C
The interface for serial communication between computers and other related devices
RSA
Algorithm used for encryption and authentication
S
Server
A computer on a network that provides services and resources to other computers on the
network
Session key
An encryption and decryption key that is generated for every communication session
between two computers
Session layer
The fifth layer of the OSI model which coordinates the connection and communication
between applications on both ends
Simple Mail Transfer Protocol
Used for sending and receiving email
Simple Network Management Protocol
Governs the management and monitoring of network devices
SIP
Session Initiation Protocol. A standard protocol for initiating a user session that involves
multimedia content, such as voice or chat.
SMTP
Simple Mail Transfer Protocol
SNMP
Simple Network Management Protocol
SOHO
Small Office/Home Office
Wireless PCI Ca rd
41
HNW300CI User Manual
SPI
Stateful Packet Inspection
SSH
Secure Shell is a command line interface that allows for secure connections to remote
computers
SSID
Service Set Identifier is a name for a wireless network
Stateful inspection
A feature of a firewall that monitors outgoing and incoming traffic to make sure that only
valid responses to outgoing requests are allowed to pass though the firewall
Subnet mask
Determines what portion of an IP address designates the Network and which part
designates the Host
Syslog
System Logger -- a distributed logging interface for collecting in one place the logs from
different sources. Originally written for UNIX, it is now available for other operating systems,
including Windows.
T
TCP
Transmission Control Protocol
TCP Raw
A TCP/IP protocol for transmitting streams of printer data.
TCP/IP
Transmission Control Protocol/Internet Protocol
TFTP
Trivial File Transfer Protocol is a utility used for transferring files that is simpler to use than
FTP but with less features
Throughput
The amount of data that can be transferred in a given time period
Traceroute
A utility displays the routes between you computer and specific destination
U
UDP
User Datagram Protocol
Unicast
Communication between a single sender and receiver
Universal Plug and Play
A standard that allows network devices to discover each other and configure themselves to
be a part of the network
Upgrade
To install a more recent version of a software or firmware product
Upload
To send a request from one computer to another and have a file transmitted from the
requesting computer to the other
UPnP
Universal Plug and Play
URL
Uniform Resource Locator is a unique address for files accessible on the Internet
USB
Universal Serial Bus
UTP
Unshielded Twisted Pair
42
Wireless PCI Ca rd
HNW300CI User Manual
V
Virtual Private Network
VPN: A secure tunnel over the Internet to connect remote offices or users to their
company's network
VLAN
Virtual LAN
Voice over IP
Sending voice information over the Internet as opposed to the PSTN
VoIP
Voice over IP
W
Wake on LAN
Allows you to power up a computer though it's Network Interface Card
WAN
Wide Area Network
WCN
Windows Connect Now. A Microsoft method for configuring and bootstrapping wireless
networking hardware (access points) and wireless clients, including PCs and other devices.
WDS
Wireless Distribution System. A system that enables the interconnection of access points
wirelessly.
Web browser
A utility that allows you to view content and interact with all of the information on the World
Wide Web
WEP
Wired Equivalent Privacy is security for wireless networks that is supposed to be
comparable to that of a wired network
Wide Area Network
The larger network that your LAN is connected to, which may be the Internet itself, or a
regional or corporate network
Wi-Fi
Wireless Fidelity
Wi-Fi Protected Access
An updated version of security for wireless networks that provides authentication as well as
encryption
Wireless ISP
A company that provides a broadband Internet connection over a wireless connection
Wireless LAN
Connecting to a Local Area Network over one of the 802.11 wireless standards
WISP
Wireless Internet Service Provider
WLAN
Wireless Local Area Network
WPA
Wi-Fi Protected Access. A Wi-Fi security enhancement that provides improved data
encryption, relative to WEP
X
xDSL
A generic term for the family of digital subscriber line (DSL) technologies, such as ADSL,
HDSL, RADSL, and SDSL.
Y
Yagi antenna
A directional antenna used to concentrate wireless signals on a specific location
Wireless PCI Ca rd
43
HNW300CI User Manual
5. Appendix B – Specifications
Data Rates
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48,
54, 72, 84, 150 and 300Mbps (300 Rx
PHY rate; 150Mbps Tx PHY support)
Standards / Compliance
IEEE802.3, IEEE802.3u, IEEE802.11b,
IEEE802.11g, 802.11n (2.0)
Regulation Certifications
FCC Part 15, ETSI 300/328/CE
Operating Voltage
3.3V ± 0.25V
Status LEDs
LINK/ACTIVITY
Drivers
Windows 2000/XP/Vista
RF INFORMATION
Frequency Band
U.S., Europe and Japan product
covering 2.4 to 2.484 GHz,
programmable for different country
regulations
Media Access Protocol
Carrier Sense Multiple Access with
Collision Avoidance (CSMA/CA)
Modulation Technology
802.11g: OFDM (64-QAM, 16-QAM,
QPSK, BPSK)
802.11b: DSSS (DBPSK, DQPSK, CCK)
Operating Channels
11 for North America, 14 for Japan, 13
for Europe
Receive Sensitivity (Typical)
• 2.412~2.472G(IEEE802.11b) (1Rx)
-91dBm @ 1Mbps
-87dBm @ 11Mbps
• 2.412~2.472G(IEEE802.11g) (2Rx)
-90dBm @ 6Mbps
-75dBm @ 54Mbps
• 2.412~2.472G(IEEE802.11N) (2Rx)
-88 dBm MCS 8
-65 dBm MCS 15
Available transmit power
• 2.412~2.472G(IEEE802.11b)
18dBm @1~11Mbps
• 2.412~2.472G(IEEE802.11g)
15 dBm @6Mbps
14 dBm @54Mbps
• 2.412~2.472G(IEEE802.11N)
15dBm
Antenna Configuration
1T2R Mode
NETWORKING
Topology
Ad-Hoc, Infrastructure
Security
WPA/WPA2 (AES, 64,128-WEP with
shared-key authentication)
PHYSICAL
Form Factor
PCI Card
ENVIRONMENTAL
Temperature Range
Operating: 0°C to 45°C
Storage: -10°C to 70°C
Humidity (non-condensing)
15%~95% Typical
Package Contents
• Wireless-N PCI Card
• Two Detachable Antennas
• User’s Manual
• CD-ROM with Drivers and Manual
44
Wireless PCI Ca rd
HNW300CI User Manual
6. Appendix C – FCC Interference Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
This device complies with FCC RF Exposure limits set forth for an uncontrolled environment,
under 47 CFR 2.1093 paragraph (d)(2).
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Wireless PCI Ca rd
45
Loading...
