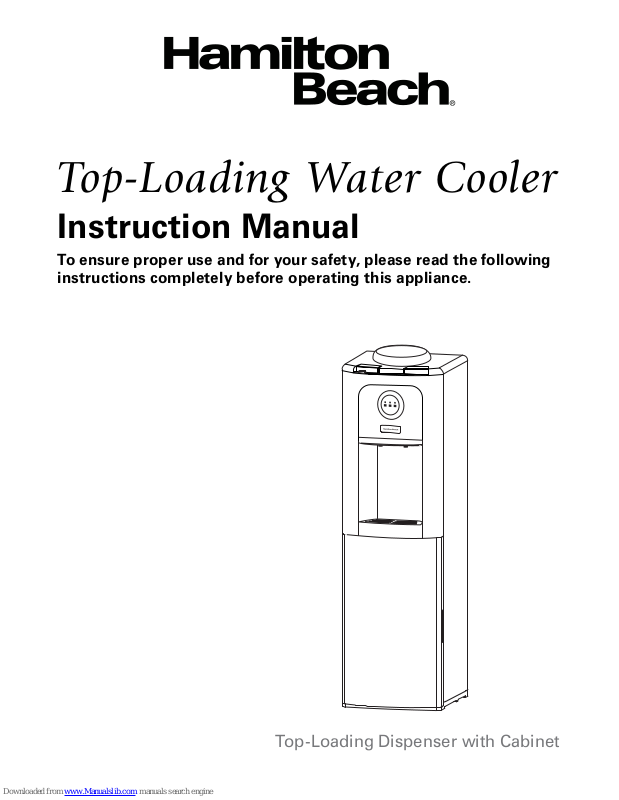

HAMILTON BEACH TL-6-5A Instruction Manual

Top-Loading Water Cooler

Instruction Manual

To ensure proper use and for your safety, please read the following
instructions completely before operating this appliance.

Top-Loading Dispenser with Cabinet

Congratulations, you have acquired a high-quality Hamilton Beach™ Water
Dispenser for bottled water. This product allows you to enjoy a cool drink or
a hot beverage and has many features that you will find convenient to use.
Please remember to record the model number and series code which can be
found on a label in the back of the unit.

Model number Series code Date of purchase

READ ALL INSTRUCTIONS BEFORE USING!

Parts and Features

2

1 Bottle support collar
2 Hot water button
3 Cold water button
4 Removable drip tray
5 Cold water switch
6 Hot water switch
7 Condenser coils

(rear of dispenser)

8 Child Safety lock
9 Stability Cable

7

4

3

2

1

6

5

2

3

8

9

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should be
followed, including the following:

• WARNING! BURN HAZARD: The product heats water to a temperature of

approximately 95° C / 203° F. Water temperatures above 52° C / 125° F can
cause severe burns or death from scalding. Children, the disabled and the
elderly are at highest risk of being scalded. Children should be supervised
by an adult when using this product.

• WARNING! FIRE HAZARD: Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of this or any other appliance.
Do not operate dispenser with a damaged cord. Do not use with an
underrated extension cord.

• WARNING! SHOCK HAZARD: Unplug the water dispenser before

cleaning or wiping up spilled water on unit. Do not attempt to service the
dispenser. Do not operate dispenser with a damaged cord.

• WARNING! CRUSH HAZARD: Always attach stability cable using the
supplied directions to prevent accidental tip-over.

• Never turn the product upside down or tilt more than 45 degrees.
If the unit has been resting on its side for a long period of time, you must
position the water cooler in the upright position for approximately
12 hours before turning it on.

• Never use this dispenser with water that is unsafe to drink or is from an
unknown source.

• Never use any other liquid in this dispenser than bottled water.

• Install this water dispenser in a dry place away from direct sunlight.
For indoor use only.

• Never put anything flammable close to the dispenser.

• Leave a minimum of 2” (5 cm) around the back and sides of the dispenser
for proper ventilation.

• Regular cleaning of the water dispenser is required for proper operation

• Clean the dispenser every 4 months using the instructions in this manual.

SAVE THESE INSTRUCTIONS!

3
