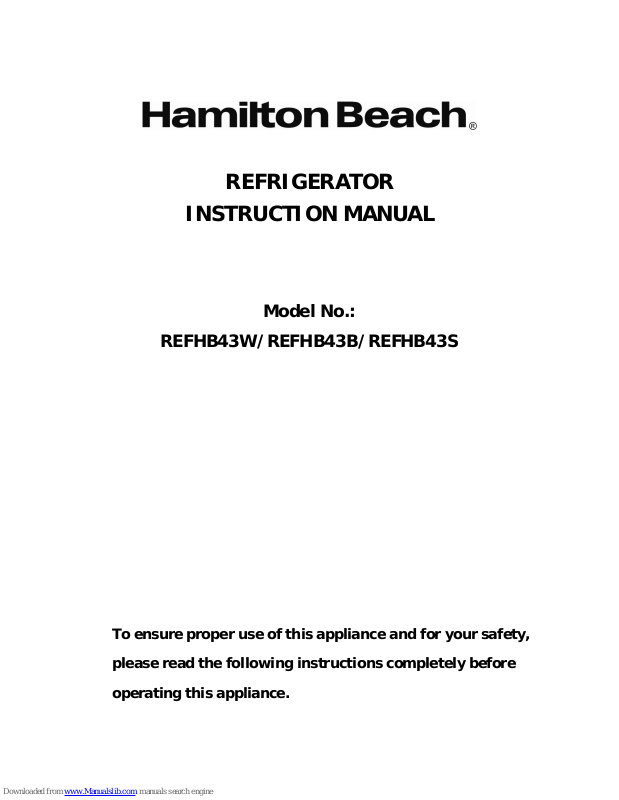

Hamilton Beach REFHB43W, REFHB43B, REFHB43S Instruction Manual

REFRIGERATOR

INSTRUCTION MANUAL

Model No.:

REFHB43W/REF HB43B/REFHB4 3S

To ensure proper use of this appliance and for your safety,
please read the following instructions completely before
operating this appliance.

TABLE OF CONTENTS

Parts and features......................................................................1

Important safety instructions...................................................2

Important grounding instructions............................................3

Installati on instructions...................... .................................... ...4

Operat ing instructions... .............. .............. ................. .............. .4

Cleaning......................................................................................5

Defrosting...................................................................................5

Power Fa ilure................ .................... ................... ..................... .6

Vacation......................................................................................6

Moving the refrigerator............................................................7

Troubles hooting tips..... ................... ................ ................... .......7

Reversing the door...................................................................9

Replacement of the interior light............................................10

Specifications............................................................................11

Warranty..................................................................................12

Refrigerator REFHB43W/REFHB43B/REFHB43S Use and Care Manual Support: 1-877-395-5109

PARTS AND FEATURES

1. Freezer compartment

2. Temperature control dial

3. Removable glass shelf

4. Lamp switch

5. Can dispenser

6. Tall bottle storage

1

Refrigerator REFHB43W/REFHB43B/REFHB43S Use and Care Manual Support: 1-877-395-5109

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be
followed to reduce the risk of fire, electrical shock, and /or injury to persons,
including the following:

Read all instructions before using the appliance.

1. This appliance must be grounded. Connect only to properly grounded outlet.
See Important Grounding Instructions on page 3.

2. Install or locate this refrigerator only in accordance with the provided
Installation Instructions.

3. To protect against electric shock, do not place cord, plug, or refrigerator in water
or other liquid.

4. Close supervision is necessary when any appliance is used by or near children.

5. Do not operate this appliance if it has a damaged cord or plug, if it is not working
properly, or if it has been damaged or dropped.

6. This appliance should be serviced only b y qualified service personnel. Contact
your nearest authorized service facility or call our toll-free customer service
number for information on examina tion, repair, or adjustment.

7. Do not cover or block any openings or a ir vents on this appliance.

8. Do not store this appliance outdoors. Do not use this appliance near water. For

example, do not use near a kitchen sink, in a w et basement, near a swimming
pool, or similar locations.

9. Do not locate this appliance near hea t sources or open flames.

10. Do not use or store gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance. The fumes can create a fire hazard or explosion.

11. Do not place heavy objects or magnet items on top of the refrigerator.

12. The refrigerant of this product is R600a, which is inflammable. Make sure not to
damage the cooling system during the transportation and installation.

13. To minimize the risk of possible ignition due to improper service or the use of
incorrect parts, this unit must be serviced by factory authorized personnel only.

!!SAVE THESE INSTRUCTIONS!!

2

Refrigerator REFHB43W/REFHB43B/REFHB43S Use and Care Manual Support: 1-877-395-5109

DANGER! RISK OF CHILD ENTRAPMENT
Before you throw away your old refrigerator or freezer:

1. Take off the doors.

2. Leave the shelves in place so that c hi ldren may not easily climb inside.

Refrigerants

All refrigeration products co ntain refrigerants, which under federal law must be
removed prior to product disposal. If you are getting rid of an old refrigeration
product, check with a qualified disposal company for instructions.

IMPORTANT GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit,
grounding reduces the risk of electric shock by providing an escape wire for the
electric current. This appliance is eq ui pped with a cord having a grounding wire
with a grounding plug. The plug m ust be plugged into an outlet that is properly
installed and grounded.

WARNING- Improper use of grounding can result in a risk of electric
shock.

1. Consult a qualified electrician or serviceman if the
grounding instructions are not completely understood or if
doubt exists as to whether the appliance is properly
grounded.

2. If it is necessary to use an extension cord, use only a 3-wire

extension cord that has a 3-blade groundi n g plu g, and a
3-slot receptacle that will accep t the plug on the appliance.
The marked electrical rating of the extension cord shall be
equal to or greater than the rati ng of the appliance.

3

Refrigerator REFHB43W/REFHB43B/REFHB43S Use and Care Manual Support: 1-877-395-5109

INSTALLATION INSTRUCTIONS

1. Before using the refrigerator for the first time, remove all of the packing

materials, including the foam ba se and adhesive tape holding accessories in
place.

2. The refrigerator should be located on a firm, flat surface tha t is strong enough

to support the refrigerator when it is fully loaded.

3. Choose a location that is not exposed to direct sunlight, high temperatures,

heat sources such as a stove or radiator, or in a moist area. Do not choose a
location where the temperature w il l go below 55°F as this could cause the
refrigerator to not function pr operly.

4. Leave a minimum of ½” between each sid e of the a pp liance and the wal l. T he

top and back of the appliance should have a minimum of 1½” cleara nc e. This
allows for proper air circulation. This appliance is intended to be free-standing
and should not be built-in or placed in a recessed area.

5. The refrigerator legs must be adjusted during installation in order to function

properly. The leveling legs on the front corners can be adjusted by turning
clockwise to raise the applianc e, and counter-clockwise to lower it. Be sure to
have the appliance slope slightly backward to ensure that the door closes
tightly.

OPERATING INSTRUCTIONS

1. Allow refrigerator to stand upright for 4 hours before using.

2. Plug into a grounded outlet or appropriate extension cord (see Important
Grounding Instructions).

3. The temperature of the refrigerator can be controlled manually
with the control dial. However, t he number shown on the knob
does not directly represent the temperatur e. Instead, the larger
the number is, the cooler the interior temperature will be.
Change to “0” stops the cooling but does not turn the power off.
Turn the knob to setting 4 for normal use; turn it to setting 5-7 if
a cooler temperature is required or to setting 1-3 when a warmer
temperature is needed.

4. There should always be some space between food items inside for ai r
circulation.

4

Refrigerator REFHB43W/REFHB43B/REFHB43S Use and Care Manual Support: 1-877-395-5109

5. Food should be kept in sealed containers to prevent odors or drying.

6. Hot food should be cooled down before placing into the appliance to prevent
increase in interior temperature and power consumption. Placing food inside
too soon will impact the performance.

7. Reducing the frequency of door opening can lower power consumption.

CLEANING

Interior

Clean the interior of the applia nce with a mixture of wa rm water and ba king soda,
using about 1 – 2 tablespoons per quart of water. Use a sponge or soft cloth and
be sure to wring excess moisture out before cleaning around the controls.

Rinse thoroughly with warm water and dry with a clean, soft cloth.

Exterior

The exterior surface can be cleaned using warm water and a mild detergent.
Rinse thoroughly and dry with a clea n, soft cloth.

Door Gasket

The door gasket must be kept clean to ensure a proper seal. Be sure to clean the
gasket frequently, using the met hod described above.

DEFROSTING

Frost build-up on the walls of the freezer sectio n will incr ease energ y consu mption
and reduce the efficiency of the appliance. Defrost the freezer section whenever
the frost reaches a thickness of ¼”.

1. Remove food and ice cube tray from the refrigerator and freezer compartment.

5

Refrigerator REFHB43W/REFHB43B/REFHB43S Use and Care Manual Support: 1-877-395-5109

2. If your model has a drip tray, be sure to place it under the fr eezer compartment

to collect water. It may be necessary to empt y the drip tray during the
defrosting process.

3. Turn the unit off and unplug it from the outlet.

4. The defrosting process can ta k e sev eral hours. Open the door to speed up the

process.

5. When defrosting is completed, wipe the compartment with a soft cloth to

remove any remaining water.

6. Reset the ref rigerator temperature, fo l lowing the operating instructions on

page 4.

ATTENTION: Do not use sharp or pointed objects to remove frost or ice from the
surfaces of the freez er compa rtment . This can c ause dam age to the com partm ent
walls and cooling coils, and w i ll void the warranty.

POWER FAILURE

When a power failure occurs, the refrig erator can normally store food for several
hours. Do not put additional food into the appliance during a power failure, and do
not open door. Disconnect the plug from the outlet, and reconnect when the
power has been restored. Always inspect for, and discard, any spoiled or

thawed food in the refrigerator or freezer before resuming use of the
appliance.

VACATION

Before leaving on any vacation, remove food that could spoil while you are gone. If
you plan to be gone for an extended perio d of time, w e recommend that all of the
food should be removed from the appliance and it should be turned off and
unplugged from the outlet. Clea n the interior according to the directions provided
in the Cleaning section of this manual, and leave the door open.

6

Refrigerator REFHB43W/REFHB43B/REFHB43S Use and Care Manual Support: 1-877-395-5109

Problem

Possible Cause

What to do

·Tripped circuit breaker or

·Replace fuse or reset circuit

Refrigerator seems

·Temperature setting may

·Lower the temperature

·Door not closed tightly

·Check to make sure nothing

·Warm weather

·This is normal

MOVING THE REFRIGERATOR

1. Turn off the refrigerator and unplug from the outlet.

2. Remove all food and securely tape down all loose items inside.

3. Tape the door shut.

4. Do not lift or pull the door or door handle during transportation.

5. When moving, the applia nc e c an not be tilted over 45 degrees as possible

damage to the seal ed system could occur.

6. Take care to avoid strong vibration or impact to the appliance.

TROUBLESHOOTING TIPS

Refrigerator does
not operate

too warm/food does
not seem to cool

·Not plugged in tightly ·Unplug, wait 10 seconds,
then plug in again

blown fuse

·Problem with electrical

outlet

be too warm

breaker

·Consult with a professional
electrician

setting

·Door opened too frequently ·This is normal

inside is causing the door to
not close

7

Refrigerator REFHB43W/REFHB43B/REFHB43S Use and Care Manual Support: 1-877-395-5109

·Temperature control set at

·Adjust temperature to a

Moisture forms on

·This is normal during

·Wipe the surface dry using

Moisture forms on

·This is normal during

·This is normal

Vibration noise

·Refrigerator is on an

·Adjust the leveling legs

Problem Possible Cause What to do

Compressor runs
too long, or cycles
on and off
frequently

the outside of the
appliance

the inside of the
appliance

·Hot weather ·This is normal

· Door opened too

·This is normal

frequently

·Door not closed tightly ·Check to be sure nothing
inside the refrigerator is
preventing the door from
closing

coldest setting

·Large amounts of food

warmer setting

·This is normal

placed in refrigerator

periods of high humidity

a soft cloth

·The door is slightly open ·Close the door tightly

periods of high humidity

·Door is opened too long or

too frequently

·Do not open the door too
long or too frequently

The following are normal c onditio ns that can be encountered during the o peratio n
of this appliance:

• The flow of refrigerant through the coils can cause a noise.

• The sides of the appliance may becom e warm as a result of the cooling

function.

uneven surface

·Refrigerator is touching a

wall

·Move the refrigerator
away from the wall

8

Refrigerator REFHB43W/REFHB43B/REFHB43S Use and Care Manual Support: 1-877-395-5109

REVERSING THE DO OR

1. Top hinge cover

2. Top hinge screw

3. Top hinge

4. Cabinet plug

5. Bottom hinge

6. Door handle plug

7. Bottom hinge screw

8. Leveling leg

Do not tilt the appliance over
45°when revising the door as
possible damage to the sealed
system may occur.

1. Remove top hinge cover and 3 top hinge screws which are below it. Then
remove top hinge.

2. Remove 1 cabinet plugs and 1 door handle plug.

3. Remove the door.

4. Remove right and left leveling legs.

5. Remove the bottom hinge and 3 bottom hinge screws.

6. Install the bottom hinge on the other side of the leveling legs with 3 bottom
hinge screws.

7. Install rig ht and left leveling legs. There are two holes below t he refrigerator to
fit the two leveling legs.

8. Install the door.

9. Install the top hinge on the other side with 3 top hinge screws.

10. Install top cover above the top hinge and install 1 cabinet plugs and 1 door
handle plug on the other side.

11. Adjust the leveling legs.

9

Refrigerator REFHB43W/REFHB43B/REFHB43S Use and Care Manual Support: 1-877-395-5109

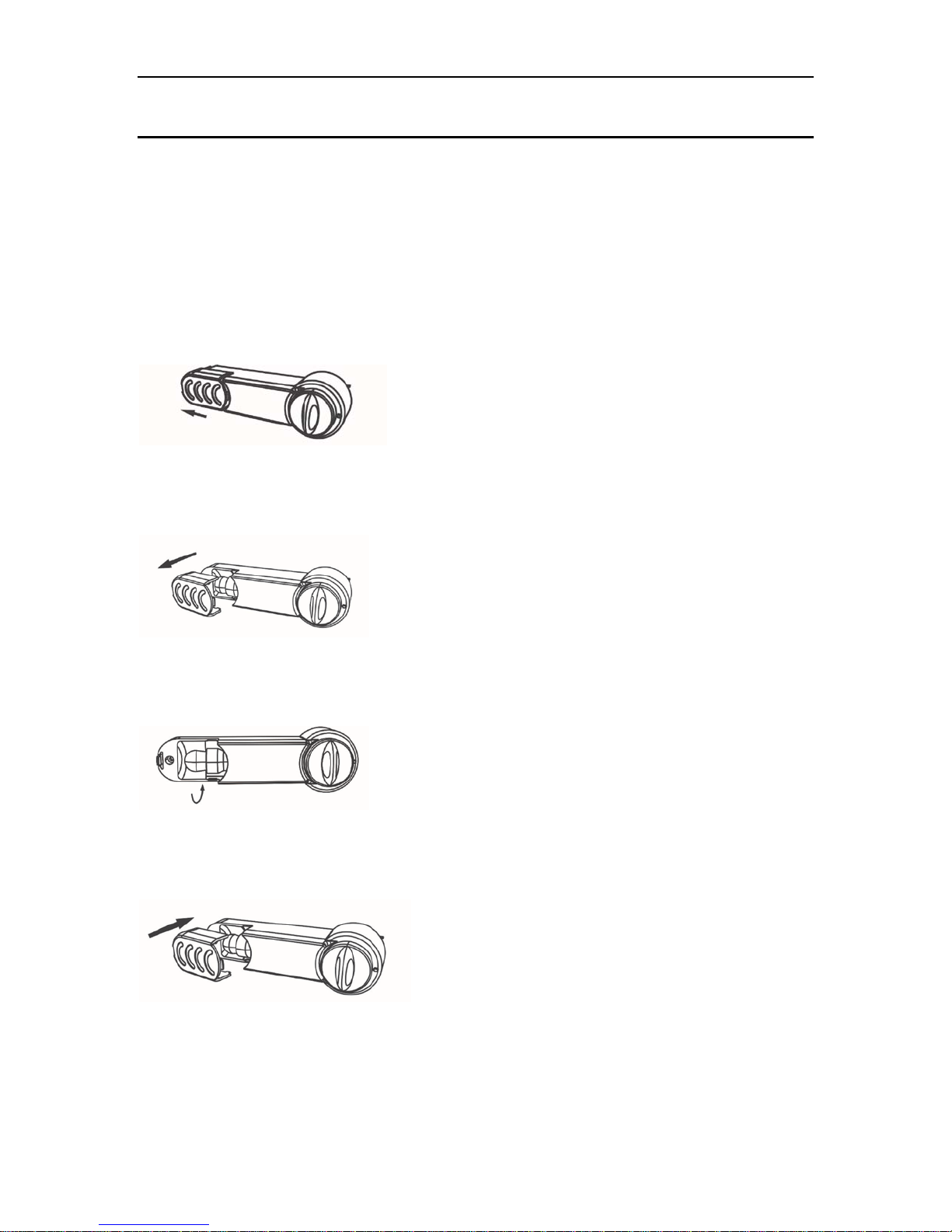

REPLACEMENT OF INTERIOR LIGHT

Uninstall the cover and replace the light with a screwing light (120V/10W). Refer
to the illustrations and instructions below:

1. Move the lampshade 1.2~2 inches ac cording to arrow point direction.

2. Take out the lamp shade.

3. Rotate and take out the bulb in counterclockwise direction.

4. Replace bulb and reinstall shad e.

10

Refrigerator REFHB43W/REFHB43B/REFHB43S Use and Care Manual Support: 1-877-395-5109

SPECIFICATIONS

Model REFHB43W/REFHB43B/REFHB43S

Climate T

Electric shock protection type I

Freezer N/A

Capacity(cu.ft)

Refrigerator 4.3

Voltage(V) 120

Frequency(Hz) 60

Current (A) 0.8

Voice (dB)

Energy consumption (kWh/24h) 0.92

Refrigerant R600A/0.95 oz

Weight 63.8 lbs

Interior temperature (F)

Unit dimensions (in inches)

Freezer N/A

Refrigerator

32 ～46.4
Width 19.92
Depth 22.00

Height 32.91

≤42

11

Refrigerator REFHB43W/REFHB43B/REFHB43S Use and Care Manual Support: 1-877-395-5109

Limited Warranty

This warranty applies to products purchased and used in the U.S. This is the only exp ress warranty for
this product and is in lieu of any other warranty.

This product is warranted to b e fre e from d e fe cts in m aterial and workm an sh ip for a p e rio d o f on e (1 )
year from the date of original purchase, except as noted below. During this period, we will repair or
replace this p roduct at our opti on.

This warranty extends only to the original consumer purchaser and does not cover a defect resulting
from abuse, misuse, neglect including failure to clean product regularly in accordance with
manufacturer's instructions, use for commercial purposes, or any use not in conformity with the printed
directions.

We exclude all claims for special, incidental, and consequential damages caused by breach of express or
implied warranty. All liability is limited to the amount of the purchase price. Every implied

warranty, including any statutory warranty of merchantability or fitness for a
particular purpose, is disclaimed except to the extent prohibited by law, in which
case such warranty is limited to the duration of this written warranty. Thi s warranty

gives you specific legal rights. You may have o the r legal rights that vary depending on where you live.
Some states do not allow limitations on implied warranties or special, incidental, or consequential
damages, so the foregoing limitations may not apply to you.

If you have a claim u nder this warranty, please call our CUSTO M E R S E R VICE NUMBER.
For faster serv ice please have model, series, and type numbers ready for operator to assist you.

CUSTOMER SERVICE NUMBER

In the U.S. 1.877.395.5109

KEEP THIS N UMBER F OR FUT URE REFERENCE!

KEEP THIS N UMBER F OR FUT URE REFERENCE!

Warrantor: Zhon gshan Galanz Consumer

Warrantor: Zhongshan Galanz Consumer

Electric Appliances Co., Ltd, Guangdong 528428

Electric Appliances Co., Ltd, Guangdong 528428

12
