Hamilton Beach HMD400-A, HMD400 Parts List

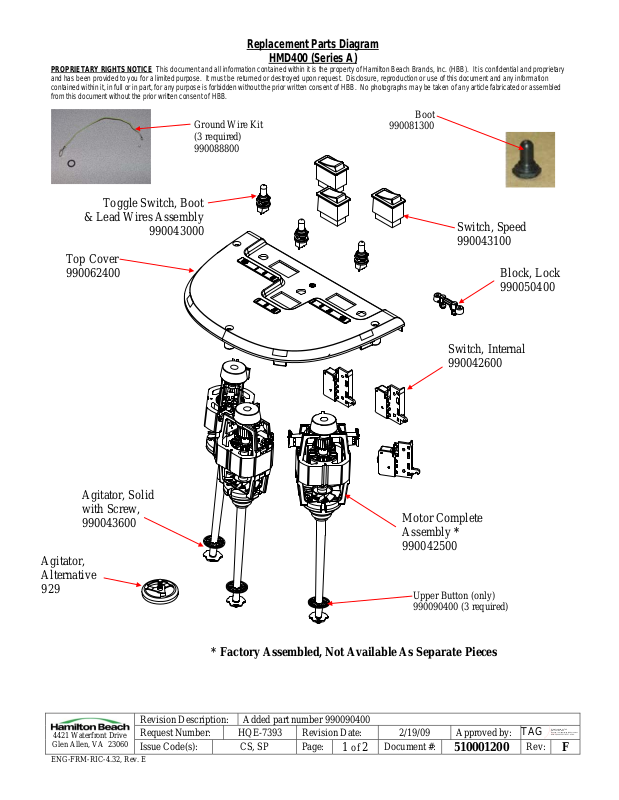

Replacement Parts Diagram

t

TAG

Digitally signed by TAG
DN: cn=TAG, c=US
Reason: I am approving this document
Date: 2009.02.20 17:03:17 -05'00'

HMD400 (Series A)

PROPRIETARY RIGHTS NOTICE

and has been provided to you for a limited purpose. It must be returned or destroyed upon request. Disclosure, reproduction or use of this document and any information
contained within it, in full or in part, for any purpose is forbidden without the prior written consent of HBB. No photographs may be taken of any article fabricated or assembled
from this document without the prior written consent of HBB.

Top Cover
990062400

Agitator,
Alternative
929

Toggle Switch, Boot

& Lead Wires Assembly

Agitator, Solid
with Screw,
990043600

This document and all information contained within it is the property of Hamilton Beach Brands, Inc. (HBB). It is confidential and proprietary

Boo

Ground Wire Kit
(3 required)
990088800

990043000

990081300

Switch, Speed
990043100

Block, Lock
990050400

Switch, Internal
990042600

Motor Complete
Assembly *
990042500

Upper Button (only)
990090400 (3 required)

* Factory Assembled, Not Available As Separate Pieces

Revision Description: Added part number 990090400

4421 Waterfront Drive

Glen Allen, VA 23060

ENG-FRM-RIC-4.32, Rev. E

Request Number: HQE-7393 Revision Date: 2/19/09 Approved by:
Issue Code(s): CS, SP Page:

1 of 2

Document #:

510001200

Rev:

F

Replacement Parts Diagram

HMD400 (Series A)

PROPRIETARY RIGHTS NOTICE

and has been provided to you for a limited purpose. It must be returned or destroyed upon request. Disclosure, reproduction or use of this document and any information
contained within it, in full or in part, for any purpose is forbidden without the prior written consent of HBB. No photographs may be taken of any article fabricated or assembled
from this document without the prior written consent of HBB.

Housing Plug
990049700

Housing Cover
990062900

Pin, Switch
Actuator
990042200

This document and all information contained within it is the property of Hamilton Beach Brands, Inc. (HBB). It is confidential and proprietary

Back Cover
990062700

Cup Guide
990043400

Cup Rest
Housing Plug
990049800

Cup Rest
990042400

Cup 110E

Feet Front
990042800

Feet Suction
990042900

Power Cord
990042300

Feet Rear
990042700

Revision Description: Added part number 990090400

4421 Waterfront Drive

Glen Allen, VA 23060

ENG-FRM-RIC-4.32, Rev. E

Request Number: HQE-7393 Revision Date: 2/19/09 Approved by:
Issue Code(s): CS, SP Page:

2 of 2

Document #:

510001200

Rev:

F
