Hamilton Beach HMD200-DB Parts List

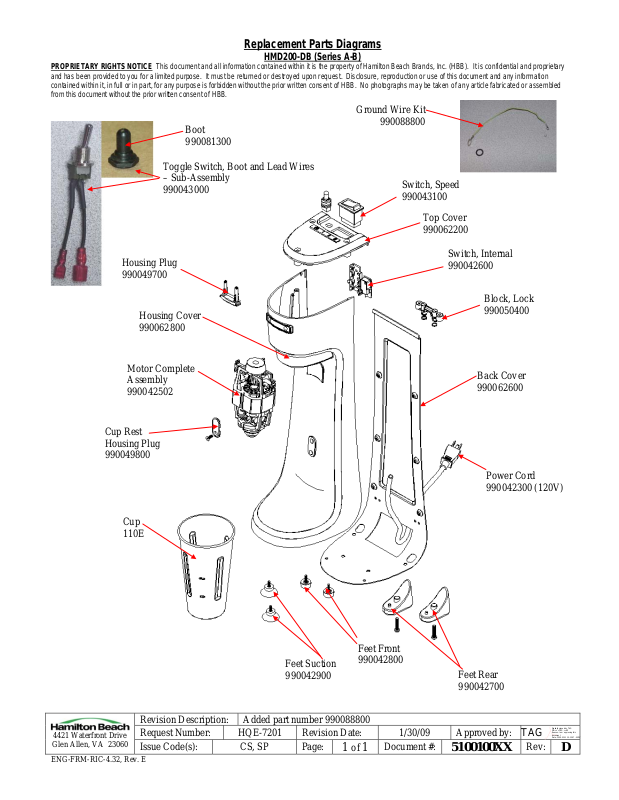

Replacement Parts Diagrams

–

t

TAG

Digitally signed by TAG
DN: cn=TAG, c=US
Reason: I am approving this
document
Date: 2009.02.11 10:13:27 -05'00'

PROPRIETARY RIGHTS NOTICE

and has been provided to you for a limited purpose. It must be returned or destroyed upon request. Disclosure, reproduction or use of this document and any information
contained within it, in full or in part, for any purpose is forbidden without the prior written consent of HBB. No photographs may be taken of any article fabricated or assembled
from this document without the prior written consent of HBB.

This document and all information contained within it is the property of Hamilton Beach Brands, Inc. (HBB). It is confidential and proprietary

Boot
990081300

HMD200-DB (Series A-B)

Ground Wire Ki

990088800

Toggle Switch, Boot and Lead Wires

Sub-Assembly

990043000

Switch, Speed
990043100

Top Cover
990062200

Housing Plug
990049700

Housing Cover
990062800

Motor Complete
Assembly
990042502

Cup Rest
Housing Plug
990049800

Cup
110E

Switch, Internal
990042600

Block, Lock
990050400

Back Cover
990062600

Power Cord
990042300 (120V)

Revision Description: Added part number 990088800

4421 Waterfront Drive

Glen Allen, VA 23060

ENG-FRM-RIC-4.32, Rev. E

Request Number: HQE-7201 Revision Date: 1/30/09 Approved by:
Issue Code(s): CS, SP Page:

Feet Suction
990042900

Feet Front
990042800

1 of 1

Document #:

Feet Rear
990042700

5100100XX

Rev:

D
