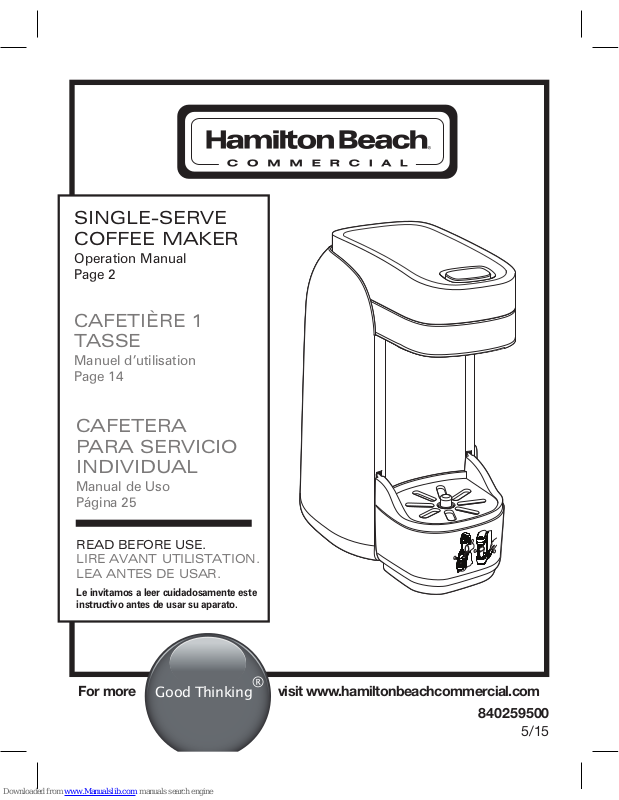

840259500
5/15
Good Thinking
®
SINGLE-SERVE
COFFEE MAKER
Operation Manual
Page 2
CAFETIÈRE 1
TASSE
Manuel d’utilisation
Page 14
CAFETERA
PARA SERVICIO
INDIVIDUAL
Manual de Uso
Página 25
READ BEFORE USE.
LIRE AVANT UTILISTATION.
LEA ANTES DE USAR.
Le invitamos a leer cuidadosamente este
instructivo antes de usar su aparato.
For more visit www.hamiltonbeachcommercial.com
2
At least one copy of this manual should be kept in a location
available at all times to maintenance and management staff.
IMPORTANT SAFEGUARDS
WARNING – When using electrical appliances,
basic safety precautions should always be followed to reduce
the risk of fire, electric shock, and/or injury to persons, including
the following:
1. Read all instructions.
2. This appliance is not intended for use by persons (including
children) with reduced physical, sensory, or mental
capabilties, or lack of experience and knowledge, unless they
are closely supervised and instructed concerning use of the
appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used
by or near children. Children should be supervised to ensure
that they do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs. Care must
be taken, as burns can occur from touching hot parts or
from spilled, hot liquid.
5. To protect against electric shock, do not place cord, plug, or
coffee maker in water or other liquid.
6. Unplug from outlet when the coffee maker is not in use and
before cleaning. Allow to cool before putting on or taking off
parts and before cleaning the appliance.
7. Coffee maker must be operated on a flat surface away from
the edge of counter to prevent accidental tipping.
8. Do not operate any appliance with a damaged cord or plug,
or after the appliance malfunctions or has been damaged in
any manner. Call our toll-free customer service number for
information on examination, repair, or adjustment.
3
9. The use of accessory attachments not recommended by the
appliance manufacturer may cause injuries.
10. Do not use outdoors.
11. Do not let cord hang over edge of table or counter or touch
hot surfaces, including stove.
12. Do not place on or near a hot gas or electric burner, or in a
heated oven.
13. WARNING: To avoid hot water spraying from the piercing
needle, do not lift the lid during the brew process.
14. Do not use appliance for other than intended use.
15. WARNING: To reduce the risk of fire or electric shock, do
not remove the bottom cover of the coffee maker. There are
no user-serviceable parts inside. Repair should be done by
authorized service personnel only.
16. CAUTION! Cut Hazard: Removable single-serve pack holder
contains a sharp needle. Use caution when handling.
17. CAUTION! Cut Hazard: Piercing needle is sharp. Use caution
when cleaning.
– SAVE THESE IN STRUC TIONS –
IMPORTANT SAFEGUARDS (cont.)
4
Other Consumer Safety Information
w WARNING
Electrical Shock Hazard: This product is provided
with a grounded (3-prong) plug to reduce the risk of electric shock.
The plug fits only one way into a grounded outlet. Do not defeat
the safety purpose of the plug by modifying the plug in any way
or by using an adapter. If the plug does not fit into the outlet, have
an electrician replace the outlet.
The length of the cord used on this appliance was selected to
reduce the hazards of becoming tangled in or tripping over a
longer cord. If a longer cord is necessary, an approved extension
cord may be used. The electrical rating of the extension cord
must be equal to or greater than the rating of the appliance. The
extension cord must be a grounding-type, 3-wire cord. Care must
be taken to arrange the extension cord so that it will not drape
over the countertop or tabletop where it can be pulled on by
children or accidentally tripped over.
To avoid an electrical circuit overload, do not use another highwattage appliance on the same circuit with this appliance.
Technical Services
For assistance or replacement parts, call our
Technical Services number:
866-285-1087 or +910-693-4277
8 a.m. – 5 p.m. EST Monday – Friday
www.hamiltonbeachcommercial.com
5
Parts and Features
Lid
Drip Tray/
Cup Rest
ON/OFF
(I/O)
Button
Water Reservoir
Water Fill Levels
Lid-Open Button
Funnel
Handle
Funnel*
Removable
Single-Serve
Pack Holder*
10-oz. (296 ml) Level
8-oz. (237 ml) Level
Before First Use: Wash all removable parts in hot, soapy water.
Rinse and dry. Brew one cycle with water and discard water.
Removable Water
Filter (Must be
kept in place for
brewing. Only
remove to clean.)
Piercing Needle
Seal
Water
Reservoir
Fill Valve
(DO NOT
REMOVE)
Steps on Drip Tray/
Cup Rest
6
How to Brew a SingleServe Pack
w WARNING
Burn Hazard. To avoid contact with hot coffee or
water:
• Do not fill water above 10-oz. (296 ml) fill line.
• Fill reservoir with cup of water into which the coffee will be
brewed.
• Fully insert cup on drip tray.
• Do not lift lid during the brewing process.
w CAUTION
Cut Hazard. Removable single-serve pack holder
has a sharp needle. Piercing needle on underside of lid also is
sharp. Use caution when handling.
• Use only cold water in reservoir.
• Do not use hot water.
• Do not reheat coffee in the machine.
• Do not use creamer or nondairy creamer in reservoir.
• After brewing hot cocoa single-serve packs, brew a water-only
cycle without a single-serve pack to avoid the possibility of
clogging the piercing needle.
Place a pack into
the single-serve
pack holder. Do
not remove foil.
To open lid, press
button and lift.
7
Lower lid until you hear a click sound. This
means your lid is locked in place. Press
I/O button to start brewing. The power ON
indicator light will light up blue to show
that the coffee maker is on. The coffee
maker will shut off automatically when
brewing is complete.
How to Brew a SingleServe Pack (cont.)
Funnel and singleserve pack holder
should be rinsed
after every use.
w WARNING
Burn Hazard. If brew process
is stopped early, the water must be drained
from the unit. Place a mug on drip tray/cup
rest. Press the
I/O
button. Failure to drain
the unit can cause the next cup brewed to
overflow.
NOTES:
• Coffee maker brews all the water added.
• Press the
I/O
button again to STOP
brewing midcycle.
• Press the
I/O
button to remove any
remaining water from the water reservoir.
Fill reservoir with
cup into which
the coffee will be
brewed. 10 oz.
(296 ml) of water is
the MAX amount
for single-serve
packs. Place cup
on cup rest.
8
Care and Cleaning
Pour 1/4 cup (59 ml) of plain white vinegar and 1/4 cup (59 ml)
of cold water into reservoir. Place a 10-oz. (296 ml) cup
underneath to catch the water/vinegar solution. Press the I/O
button once. After 30 seconds, press I/O button to turn off, unplug
unit, and allow vinegar to clean. After 30 minutes, plug in unit.
Press I/O button and allow it to finish the brew cycle. When brew
cycle is finished, wait for unit to cool. Empty cup and rinse. Run
2 to 3 cycles of cold tap water. The unit is cleaned and ready to
make coffee.
w WARNING
Shock Hazard. Do not immerse cord, plug, or coffee
maker in any liquid.
w CAUTION
Cut Hazard. Removable single-serve pack holder
has a sharp needle. Piercing needle on underside of lid also is
sharp. Use caution when handling.
NOTE: All coffee makers should be cleaned at least once a month
(once a week for areas with hard water).
9
Care and Cleaning (cont.)
Routine Cleaning of the Needle: The needle is located in the lid of
the coffee maker. Bend a small paper clip as shown; insert the tip
of the paper clip through the hole/eye of the needle and up into
the needle to ensure grounds have been removed. Brew 2 or 3
times with cold water to make sure grounds have been removed
from the piercing needle.
DO NOT use the
“SANI” setting
when washing in
the dishwasher.
“SANI” cycle
temperatures
could damage
your product.
DISHWASHER-SAFE
10
Troubleshooting
PROBLEM THINGS TO CHECK
Coffee tastes
bad.
• Coffee maker needs cleaning.
• Poor coffee quality and freshness.
• Poor water quality (use filtered or bottled
water).
Water on
counter under
unit.
• Overfilled water reservoir. Do not add
more than 10 ounces (296 ml) of water to
the removable water filter. Some mugs/
cups do not pour cleanly and can dribble
water down the side of the cup and onto
the counter.
Coffee maker
will not brew.
• The piercing needle may be clogged.
Clean piercing needle in the lid of the
coffee maker as shown on page 9.
Coffee
overflows from
mug.
• To prevent coffee overflowing from a
mug, use the same mug to brew into that
was used to fill the water reservoir. Do
not add more than 10 ounces (296 ml) of
water. There may also be additional water
in the system that is causing the overflow.
Remove brew basket or single-serve pack
holder. Press the I/O button to remove
any remaining water.
Water remaining
in reservoir.
• Added too much water. Place cup on
drip tray. Remove single-serve pack and
replace brew basket. Repeat brewing
cycle. Press the I/O button to remove any
remaining water.
Blinking light. • No water in unit. Follow the “How to Brew
a Single-Serve Pack” directions on page 6.
11
Troubleshooting (cont.)
PROBLEM THINGS TO CHECK
Coffee not
dispensing.
• Piercing needle is clogged with coffee
grounds. Turn unit off; unplug. Allow unit
to cool completely. To remove any built-up
coffee grounds, insert end of bent paper
clip into eye and up into the piercing
needle.
Failed foil seal. • There is variability in the single-serve
pack manufacturing process which causes
some types of single-serve packs to be
weaker at the seams. Try a different brand.
