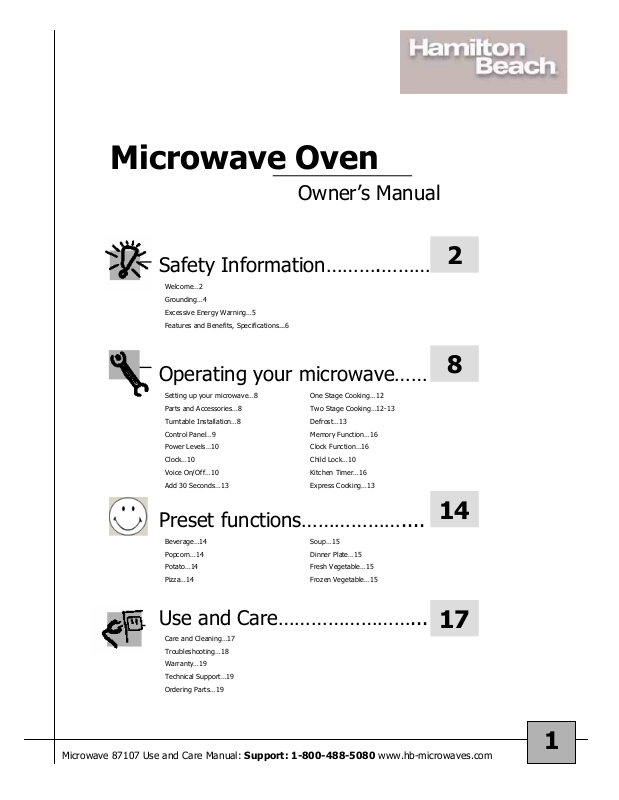

Hamilton Beach 87107 User Manual

Microwave Oven

Owner’s Manual

Safety Information……….………

Welcome…2

Grounding…4

Excessive Energy Warning…5

Features and Benefits, Specifications...6

Operating your microwave……

Setting up your microwave…8 One Stage Cooking…12

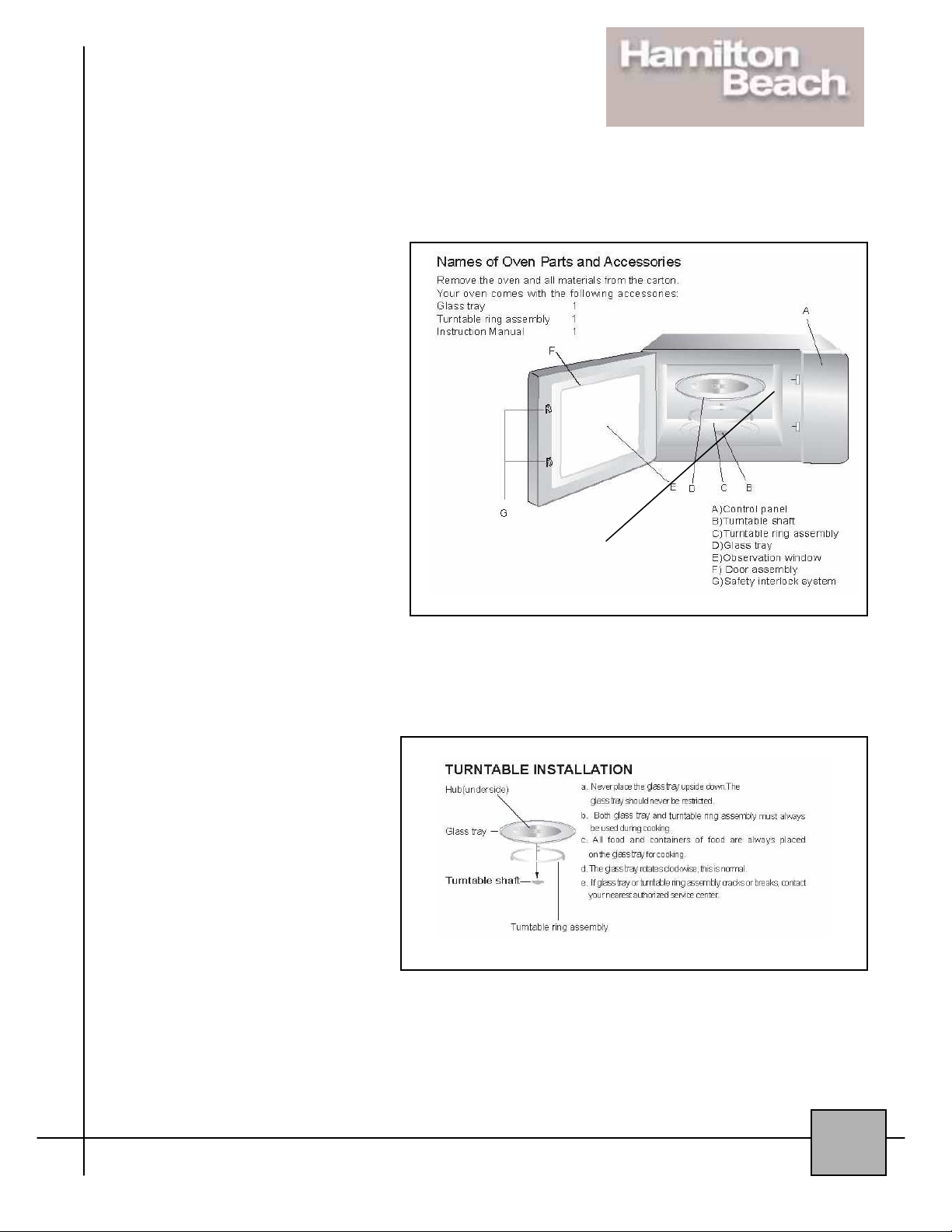

Parts and Accessories…8 Two Stage Cooking…12-13

Turntable Installation…8 Defrost…13

Control Panel…9 Memory Function…16

Power Levels…10 Clock Function…16

Clock…10 Child Lock…10

Voice On/Off…10 Kitchen Timer…16

Add 30 Seconds…13 Express Cooking…13

Preset functions………………....

Beverage…14 Soup…15

Popcorn…14 Dinner Plate…15

Potato…14 Fresh Vegetable…15

Pizza…14 Frozen Vegetable…15

2

8

14

Use and Care……………………...

Care and Cleaning…17

Troubleshooting…18

Warranty…19

Technical Support…19

Ordering Parts…19

17

1

Microwave 87107 Use and Care Manual: Support: 1-800-488-5080 www.hb-microwaves.com

Welcome!

d

Congratulations, you have acquired a high quality Hamilton Beach Microwave

Oven. This unit is packed with many extra features that you will find convenient to
use. TEMO, the talking microwave, comes with the exclusive, easy-to-use i-Talk
interactive talking feature that actually talks you through each step of the microwave
cooking process. Five memory settings and eight different one-touch cooking
buttons provide for convenient meal preparation and tasty snacks. It will provide
you with many years of trouble-free use if you follow the safety precautions and
operating instructions provided in this easy-to-use manual. Please take the time to
read it, and save these instructions for future use. Please also remember to record
the serial number and series code. They are on a label on back of the unit. Save
your receipt by stapling it to this manual for convenient access.

Model number: 87107 Serial number ___________________

Series code____________________ Date of purchase__________________

!! IMPORTANT SAFETY INSTRUCTIONS !!

When using electrical appliances, basic safety precautions shoul

be followed, including the following:

WARNING! - To reduce the risk of burns, electric shock, fire, injury to persons,
or exposure to excessive microwave energy:

1) Read all instructions before using the appliance.

2) Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY” found on page 5.

3) This appliance must be grounded. Connect only to properly grounded outlet. See
“IMPORTANT GROUNDING INSTRUCTIONS” found on page 4.

4) Install or locate this appliance only in accordance with the provided installation
instructions.

5) Some products such as whole eggs and sealed containers – for example, closed
glass jars – are able to explode and should not be heated in this oven.

6) Use this appliance only for its intended use as described in the manual. Do not use
corrosive chemicals or vapors in this appliance. This type of microwave oven is
specifically designed to heat, cook, or dry food. It is not designed for industrial or
laboratory use.

7) As with any appliance, close supervision is necessary when used by children.

Microwave 87107 Use and Care Manual: Support: 1-800-488-5080 www.hb-microwaves.com

2

8) Do not operate this appliance if it has a damaged cord or plug. If it is not working
properly, or if it has been damaged or dropped.

9) This appliance should be serviced only by a qualified service personnel. Contact
nearest authorized service facility for examination, repair or adjustment.

10) Do not cover or block any openings on this appliance.

11) Do not store this appliance outdoors. Do not use this product near water – for
example, near a kitchen sink, in a wet basement, near a swimming pool, or similar
locations.

12) Do not immerse cord or plug in water.

13) Keep cord away from heated surfaces.

14) Do not let cord hang over edge of table or counter.

15) When cleaning surfaces between the door and the microwave that come together
upon closing, use only mild, nonabrasive soaps or detergents applied with a sponge
or soft cloth.

16) To reduce the risk of fire in the microwave cavity:
a) Do not overcook food. Carefully attend appliance when paper,

plastic, or other combustible materials are placed inside the microwave
to facilitate cooking.

b) Remove wire twist-ties from paper or plastic bags before placing bag
in oven.

c) If materials inside the microwave ignite, keep microwave door closed,
turn the microwave off and disconnect the power cord, or shut off power
at the fuse or circuit breaker panel.

d) Do not use the cavity for storage purposes. Do not leave paper
products, cooking utensils, or food in the cavity when not in use.

17) Liquids, such as water, coffee, or tea are able to be overheated beyond the

boiling point without appearing to be boiling. Visible bubbling or boiling when the
container is removed from the microwave oven is not always present. THIS COULD
RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE
CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.

18) This appliance is intended for household use only.

!! SAVE THESE INSTRUCTIONS !!

Microwave 87107 Use and Care Manual: Support: 1-800-488-5080 www.hb-microwaves.com

3

Important Grounding Instructions

This appliance must be grounded. In the
event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing an escape wire for the
electric current. This appliance is
equipped with a cord having a grounding
wire with a grounding plug. The plug must
be plugged into an outlet that is properly
installed and grounded.

WARNING-Improper use of grounding can
result in a risk of electric shock.

Consult a qualified electrician or serviceman if the
grounding instructions are not completely
understood, or if doubt exists as to whether the
appliance is properly grounded and either:

1. If it is necessary to use an extension cord, use
only a 3-wire extension cord that has a 3-blade
grounding plug, and a 3-slot receptacle that will
accept the plug on the appliance. The marked
electrical rating of the extension cord shall be
equal to or greater than the rating of the
appliance, or

2. Do no use an extension cord. If the power
supply cord is too short, have a qualified
electrician or serviceman install an outlet near the
appliance.

Microwave 87107 Use and Care Manual: Support: 1-800-488-5080 www.hb-microwaves.com

4

PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY

• Do not attempt to operate this

microwave oven with the door open
because this can result in harmful
exposure to microwave energy. It is
important not to break or tamper with
the safety interlocks.

• Do not place any object between the

microwave oven frame and the door or
allow soil or cleaner residue to
accumulate on sealing surfaces.

• Do not operate the microwave oven if it

is damaged. It is very important that the
microwave door closes properly and that
there is no damage to the:

a) Door (including any dents)

b) Hinges and Latches (including
broken or loose parts)

c) Door seals and Sealing surfaces

• The microwave oven should not be

adjusted or repaired by anyone except
properly qualified service personnel.

Microwave 87107 Use and Care Manual: Support: 1-800-488-5080 www.hb-microwaves.com

5

Features and Benefits

• 0.9 cu.ft. 900W Oven Cavity

• Easy-to-use Instructive Talking Programmable Feature

• Interchangeable Voice Language Feature (English/Spanish)

• 10 Power Levels

• Eight Instant Settings for Common Foods

• Five Express Cook One-Touch Settings

• Five Memory Setting Buttons

• Blue Electronic Digital Display with Clock (LED)

• Turntable

• Time Cook

• Time and Weight Defrost

• Remind Signal

• Kitchen Timer

Specifications

Model………………………………….

Power Source………………………

Power Consumption……………..

Maximum Output………………….

Oven Capacity………………………

Turntable Diameter………………

External Dimensions……………..

Net Weight…………………………..

87107

120V ~ 60Hz

1450 W

900 W

0.9 Cu.ft.

12.4 inches

20.1 x 17 x 11.2 inches

30.5 lbs

Microwave 87107 Use and Care Manual: Support: 1-800-488-5080 www.hb-microwaves.com

6
