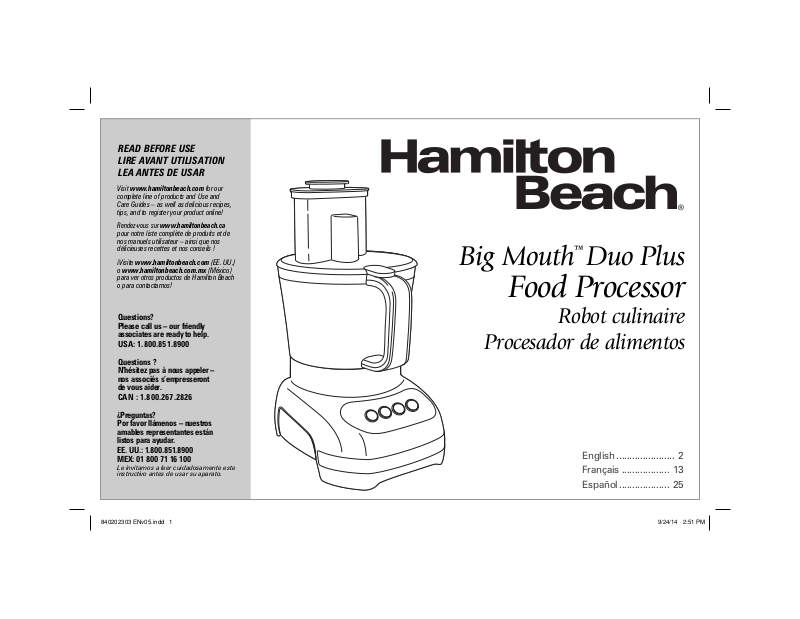

Hamilton Beach 70580 User Guide
READ BEFORE USE
LIRE AVANT UTILISATION
LEA ANTES DE USAR
Visit www.hamiltonbeach.com for our
complete line of products and Use and
Care Guides – as well as delicious recipes,
tips, and to register your product online!
Rendez-vous sur www.hamiltonbeach.ca
pour notre liste complète de produits et de
nos manuels utilisateur – ainsi que nos
délicieuses recettes et nos conseils !
¡Visite www.hamiltonbeach.com (
o
www.hamiltonbeach.com.mx (México)
para ver otros productos de Hamilton Beach
o para contactarnos!
EE. UU.)
Big Mouth™ Duo Plus
Food Processor
Questions?
Please call us – our friendly
associates are ready to help.
USA: 1.800.851.8900
Questions ?
N’hésitez pas à nous appeler –
nos associés s’empresseront
de vous aider.
CAN : 1.800.267.2826
¿Preguntas?
Por favor llámenos – nuestros
amables representantes están
listos para ayudar.
EE. UU.: 1.800.851.8900
MEX: 01 800 71 16 100
Le invitamos a leer cuidadosamente este
instructivo antes de usar su aparato.
Procesador de alimentos
Robot culinaire
English ...................... 2
Français .................. 13
Español ................... 25
840202303 ENv05.indd 1840202303 ENv05.indd 1 9/24/14 2:51 PM9/24/14 2:51 PM
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fi re, electric shock, and/or injury to
persons, including the following:
1. Read all instructions.
2. This appliance is not intended for use by persons (including
children) with reduced physical, sensory, or mental capabilities,
or lack of experience and knowledge, unless they are closely
supervised and instructed concerning use of the appliance by a
person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or
near children. Children should be supervised to ensure that they
do not play with the appliance.
4. To protect against risk of electric shock, do not immerse base,
motor, cord, or plug in water or other liquid.
5. Unplug cord from outlet when not in use, before putting on
or taking off parts, and before cleaning.
6. Avoid contacting moving parts.
7. Do not operate any appliance with a damaged cord or plug
or after the appliance malfunctions or is dropped or damaged
in any manner. Call our toll-free customer service number
for information on examination, repair, or electrical or
mechanical adjustment.
8. The use of attachments not recommended or sold by the
appliance manufacturer may cause fi re, electric shock, or injury.
9. Do not use your food processor if any part is broken.
10. Do not use appliance outdoors.
11. Do not let cord hang over edge of table or counter, or touch hot
surfaces.
12. Keep hands and utensils away from moving blade and disc while
processing food to reduce the risk of severe personal injury and/
or damage to the food processor. A rubber scraper may be used
but ONLY when the food processor is not running.
13. The blade and disc are sharp. Handle carefully. Store out of reach
of children.
14. To reduce the risk of injury, never place cutting blade or disc on
base without fi rst putting bowl properly in place.
Be certain lid is securely locked in place before operating appliance.
15.
16. Never feed food into food chute by hand. Always use the food
pushers.
17. Do not attempt to defeat the lid interlock mechanism.
18. Make sure the blade or disc has come to a full stop before
removing lid.
19. To reduce the risk of injury, be sure to insert or remove blade
and disc using hubs provided for this purpose. Use caution
when removing blade and disc from the bowl, when emptying
the bowl, and when cleaning.
20. Be sure to turn OFF (O) after each use. Always use the pushers
to clear the food chute. When this method is not possible, unplug
cord from outlet and disassemble unit to remove the remaining
food.
21. The appliance is not intended for commercial, professional, or
industrial use. It is designed and built exclusively for household
use only.
22. Never use appliance for a longer period or with a larger amount
of ingredients other than that recommended by appliance
manufacturer. See section titled “Processing Charts.”
23. The maximum rating of this unit is based on using the chopping/
mixing blade. Using the slicing/shredding disc may draw
signifi cantly less power.
24. Do not place on or near a hot gas or electric burner, or in a
heated oven.
25. Do not use appliance for other than intended use.
26. Check that the control is OFF (O) before plugging cord into wall
outlet. To disconnect, turn the control to OFF (O); then remove
plug from the wall outlet.
2
SAVE THESE INSTRUCTIONS!
840202303 ENv05.indd 2840202303 ENv05.indd 2 9/24/14 2:51 PM9/24/14 2:51 PM
OTHER CONSUMER SAFETY INFORMATION
This product is intended for household use only.
WARNING! Shock Hazard: This appliance has a polarized plug (one
wide blade) that reduces the risk of electric shock. The plug fi ts only
one way into a polarized outlet. Do not defeat the safety purpose of
the plug by modifying the plug in any way or by using an adapter.
If the plug does not fi t fully into the outlet, reverse the plug. If it still
does not fi t, have an electrician replace the outlet.
The length of the cord used on this appliance was selected to reduce
the hazards of becoming tangled in or tripping over a longer cord.
If a longer cord is necessary, an approved extension cord may be
used. The electrical rating of the extension cord must be equal to
or greater than the rating of the appliance. Care must be taken to
arrange the extension cord so that it will not drape over the
countertop or tabletop where it can be pulled on by children or
accidentally tripped over.
To avoid an electrical circuit overload, do not use another highwattage appliance on the same circuit with this appliance.
3
840202303 ENv05.indd 3840202303 ENv05.indd 3 9/24/14 2:51 PM9/24/14 2:51 PM

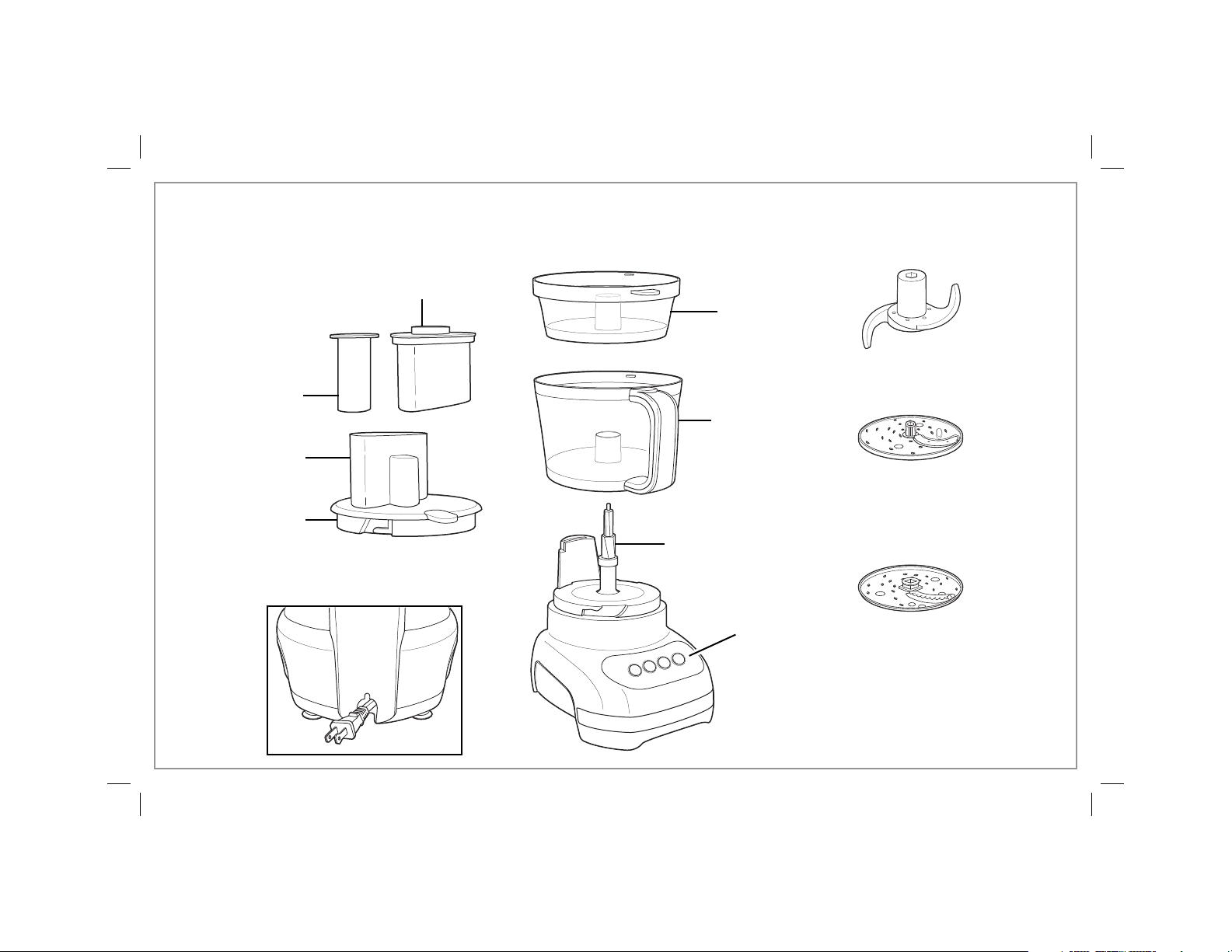

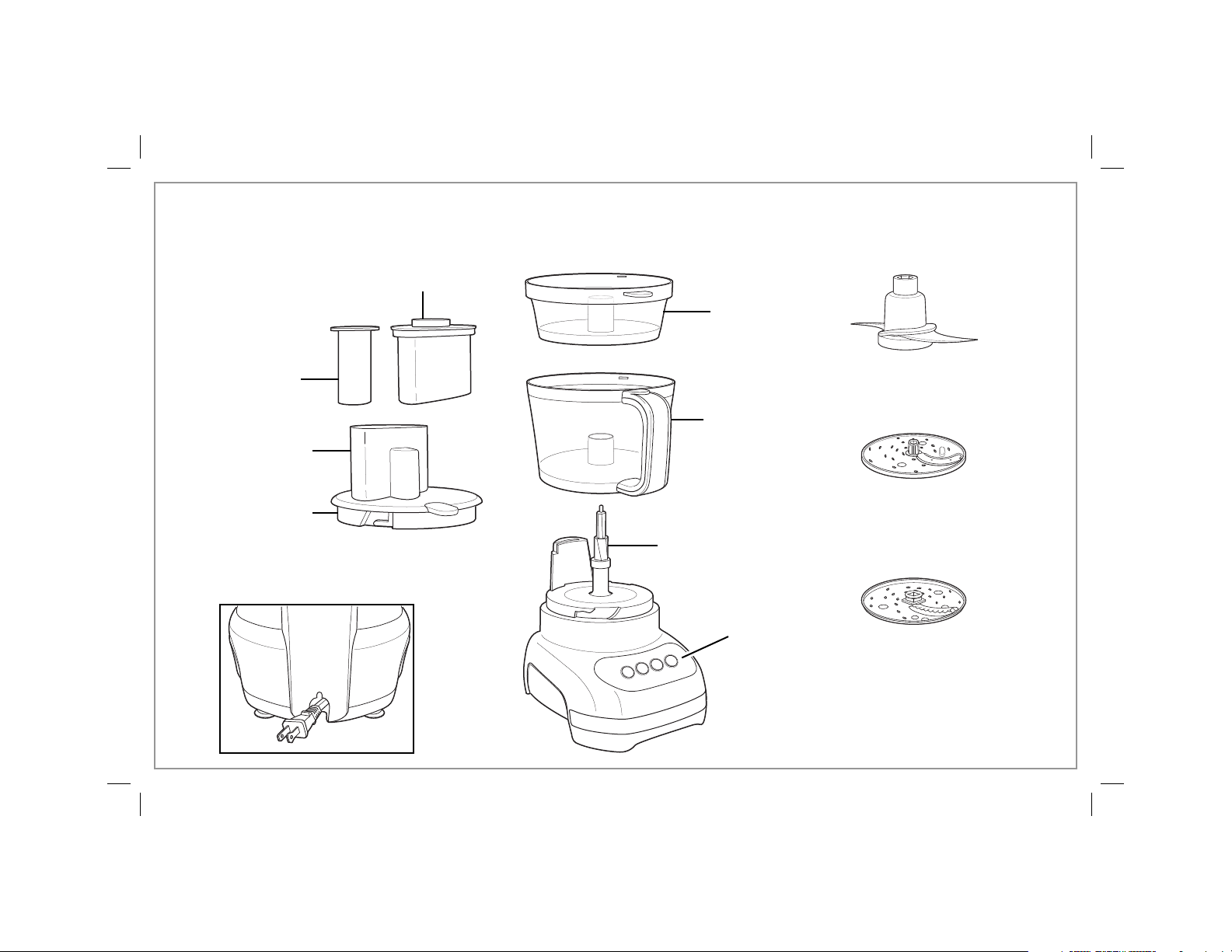

Parts and Features
BEFORE FIRST USE: Unpack processor. Handle blade and disc(s) carefully; they
are very sharp. Wash all parts except base in hot, soapy water. Rinse; then dry.
*To order parts:
US: 1.800.851.8900
www.hamiltonbeach.com
Canada: 1.800.267.2826
Mexico: 01 800 71 16 100
Small Food
Pusher*
Food
Chute
Lid*
4
Large Food
Pusher*
Cord Stuff Storage
(located on back of base)
Motor
Shaft
Small
Bowl*
Large
Bowl*
Control
Panel
Chopping/Mixing Blade*
Use to coarsely chop, mince,
mix, or puree food.
Reversible Slicing/Shredding Disc*
(for use with large bowl only)
Use to shred cheese or to slice or shred
a variety of foods (such as potatoes,
pepperoni, carrots, celery).
Reversible Fine-Shred/Crinkle-Cut Disc*
(optional accessory)
Use to finely shred or crinkle-cut a variety
of foods. Finely shred cheese, cabbage,
zucchini, or onions. Crinkle-cut carrots,
cucumbers, beets, radishes, or peppers.
840202303 ENv05.indd 4840202303 ENv05.indd 4 9/24/14 2:51 PM9/24/14 2:51 PM

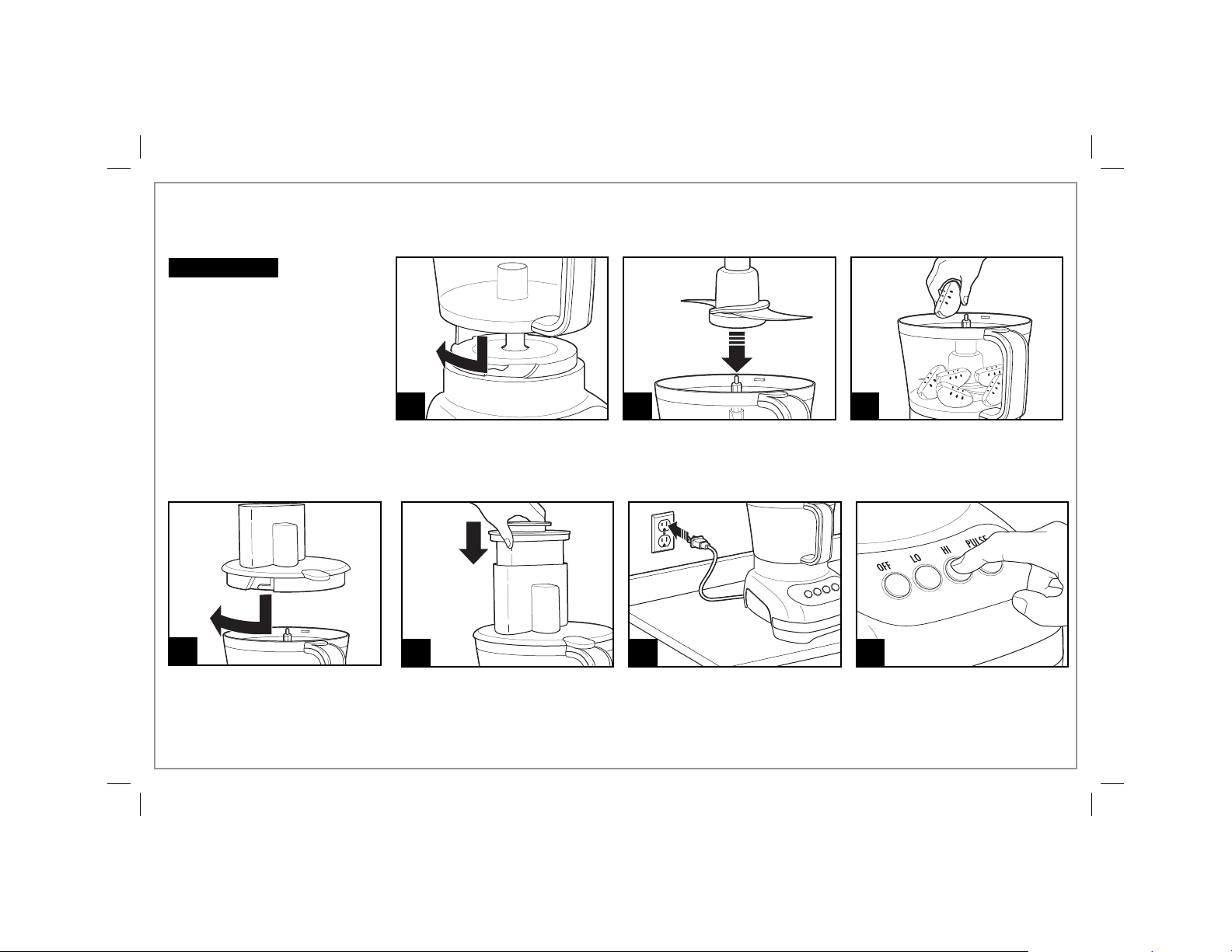

How to Use Chopping/Mixing Blade
w WARNING
Laceration Hazard.
Handle blade carefully; it is very
sharp.
Make sure control button is OFF (O)
and unit is unplugged.
NOTE: Operate using only one
blade or disc at a time.

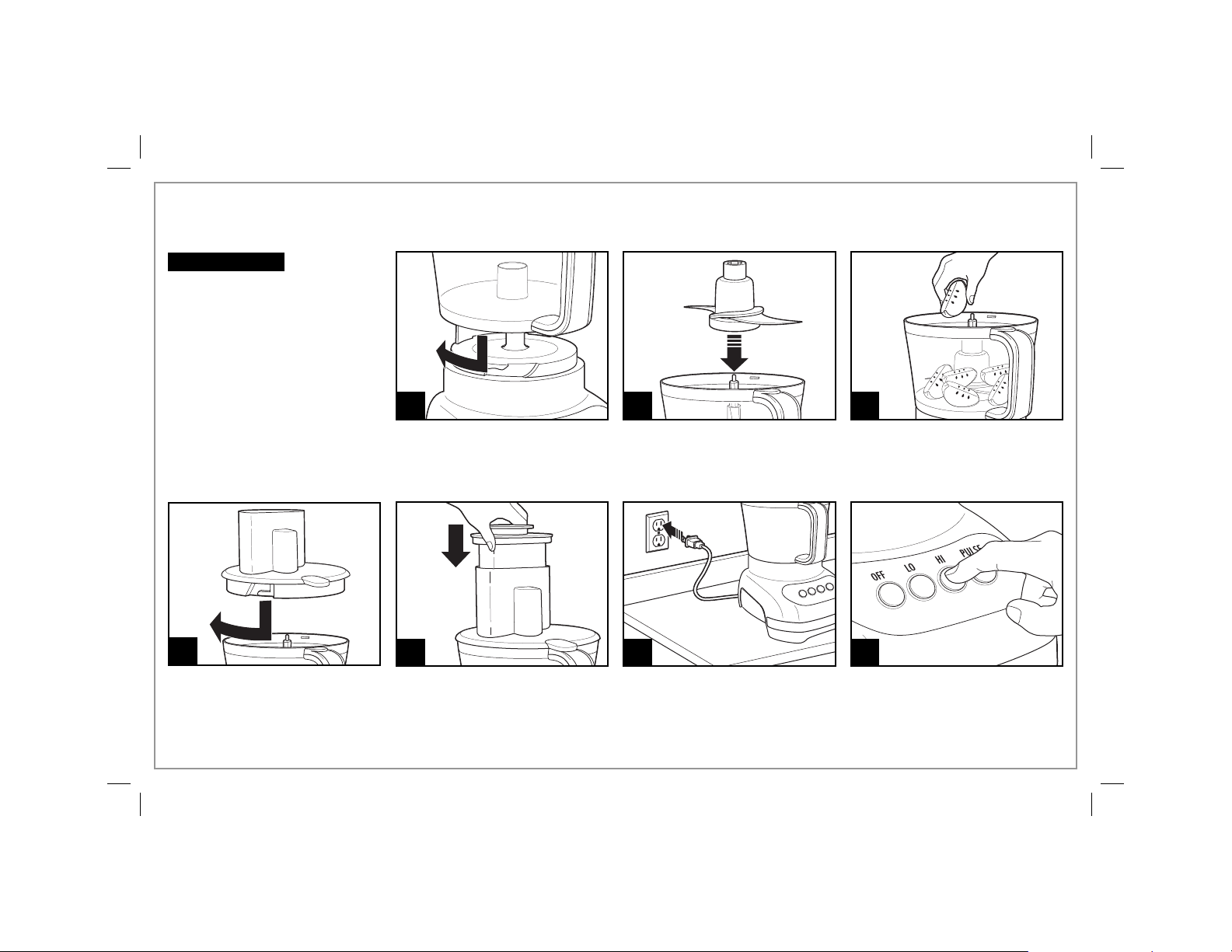

1 2 3
Align bowl and base. Turn bowl
clockwise to lock into place.
NOTE: Unit will not work unless
bowl is locked.
Carefully place blade onto motor
shaft.
4
Align lid and bowl. Turn lid clockwise to lock into place.
NOTE: Unit will not work unless lid
is locked.
840202303 ENv05.indd 5840202303 ENv05.indd 5 9/24/14 2:51 PM9/24/14 2:51 PM
5 6
Place large food pusher with small food pusher in
food chute. Always use food pusher to feed food
into the chute. NEVER PUSH FOOD THROUGH
CHUTE WITH FINGERS OR OTHER OBJECTS.
7
Push the desired speed button:
LO, HI, or PULSE (P).
5

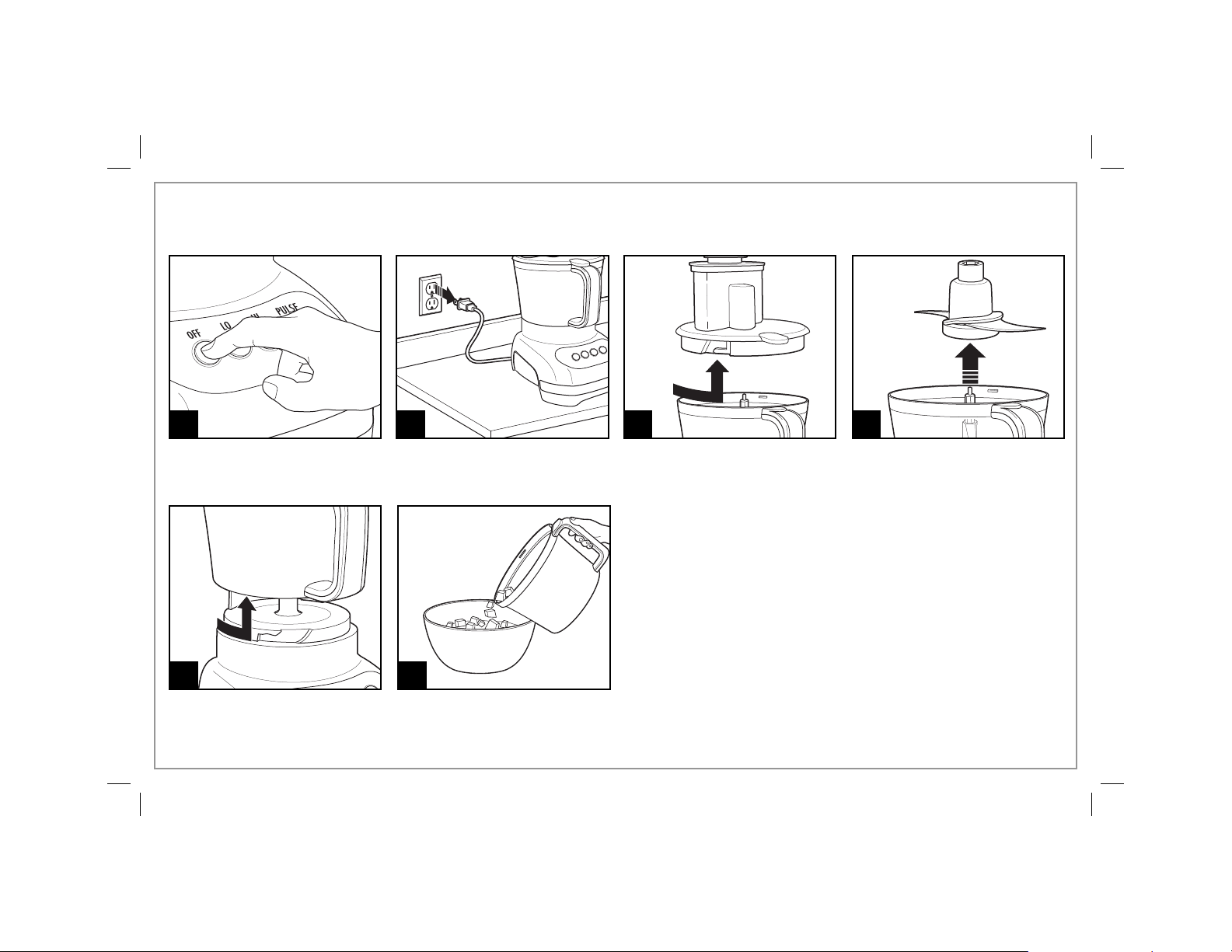

How to Use Chopping/Mixing Blade (cont.)
8 9 10
When fi nished, press the
button
.
OFF (O)
12
6
840202303 ENv05.indd 6840202303 ENv05.indd 6 9/24/14 2:51 PM9/24/14 2:51 PM
WARNING! Laceration Hazard:
Always wait until blade has
stopped moving before
removing lid.
13
Turn lid counterclockwise to
unlock lid.
11
Carefully remove blade from
motor shaft.
How to Use Slicing/Shredding Disc and Optional Reversible
Fine-Shred/Crinkle-Cut Disc
w WARNING
Laceration Hazard.
Handle blade carefully; it is very
sharp.
Make sure control button is OFF (O)
and unit is unplugged.
NOTE: Operate using only one
blade or disc at a time.

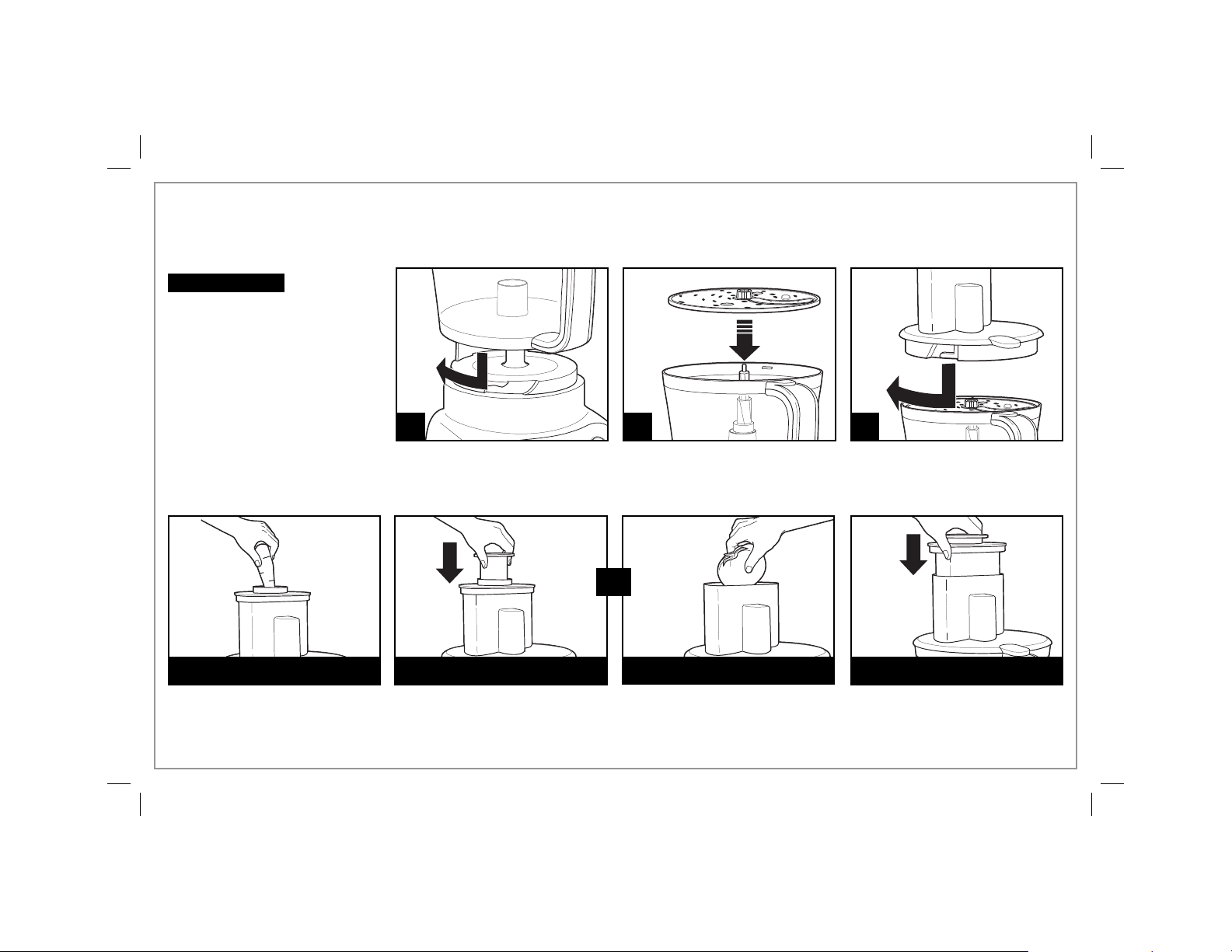

1 2 3
Align large bowl and base. Turn large bowl clockwise to lock into place. NOTE: Unit will not work unless
large bowl is locked. Carefully place slicing/shredding disc or optional fi ne-shred/crinkle-cut disc onto
motor shaft with desired side facing UP. (“SLICE” or “SHRED” is stamped on each side of the blade.) Align
lid and large bowl. Turn lid clockwise to lock into place. NOTE: Unit will not work unless lid is locked.
SMALLER, THINNER FOODS
4A
Put large food pusher into place.
Place food into open tube of
large food pusher.
SMALLER, THINNER FOODS
Push small, thin food with small
food pusher. NEVER PUSH
FOOD THROUGH CHUTE WITH
FINGERS OR OTHER OBJECTS.
(with Large Bowl only)
OR
4B
For larger foods: Push large foods using large and small food pushers together.
NOTE: Unit will not operate until large food pusher engages the protective interlock.
Do not add food above the MAX fi ll line. WARNING! LACERATION HAZARD:
ALWAYS USE FOOD PUSHER TO FEED FOOD INTO THE CHUTE. NEVER PUSH
FOOD THROUGH CHUTE WITH HANDS OR OTHER OBJECTS.
LARGER FOODS
LARGER FOODS
7
840202303 ENv05.indd 7840202303 ENv05.indd 7 9/24/14 2:51 PM9/24/14 2:51 PM
How to Use Slicing/Shredding Disc and Optional Reversible
Fine-Shred/Crinkle-Cut Disc

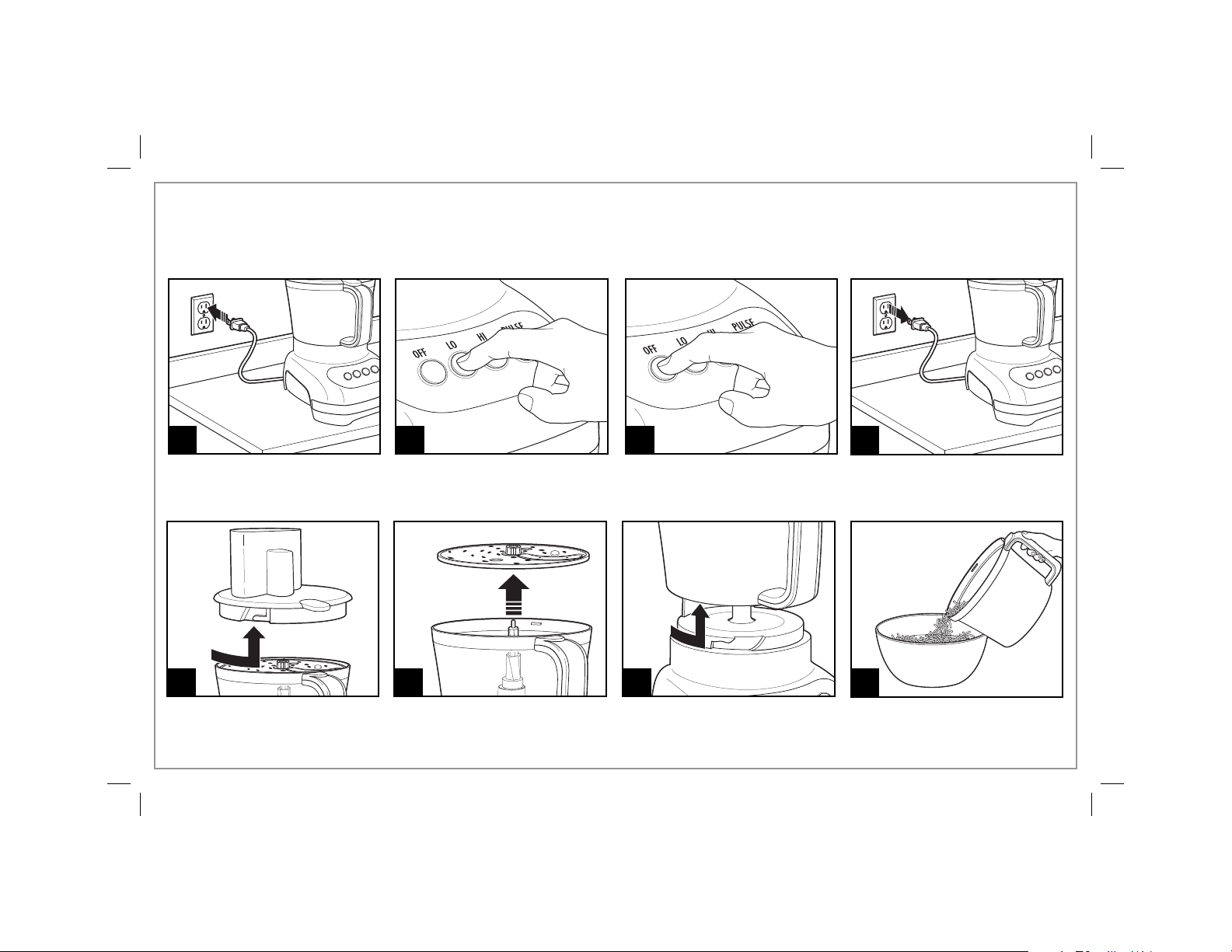

5
9 10
Turn lid counterclockwise to
unlock lid.
6
Push the desired speed button: LO or HI. NOTE: LO is recommended
for most foods when using the slicing/shredding disc or fi ne-shred/
crinkle-cut disc.
Carefully remove blade from
motor shaft.
When fi nished, press the
(with Large Bowl only) (cont.)
7
OFF (O) button
11
.
8
WARNING! Laceration Hazard:
Always wait until blade has
stopped moving before
removing lid.
12
8
840202303 ENv05.indd 8840202303 ENv05.indd 8 9/24/14 2:51 PM9/24/14 2:51 PM
Tips and Techniques
Processing Charts
• For a more uniform consistency,
start with pieces of food that
are similar in size. Cut food into
1-inch (2.5 cm) pieces before
processing with chopping/
mixing blade.
• This food processor is
excellent to chop, mix, slice,
or shred most foods. However,
to maintain peak performance,
do not use your food processor
for the following: grinding grain,
coffee beans, or spices; slicing
frozen meats; kneading dough;
or crushing ice.
• When chopping foods, pulsing
on and off will produce the best
results.
• Operating time will depend
on quantity of food being processed. Most foods can be
sliced, chopped, or shredded
in seconds. If unit is operated
continuously for an extended
period of time, let the processor
rest about 4 minutes before
continuing.
• Do not puree or mash starchy
vegetables like potatoes as they
are easily overprocessed and
will become gummy.
• To slice or shred cheese, use
only fi rm cheese like cheddar,
Monterey Jack, or Swiss that
has been chilled for at least 30
minutes.
•
The reversible slicing/shredding
disc and reversible fi ne-shred/
crinkle-cut disc have a slicing
blade on one side and shredding
teeth on the other and can only
be used with the large bowl. The
name engraved on the blade,
facing up, is the function
selected. For slicing, the word
“SLICE” should face up; for
shredding, the word “SHRED”
should face up. Place on motor
shaft with desired cutting edge
facing up.
• To julienne vegetables, slice,
remove from bowl, and restack
the vegetables. Pack into food
chute with slices vertical. Slice
again to make matchstick-cut
vegetables.
Disc attachments are reversible and labeled. The label should face
up for the desired function. When using disc attachments, do not
process past the MAX LEVEL on the bowl.
ATTACHMENT
Chopping/Mixing Blade
Slicing Disc or
Optional Crinkle-Cut Disc
(“SLICE” side facing UP)
Shredding Disc or
Optional Fine-Shred Disc
(“SHRED”side facing UP)
For best results do not exceed the following amounts when
chopping, mincing, or pureeing with the chopping/mixing blade.
FOOD
Fruits and Vegetables
Meats
Parmesan or Romano
Cheddar, Jack, Mozzarella
Crackers
FOODS
Chop: Nuts, meat, garlic, onions, peppers,
celery, herbs, bread (for crumbs), crackers
Mince/Puree: Vegetables, fruit
Mix: Salad dressings
Puree: Soups, sauces
Grate: Cheese, such as Parmesan (chilled)
Cucumbers, apples, mushrooms, carrots,
potatoes, cabbage, tomatoes, pepperoni,
peppers, radishes, fi rm cheeses (chilled)
Cabbage, potatoes, carrots, cheese (chilled)
MAXIMUM AMOUNT
2 to 3 cups (500 to 750 ml)
(cut into 1-in. [2.5-cm] cubes
2 lb. (900 g) (cut into 1-in. [2.5-cm] cubes)
5 ounces (140 g) (cut into 1-in. [2.5-cm] cubes)
8 ounces (226 g) (cut into 1-in. [2.5-cm] cubes)
Full bowl
9
840202303 ENv05.indd 9840202303 ENv05.indd 9 9/24/14 2:51 PM9/24/14 2:51 PM

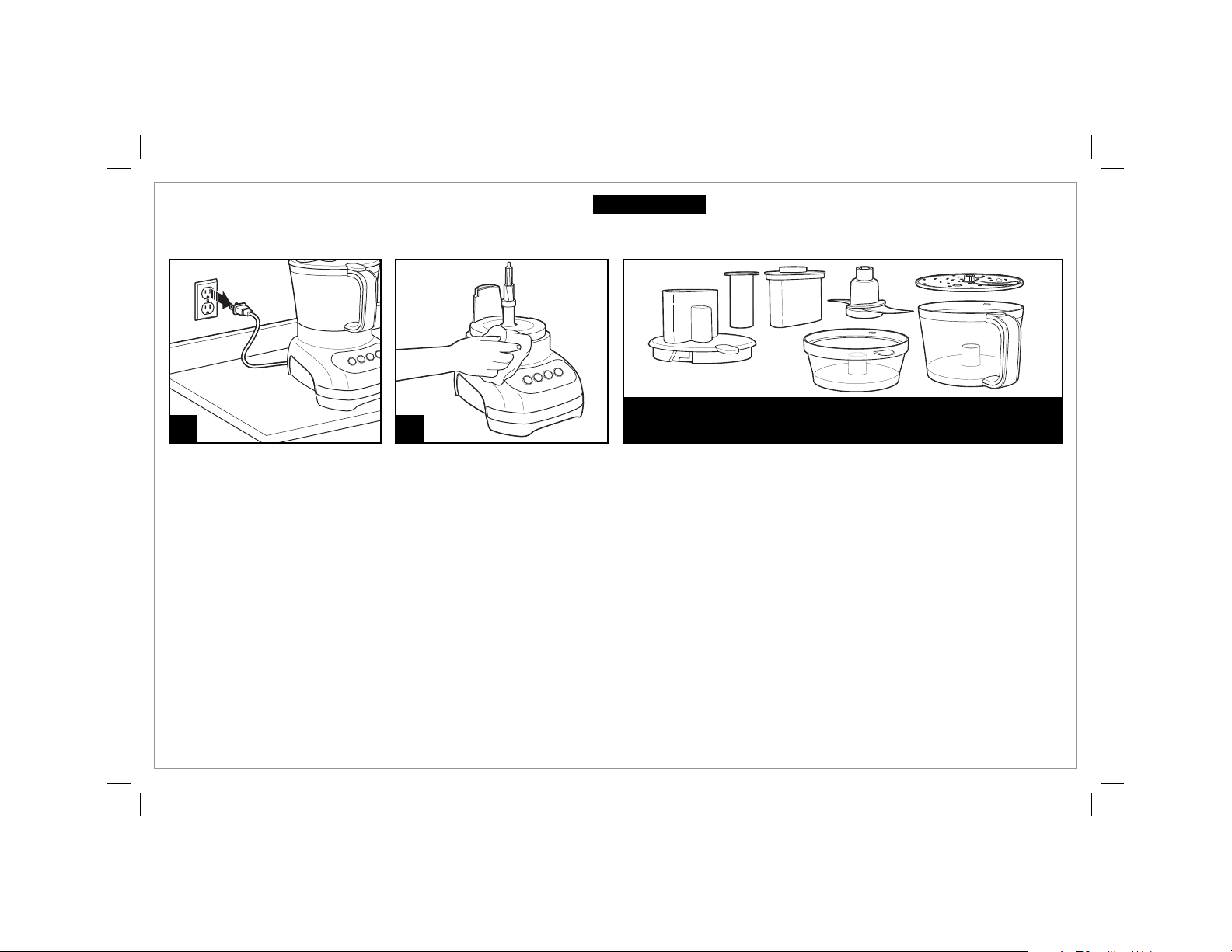

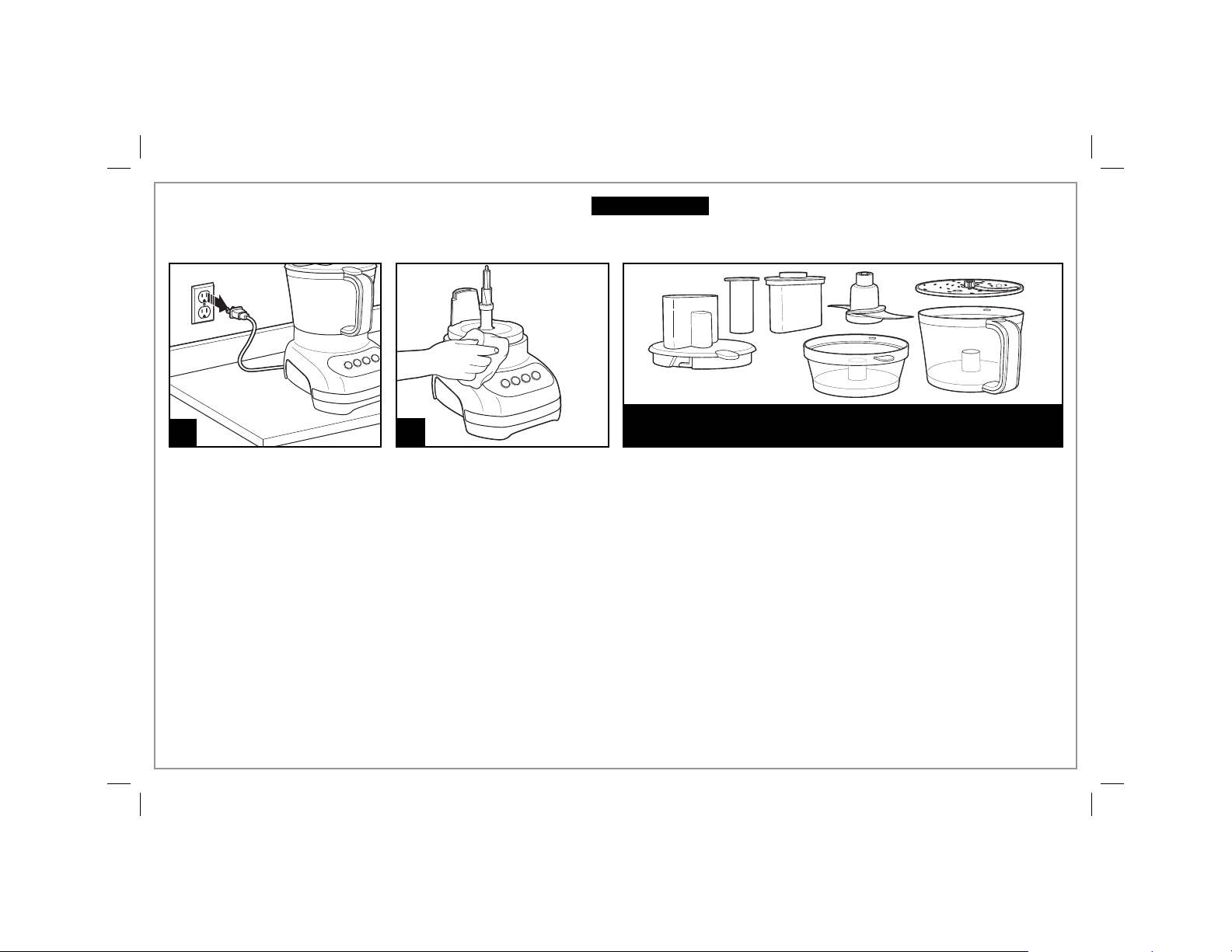

Cleaning and Care
w WARNING
Electrical Shock Hazard.
Disconnect power before cleaning. Do not immerse cord,
plug, or base in any liquid.
1
10
840202303 ENv05.indd 10840202303 ENv05.indd 10 9/24/14 2:51 PM9/24/14 2:51 PM
2
Wipe base, control panel, and
cord with a damp cloth or
sponge. If necessary, use a mild
nonabrasive cleanser.
DISHWASHER-SAFE (TOP RACK ONLY)
DO NOT use the “SANI” setting when washing in the dishwasher.
“SANI” cycle temperatures could damage your product. Removable
parts may also be washed by hand in hot, soapy water. Use care
when hand-washing sharp edges.
Troubleshooting
PROBLEM
Unit does not operate
on any speed or Pulse.
Food is not chopped,
sliced or shredded
uniformly.
Unit stops and will
not come back on.
Unit has a burning smell.
Motor seems weak.
It is diffi cult to remove lid
from bowl(s) or bowl(s) from
base.
PROBABLE CAUSE
• Is the unit plugged in? Does the outlet work?
•
Are the bowl(s) and lid locked in place and large food pusher in food chute? See “How to Use” sections.
• Packing too much food in the food chute or pushing too hard on the food pusher may cause the
processed food to be irregulary sliced or shredded.
• Recommended speed for slicing and shredding disc should be LO for cheeses and LO or HI for
vegetables or fruit.
• Refer to the food processing charts for recommended sizes, speeds, and quantities.
• Are the bowl(s) and lid locked in place and large food pusher in food chute? They may have moved
slighty during processing. See “How to Use” sections.
• Is the outlet still working? Check it by plugging in a working lamp or other appliance. You may have
overloaded the circuit and blown a fuse or tripped the circuit breaker.
Turn unit OFF (O), allow to stand for 3 to 4 minutes, and then turn back ON. If none of these suggestions
•
correct the problem, DO NOT attempt to repair the unit. Call the Customer Service number to get the
name of your nearest Authorized Service Center.
• There may be a residue left on the motor from the manufacturing process, causing a slight odor
during initial use. This will go away. If a strong odor or any visible smoke appears, unplug unit
IMMEDIATELY and call the Customer Service number.
• Are you using the recommended food size and quantity to be processed? Refer to the Food Processing
Charts for recommended food sizes and speeds.
• After washing in the dishwasher, allow parts to return to room temperature prior to placing on base.
A small amount of vegetable oil may be placed on snaps for easy removal.
11
840202303 ENv05.indd 11840202303 ENv05.indd 11 9/24/14 2:51 PM9/24/14 2:51 PM
Loading...
