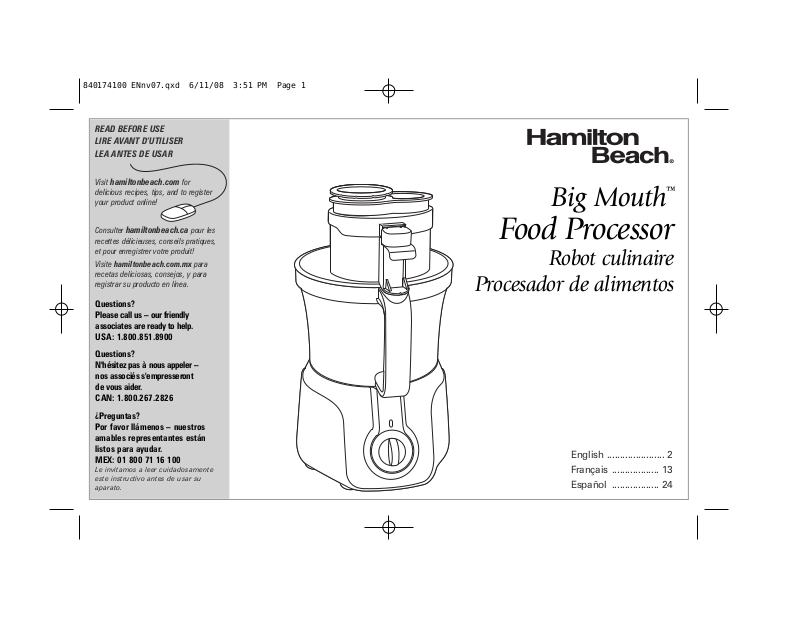

Hamilton Beach 70570C User Manual

Big Mouth
Food Processor
Robot culinaire
Procesador de alimentos
English ...................... 2
Français .................. 13
READ BEFORE USE LIRE AVANT D’UTILISER LEA ANTES DE USAR
Questions? Please call us – our friendly associates are ready to help. USA: 1.800.851.8900
¿Preguntas? Por favor llámenos – nuestros amables representantes están listos para ayudar. MEX: 01 800 71 16 100
Le invitamos a leer cuidadosamente este instructivo antes de usar su aparato.
Visit hamiltonbeach.com for delicious recipes, tips, and to register your product online!
Consulter hamiltonbeach.ca pour les recettes délicieuses, conseils pratiques, et pour enregistrer votre produit!
Visite hamiltonbeach.com.mx para recetas deliciosas, consejos, y para registrar su producto en línea.
Questions? N'hésitez pas à nous appeler – nos associés s'empresseront de vous aider. CAN: 1.800.267.2826
840174100 ENnv07.qxd 6/11/08 3:51 PM Page 1
2
IMPORTANT SAFEGUARDS
1. Read and save all instructions.
2. To protect against risk of electrical shock, do not immerse base, motor, cord, or plug in water or other liquid.
3. Close supervision is necessary when any appliance is used by or near children.
4. This appliance should not be used by children.
5. Unplug cord from outlet when not in use, before putting on or taking off parts, and before cleaning.
6. Avoid contacting moving parts.
7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Call our toll-free customer service number for informa­tion on examination, repair or electrical or mechanical adjust­ment.
8. The use of attachments not recommended or sold by the appli­ance manufacturer, may cause fire, electric shock, or injury.
9. Do not use your food processor if any part is broken.
10. Do not use appliance outdoors.
11. Do not let cord hang over edge of table or counter, or touch hot surfaces.
12. Keep hands and utensils away from moving blade and disc while processing food to reduce the risk of severe personal injury and/or damage to the food processor. A rubber scraper may be used but ONLY when the food processor is not running.
13. The blade and disc are sharp. Handle carefully. Store out of reach of children.
14. To reduce the risk of injury, never place cutting blade or disc on base without first putting bowl properly in place.
15. Be certain lid is securely locked in place before operating appliance.
16. Never feed food into food chute by hand. Always use the food pushers.
17. Do not attempt to defeat the lid interlock mechanism.
18. Make sure the blade or disc has come to a full stop before removing lid.
19. To reduce the risk of injury, be sure to insert or remove blade and disc using hubs provided for this purpose. Use caution when removing blade and disc from the bowl, when emptying the bowl, and when cleaning.
20. Be sure to turn switch to OFF ( O ) position after each use. Always use the pushers to clear the food chute. When this method is not possible, turn the motor off and disassemble unit to remove the remaining food.
21. The appliance is not intended for commercial, professional or industrial use. It is designed and built exclusively for household use only.
22. Never use appliance for a longer period or with a larger amount of ingredients other than that recommended by appliance manu­facturer.
23. The maximum rating of this unit is based on using the Chopping/ Mixing Blade. Using the Slicing/Shredding Disc may draw signifi­cantly less power.
24. Do not place on or near a hot gas or electric burner or in a heated oven.
25. Do not use appliance for other than intended use.
When using electrical appliances, basic safety precautions should always be followed, including the following:
SAVE THESE INSTRUCTIONS!
840174100 ENnv07.qxd 6/11/08 3:51 PM Page 2
3
OTHER CONSUMER SAFETY INFORMATION
This product is intended for household use only. WARNING! Shock Hazard: This appliance has a polarized plug (one
wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or using an adapter. If the plug does not fit, reverse the plug. If it still does not fit, have an electrician replace the outlet.
To avoid an electrical circuit overload, do not use another high wattage appliance on the same circuit with your food processor.
The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in, or tripping over a longer cord. If a longer cord is necessary an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.
840174100 ENnv07.qxd 6/11/08 3:51 PM Page 3
4
Parts and Features
Small Food Pusher
Lid
Control Knob
Food Chute Lid
Reversible Slicing/Shredding Disc
Use to shred cheese or to slice or shred
a variety of foods (such as potatoes,
pepperoni, carrots, celery, etc.).
Chopping/Mixing Blade
Use to coarsely chop, mince,
knead, mix, or puree food.
Food Chute Lid Latch
Bowl
Motor Shaft
Before First Use: Unpack processor. Handle Blade and Disc(s) carefully; they are
very sharp. Wash all parts except base in hot, soapy water. Rinse then dry.
French Fry Blade
(on select models or
optional accessory)
To order:
1.800.851.8900 (US)
1.800.267.2826 (Canada)
Large Food Pusher
840174100 ENnv07.qxd 6/11/08 3:51 PM Page 4
5
How to Use Chopping/Mixing Blade
1 2 3
Align bowl and base. Turn bowl clockwise to lock into place. NOTE: Unit will not work unless bowl is locked.
Carefully place blade onto motor shaft.
4
Align lid and bowl.
5 6 7 8
Turn lid clockwise to lock into place. NOTE: Unit will not work unless lid is locked.
Push lid latch firmly to lock. NOTE: Unit will not work unless latch is locked.
Pulse=Highest, 3=High, 2=Medium, 1=Low
Laceration Hazard. Handle blade
carefully; it is very sharp.
Make sure control knob is turned to OFF ( O ) and unit is unplugged. NOTE: Operate using only one blade or disc at a time.
w WARNING
840174100 ENnv07.qxd 6/11/08 3:51 PM Page 5
6
How to Use Chopping/Mixing Blade
(cont.)
9 10 11
WARNING! Laceration Hazard: Always wait until blade has stopped moving before removing lid.
Always remove lid before remov­ing bowl to avoid possible dam­age to the appliance.
12
Carefully remove blade from motor shaft.
13 14
When finished, turn to OFF.
840174100 ENnv07.qxd 6/11/08 3:51 PM Page 6
7
1 2 3
Align bowl and base. Turn bowl clockwise to lock into place. NOTE: Unit will not work unless bowl is locked.
Carefully place disc onto motor shaft with desired side facing UP.
Align lid and bowl. Turn lid clockwise to lock into place. NOTE: Unit will not work unless lid is locked.
LARGER FOODS
How to Use Slicer/Shredder Disc
SMALLER, THINNER FOODS
Put large food pusher into place. Place food into open tube of large food pusher.
SMALLER, THINNER FOODS
Close lid and push lid latch firmly to lock. NOTE: Unit will not work unless latch is locked.
SMALLER, THINNER FOODS
Push small, thin food with small food pusher. Never push food through chute with fingers.
LARGER FOODS
Close lid and push lid latch firmly to lock. NOTE: Unit will not work unless latch is locked.
4A
4B
Laceration Hazard. Handle blade carefully; it is very sharp.
Make sure control knob is turned to OFF ( O ) and unit is unplugged. NOTE: Operate using only one blade or disc at a time.
w WARNING
OR
840174100 ENnv07.qxd 6/11/08 3:51 PM Page 7
7
WARNING! Laceration Hazard: Always wait until blade has stopped moving before removing lid.
How to Use Slicer/Shredder Disc
(cont.)
8
5
6
Pulse=Highest, 3=High, 2=Medium, 1=Low
When finished, turn OFF ( O ).
LARGER FOODS
8 9
Always remove lid before remov­ing bowl to avoid possible dam­age to the appliance.
Carefully remove blade from motor shaft.
10
11
Push large foods using large and small food pushers together. Never push food through chute with fingers.
840174100 ENnv07.qxd 6/11/08 3:51 PM Page 8
9
Tips and Techniques
• For a more uniform consisten­cy, start with pieces of food that are similar in size. Cut food into 1-inch (2.5 cm) pieces before processing with Chopping/Mixing blade.
• This food processor is excel­lent to chop, mix, slice, or shred most foods. However, to maintain peak performance, do not use your food processor for the following: grinding grain, coffee beans or spices; slicing frozen meat; or crush­ing ice.
• When chopping foods, pulsing on and off will produce the best results.
• Operating time will depend on quantity of food being processed. Most foods can be sliced, chopped, or shredded in seconds. If unit is operated for 2 minutes continuously, let the processor rest about 4 minutes before continuing.
• Do not puree or mash starchy vegetables like potatoes as they are easily over-processed and will turn gummy.
• To slice or shred cheese, select firm cheese like Cheddar, Monterey Jack, or Swiss. For best results, process cheese that is well chilled.
• The Reversible Slicing/ Shredding Disc has a slicing blade on one side and shred­ding teeth on the other. The name engraved on the blade, facing up, is the function selected. Place on motor shaft with desired cutting edge fac­ing up.
• To julienne vegetables, slice then remove from bowl and restack the vegetables. Pack into food chute with slices ver­tical. Slice again to make match-stick cut vegetables.
Processing Charts
ATTACHMENT FOODS
Chopping/Mixing Blade Vegetables, Fruit, Meat, Nuts, (chop, mince, knead, Bread Dough, Hard Cheeses mix, puree) such as Parmesan (chilled)
Slicing Disc Vegetables, Fruit, (slicing side facing UP) Firm Cheeses (chilled)
Shredding Disc Vegetables, (shredding side facing UP) Cheese (chilled)
FOOD MAXIMUM AMOUNT
Fruits and 3 to 4 cups (750 g to 1 L) Vegetables (cut in 1” [2.5 cm] cubes)
Meats 2 lbs. (900 g) (cut in 1” [2.5 cm] cubes) Parmesan or Romano 15 ounces (425 g) (cut in 1” [2.5 cm] cubes) Crackers 14 cups (3.5 L) (can fill bowl and lid up
into chute)
Nuts 4 cups (1 L)
Disc attachments are reversible and labeled. This label should face up for the desired function. When using disc attachments, do not process past the MAX LEVEL on the Bowl.
For best results do not exceed the following amounts when chopping, mincing, or pureeing with the Chopping/Mixing Blade.
840174100 ENnv07.qxd 6/11/08 3:51 PM Page 9
10
Cleaning and Care
3
1 2
Wipe base, control knob, and cord with a damp cloth or sponge. To remove stubborn soil, use a mild non-abrasive cleanser.
TO STORE: Place bowl on base and then place Chopping/Mixing Blade and Slicer/Shredder Disc onto the motor shaft. Place lid on bowl. To prevent damage to the bowl DO NOT LOCK.
Electrical Shock Hazard.
Disconnect power before cleaning. Do not immerse cord, plug, or base in any liquid.
w WARNING
4
DISHWASHER SAFE
Visit
hhaammiillttoonnbbeeaacchh..ccoomm
for delicious recipes, tips, and to register your product online!
840174100 ENnv07.qxd 6/11/08 3:51 PM Page 10
11
POTENTIAL PROBLEM
Unit does not operate on any speed or Pulse.
Food is not chopped, sliced or shredded uniformly.
Unit stops and will not come back on.
Unit has a burning smell.
Motor seems weak.
PROBABLE CAUSE
• Is the unit plugged in? Does the outlet work?
• Are the bowl, bowl lid, and food chute lid all locked in place? See How to Use sections.
• Packing too much food in the food chute, or pushing too hard on the food pushers may cause the processed food to be irregulary sliced or shredded. Refer to the food processing charts for recommend­ed sizes and quantities.
• Are the bowl, bowl lid, and food chute lid all locked in place? They may have moved slighty during pro­cessing. See How to Use section.
• Is the outlet still working? Check it by plugging in a working lamp or other appliance. You may have overloaded the circuit and blown a fuse or tripped the circuit breaker.
• Turn unit OFF, allow to stand for 3 to 4 minutes, then turn back ON. If none of these suggestions correct the problem, DO NOT attempt to repair the unit. Call the Customer Service number to get the name of your nearest Authorized Service Center.
• There may be a residue left on the motor from the manufacturing process, causing a slight odor during initial use. This will go away. If a strong odor or any visible smoke appears, unplug unit and IMMEDI­ATELY and call the Customer Service number.
• Are you using the recommended food size and quantity to be processed? Refer to the Food Processing Charts for recommended food sizes and speeds.
Troubleshooting
840174100 ENnv07.qxd 6/11/08 3:51 PM Page 11
