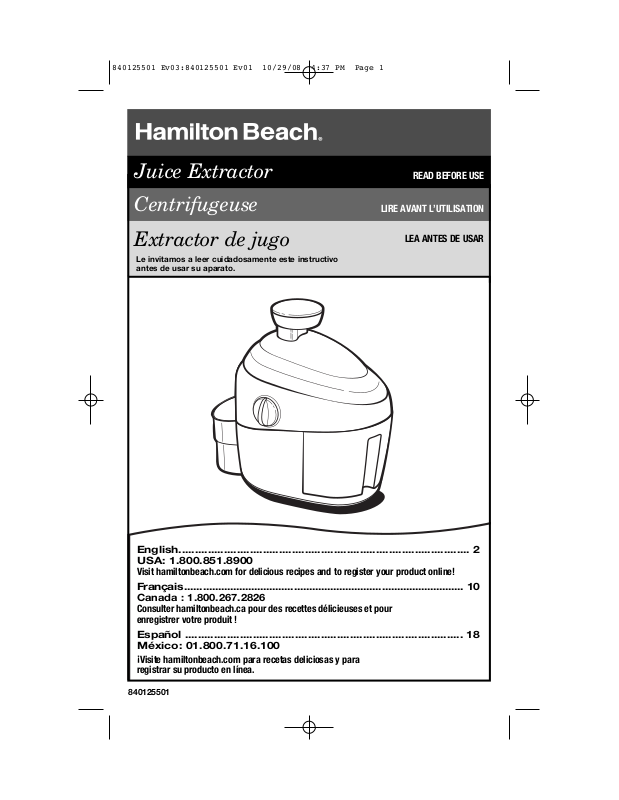

Hamilton Beach 67900-MX User Guide
840125501
Juice Extractor
Centrifugeuse
Extractor de jugo
READ BEFORE USE
LIRE AVANT L’UTILISATION
LEA ANTES DE USAR
English.......................................................................................... 2
USA: 1.800.851.8900
Visit hamiltonbeach.com for delicious recipes and to register your product online!
Français ............................................................................................ 10
Canada : 1.800.267.2826
Consulter hamiltonbeach.ca pour des recettes délicieuses et pour
enregistrer votre produit !
Español ...................................................................................... 18
México: 01.800.71.16.100
¡
Visite hamiltonbeach.com para recetas deliciosas y para
registrar su producto en línea.
Le invitamos a leer cuidadosamente este instructivo
antes de usar su aparato.
840125501 Ev03:840125501 Ev01 10/29/08 4:37 PM Page 1
2
IMPORTANT SAFEGUARDS
SAVE THESE INSTRUCTIONS!
When using electrical appliances, basic
safety precautions should be observed,
including the following:
1. Read all instructions.
2. To protect against risk of electrical
shock, do not immerse cord, plug, or
motor base in water or other liquid.
3. Close supervision is necessary when
any appliance is used by or near children.
4. Unplug cord from outlet when not in
use, before putting on or taking off
parts, and before cleaning.
5. Avoid contacting moving parts. Keep
fingers out of food chute.
6. Always make sure juice extractor cover
is clamped securely in place before
motor is turned on. Do not unfasten
cover latch while juice extractor is in
operation.
7. Never operate without pulp bin in place.
8. Be sure to turn switch to OFF position
after each use of your juice extractor.
Make sure the motor stops completely
before disassembling.
9. Do not put fingers or other objects into
the juice extractor food chute while it is
in operation. Never feed food by hand –
always use the food pusher. If food
becomes lodged in the opening, use
food pusher or another piece of fruit or
vegetable to push it down. When this
method is not possible, turn the motor
off, unplug the cord from the outlet, and
disassemble juicer to remove the
remaining food.
10. Do not operate any appliance with a
damaged cord or plug, or after the
appliance malfunctions or is dropped
or damaged in any manner. Call our
toll-free customer service number for
information on examination, electrical
repair, mechanical repair or adjustment.
11. The use of attachments not
recommended or sold by the appliance
manufacturer may cause fire, electric
shock, or injury.
12. Do not use outdoors.
13. Do not let cord hang over edge of table
or counter, or touch hot surfaces,
including stove.
14. Do not leave juice extractor unattended
while it is operating.
15. Blades are sharp; handle carefully.
16. Keep hair, clothing, and jewelry, as well
as spatulas and other utensils, away
from food chute during operation to
prevent the possibility of severe injury
to persons and/or damage to the
appliance.
17. Do not use appliance if cutter/strainer
is damaged.
18. The cutter/strainer is a very delicate
screen not covered under the warranty.
Do not wash in an automatic dishwasher.
Inspect cutter/strainer for breaks, cracks,
or looseness. Do not use a broken,
cracked, or loose cutter/strainer. Call our
toll-free customer service number to
order a new cutter/strainer.
Other Consumer Safety Information
This appliance is intended for household use
only.
To avoid an electrical circuit overload, do not
use another high-wattage appliance on the
same circuit with your juice extractor.
WARNING! Shock Hazard: This appliance has
a polarized plug (one wide blade) that reduces
the risk of electric shock. The plug fits only one
way into a polarized outlet. Do not defeat the
safety purpose of the plug by modifying the
plug in any way or using an adaptor. If the plug
does not fit, reverse the plug. If it still does not
fit, have an electrician replace the outlet.
The length of the cord used on this appliance
was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a
longer cord is necessary, an approved extension cord may be used. The electrical rating of
the extension cord must be equal to or greater
than the rating of the appliance. Care must be
taken to arrange the extension cord so that it
will not drape over the countertop or tabletop
where it can be pulled on by children or accidentally tripped over.
840125501 Ev03:840125501 Ev01 10/29/08 2:40 PM Page 2
3
Parts and Features
To Disassemble: Unplug cord from outlet. Unlock safety latch by pulling out
bottom of latch. Remove cover; then lift up separator with cutter/strainer.
Before First Use: After unpacking the juice extractor, wash everything except
the base in warm, soapy water. Rinse and dry immediately. Never immerse the
base in water; wipe it with a damp cloth.
Food Pusher
Food Chute
Cover
Cutter/Strainer
Separator
Safety Latch
Power Switch
Motor Base
Pulp Bin
Juice Cup
Cleaning Brush
Optional Accessories (on select models)
840125501 Ev03:840125501 Ev01 10/29/08 2:40 PM Page 3
4
How to Assemble
Read and follow instructions in “Parts and Features—Before First Use.”
1. Place separator on top of motor
base as shown on page 3.
2. Place cutter/strainer into separator
and gently push until firmly in place.
Once in place, the cutter/strainer
should spin easily.
3. Hook cover to base on one side.
Place cover on top
of separator and
cutter/strainer.
4. Make sure safety latch is in place;
push in at bottom to lock.
DO NOT OPERATE UNIT UNTIL
SAFETY LATCH IS LOCKED.
5. Place pulp bin in place. Slide top in
first, then bottom, and snap into
place.
6. Place a cup in position, under juice
spout.
NOTE: Check the pulp bin frequently.
It is important to empty the pulp bin
when full and to clean out the separator.
1. For more information, see “Juicing
Tips and Techniques.”
2. Cut food into pieces to fit the food
chute.
3. Plug cord into 120-volt AC outlet.
4. Be sure pulp bin is in place and a
juice container is under juice spout.
5. Turn switch to ON. The unit will not
turn on until safety latch has been
closed.
6. Place food in food chute and press
lightly with food pusher. NEVER USE
FINGERS OR UTENSILS OTHER
THAN THE FOOD PUSHER AS A
FOOD PUSHER. Food should be
placed in food chute only when unit
is operating. Food can be continuously placed in food chute without
having to turn unit off.
How to Use
7. When pulp bin is full, turn unit off. It
is very important to empty the pulp
bin when full. For best performance,
empty pulp bin and clean cutter/
strainer and separator often.
8. When juicing is completed, or when
pulp bin or juice container need to
be emptied, turn unit off and unplug
from outlet. Immediately wash cutter/strainer according to instructions.
Laceration Hazard.
• Never use fingers or utensils other than the food pusher as a food pusher. Food
should be placed in food chute only when unit is operating. Food can be continuously placed in food chute without having to turn off unit.
• The cutter/strainer may fly apart during use if it is damaged. To reduce risk of
personal injury:
–Never wash cutter/strainer or other removable parts in a dishwasher.
–Always inspect cutter/strainer before each use.
–Do not use a cracked, bent, or damaged cutter/strainer.
w WARNING
840125501 Ev03:840125501 Ev01 10/29/08 2:40 PM Page 4
5
• Juicing avocados or bananas
produces a puree rather than a juice.
• Form leafy vegetables into compact
balls or rolls before inserting into food
chute.
• One pound of raw produce usually
yields one cup (8 ounces) of juice.
• When working with large quantities of
fruits and vegetables, be sure to stop
unit to empty pulp bin as it begins to
fill. The cutter/strainer should also be
cleaned, as the extraction will
decrease considerably.
• If you desire a clear juice, filter juice
through layers of cheesecloth or a
coffee filter. This will also remove any
foam which results during juicing.
• To keep juices from discoloring
during storage, add a few teaspoons
of lemon juice.
• Serve juices immediately, as the
flavor and nutrient content decreases
rapidly when juices are stored. If it
is necessary to juice fruits and
vegetables some time before serving,
cover container tightly and refrigerate.
Do not store for more than 24 hours.
• The flavor, color, and consistency of
freshly juiced fruits will be different
from canned juices.
• Substitute fruit or vegetable juices for
stock or water in cooking.
• Some pulp remaining in juice is
normal. It increases the juice’s flavor
and nutritive value.
• Potato juice can be used in place of
cornstarch or flour as a thickening
agent in gravies and soups.
• Vegetable juice mixed with carrot
juice will produce a sweeter
vegetable flavor.
• Freeze vegetable pulp for use in
making soups.
• The softer the texture of a fruit or
vegetable, the thicker the juice
produced. Apricots, peaches, pears,
melons, and strawberries are soft
textured fruits. The juice that is
extracted from these fruits is very
thick and is known as nectar. It is
best to combine these juices with
thinner juices, such as carrot or
apple. Beet greens, parsley, spinach,
and watercress yield very rich and
thick juices. They are very strongflavored and taste best when
combined with other fruits and
vegetables.
Juicing Tips and Techniques
Wash fruits and vegetables thoroughly. Remove pits, stones, and large seeds from
apricots, cherries, peaches, plums, etc. Remove rind from thick-skinned fruits and
vegetables such as oranges, lemons, grapefruit, tangerines, watermelons, pineapples,
and winter squash.
Important Information
• The juice extractor is manufactured
for NORMAL HOUSEHOLD USE. If
you have large quantities, such as
10 pounds or more, process in small
batches, allowing motor to cool
completely between uses.
• When juicing CARROTS, DO NOT
PACK food chute. Place carrots in
food chute one by one, and press
down gently with food pusher.
• DO NOT OVERLOAD THE FOOD
CHUTE. For best results, simply drop
food pieces, one at a time, into
chute. Press down gently and slowly
with food pusher. This will extract the
maximum amount of juice.
• If the juice extractor SEEMS TO
STRUGGLE or slow down, turn the
unit OFF and unplug. Thoroughly
wash the cutter/strainer and separator
according to instructions. Reassemble
and continue juicing.
840125501 Ev03:840125501 Ev01 10/29/08 2:40 PM Page 5
6
Cleaning and Storing
1. Turn OFF and unplug from electrical
outlet.
2. Empty pulp bin.
3. Unlock safety latch. Remove cover.
Remove separator with cutter/strainer
immediately after using. Do not let
food dry and harden on the cutter/
strainer. For hard to remove particles,
use a plastic bristle brush or
toothbrush.
4. Wash food pusher, cover, separator,
and pulp bin in hot, soapy water.
Rinse, dry, and reassemble for storage. These parts may also be
washed in the dishwasher.
5. DO NOT WASH the cutter/strainer in
the dishwasher. The cutter/strainer
teeth are sharp. Handle carefully.
Wash the cutter/strainer in hot,
soapy water. Rinse; then let dry.
6. Some foods may stain plastic parts.
To treat stained parts, make a paste
of baking soda and water and rub
on stained area with a damp cloth.
Rinse and dry.
NOTE: Carrots will stain the unit
permanently.
7. Wipe outside of base with a damp
cloth. Never immerse base in water.
Shock Hazard. Do not immerse motor base in water or any
other liquid.
w WARNING
To prolong the life of the juice extractor, it is recommended that all washable parts
be washed immediately after each use.
The cutter/strainer is a very delicate screen subject to wear and therefore is not
covered under warranty. Do not wash in an automatic dishwasher.
Inspect cutter/
strainer for breaks, cracks, or looseness. Do not use a broken, cracked, or loose
cutter/strainer.
Call the toll-free customer service number to order a new cutter/
strainer.
840125501 Ev03:840125501 Ev01 10/29/08 2:40 PM Page 6
7
Red Tango
1
⁄2 cup (125 ml) cranberries
2 tangerines
1
⁄2 teaspoon (2.5 ml) sugar
Juice cranberries, then tangerines.
Add sugar to juice.
Sweet Cranberry Zing
1
⁄4-inch (6 mm) slice fresh ginger
1
⁄2 cup (125 ml) cranberries
11⁄2 cups (375 ml) white grapes
Sugar to taste
Juice ginger first, then cranberries, then
grapes. Add sugar to juice if needed.
Autumn Zing
1
⁄8-inch (3 mm) slice fresh ginger
2 whole carrots
1
⁄2 apple
Juice ginger first, then carrots, then
apple.
Tropical Morning
2 oranges
1
⁄4 fresh pineapple
Juice oranges and pineapple.
Mango Pineapple Zing
1
⁄4-inch (6 mm) slice fresh ginger
1
⁄2 mango
1
⁄4 fresh pineapple
Juice ginger first, then mango, then
pineapple.
Cranberry Breeze
1
⁄2 cup (125 ml) cranberries
1 apple
1 cup (250 ml) white grapes
Juice cranberries first, then apple and
grapes.
Kiwi Surprise
1 kiwi fruit, not peeled
1
⁄4 lime
11⁄8 cups (280 ml) white grapes
Sugar to taste
Juice kiwi first, then lime and grapes.
Add sugar to juice if needed.
Dawn Delight
1
⁄2 beet
1 celery stalk
1 apple
Juice beet first, then celery and apple.
Paradise Sunrise
1
⁄2 mango
1 cup (250 ml) strawberries
1
⁄2 cup (125 ml) white grapes
Juice mango first, then strawberries
and grapes.
Melon Delight
1
⁄8 honeydew melon
1
⁄4 cantaloupe
1
⁄4 cup (60 ml) white grapes
Juice honeydew first, then cantaloupe
and grapes.
Sweet Banana Delight
1
⁄2 banana
11⁄2 apples
1 (5 ml) teaspoon honey
Juice banana first, then apple. Add
honey to juice.
Berry Blitz
1
⁄2 cup (125 ml) cranberries
1
⁄2 cup (125 ml) raspberries
1
⁄2 cup (125 ml) strawberries
1
⁄2 cup (125 ml) white grapes
1 teaspoon (5 ml) honey
Juice cranberries first, then raspberries,
strawberries, and grapes. Add honey
to juice.
Cinnamon Special
2 apples
Cinnamon
Slice apples. Generously sprinkle with
cinnamon and push slices through
juice extractor.
Recipes
The following drink recipes yield a single serving of 6 to 10 ounces (175–300 ml).
840125501 Ev03:840125501 Ev01 10/29/08 2:40 PM Page 7
8
Banana Citrus Surprise
1
⁄2 banana
1 tangerine
1
⁄2 cup (125 ml) white grapes
Juice banana first, then tangerine and
grapes.
Veggie Patch
1
⁄4 small head cabbage
1 celery stalk
1 apple
Juice cabbage first, then celery and
apple.
Tomato Zest
1
⁄2 small clove garlic
1
⁄4 green pepper
1 celery stalk
1 large tomato
Juice garlic and green pepper first,
then celery and tomato.
Orange Zing
3 oranges
1
⁄8-inch (3 mm) slice fresh ginger
Juice oranges with ginger slice.
Garden Glory
1
⁄4 small head cabbage
1-2 fresh basil leaves
1 stalk broccoli (3-4 florets with stalk)
1 celery stalk
1 apple
Juice cabbage and basil first, then
broccoli, celery, and apple.
Apple Tang
1 apple
1 tangerine
Juice apple, then tangerine.
Spicy Veggie Delight
2 broccoli florets with stalk
1
⁄4 green pepper
1 carrot
1 celery stalk
1 tomato
Hot sauce to taste
Juice broccoli and green pepper first,
then carrot, celery, and tomato. Add
hot sauce.
Vegetable Cocktail
8 medium tomatoes
1 lemon, peeled
1 stalk celery
1 medium carrot
1 slice of onion
1 teaspoon (5 ml) Worcestershire
1
⁄2 teaspoon (2.5 ml) salt
Process fruit and vegetables. Stir in
seasonings. Makes 3 cups (750 ml).
Visit hamiltonbeach.com for more
delicious recipes, tips, and to register
your product online!
840125501 Ev03:840125501 Ev01 10/29/08 2:40 PM Page 8
9
This warranty applies to products purchased in the U.S. and Canada. This is the only
express warranty for this product and is in lieu of any other warranty or condition.
This product is warranted to be free from defects in material and workmanship for a
period of one (1) year from the date of original purchase. During this period, your
exclusive remedy is repair or replacement of this product or any component found to
be defective, at our option; however, you are responsible for all costs associated with
returning the product to us and our returning a product or component under this
warranty to you. If the product or component is no longer available, we will replace
with a similar one of equal or greater value.
This warranty does not cover glass, filters, wear from normal use, use not in
conformity with the printed directions, or damage to the product resulting from
accident, alteration, abuse or misuse. This warranty extends only to the original
consumer purchaser or gift recipient. Keep the original sales receipt, as proof of
purchase is required to make a warranty claim. This warranty is void if the product is
used for other than single-family household use.
We exclude all claims for special, incidental and consequential damages caused by
breach of express or implied warranty. All liability is limited to the amount of the
purchase price. Every implied warranty, including any statutory warranty or
condition of merchantability or fitness for a particular purpose, is disclaimed
except to the extent prohibited by law, in which case such warranty or condition
is limited to the duration of this written warranty. This warranty gives you specific
legal rights. You may have other legal rights that vary depending on where you live.
Some states or provinces do not allow limitations on implied warranties or special,
incidental or consequential damages, so the foregoing limitations may not apply to you.
To make a warranty claim, do not return this appliance to the store. Please call
1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com
in the US or hamiltonbeach.ca in Canada. For faster service, locate the model, type,
and series numbers on your appliance.
Limited Warranty
840125501 Ev03:840125501 Ev01 10/29/08 2:40 PM Page 9
Loading...
