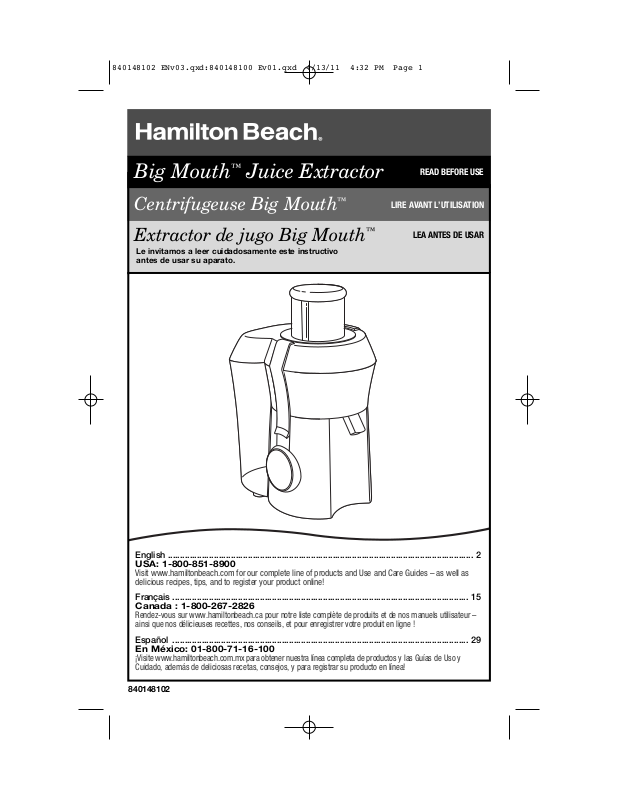

Big Mouth™Juice Extractor

Centrifugeuse Big Mouth

™

Extractor de jugo Big Mouth

™

READ BEFORE USE

LIRE AVANT L’UTILISATION

LEA ANTES DE USAR

Le invitamos a leer cuidadosamente este instructivo antes de usar su aparato.

English .............................................................................................................................. 2

USA: 1-800-851-8900

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online!

Français .......................................................................................................................... 15

Canada : 1-800-267-2826

Rendez-vous sur www.hamiltonbeach.ca pour notre liste complète de produits et de nos manuels utilisateur – ainsi que nos délicieuses recettes, nos conseils, et pour enregistrer votre produit en ligne !

Español .......................................................................................................................... 29

En México: 01-800-71-16-100

¡Visite www.hamiltonbeach.com.mx para obtener nuestra línea completa de productos y las Guías de Uso y Cuidado, además de deliciosas recetas, consejos, y para registrar su producto en línea!

840148102 ENv03.qxd:840148100 Ev01.qxd 4/13/11 4:32 PM Page 1

IMPORTANT SAFEGUARDS

SAVE THESE INSTRUCTIONS!

When using electrical appliances, basic safety precautions should be observed, including the following:

1. Read all instructions before operating.

2. To protect against risk of electric

shock, do not immerse cord, plug, or motor base in water or other liquid.

3. This appliance is not intended for use

by children. Close supervision is necessary when this appliance is used near children. Do not allow children to use this appliance.

4. Always turn appliance OFF and unplug

cord from outlet when not in use, before putting on or taking off parts, and before cleaning.

5. Avoid contacting moving parts. Keep

fingers out of feed chute.

6. Never feed food by hand—always use

the food pusher.

7. Always make sure the juice extractor

is properly and completely assembled before the motor is turned ON. The unit will not turn ON unless properly assembled. Do not release safety locking arm while juice extractor is in operation.

8. Never operate without pulp container

in place.

9. Be sure to turn switch to OFF position

after each use of your juice extractor. Make sure the motor stops completely before disassembling.

10. Do not put fingers or other objects into

the juice extractor feed chute while it is in operation. If food becomes lodged in the opening, use food pusher to push it down. When this method is not possible, turn the motor OFF, unplug the cord from the outlet, and disassemble juicer to remove the remaining food.

11. Do not operate any appliance with a

damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair or electrical or mechanical adjustment.

12. The use of attachments not

recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury.

13. Do not use outdoors.

14. Do not let cord hang over edge of table

or counter, or touch hot surfaces, including stove.

15. Do not leave juice extractor unattended

while it is operating.

16. Blades are sharp; handle carefully. Do

not touch the small cutting blades in the base of the stainless steel strainer basket.

17. Keep hair, clothing, and jewelry, as well

as spatulas and other utensils, away from feed chute during operation to prevent the possibility of severe injury to persons and/or damage to the appliance.

18. Do not use the appliance if the rotating

strainer basket is damaged.

19. Always use the juice extractor on a dry,

level surface.

20. Any maintenance other than cleaning

should be performed by an authorized service center.

21. To reduce the risk of personal injury

and/or damage to the appliance, do not use bent, dented, or otherwise damaged strainer basket.

22. Do not operate without the pulp

container in place.

840148102 ENv03.qxd:840148100 Ev01.qxd 4/13/11 4:32 PM Page 2

Other Consumer Safety Information

CAUTION: This appliance is not intended

for use by children. WARNING! Shock Hazard: This appliance

has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

The electrical rating of this appliance is listed on the bottom panel of the unit.

The strainer basket is a delicate screen.

If bent or damaged, do not use, as it could break into small pieces and cause personal injury and/or damage the appliance. Call our toll-free customer service number to order a new basket. Replace basket when it shows signs of wear.

This appliance is intended for household use only.

Cut or Crush Hazard.

Extra-wide feed chute. Do not place hands or fingers down feed chute. Always use the food pusher. Failure to follow this instruction can result in serious personal injury.

w WARNING

840148102 ENv03.qxd:840148100 Ev01.qxd 4/13/11 4:32 PM Page 3

Parts and Features

Micro-mesh strainer basket may fly apart during use if it is damaged, resulting in the risk of cuts and bruises. To reduce the risk of personal injury:

• Always inspect micro-mesh strainer basket before each use.

• Never use a cracked, bent, or damaged micro-mesh strainer basket.

w WARNING

Food Pusher

Stainless Steel

Micro-Mesh

Strainer Basket

Extra-Wide

Feed Chute

Juicer Cover

Juice Spout

Strainer Bowl

Large Pulp Container

Locking Latch

ON/OFF Switch

Locking Latch

Motor Base

Cleaning Brush (with select models)

Juice Cup

(with select

models)

840148102 ENv03.qxd:840148100 Ev01.qxd 4/13/11 4:32 PM Page 4

How to Assemble

Read and follow instructions in “Before First Use.”

Place strainer bowl on top of the motor base.

Place the stainless steel strainer basket inside the strainer bowl. With hands on outer edge, press strainer basket down firmly to latch into position.

Place the juicer cover over the strainer bowl, positioning the feed chute over the strainer basket and lower into position.

Strainer Basket

Filter Bowl

Before First Use

After unpacking the juice extractor, remove cardboard from filter basket and wash everything except the base in warm, soapy water. Rinse and dry immediately. Never immerse the base in water or other liquids; wipe it with a damp sponge.

840148102 ENv03.qxd:840148100 Ev01.qxd 4/13/11 4:32 PM Page 5

Place the pulp container into position by tilting the container slightly.

Place a glass or other container under the juice spout.

Slide the food pusher down the feed chute by aligning the groove in the food pusher with the small ridge on the inside of the top of the feed tube.

Hint!

To minimize cleanup, place a plastic grocery bag in the pulp container to collect the pulp. (See page 7 for more information.)

Small Ridge Inside Feed Chute

How to Assemble (cont.)

Raise the locking latches up to lock into place.

840148102 ENv03.qxd:840148100 Ev01.qxd 4/13/11 4:32 PM Page 6

How to Use

Wash fruits and vegetables. NOTE: Most fruits and vegetables

such as apples, carrots, and cucumbers will not need to be cut since they will fit into feed chute whole. It is recommended that fruits or vegetables such as oranges, melons, or mangoes are peeled before placing in unit to minimize impact on juice flavor.

Ensure that unit is correctly assembled (see pages 5 and 6) and place a glass or container under spout.

Plug cord into 120-volt AC outlet. Turn ON/OFF switch to ON.

With the motor running, place food down the feed chute. Using food pusher, gently guide food down feed chute. To extract

the maximum amount of juice, always push food pusher down slowly.

Laceration Hazard.

Never use fingers to push food down the feed chute or to clear the feed chute. Always use the food pusher provided.

w WARNING

Juice will flow into glass and separated pulp will accumulate in pulp container.

NOTE: Pulp container can be emptied during juicing by turning juice extractor OFF and then carefully removing pulp container. (Replace empty pulp container before continuing to juice.)

To minimize cleanup, place a plastic grocery bag in pulp container to collect pulp. When juicing is completed, simply remove grocery bag containing pulp.

NOTE: Do not allow pulp container to overfill since this may prevent correct operation or damage the unit.

840148102 ENv03.qxd:840148100 Ev01.qxd 4/13/11 4:32 PM Page 7

Turn juice extractor OFF and unplug. Allow strainer basket to stop turning.

How to Disassemble

Remove the pulp container by sliding away from motor base.

Release locking latches.

Move the locking latches down.

Lift off the strainer bowl with the strainer basket still in place.

Lift off the cover.

To remove the strainer basket, turn the strainer bowl upside down and carefully remove the strainer basket. (It is recommended to remove the strainer basket over a sink.)

840148102 ENv03.qxd:840148100 Ev01.qxd 4/13/11 4:32 PM Page 8

Care and Cleaning

• After disassembling the unit (see page 8), all removable parts may be washed in hot, soapy water.

• All plastic parts of the juice extractor

can be placed in the bottom or top rack of the dishwasher. Do not place the motor base in the dishwasher. Some part distortion may occur if your household dishwasher’s temperature is higher than normal or if the parts are placed too close to the heating element.

• Wipe the motor base with a damp cloth.

• Discoloration of the plastic may occur with some fruit and vegetables. To help prevent this, wash all parts immediately after use.

NOTE:

• To assist with cleaning, soak the strainer basket in hot, soapy water for approximately 10 minutes immediately after juicing is completed. If pulp is left to dry on the basket it may clog the fine pores of the filter mesh, thereby lessening the effectiveness of the juice extractor.

Laceration Hazard.

The center of the strainer basket contains small, sharp blades to process fruits and vegetables during the juicing function.

Do not touch blades when handling the strainer basket.

• The cleaning brush included with the unit is the most effective way to clean the strainer basket. Using the brush, hold the strainer basket under running water and brush inside and outside of the basket. Always treat the strainer basket with care; it can be damaged easily.

Strainer Basket

Shock Hazard.

Do not immerse motor base in water or any other liquid.

w WARNING

w CAUTION

840148102 ENv03.qxd:840148100 Ev01.qxd 4/13/11 4:32 PM Page 9

Troubleshooting

POSSIBLE PROBLEM

Machine will not work when switched ON.

Motor appears to stall when juicing.

Excess pulp building up in the micro mesh strainer basket.

Pulp is too wet and insufficient juice is produced.

Juice sprays out of spout.

Juice drips out of spout immediately after juicing.

Machine vibrates excessively.

EASY SOLUTION

The locking latches may not be correctly engaged. Check to see if the locking latches are properly positioned in the two grooves on either side of the juice cover. Refer to pages 5 and 6, Steps 4 and 5.

The juicing action may be too vigorous. Try slower juicing action by pushing the food pusher down more slowly. Refer to page 7, Step 4.

Wet pulp can build up under the juicer cover or pulp container. Turn unit OFF and unplug. Empty the pulp bin; then clean juice cover and strainer basket.

Turn OFF and unplug. Remove strainer basket and clean mesh walls with a fine brush. This will remove excess fiber buildup which could be inhibiting the juice flow. Refer to pages 8 and 9.

Try a slower juicing action. Turn OFF and unplug. Remove strainer basket

and clean mesh walls with a fine brush. This will remove excess fiber buildup which could be inhibiting the juice flow. Refer to pages 8 and 9.

Try a slower juicing action by pushing the food pusher down more slowly. Refer to page 7, Step 4.

With motor ON, raise and lower food pusher in feed chute several times. The action forces remaining pulp and juice out of strainer bowl.

Buildup of pulp in mesh of strainer basket. Turn unit OFF and unplug. Clean strainer basket. Refer to page 9. If machine vibration continues after cleaning, this could be a sign of a damaged strainer basket. Call our toll-free customer service number to order a new strainer basket.

840148102 ENv03.qxd:840148100 Ev01.qxd 4/13/11 4:32 PM Page 10

Using the Pulp

• The remaining pulp left after juicing fruits or vegetables is mostly fiber and cellulose which, like the juice, contain vital nutrients necessary for the daily diet and can be used in many ways. However, like the juice, pulp should be used that day to avoid loss of vitamins.

• There are a number of recipes that use pulp. You can also use pulp to thicken casseroles or soups.

• Pulp is great used in the garden for compost.

Soy Milk, Almond Milk, and Rice Milk

Your juice extractor may be used to make soy milk, almond milk, and rice milk. One cup of soybeans, almonds, or rice must be soaked in four cups of water for 24 to 48 hours in the refrgerator. Slowly pour one cup of the soaked mixture at a time into the food chute.

The liquid extracted from the soaked mixture is the “milk.”

NOTES:

• Almonds must be soaked 24 to 48 hours before juicing.

• Soy milk should be boiled to improve the flavor.

• Vanilla, honey, and sugar may be added to enhance the flavor of each milk type.

Juicing Tips and Techniques

Purchasing and Storing Fruits and Vegetables

• Always wash fruits and vegetables before juicing.

• Always use fresh fruits and vegetables for juicing.

• To save money and obtain fresher produce, purchase fruits or vegetables that are in season.

• Keep your fruits and vegetables ready for juicing by washing them before storing.

• Most fruits and hardier-type vegetables can be stored at cool room temperature. More delicate and perishable items such as tomatoes, berries, leafy greens, celery, cucumbers, and herbs should be stored in the refrigerator until required.

Preparing Fruits and Vegetables

• It is recommended that fruits or vegetables such as oranges, melons, or mangoes are peeled before placing in juice extractor to minimize impact on juice flavor.

• All fruits with pits and large seeds such as nectarines, peaches, apricots, plums, and cherries MUST be pitted before juicing.

Hint!

Your juice extractor makes invigorating, frothy orange juice. Simply peel the oranges and juice. For best results, refrigerate oranges before juicing.

840148102 ENv03.qxd:840148100 Ev01.qxd 4/13/11 4:32 PM Page 11

1212

Recipes

The following drink recipes yield a single serving of 6 to 10 ounces (175–300 ml). If sugar or honey is listed, add to juice after juicing.

Eye-Opener

2 carrots 1 apple 1 tangerine, peeled

Winter Blue Zing

2 apples 1/4 cup (60 ml) blueberries 1 orange, peeled

Liquid Fire

1 medium tomato 1/2 jalapeno pepper 1 handful parsley 1/2 cucumber

Orchard Blend

2 apples 2 pears

Vineyard Pop

1 cup (250 ml) grapes 1 pear

The Health Club

1/2 of a 6-ounce (170 g) bag spinach 3 carrots

Sour Grapes

1 lime, peeled 2 cups (500 ml) red grapes

840148102 ENv03.qxd:840148100 Ev01.qxd 4/13/11 4:32 PM Page 12

1313

Notes

840148102 ENv03.qxd:840148100 Ev01.qxd 4/13/11 4:32 PM Page 13

1414

LIMITED WARRANTY

This warranty applies to products purchased in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V ~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or

condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific

legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call

1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.
