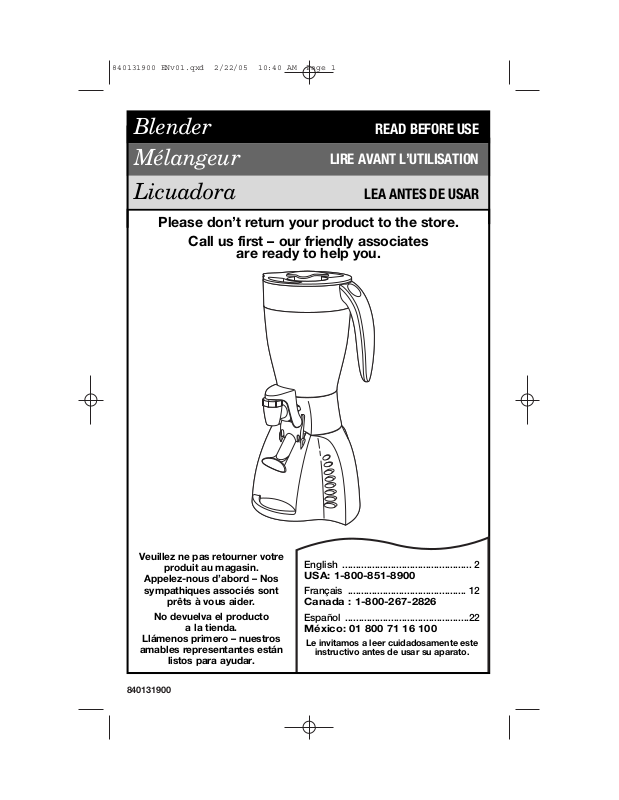

Hamilton Beach 50754C User Manual

840131900

Blender

English ................................................ 2

USA: 1-800-851-8900

Français ............................................ 12

Canada : 1-800-267-2826

Español ..............................................22

México: 01 800 71 16 100

Le invitamos a leer cuidadosamente este

instructivo antes de usar su aparato.

Mélangeur

Licuadora

Please don’t return your product to the store.

Call us first – our friendly associates

are ready to help you.

READ BEFORE USE

LIRE AVANT L’UTILISATION

LEA ANTES DE USAR

Veuillez ne pas retourner votre

produit au magasin.
Appelez-nous d’abord – Nos
sympathiques associés sont

prêts à vous aider.

No devuelva el producto

a la tienda.

Llámenos primero – nuestros

amables representantes están

listos para ayudar.

840131900 ENv01.qxd 2/22/05 10:40 AM Page 1

2

IMPORTANT SAFEGUARDS

SAVE THESE INSTRUCTIONS!

When using electric appliances, basic
safety precautions should always be
followed, including the following:

1. Read all instructions.

2. To protect against risk of electrical

shock, do not put cord, plug, base, or
motor in water or other liquid.

3. Close supervision is necessary when
any appliance is used by or near
children.

4. Unplug cord from outlet when not in
use, before putting on or taking off
parts, and before cleaning.

5. Avoid contact with moving parts.

6. Do not operate any appliance with a

damaged cord or plug, or after the
appliance malfunctions, or is dropped
or damaged in any manner. Call our
toll-free customer service number for
information on examination, repair or
electrical or mechanical adjustment.

7. The use of attachments, including
canning jars, not recommended or sold
by Hamilton Beach/Proctor-Silex, Inc.
may cause a risk of injury to persons.

8. Do not use outdoors.

9. Do not let cord hang over edge of table

or counter, or touch hot surfaces,
including the stove.

10. Keep hands and utensils out of jar while
blending to reduce the risk of severe
personal injury and/or damage to
blender. A rubber spatula may be used
but must be used only when blender is
not running.

Other Consumer Safety Information

11. Blades are sharp; handle carefully–

especially when assembling, disassem­bling or cleaning inside blender jar.

12. Do not use a broken, chipped, or
cracked blender jar.

13. Do not use broken, cracked, or loose
cutting blades.

14. To reduce the risk of injury, never place
cutting unit blades on base without jar
properly attached.

15. Always operate blender with lid in
place.

16. When blending hot liquids, remove
center piece of two-piece lid. Do not fill
blender jar beyond the 3-cup (750 ml)
level. Always begin processing at the
lowest speed setting. Keep hands and
other exposed skin away from the
cover opening to reduce the risk of
possible burns.

17. Screw on cutting assembly firmly. Injury
can result if moving blades accidentally
become exposed.

18. If the jar should turn when the motor is
switched ON, switch OFF immediately
and tighten jar in threaded cutting
assembly.

19. Do not leave blender unattended while
it is operating.

20. To disconnect cord, turn the control to
OFF. Then remove plug from wall outlet.

21. Do not use appliance for other than
intended purpose.

This appliance is intended for household
use only.

This appliance is equipped with a polarized
plug. This type of plug has one blade wider
than the other. The plug will fit into an
electrical outlet only one way. This is a
safety feature intended to help reduce the
risk of electrical shock. If you are unable to
insert the plug into the outlet, try reversing
the plug. If the plug should still fail to fit,
contact a qualified electrician to replace the
obsolete outlet. Do not attempt to defeat
the safety purpose of the polarized plug by
modifying the plug in any way.

The length of the cord used on this
appliance was selected to reduce the
hazards of becoming tangled in, or tripping
over, a longer cord. If a longer cord is
necessary, an approved extension cord
may be used. The electrical rating of the
extension cord must be equal to or greater
than the rating of the blender. Care must be
taken to arrange the extension cord so that
it will not drape over the countertop or
tabletop where it can be pulled on by
children or accidentally tripped over.

If the cutting blades lock and do not move,
it will damage the motor. Do not use. Call
the toll-free customer service number for
information.

840131900 ENv01.qxd 2/22/05 10:40 AM Page 2

3

Parts and Features

1. Filler Cap

2. Lid

3. Blender Jar

4. Thermal Jar

(for Thermal Jar models
only)

5. Gasket

6. Dispenser

(also see inset below)

7. Base

8. Dispenser Lever

9. Speed Control Panel

10. Cutting Assembly

11. Dispenser Cover

12. Spout

13. Actuator

14. Interior Plug

15. Spout Cap

Do not place blender jar in the freezer
filled with food or liquid. This will freeze
and can result in damage to the cutting
blades, jar, blender and possibly result in
personal injury.

NOTICE: To prevent leakage of liquids from
your blender jar, the round rubber gasket
must be properly placed between jar and
cutting assembly as shown in the diagram
below.

Before First Use: After unpacking
blender, wash everything except
blender base in hot, soapy water.
Dry thoroughly. Wipe blender base
with a damp cloth or sponge. DO
NOT IMMERSE BASE IN WATER.
Care should be taken when han­dling the cutting assembly as the
blades are very sharp.

Thermal Jar
Models Only

840131900 ENv01.qxd 2/22/05 10:40 AM Page 3

4

How to Assemble and Use

IMPORTANT: Your blender jar and
cutting assembly are subject to wear
during normal use. Always inspect jar
for nicks, chips, or cracks. Always
inspect cutting assembly for broken,
cracked, or loose blades. If jar or cut­ting assembly is damaged, do not use.
Call our toll-free customer service num­ber to obtain replacement parts.

1. Make sure blender is unplugged.
Place blender base on clean, dry
surface to keep foreign particles
from being pulled up into motor
during operation.

2. Align dispenser lever with spring

facing base.
Insert one side
of dispenser
lever tabs into
notches on
front of the
base. Press
dispenser
lever to the
side to allow
the second

tab to slide into a notch on base.

3. For dispenser assembly and cutting
assembly instructions, see the
“Cleaning” section.

4. For thermal jar models, insert blend-

ing jar into
thermal jar.

5. Fit gasket over blades. The gasket
must lie flat. Set jar on top of gasket
and screw on cutting assembly.

6. Make sure the cutting assembly is
firmly screwed onto the jar.

7. OPTION: When dispenser is not
needed replace the dispenser with
the spout cap.

Remove dispenser assembly (see

“Cleaning”
section).
Insert spout
cap on
cutting
assembly.
Turn spout
cap clock­wise to lock.

8. Set jar into place on blender base,
making sure it is securely seated.
If not, gently rock the jar until seated.

NOTE: The cutting assembly must

slide between
the base and
dispensing
lever.

9. Plug cord into outlet.

10. Put ingredients in jar; lock filler cap

and lock lid on jar. Always hold
handle when blending.

11. Process food or beverages. See
the “Blending Techniques” section
for speeds and processing tips.
NOTE: When blending thin liquids,
do not fill above the 40-ounce/
5 cup/1200 ml mark on blender jar.

12. The dispensing blender will dis­pense beverages. To dispense,
press drink cup against dispenser
lever. Dispensing will automatically
stop when the cup is removed. To
dispense thick liquids (such as milk­shakes, smoothies, frozen drinks,
etc.), turn blender ON and then dis­pense. Turn OFF after dispensing.

13. ALWAYS turn blender off and wait
until blades have stopped rotating
before removing jar.

14. To remove jar after blending is
complete, lift the jar straight up. If it
is not easily removed, rock gently
and lift. Do not twist.

15. NEVER replace jar onto unit while
motor is running.

840131900 ENv01.qxd 2/22/05 10:40 AM Page 4

5

First select and push a LO or HI power
button then push desired speed button.
When using PULSE or Ice Breaker

™

but­tons, blender will operate only as long as
button is pushed. The remaining speed
buttons will run the blender until OFF is
pushed.

Both Pulse 1 and Pulse 2 may be used
on HI and LO speed settings. For the
highest speed, push HI and Pulse 2.

Speed Control Panels

Quick cleaning should only be used to
rinse the blender between batches of
processing the same food. When the
processing of a single type of food is
finished, the blender should be disas­sembled and thoroughly cleaned as
instructed in “How to Clean.”

To quick clean, pour 2 cups (500 ml)
warm water in jar and add 1 drop liquid
dishwashing detergent. Run the blender
on ICY DRINK for 10 seconds. Flush soapy
water through dispenser until cleaned.

Discard soapy water. Rinse blender jar
with clean water. Flush clean water
through dispenser until cleaned.

This function is not a substitute for
regular cleaning as instructed in “How
to Clean.” This function should never
be used when blending any mixture
containing eggs, milk, or any other
dairy products, meats, or seafood.

Quick Cleaning

Pulse

840131900 ENv01.qxd 2/22/05 10:40 AM Page 5

S

PEED

8

OFF

I

CE

B

REAKER

OFF

S

01

PEED

OFF

I

CE

TM

B

REAKER

I
B

CE
REAKER

6

Hints for Best Use

NOTE: After extended blending, espe-

cially dry food, you may notice a black
film inside the top of the blender base.
This is a normal, FDA-approved, food­grade lubricant used to ensure the
long-life of your cutting assembly.

• Processing hot foods or liquids in the
blender may cause hot liquid to spurt
out when the cover is removed.
Always remove the filler cap of the lid
before blending hot foods or liquids.
Keep hands and other exposed skin
away from the cover opening to
reduce risk of possible burns.

• To add foods when blender is
operating, remove filler cap from
container lid and add ingredients
through the opening.

• Do not store food or liquids in the
blender jar.

• If blending action stops during
blending or ingredients stick to sides
of the jar, turn blender OFF. Remove
cover and use a rubber spatula to
push mixture toward blades.

• Do not try to mash potatoes, mix stiff
dough, whip egg whites, grind raw
meat, or extract juices from fruits and
vegetables. The blender is not made
to perform these tasks.

• If food being processed (solid food or
ultra-thick beverages) will not dis­pense always pour from jar.

Crushing Ice

Fill blender jar half-full with cold water.
Add about 2 cups (500 ml) of ice
cubes. Lock filler cap into lid and lock
lid on blender jar. Press the ICY

DRINK

button. Continue until ice is crushed to
desired consistency. Pour contents into
colander or sieve to drain off water.

DO NOT CRUSH ICE WITHOUT
LIQUID. Failure to follow these
directions can result in damage to the
blades, jar, blender, and possibly result
in personal injury.

840131900 ENv01.qxd 2/22/05 10:40 AM Page 6

7

Baby Foods

Follow feeding guidelines appropriate
for age. Place 1 cup (250 ml) cooked
fruits or vegetables in blender jar. Add
liquid, such as water, milk, or juice, if
needed. P

UREE for 10 seconds or until

smooth.

Bread Crumbs

Tear bread into pieces and put in
blender jar. PULSE about 10 times.

Cookie or Cracker Crumbs

Break cookies or crackers into pieces
and put in blender jar. Process 1 cup
(250 ml) at a time. PULSE about 10 times.
For a finer consistency, process on ICY
DRINK a few seconds after Pulsing.

Chopped Nuts

Place 1 cup (250 ml) nuts in blender
jar. PULSE a few times. Remove jar from
base and shake to redistribute pieces.
Place jar on base and PULSE a few more
times.

Chopping Vegetables

Cabbage, carrots, onion, green pepper,
potatoes. Place 2 cups (500 ml) of
chunks in blender jar. Cover with water.
PULSE until desired chopped consistency
is reached. Pour into colander to drain
off water.

Coffee Beans

Place 1⁄2 cup (125 ml) beans in blender
jar. Process on I

CY DRINK

for 30 seconds
or until desired grind consistency is
reached.

Frozen Juice Concentrate

Place 6 ounces (170 g) frozen juice in
blender jar with recommended amount
of water. Process on ICY DRINK for 20
seconds. Or place 12 ounces (350 g)
frozen juice in blender jar with 1 can of
water. Process on ICY DRINK for 30 sec­onds. Pour into pitcher and stir in
remaining 2 cans water.

Grated Baking Chocolate

On a cutting board, cut 2 to 3 ounces
(50 to 85 g) baking chocolate into
chunks. Place in blender jar. P

ULSE for

10 seconds.

Smooth Gravy

If your gravy has lumps, place in
blender jar. Remove filler cap from
cover to allow steam to escape. PUREE 5
seconds or until smooth.

Pancakes or Waffles

Place liquid ingredients into blender jar;
then dry ingredients. AERATE for 10 sec­onds or until blended.

Parmesan Cheese

Cut cheese into half-inch (1 cm)
chunks and place in blender jar.
Process on GRATE for 30 seconds or
until desired consistency.

Superfine Sugar

Place 1 cup (250 ml) regular granulated
sugar in blender jar. Process on ICY
DRINK for 30 seconds to make superfine
sugar which dissolves instantly in iced
tea.

“Thickened” Whipping Cream

The blender will not whip cream but
produces a spoonable topping. Pour
1 cup (250 ml) heavy or whipping
cream in blender jar. Process on ICY
DRINK for 20 seconds or until thickened.

Blending Techniques

NOTE: Foods and liquids too thick to dispense should be poured from
the jar. The Dispensing Blender is designed to dispense beverages.

840131900 ENv01.qxd 2/22/05 10:40 AM Page 7

8

1. Unplug blender from electrical outlet.

2. Wipe blender base, control panel,

and cord with a damp cloth or
sponge. To remove stubborn spots,
use a mild, non-abrasive cleanser.

3. To clean jar, unscrew cutting assem-

bly from jar.

4. Carefully remove gasket from cutting

assembly.

5. Remove dispenser from cutting

assembly.

• Rotate dispenser assembly 90
degrees
counter­clockwise to
unlock from
cutting
assembly.

• Pull to remove dispenser assembly
from cutting
assembly.

• To unsnap actuator from hinge on
dispenser,
push dis­penser with
thumb while
pulling dis­penser lever
with fingers.
This releases
dispenser
from hinge.

How to Clean

• Lift and rotate actuator around
hinge.
Unscrew
dispenser
cap.

• Lift dispenser cap and actuator

straight up
to remove
the interior
plug
attached to
the cap
from the
dispenser
body.

6. To separate thermal jar, hold top of
blender jar and turn thermal jar
counterclockwise.

7. Carefully wash cutting assembly,
dispenser assembly parts, gasket,
jar, and lid in hot, soapy water. Rinse
and dry thoroughly. Do not soak.
Do not wash cutting assembly,
dispenser assembly parts, gasket,
jar, or lid in a dishwasher.

8. Reassemble cutting unit assembly
onto jar, and replace jar onto blender
base. Ensure dispenser or spout cap
is fully pushed on spout and rotated
clockwise to lock into position
(reverse steps in number 5 above).

9. Store blender with lid ajar to
prevent container odor.

Electrical Shock Hazard

• Disconnect power before cleaning.

• Do not immerse cord, plug or base
in any liquid.

Failure to follow these instructions can
result in death or electrical shock.

WARNING

840131900 ENv01.qxd 2/22/05 10:40 AM Page 8

9

Recipes

For more blender recipes, call our toll-free number or check our Web site at
www.hamiltonbeach.com.

Triple Chocolate Milkshake

11⁄2

cups (375 ml) milk

4 chocolate sandwich cookies
Place all ingredients in blender. Process on M

ILKSHAKE about 15 seconds or until

cookies are coarsely chopped and shake is smooth. Makes 32 ounces (950 ml).

Frothy Pineapple-Banana Smoothie

11.5-ounce (339 ml) can pineapple­orange juice concentrate
(found in juice aisle)

11⁄

2 cups (375 ml) ice cubes

Place all ingredients in blender jar; cover. Process on S

MOOTHIE for 15 seconds or

until desired consistency. Makes 30 ounces (900 ml).

Orange Pineapple Smoothie

15-ounce (425 g) can crushed pineapple with juice
1 cup (250 ml) orange juice

1 cup (250 ml) ice cubes
8 ounces (250 ml) pineapple or vanilla yogurt

Place all ingredients in blender jar; cover. Process on SMOOTHIE for 15 seconds or
until desired consistency. Makes 36 ounces (1.125 L).

Banana Berry Smoothie

11⁄

2 cups (375 ml) milk

2 cups (500 ml) frozen strawberries

Place all ingredients in blender jar; cover. Process on SMOOTHIE

for 30 seconds or

until desired consistency. Makes 48 ounces (1.5 L).

Orange-Sicle Smoothie

21⁄2 cups (625 ml) orange juice
6 scoops vanilla frozen yogurt

Place all ingredients in blender jar; cover. Process on SMOOTHIE for 15 seconds or
until desired consistency. Makes 36 ounces (1.125 L).

Mocha-Cocoa Shake

11⁄2 cups (375 ml) milk
2 teaspoons (10 ml) instant coffee powder
6 scoops chocolate ice cream

Place all ingredients in blender. Process on MILKSHAKE for about 15 seconds or until
shake is smooth. Makes 24 ounces (750 ml).

Adult Mocha Shake

1 cup (250 ml) milk

3

⁄4 cup (175 ml) coffee-flavored liqueur like Kahlua

4 scoops chocolate ice cream, softened
Place all ingredients in blender jar; cover. Process on MILKSHAKE for 45 seconds or

until desired consistency. Makes 32 ounces (950 ml).

1

⁄

2 cup (125 ml) pineapple chunks

1 ripe banana, broken into pieces

2 ripe bananas, broken into pieces
2 8-ounce (450 g) containers vanilla or

strawberry yogurt

1

⁄3 cup (80 ml) chocolate syrup

6 scoops chocolate ice cream

840131900 ENv01.qxd 2/22/05 10:40 AM Page 9

10

Strawberry Daiquiri

16-ounce (450 g) package frozen

strawberries in syrup, slightly thawed

6-ounce (170 g) can frozen limeade concentrate
Place all ingredients in blender. Cover and process on ICY

DRINK

for 45 seconds or

until ice is crushed. Makes 40 ounces (1.25 L).

Margaritas

1

⁄2

cup (125 ml) tequila

1

⁄2

cup (125 ml) Triple Sec

1

⁄2

cup (125 ml) sugar

Place tequila, Triple Sec, sugar and lime juice in blender. Cover and process on I

CY

DRINK for 30 seconds. Add ice and process on ICY

DRINK

for 15 seconds or until ice is

crushed. Makes 32 ounces (950 ml).

Mexican Jack Omelet

3 eggs
2 ounces (56 g) Monterey Jack or

pepper jack cheese

Replace dispenser with spout cap. Place all ingredients in blender jar. Process on
SMOOTHIE about about 10 seconds. Over medium heat, melt a small pat of margarine
or butter in a skillet. Pour omelet into skillet. Cook until just set; then flip over and
cook until done. Fold and serve. Makes 1 omelet.

Hummus

19-ounce (535 g) can garbanzo beans,

undrained
3 tablespoons (45 ml) lemon juice
2 tablespoons (30 ml) tahini

Replace dispenser with spout cap. Combine the seven ingredients in blender jar.
Process on ICY DRINK. Turn blender off. Scrape sides of jar with spatula. Turn
blender on and process an additional 30 seconds until smooth. Transfer to serving
dish. Serve with rye toast or pita wedges. Yield: about 3 cups (750 ml).

Chocolate Cream Mousse

1 teaspoon vanilla (5 ml)
2 tablespoons (30 ml) sugar
1 cup (250 ml) mini-chocolate chips

Replace dispenser with spout cap. Put vanilla, sugar, and chocolate chips in
blender jar. Heat milk to steaming. Pour milk into jar. Process on SMOOTHIE for 15
seconds or until smooth. Add cream cheese and process on SMOOTHIE for 10 sec­onds or until smooth. Pour into individual dessert dishes and refrigerate at least 2
hours or until set. Makes 4 to 6 servings.

1 cup (250 ml) rum
2 cups (500 ml) ice

1 tablespoon (15 ml) olive oil
11⁄2

teaspoons (7.5 ml) minced garlic

1 teaspoon (5 ml) cumin

1

⁄2

teaspoon (2.5 ml) salt

1

⁄

4 cup (60 ml) fresh lime juice

(approximately 3 limes)

3 cups (750 ml) ice

1 tablespoon (15 ml) water or milk
Salt and pepper to taste

3

⁄4 cup (175 ml) milk

3-ounce (85 g) package cream cheese,

cut in cubes

840131900 ENv01.qxd 2/22/05 10:40 AM Page 10
