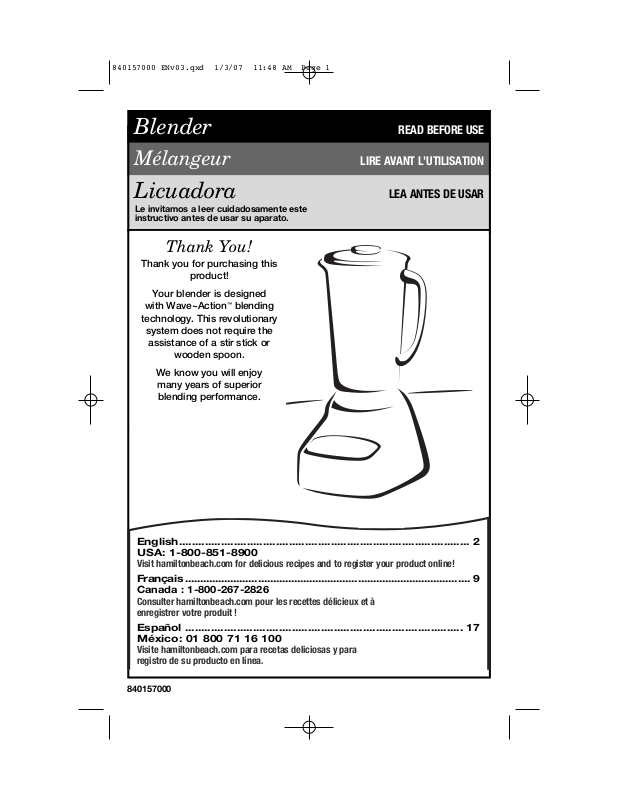

Hamilton Beach 50200WV User Guide
840157000
Blender
Mélangeur
Licuadora
Thank You!
Thank you for purchasing this
product!
Your blender is designed
with Wave~Action™blending
technology. This revolutionary
system does not require the
assistance of a stir stick or
wooden spoon.
We know you will enjoy
many years of superior
blending performance.
READ BEFORE USE
LIRE AVANT L’UTILISATION
LEA ANTES DE USAR
Le invitamos a leer cuidadosamente este
instructivo antes de usar su aparato.
English.......................................................................................... 2
USA: 1-800-851-8900
Visit hamiltonbeach.com for delicious recipes and to register your product online!
Français .............................................................................................. 9
Canada : 1-800-267-2826
Consulter hamiltonbeach.com pour les recettes délicieux et à
enregistrer votre produit !
Español ...................................................................................... 17
México: 01 800 71 16 100
Visite hamiltonbeach.com para recetas deliciosas y para
registro de su producto en línea.
840157000 ENv03.qxd 1/3/07 11:48 AM Page 1
2
IMPORTANT SAFEGUARDS
SAVE THESE INSTRUCTIONS!
When using electric appliances, basic safety precautions should always be followed, including the
following:
1. Read all instructions.
2. To protect against risk of electrical shock, do
not put cord, plug, base, or motor in water or
other liquid.
3. Close supervision is necessary when any
appliance is used by or near children.
4. Unplug cord from outlet when not in use, before
putting on or taking off parts, and before
cleaning.
5. Avoid contact with moving parts.
6. Do not operate any appliance with a damaged
cord or plug, or after the appliance malfunctions, or is dropped or damaged in any manner.
Call our toll-free customer service number for
information on examination, repair or electrical
or mechanical adjustment.
7. The use of attachments, including canning jars,
not recommended or sold by Hamilton Beach/
Proctor-Silex, Inc. may cause a risk of injury to
persons.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or
counter, or touch hot surfaces, including stove.
10. Keep hands and utensils out of jar while blending
to reduce the risk of severe personal injury
and/or damage to blender. A rubber spatula may
be used but must be used only when blender is
not running.
Other Consumer Safety Information
11. Blades are sharp; handle carefully– especially
when assembling, disassembling or cleaning
inside blender jar.
12. Do not use a broken, chipped, or cracked
blender jar.
13. Do not use broken, cracked, or loose cutting
blades/assembly.
14. To reduce the risk of injury, never place cutting
blades/assembly on base without jar properly
attached.
15. Always operate blender with lid in place.
16. When blending hot liquids, remove center-piece
of two-piece lid. Hot liquids may push lid off jar
during blending. To prevent possible burns: do
not fill blender jar beyond the 3 cup (750 ml)
level. With the protection of an oven mitt or
thick towel, place one hand on top of lid. Keep
exposed skin away from lid. Start blending at
lowest speed.
17. Screw on jar nut firmly. Injury can result if
moving blades accidentally become exposed.
18. If the jar should turn when the motor is
switched ON, switch OFF immediately and
tighten jar in jar nut, Sure Rest™ base, or
cutting assembly.
19. Do not leave blender unattended while it is
operating.
20. To disconnect cord, turn the control to OFF.
Then remove plug from wall outlet.
21. Do not use appliance for other than intended
purpose.
This appliance is intended for household use only.
The length of the cord used on this appliance was
selected to reduce the hazards of becoming tangled in,
or tripping over, a longer cord. If a longer cord is necessary, an approved extension cord may be used. The
electrical rating of the extension cord must be equal to
or greater than the rating of the blender. Care must be
taken to arrange the extension cord so that it will not
drape over countertop or tabletop where it can be
pulled on by children or accidentally tripped over.
If the cutting blades lock and do not move, it will
damage the motor. Do not use. Call the toll-free customer service number for information.
Do not place blender jar in the freezer filled with food
or liquid. This will freeze and can result in damage to
the cutting blades, jar, blender and possibly result in
personal injury.
wWARNING
Shock Hazard
• Do not immerse this appliance in water or other liquid.
• This appliance has a polarized plug (one wide blade) that reduces the risk of electrical shock. The plug
fits only one way into a polarized outlet. Do not defeat the safety
purpose of the plug by modifying the plug in any way or using an adaptor. If the plug does not fit, reverse
the plug. If it still does not fit, have an electrician replace the outlet.
840157000 ENv03.qxd 1/3/07 11:48 AM Page 2
3
Parts and Features
1. Filler Cap
2. Lid
3. Jar
4. Cutting Blades
(On models with cutting
assembly #4, the gasket
is permanently affixed
to the cutting blades.
Do not try to remove it.)
5. Jar Nut*
6. Sure Rest™Base*
7. Control Panel
8. Base
9. Cutting Assembly*
10. Gasket
Before First Use: After unpacking blender, wash everything except blender base in
hot, soapy water. Dry thoroughly. Wipe blender base with a damp cloth or sponge.
DO NOT IMMERSE BASE IN WATER. Care should be taken when handling cutting
blades as they are very sharp.
Depending on which blender model you have purchased, your blender will
come with one of the following part combinations:
• Cutting Blade (#4) with Jar Nut (#5)
• Cutting Blade (#4) with SureRest™Base (#6)
• Cutting Assembly (#9) with Gasket (#10)
Wattage/Peak Power Information
The wattage/ampere rating of the
blender is determined by an
Underwriter’s Laboratory test and is
based on available cutting blades and jar
combinations that may not be provided
with your unit, but are available as
replacement parts. This is a measure of
input wattage/amperes after 30 seconds
of operation. The blender as provided
may draw significantly less power.
Peak power is the measure of the motor
wattage during the first seconds of operation. This is when a blender requires the
most power to crush ice, frozen fruit, etc.
This is a better measure of what a
blender motor can consume when
power is needed most.
840157000 ENv03.qxd 1/3/07 11:48 AM Page 3
4
How to Assemble and Use
IMPORTANT: Your blender jar and
cutting blades are subject to wear during normal use. Always inspect jar for
nicks, chips, or cracks. Always inspect
cutting blades for broken, cracked, or
loose blades. If jar or cutting blades are
damaged, do not use. Call our toll-free
customer service number to obtain
replacement parts.
1. Make sure blender is unplugged.
Place blender base on clean, dry
surface to keep foreign particles
from being pulled up into motor
during operation.
2. For Models with Sure Rest™Base
or Jar Nut:
Place cutting blades in Sure Rest
™
base or jar nut. Set jar on top of cutting blades and screw Sure Rest
™
base or jar nut onto jar.
For Models with Cutting Assembly:
Fit gasket over cutting blades. The
gasket must lie flat. Set jar on top
of gasket and screw on cutting
assembly.
3. Make sure the jar nut, Sure Rest™
base, or cutting assembly is firmly
screwed onto the jar. If not, it may
loosen later when motor is turned on.
Your blender may have 6 to 16 speeds.
They all operate similarly. For blenders
with 10 or more speeds, first select and
push a LO or HI power button then push
desired speed button. When using
PULSE the blender will operate only as
long as button is pushed. The remaining
speed buttons will run the blender until
OFF is pushed.
NOTE: Speed increases as the buttons
are pushed left to right.
Control Panels
4. Set assembled jar into place on
blender base, making sure it is
securely seated. (For some models,
turn to LOCK as indicated.) If not,
gently rock the jar until seated.
5. Plug cord into outlet.
6. Put ingredients in jar; place lid with
filler cap on jar. Place hand on lid
when blending thin liquids.
7. Process food or beverages. See
the “Blending Specific Foods” for
speeds and processing tips.
8. ALWAYS turn blender off and wait
until blades have stopped rotating
before removing jar.
9. To remove jar after blending is
complete, lift the jar straight up.
(For some models, turn to
UNLOCK as indicated.) If it is not
easily removed, rock gently and lift.
Do not twist.
10. NEVER replace jar onto unit while
motor is running.
840157000 ENv03.qxd 1/3/07 11:48 AM Page 4
5
Baby Foods
Follow feeding guidelines appropriate
for age. Place 1 cup (250 ml) cooked
fruits or vegetables in blender jar. Add
liquid, such as water, milk, or juice, if
needed. Press a desired speed control
button for 10 seconds or until smooth.
Bread Crumbs
Tear bread into pieces and put in
blender jar. Pulse about 10 times.
Cookie or Cracker Crumbs
Break cookies or crackers into pieces
and put in blender jar. Process 1 cup
(250 ml) at a time. Pulse about 10
times. For a finer consistency, press a
desired speed control button for a few
seconds after Pulsing.
Chopped Nuts
Place 1 cup (250 ml) nuts in blender
jar. Pulse a few times. Remove jar from
base and shake to redistribute pieces.
Place jar on base and Pulse a few
more times.
Chopping Vegetables
Cabbage, carrots, onion, green pepper,
potatoes. Place 2 cups (500 ml) of
chunks in blender jar. Cover with water.
Pulse until desired chopped consistency is reached. Pour into colander to
drain off water.
Coffee Beans
Place
1
⁄2 cup (125 ml) beans in blender
jar. Press desired speed control button
for 30 seconds or until desired grind
consistency is reached.
Frozen Juice Concentrate
Place 6 ounces (170 g) frozen juice in
blender jar with recommended amount
of water. Press a desired speed control
button for 20 seconds or until smooth.
Or place 12 ounces (350 g) frozen juice
in blender jar with 1 can of water. Press
a desired speed control button for 30
seconds. Pour into pitcher and stir in
remaining 2 cans water.
Grated Baking Chocolate
On a cutting board, cut 2 to 3 ounces
(50 to 85 g) baking chocolate into
chunks. Place in blender jar. Pulse for
10 seconds.
Smooth Gravy
If your gravy has lumps, place in
blender jar. Remove filler cap from lid
to allow steam to escape. Press a
desired speed control button for 5 seconds or until smooth.
Pancakes or Waffles
Place liquid ingredients into blender jar;
then dry ingredients. Press a desired
speed control button for 10 seconds or
until blended.
Parmesan Cheese
Cut cheese into half-inch (1 cm)
chunks and place in blender jar.
Process until desired consistency.
Superfine Sugar
Place 1 cup (250 ml) regular granulated
sugar in blender jar. Press a desired
speed control button for 30 seconds to
make superfine sugar which dissolves
instantly in iced tea.
“Thickened” Whipping Cream
The blender will not whip cream but
produces a spoonable topping. Pour
1 cup (250 ml) heavy or whipping
cream in blender jar. Press a desired
speed control button for 20 seconds or
until thickened.
Crushing Ice
Fill blender jar with 1 cup (250 ml) of
ice cubes. Place lid on blender jar then
Pulse. Allow blades to come to a
complete stop between pulses.
Continue until ice is crushed to desired
consistency. For best results always
crush ice immediately after removing
from freezer.
Blending Specific Foods
840157000 ENv03.qxd 1/3/07 11:48 AM Page 5
6
1. Unplug blender from electrical outlet.
2. Wipe blender base, control panel,
and cord with a damp cloth or
sponge. To remove stubborn spots,
use a mild, non-abrasive cleanser.
3. To clean jar, unscrew jar nut, Sure
Rest base, or cutting assembly and
remove cutting blades from jar.
4. Carefully remove blades from bot-
tom of jar nut or cutting assembly.
5. Carefully wash blades, base, jar, and
lid in hot, soapy water. Rinse and
dry thoroughly. Do not soak.
NOTE: All parts except the cutting
assembly or cutting blades may be
washed in the dishwasher on the top
rack only. Some part distortion may
occur if your household dishwasher
temperature is higher than normal or
if the parts are placed too close to
the heating element.
How to Clean
6. Reassemble. See page 4 “How to
Assemble and Use.”
7. Store blender with lid ajar to
prevent container odor.
General Tips
• To add foods when blender is
operating, remove filler cap from container lid and add ingredients through
the opening.
• For best performance, the minimum
amount of liquid needed per recipe is
one cup (8 ounces/250 ml). Add more
liquid if food is not blending properly.
• If blending action stops during
blending or ingredients stick to sides
of the jar, there may not be enough
liquid in the jar to blend effectively.
• Do not try to mash potatoes, mix stiff
dough, whip egg whites, grind raw
meat, or extract juices from fruits and
vegetables. The blender is not made
to perform these tasks.
• Do not store food or liquids in the
blender jar.
• Avoid bumping or dropping the
blender.
wWARNING
Electrical Shock Hazard
• Disconnect power before cleaning.
• Do not immerse cord, plug or base
in any liquid.
Failure to follow these instructions
can result in death or electrical shock.
840157000 ENv03.qxd 1/3/07 11:48 AM Page 6
7
The Quick Clean function should only
be used to rinse the blender between
batches of processing the same food.
When the processing of a single type of
food is finished, the blender should be
disassembled and thoroughly cleaned
as instructed in “How to Clean.”
To Quick Clean, pour 2 cups (500 ml)
warm water in jar and add 1 drop liquid
dishwashing detergent. Run the blender
on QUICK CLEAN for 10 seconds.
Discard soapy water. Rinse with clean
water.
This function is not a substitute for
regular cleaning as instructed in “How
to Clean.” This function should never
be used when blending any mixture
containing eggs, milk, or any other
dairy products, meats, or seafood.
Quick Clean
Troubleshooting
POTENTIAL PROBLEM
Blender leaks.
Ice not crushed.
Does not blend well.
PROBABLE CAUSE/SOLUTION
• Tighten jar nut or Sure Rest jar base tighter on
jar.
• Make sure gasket is in place for models with
cutting assembly.
• See ice crushing instructions in “Blending
Specific Foods” section.
• Make sure enough liquid has been added. A
minimum of 8 ounces (250 ml) is recommended.
840157000 ENv03.qxd 1/3/07 11:48 AM Page 7
8
Customer Service
If you have a question about your blender, call our toll-free customer service
number. Before calling, please note the model, type, and series numbers and fill
in that information below. These numbers can be found on the bottom of your
blender. This information will help us answer your question much more quickly.
MODEL: ______________ TYPE: _______________ SERIES: _________________
This warranty applies to products purchased in the U.S. or Canada.
LIMITED WARRANTY
This product is warranted to be free from defects in material and workmanship for a period
of three (3) years for Hamilton Beach products or one hundred eighty (180) days for
Proctor-Silex and Traditions products from the date of original purchase, except as noted
below. During this period, we will repair or replace this product, at our option, at no cost.
THE FOREGOING WARRANTY IS IN LIEU OF ANY OTHER WARRANTY OR CONDITION,
WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL INCLUDING, WITHOUT
LIMITATION, ANY STATUTORY WARRANTY OR CONDITION OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. ANY LIABILITY IS EXPRESSLY LIMITED
TO AN AMOUNT EQUAL TO THE PURCHASE PRICE PAID, AND ALL CLAIMS FOR
SPECIAL, INCIDENTAL AND CONSEQUENTIAL DAMAGES ARE HEREBY EXCLUDED.
There is no warranty with respect to the following, which may be supplied with this
product, including without limitation: glass parts, glass containers, cutter/strainers, blades,
seals, gaskets, clutches, motor brushes, and/or agitators, etc. This warranty extends only
to the original consumer purchaser and does not cover a defect resulting from abuse,
misuse, neglect including failure to clean product regularly in accordance with
manufacturer’s instructions, use for commercial purposes, or any use not in conformity
with the printed directions. This warranty gives you specific legal rights, and you may also
have other legal rights which vary from state to state, or province to province. Some states
or provinces do not allow limitations on implied warranties or special, incidental or
consequential damages, so the foregoing limitations may not apply to you.
If you have a claim under this warranty, DO NOT RETURN THE APPLIANCE TO THE
STORE! Please call our CUSTOMER SERVICE NUMBER. (For faster service please have
model, series, and type numbers ready for operator to assist you.)
CUSTOMER SERVICE NUMBERS
In the U.S. 1-800-851-8900
In Canada 1-800-267-2826
hamiltonbeach.com or proctorsilex.com
KEEP THESE NUMBERS FOR FUTURE REFERENCE!
840157000 ENv03.qxd 1/3/07 11:48 AM Page 8
Loading...
