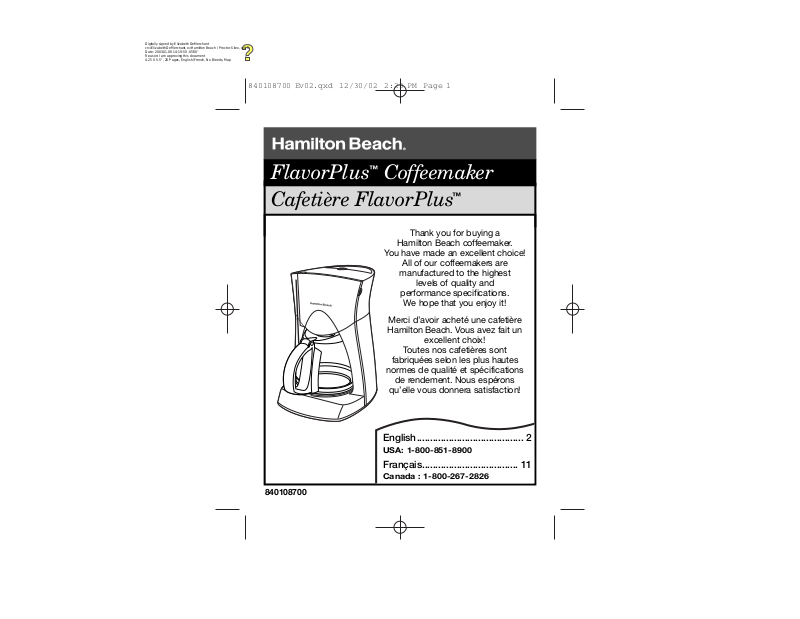

Hamilton Beach 43324 User Manual
Cafetière FlavorPlus
™
840108700
FlavorPlus™Coffeemaker
English........................................ 2
USA: 1-800-851-8900
Français.................................... 11
Canada : 1-800-267-2826
Thank you for buying a
Hamilton Beach coffeemaker.
You have made an excellent choice!
All of our coffeemakers are
manufactured to the highest
levels of quality and
performance specifications.
We hope that you enjoy it!
Merci d’avoir acheté une cafetière
Hamilton Beach. Vous avez fait un
excellent choix!
Toutes nos cafetières sont
fabriquées selon les plus hautes
normes de qualité et spécifications
de rendement. Nous espérons
qu’elle vous donnera satisfaction!
Digitally signed by Elizabeth DeMerchant
cn=Elizabeth DeMerchant, o=Hamilton Beach / Proctor-Silex, c=US
Date: 2003.01.08 14:19:50 -05'00'
Reason: I am approving this document
4.25 X 5.5", 20 Pages, English/French, No Bleeds, Map
840108700 Ev02.qxd 12/30/02 2:23 PM Page 1
2
This appliance is intended for household use only.
This appliance is equipped with a polarized plug. This type of plug has
one blade wider than the other. The plug will fit into an electrical outlet
only one way. This is a safety feature intended to help reduce the risk of
electrical shock. If you are unable to insert the plug into the outlet, try
reversing the plug. If the plug should still fail to fit, contact a qualified
electrician to replace the obsolete outlet. Do not attempt to defeat the
safety purpose of the polarized plug by modifying the plug in any way.
The length of the cord used on this appliance was selected to
reduce the hazards of becoming tangled in, or tripping over a longer
cord. If a longer cord is necessary an approved extension cord may
be used. The electrical rating of the extension cord must be equal to
or greater than the rating of the coffeemaker.
Care must be taken to arrange the extension cord so that it will not
drape over the countertop or tabletop where it can be pulled on by
children or accidentally tripped over.
To avoid an electrical circuit overload, do not use another high
wattage appliance on the same circuit with your coffeemaker.
When using electrical appliances, basic safety precautions should
always be followed to reduce the risk of fire, electric shock, and/or
injury to persons, including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs. Care must be
taken, as burns can occur from touching hot parts or from
spilled, hot liquid.
3. To protect against electric shock, do not place cord, plug or
coffeemaker in water or other liquid.
4. Close supervision is necessary when any appliance is used by
or near children.
5. Unplug from outlet when either the coffeemaker or clock is not
in use and before cleaning. Allow to cool before putting on or
taking off parts and before cleaning the appliance.
6. Coffeemaker must be operated on a flat surface away from the
edge of counter to prevent accidental tipping.
7. Do not operate any appliance with a damaged cord or plug, or
after the appliance malfunctions or is dropped or damaged in
any manner. Call our toll-free customer service number for
information on examination, repair, or adjustment.
8. The use of accessory attachments not recommended by
Hamilton Beach/Proctor-Silex, Inc. may result in fire, electrical
shock or personal injury.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter or touch hot
surfaces, including stove.
11. The carafe is designed for use with this coffeemaker. It must
never be used on a range top or in a microwave oven.
12. Do not set a hot carafe on a wet or cold surface.
13. Do not use a cracked carafe or one with loose or weakened
handle.
14. Do not clean carafe or hot plate with cleansers, steel wool pads,
or other abrasive material.
15. Be certain carafe lid is securely in place during brew cycle and
when pouring coffee. Do not use force when placing lid on carafe.
IMPORTANT SAFEGUARDS
16. Do not place coffeemaker on or near a hot gas or electric burner
or in a heated oven.
17. Warning: To reduce the risk of fire or electric shock, do not
remove the bottom cover. No user serviceable parts are inside.
Repair should be done by authorized service personnel only.
18. Do not use appliance for other than intended use.
SAVE THESE INSTRUCTIONS!
CONSUMER SAFETY INFORMATION
3
840108700 Ev02.qxd 12/30/02 2:23 PM Page 2
5
Know Your Coffeemaker
1. Reservoir
2. Removable,
Swing-Out
Brew Basket
3. Carafe
4. Keep-Hot Plate
5. Brew Basket Latch
4
4. Fill carafe with the desired amount of cold tap water.
5. Pour water from carafe into reservoir.
6. Place carafe, with carafe lid attached, on Keep-Hot Plate.
If Clock Model:
• Push the Power button twice; the green ON light will glow.
NOTE: If the POWER button is pushed only once, the
Automatic Brew function will be initiated and the unit will
not brew immediately (see page 6).
• If desired, push the Flavor + button for that option.
• When finished push the Power button to turn off and
unplug coffeemaker.
If Switch Model:
• Switch the coffeemaker on.
• When finished, turn off and unplug.
To Make Coffee
1. Before first use, clean coffeemaker by following steps
listed in “To Clean the Inside of the Coffeemaker.” Use
either clear water or vinegar.
2. Place a #4 cone-shaped disposable paper filter in the
brew basket.
3. For each cup of coffee being made, place one level scoop
(or 1 tablespoon) of coffee into filter; close brew basket,
making sure it is fully closed.
NOTES:
• The amount of ground coffee used depends on personal
taste preference.
• Medium ground coffee is recommended.
Control Panel (clock model)
FLAVOR +
Button
POWER
Button
840108700 Ev02.qxd 12/30/02 2:23 PM Page 4
7
6
6. Empty carafe and rinse. Pour one carafe of cold tap water
into the reservoir. Place carafe on Keep-Hot Plate.
7. Turn ON. When the brew cycle is finished, empty the
carafe. Repeat this process with one more carafe of cold
tap water.
8. Turn OFF when complete.
9. Wash carafe and brew basket before making a beverage.
To Clean Carafe and Brew Basket
1. To remove the carafe lid, hold the carafe handle. Lift the
carafe lid and pull one side out of the hinge, then the
other side.
2. To remove the brew basket, swing open, lift up, then tilt the
basket out at the top to release.
3. Carafe, lid, and brew basket should be washed in hot, soapy
water. The carafe and lid can also be washed in the top rack
of a dishwasher. Do not place the brew basket in the dishwasher.
4. To replace the brew basket, place
the pin on bottom of basket into
bottom hole. See illustration. Then
align top portion to drop in place.
To Clean Exterior of Coffeemaker
Wipe exterior of coffeemaker with a soft cloth or sponge and
warm, soapy water. Do not use abrasive cleansers as they
will scratch the finish of the product.
Programmable Clock/Timer (clock models only)
To Set Clock:
1. Plug in coffeemaker. Numbers on the clock will flash until
you set time of day.
2. To set time of day, press HOUR button to establish current
hour with AM or PM.
3. Press MIN. button until you reach the current time.
To Program Automatic Brew:
1. Make sure clock is set for correct time of day.
2. While holding PROGRAM button, press the HOUR and
MIN. buttons until desired brewing time is reached.
3. Once brewing time has been set, follow this procedure:
• Follow steps 2–6 in “To Make Coffee.”
• Push POWER button once and the red Auto Start light will
glow indicating the brew cycle will begin at the set time.
NOTE: If the POWER button is pushed twice, brewing will
begin immediately (see page 5).
• If desired, push the FLAVOR + button for that option.
Cleaning Instructions
To Clean the Inside of the Coffeemaker:
1. Plug in coffeemaker. Set clock if clock model.
2. Place empty carafe on Keep-Hot Plate. Close empty brew
basket.
3. Pour one pint of plain white vinegar into the reservoir.
4. Turn ON. After 30 seconds turn OFF.
5. Wait 30 minutes to allow the vinegar to clean. Then turn
ON again. When the brew cycle is finished, turn OFF.
840108700 Ev02.qxd 12/30/02 2:23 PM Page 6
