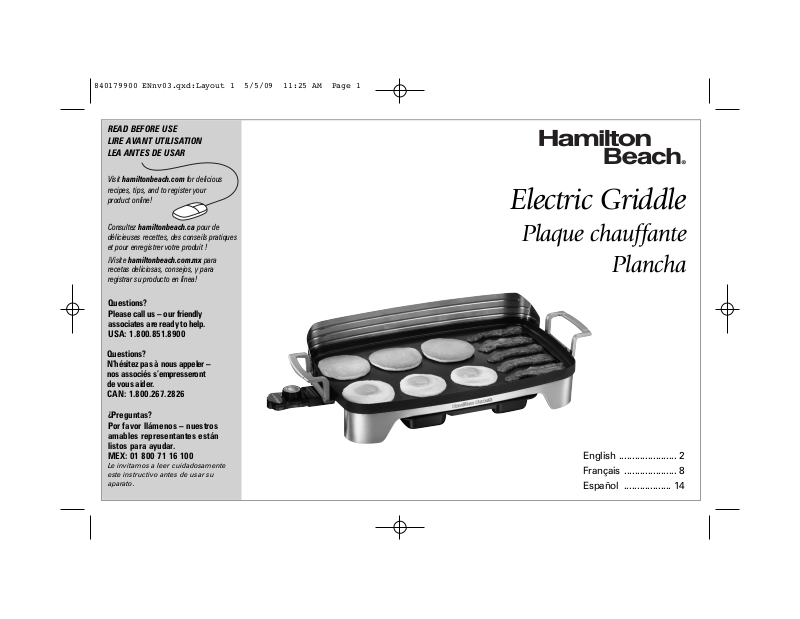

Hamilton Beach 38541 User Manual
Electric Griddle
Plaque chauffante
Plancha
English ...................... 2
Français .................... 8
Español .................. 14
READ BEFORE USE
LIRE AVANT UTILISATION
LEA ANTES DE USAR
Questions?
Please call us – our friendly
associates are ready to help.
USA: 1.800.851.8900
¿Preguntas?
Por favor llámenos – nuestros
amables representantes están
listos para ayudar.
MEX: 01 800 71 16 100
Le invitamos a leer cuidadosamente
este instructivo antes de usar su
aparato.
Visit hamiltonbeach.com for delicious
recipes, tips, and to register your
product online!
Consultez hamiltonbeach.ca pour de
délicieuses recettes, des conseils pratiques
et pour enregistrer votre produit !
¡Visite hamiltonbeach.com.mx para
recetas deliciosas, consejos, y para
registrar su producto en línea!
Questions?
N’hésitez pas à nous appeler –
nos associés s’empresseront
de vous aider.
CAN: 1.800.267.2826
840179900 ENnv03.qxd:Layout 1 5/5/09 11:25 AM Page 1
2
SAVE THESE INSTRUCTIONS!
IMPORTANT SAFEGUARDS
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs, which may
be warm. Use oven mitts.
3. To protect against electric shock, do not immerse cord, plug,
or temperature control in water or other liquid.
4. Close supervision is necessary when any appliance is used by
or near children.
5. Unplug from outlet when not in use and before cleaning. Allow
to cool before putting on or taking off parts, and before cleaning
the appliance.
6. Do not operate any appliance with a damaged cord or plug,
or after the appliance malfunctions, or has been dropped or
damaged in any manner. Call our toll-free customer service
number for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the
appliance manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch
hot surfaces, including stove.
10. Do not place on or near a hot gas or electric burner, or in a
heated oven.
11. Extreme caution must be used when moving an appliance
containing hot oil or other hot liquids.
12. Always attach plug to appliance first; then plug cord into the
wall outlet. To disconnect, turn any control to MIN and then
remove plug from wall outlet.
13. Do not use appliance for other than intended use.
14. Never leave appliance unattended while in use.
15. Use only temperature-controlling plug provided by manufacturer.
Use of other temperature-control plug may cause injury.
16. Be sure that handles are assembled and fastened properly.
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury
to persons, including the following:
OTHER CONSUMER SAFETY INFORMATION
This appliance is intended for household use only.
WARNING! This product is provided with either a polarized (one
wide blade) or grounded (3-prong) plug to reduce the risk of electric
shock. The plug fits only one way into a polarized or grounded
outlet. Do not defeat the safety purpose of the plug by modifying
the plug in any way or by using an adapter. If the plug does not fit
fully into the outlet, reverse the plug. If it still does not fit, have
an electrician replace the outlet.
The length of the cord used on this appliance was selected to
reduce the hazards of becoming tangled in, or tripping over, a
longer cord. Do not use an extension cord.
To avoid an electrical circuit overload, do not use another
high-wattage appliance on the same circuit with this appliance.
840179900 ENnv03.qxd:Layout 1 5/5/09 11:26 AM Page 2
3
Parts and Features
Splashguard
Temperature-Controlling Plug
Nonstick
Griddle
Handles
Warming
Tra y
Drip
Cup
Before First Use: Wash all parts in hot, soapy water.
Rinse and dry thoroughly.
1
Turn griddle upside down. Align
handles with screw posts on bottom
of unit. Put split lock washer and then
long screw in place. Secure long
screw with a Phillips-head screwdriver.
NOTE: The assembled unit should
appear as shown on the front cover
of this Use & Care Guide. Handles
are not intended to be removed
after installation.
How to Assemble
A Phillips-head screwdriver is required. Do not use an electric or
power screwdriver since they may strip and/or damage the screws.
Wash and dry all parts thoroughly before use.
2
If desired, attach the splashguard
to griddle. Align the cutout notches
along the back of the unit. The splashguard should rest on the back of the
griddle. It is not attached with any
screws.
Drip Drain
840179900 ENnv03.qxd:Layout 1 5/5/09 11:26 AM Page 3
4
1 2 3
Before First Use: Attach handles. See How to Assemble on page 3.
Place cooked food in warming tray
while cooking next batch.
Fire Hazard.
Do not place nonfood items such
as paper towels, napkins, or wax
paper in tray.
When finished, unplug from outlet,
then from unit.
4
Slide drip cup and warming tray
into place.
Indicator light will go out when set
temperature is reached.
Only use wooden or plastic cooking utensils. This will help prolong
the life of the nonstick coating.
5 6
How to Use the Griddle
w
WARNING
840179900 ENnv03.qxd:Layout 1 5/5/09 11:26 AM Page 4
5
Cooking Chart
*Visit foodsafety.gov for more information on safe internal cooking temperatures.
**All temperatures are based on fresh, NOT frozen foods.
FOOD TEMPERATURE INTERNAL TEMP.* APPROX. COOKING TIME**
Hamburgers (1/3 lb [150 g] each) 350°F (180ºC) 165ºF (73ºC) 15 to 20 minutes
Bacon 350°F (180ºC) crisp 10 to 15 minutes
Sausage Links and Patties 350°F (180ºC) 165ºF (73ºC) 15 minutes
Chicken Breasts, Boneless 375ºF (190ºC) 170ºF (77ºC) 20 to 30 minutes
Pork Chops 325ºF (160ºC) 165ºF (73ºC) 20 to 30 minutes
Fried Eggs 325ºF (160ºC) —— 2 to 3 minutes
French Toast 350°F (180ºC) —— 8 to 10 minutes
Grilled Cheese Sandwiches 375ºF (190ºC) —— 4 to 5 minutes
Pancakes 375ºF (190ºC) —— 4 to 5 minutes
Hot Dogs 325ºF (160ºC) —— 15 minutes
840179900 ENnv03.qxd:Layout 1 5/5/09 11:26 AM Page 5
6
Care and Cleaning
1
3
Unplug; allow to cool completely.
Remove and empty drip tray.
Do not use metal scouring
pads or abrasive cleansers.
Electrical Shock Hazard.
Disconnect power before cleaning.
Do not immerse cord or plug in any liquid.
w
WARNING
Troubleshooting
PROBLEM
Low, poor, or
slow heating.
PROBABLE CAUSE/SOLUTION
• Allow griddle to heat for 10 to 15 minutes before use.
• Make sure the Temperature-Controlling Plug is fully inserted into the unit.
2
Wash all parts EXCEPT temperature-controlling plug in hot,
soapy water. Dry throroughly.
840179900 ENnv03.qxd:Layout 1 5/5/09 11:26 AM Page 6
