READ BEFORE USE
LIRE AVANT L’UTILISATION
LEA ANTES DE USAR
840148200 ENv03 5/22/06 2:54 PM Page 1
2
IMPORTANT SAFEGUARDS
1. Read all instructions.
2. Do not touch hot surfaces. Use handles
or knobs.
3. To protect against electrical shock do
not immerse cord, plug, or toaster oven
in water or other liquid.
4. Close supervision is necessary when
any appliance is used by or near
children.
5. Unplug from outlet when not in use and
before cleaning. Allow to cool before
cleaning appliance and putting on or
taking off parts.
6. Do not operate any appliance with a
damaged cord or plug, or after the
appliance malfunctions or is dropped or
damaged in any manner. Call our tollfree customer assistance number for
information on examination, repair or
adjustment.
7. The use of accessory attachments not
recommended by the appliance
manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table
or counter, or touch hot surfaces,
including the stove.
10. Do not place on or near a hot gas or
electric burner, or in a heated oven.
11. Extreme caution must be used when
moving an appliance containing hot oil
or other hot liquids. Be sure to allow hot
oil or liquids to cool before moving
appliance.
12. To disconnect, turn all controls to Off,
then remove plug from wall outlet.
13. Use extreme caution when removing
tray or disposing of hot grease.
14. Do not clean with metal scouring pads.
Pieces can break off the pad and touch
electrical parts, creating a risk of electrical shock.
15. Oversize foods or metal utensils must
not be inserted in a toaster oven as they
may create a fire or risk of electric
shock.
wWARNING
Fire Hazard
• Do not operate unattended while in Toast mode.
• Do not use with oven cooking bags.
• Do not store any materials, other than recommended accessories, in this oven when
not in use.
• Always allow at least one inch between food and heating element.
• Do not cover or use near curtains, walls, cabinets, paper or plastic products, cloth
towels, etc. Keep 2 to 4 inches away from wall or any objects on countertop.
• Close supervision is necessary when used by or near children.
• Always unplug toaster oven when not in use.
• Regular cleaning reduces risk of fire hazard.
• If contents ignite, do not open oven door. Unplug oven and allow contents to stop
burning and cool before opening door.
• Failure to follow these instructions can result in death or fire.
Shock Hazard
• Do not immerse this appliance in water or other liquid.
• This appliance has a polarized plug (one wide blade) that reduces the risk of electrical
shock. The plug fits only one way into a polarized outlet. Do not defeat the safety
purpose of the plug by modifying the plug in any way or using an adaptor. If the plug
does not fit, reverse the plug. If it still does not fit, have an electrician replace the outlet.
When using electrical appliances, basic safety precautions should always be followed,
including the following:
840148200 ENv03 5/22/06 2:54 PM Page 2
3
Consumer Safety Information
SAVE THESE INSTRUCTIONS
This appliance is intended for household
use only.
The length of the cord used on this appliance was selected to reduce the hazards of
becoming tangled in, or tripping over a
longer cord. If a longer cord is necessary an
approved extension cord may be used. The
electrical rating of the extension cord must
be equal to or greater than the rating of the
toaster oven. Care must be taken to arrange
the extension cord so that it will not drape
over the countertop or tabletop where it can
be pulled on by children or accidentally
tripped over.
This appliance is equipped with a fully
tempered safety glass door. The tempered
glass is four times stronger than ordinary
glass and more resistant to breakage.
Tempered glass can break, however it
breaks into pieces with no sharp edges.
Care must be taken to avoid scratching
door surface or nicking edges. If the door
has a scratch or nick, call our toll-free customer assistance number.
When heavy foods are on the oven rack, do
not pull the oven rack out more than halfway.
To baste or check for doneness, remove
food from the oven and place on heat-resistant countertop surface or trivet.
Do not place bake pan directly on heating
elements.
To avoid an electrical circuit overload, do
not operate another high-wattage appliance
on the same circuit with the toaster oven.
16. A fire may occur if the toaster oven is
covered, touching or near flammable
material, including curtains, draperies,
walls, and the like, when in operation.
Do not store any item on top of the
appliance when in operation, or before
the appliance cools down.
17. Extreme caution should be exercised
when using containers constructed of
other than metal or glass.
18. Do not store any materials, other than
appliance manufacturer recommended
accessories, in this oven when not in
use.
19. Do not place any of the following
materials in the oven: paper, cardboard,
plastic, and the like.
20. Do not cover crumb tray or any part of
the oven with metal foil. This will cause
overheating of the oven.
21. To turn the oven off or stop a toast cycle,
rotate Timer Knob to “OFF” position.
22. Do not place eyes or face in close
proximity with tempered safety glass
door in the event that the safety
glass breaks.
23. Do not use appliance for other than
intended use.
24. Before using this appliance, move it 2 to
4 inches away from wall or any object
on the countertop. Remove any object
that may have been placed on top of
the appliance. Do not use on surfaces
where heat may cause a problem.
25. If plug gets hot, please call a qualified
electrician.
26. The oven door is not a shelf. Do not
place anything on the door.
27. Use extreme caution when extending
loaded rack or adding food to extended
rack.
Before First Use
Most heating appliances produce an odor
and/or smoke when used for the first time.
Plug toaster oven into outlet. Turn the Oven
Control Switch to 450°F. Set Toast Shade
Selector/Timer to Oven ON. Heat at this
temperature for 10 minutes. The odor
should not be present after this initial
preheating. Remove baking pan, broil rack,
and oven rack. Wash in hot, soapy water.
Rinse and dry.
840148200 ENv03 5/22/06 2:54 PM Page 3
4

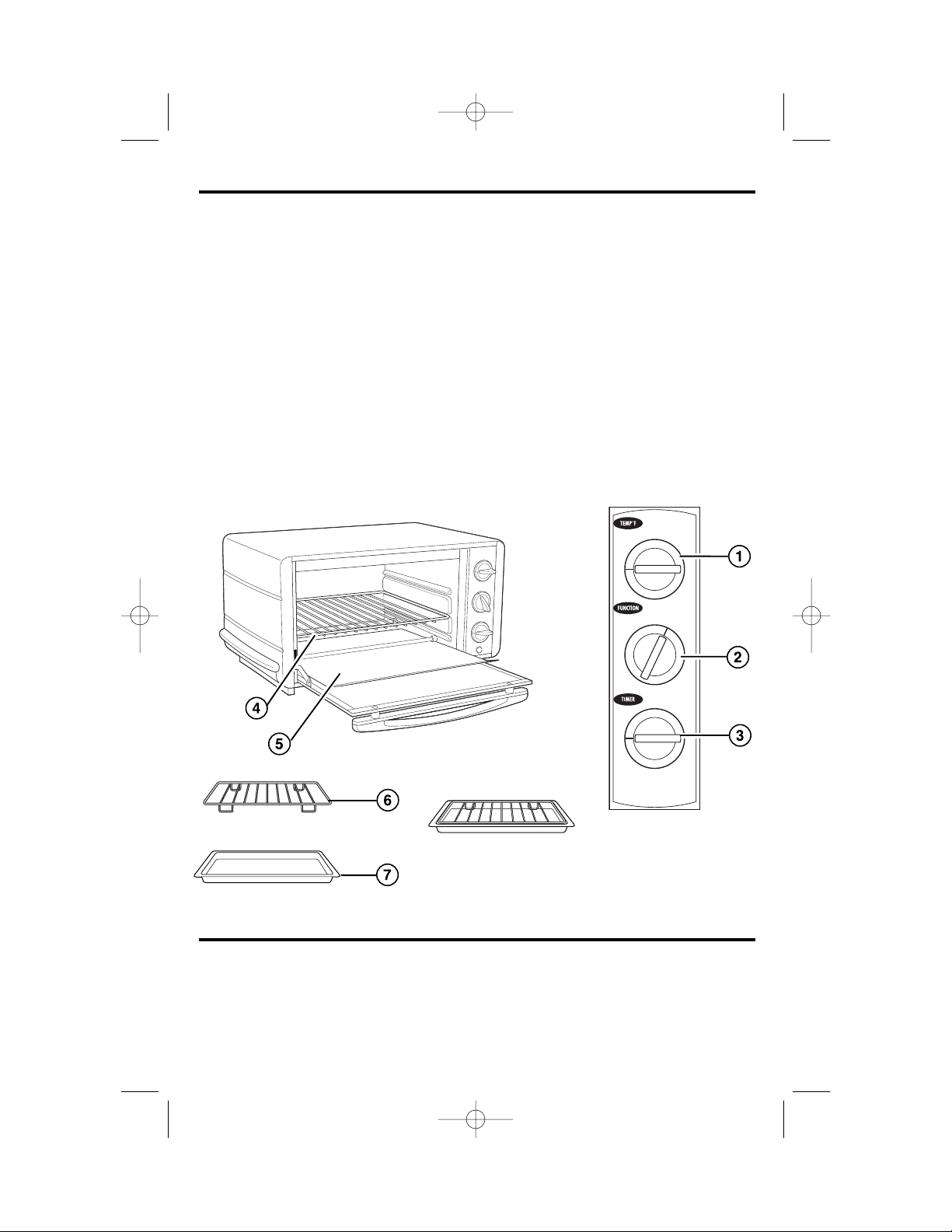

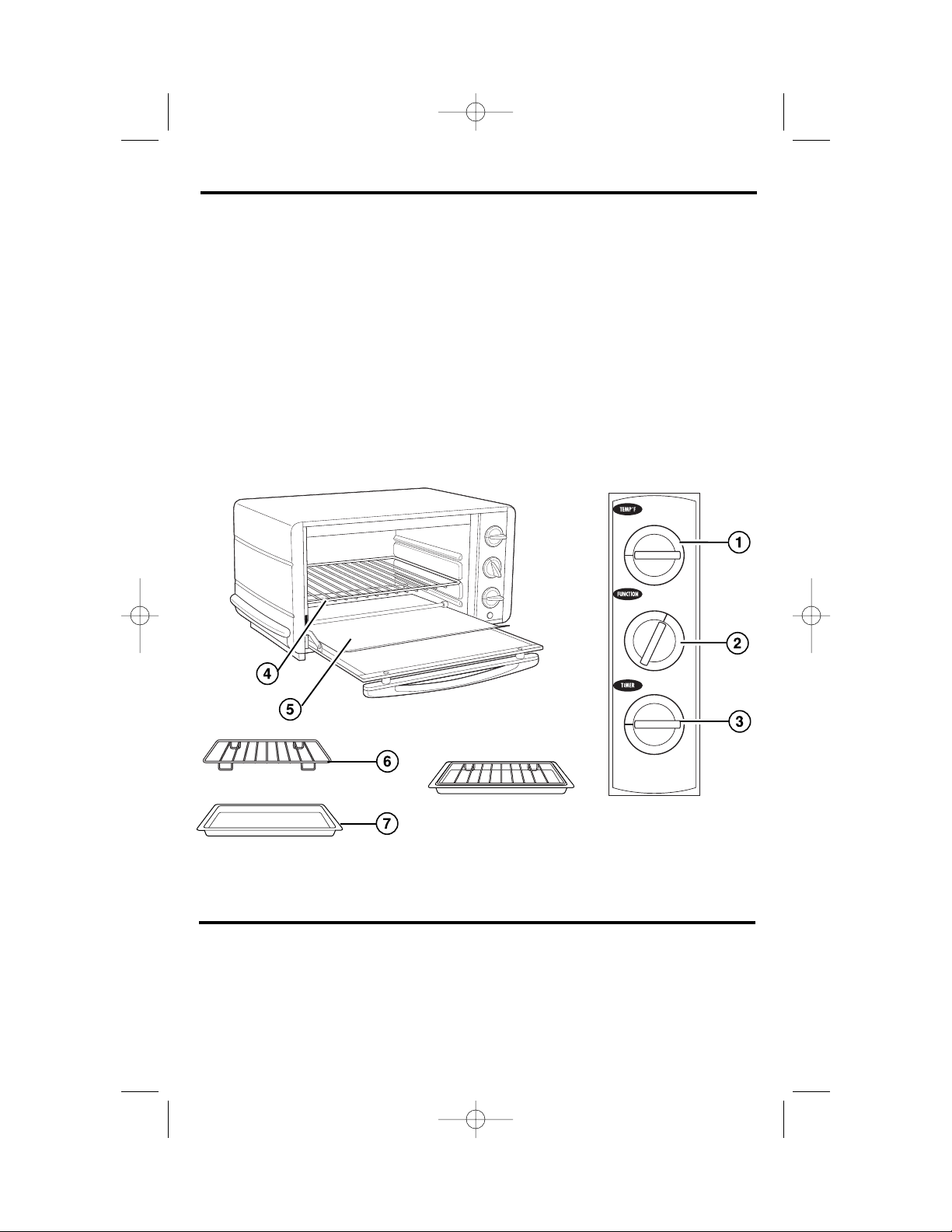

1. Temperature Knob
2. Function Knob (functions may differ
depending on model)
3. ON/OFF Oven Control/Timer/
Toast Color Knob
4. Oven Rack
5. Slide-Out Crumb Tray
6. Broil Rack
7. Baking Pan
Parts and Features
Broil Rack
Baking Pan
When broiling, the broil
rack sits in the baking
pan as shown.
Oven Rack Positions
The oven has grooves in the side walls
that let the oven rack be placed in
different positions.
Middle Rack Position
• for baking and broiling
High and Low Rack Positions
• use high rack position for broiling
and toasting
• use low rack position for baking
Pan Sizes
The following pans should fit your toaster oven. To be sure, place the pan in the
oven to check the fit before preparing the recipe.
6-cup muffin pan
8 x 4 loaf pan*
9 x 5 loaf pan*
8-inch round or square baking pan
Most 1 to 1 1⁄2 quart casserole dishes
* The loaf pans will fit but do not fill more than half full.
840148200 ENv03 5/22/06 2:54 PM Page 4
5
Toasting Tips!
• When toasting only two slices of
bread, place bread towards front of
oven to get even toasting on top and
bottom.
• To toast bagels, place oven rack in
the middle position and place bagels
cut side facing down. This will toast
the cut side more than the outside of
the bagel. Set the Toast Color Knob
to desired setting.
• To toast English muffins, place oven
rack in the middle position and place
English muffins with the split side
facing down. Set Toast Color Knob to
the dark setting.
• To toast regular toaster pastries,
frozen pastry, or waffles, place oven
rack in the middle position. Select a
light color and toast directly on the
oven rack. If pastry has a glaze of
frosting, use baking pan.
• When toasting, condensation may
form on the oven door. The moisture
will slowly escape from the enclosed
oven.
• The number of slices of bread and
the bread freshness will affect toast
color. For example, toasting 4 slices
of bread will require a darker toast
color setting than 2 slices of bread.
Adjust the Toast Color Knob based
on desired color and number of
slices.
• If you are not satisfied with the color
balance between the two sides of your
food in the recommended rack position, select a different rack position.

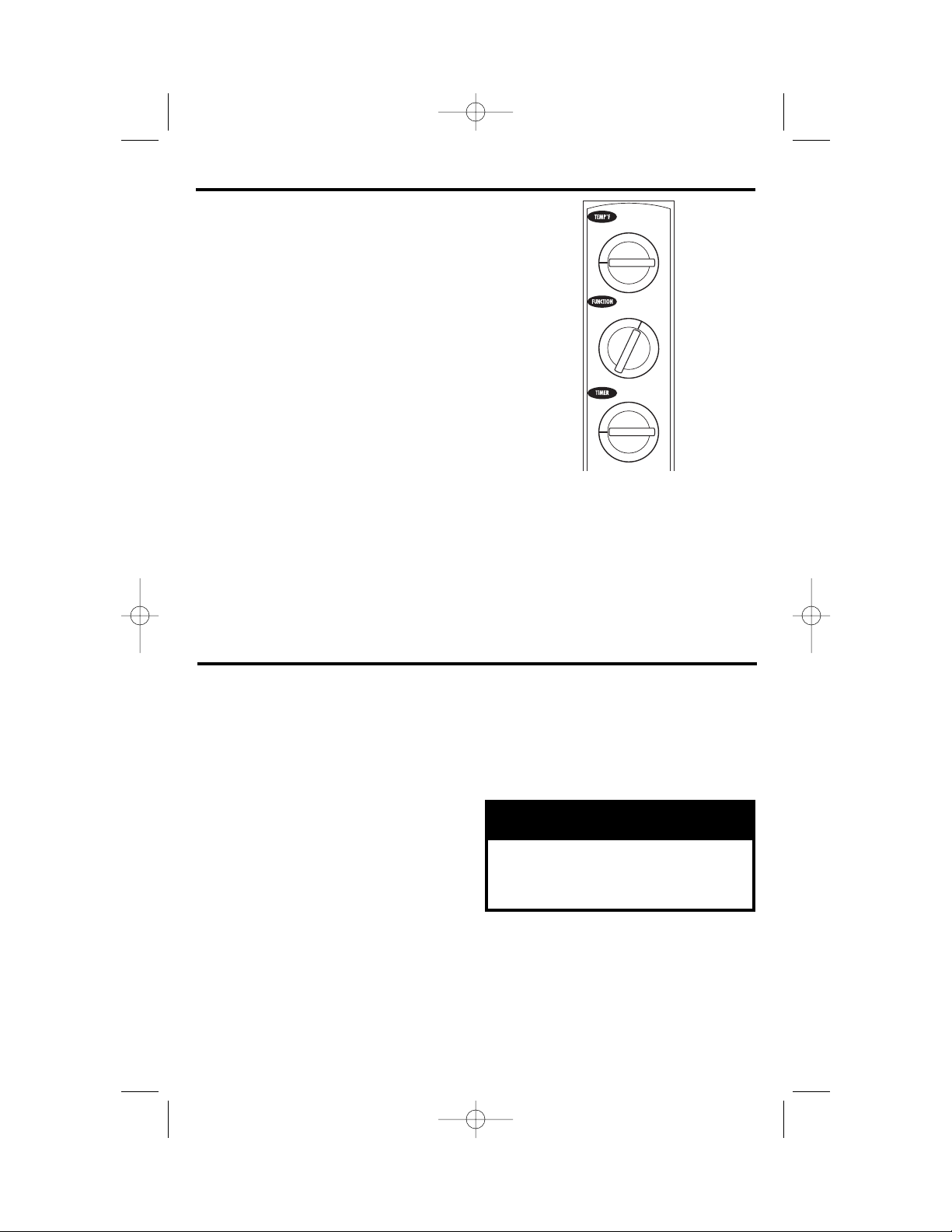

1. Place the oven rack in high position
for bread, pastry, or frozen waffles.
Place oven rack in middle position
for bagels or English muffins (see
Toasting Tips).
2. Set Temperature Knob to .
3. Set Function Knob to Toast.
4. Turn Toast Color Knob to at least 5
and then back to desired toast color
setting (for accurate times under 5
minutes).
Using Your Toaster Oven
To Toast
wWARNING
Fire Hazard
Do not leave oven unattended
during toasting or top-browning.
5. A bell will sound when cycle is
completed. When finished, turn OFF.
Unplug from outlet.
To Keep Warm (Select models only)
1. Set Temperature Knob to Keep
Warm.
2. Set Function Knob to Keep Warm.
3. Set Timer between 5 and 15 minutes
or to Stay On.
4. When finished, turn OFF. Unplug
from outlet.
840148200 ENv03 5/22/06 2:54 PM Page 5
6

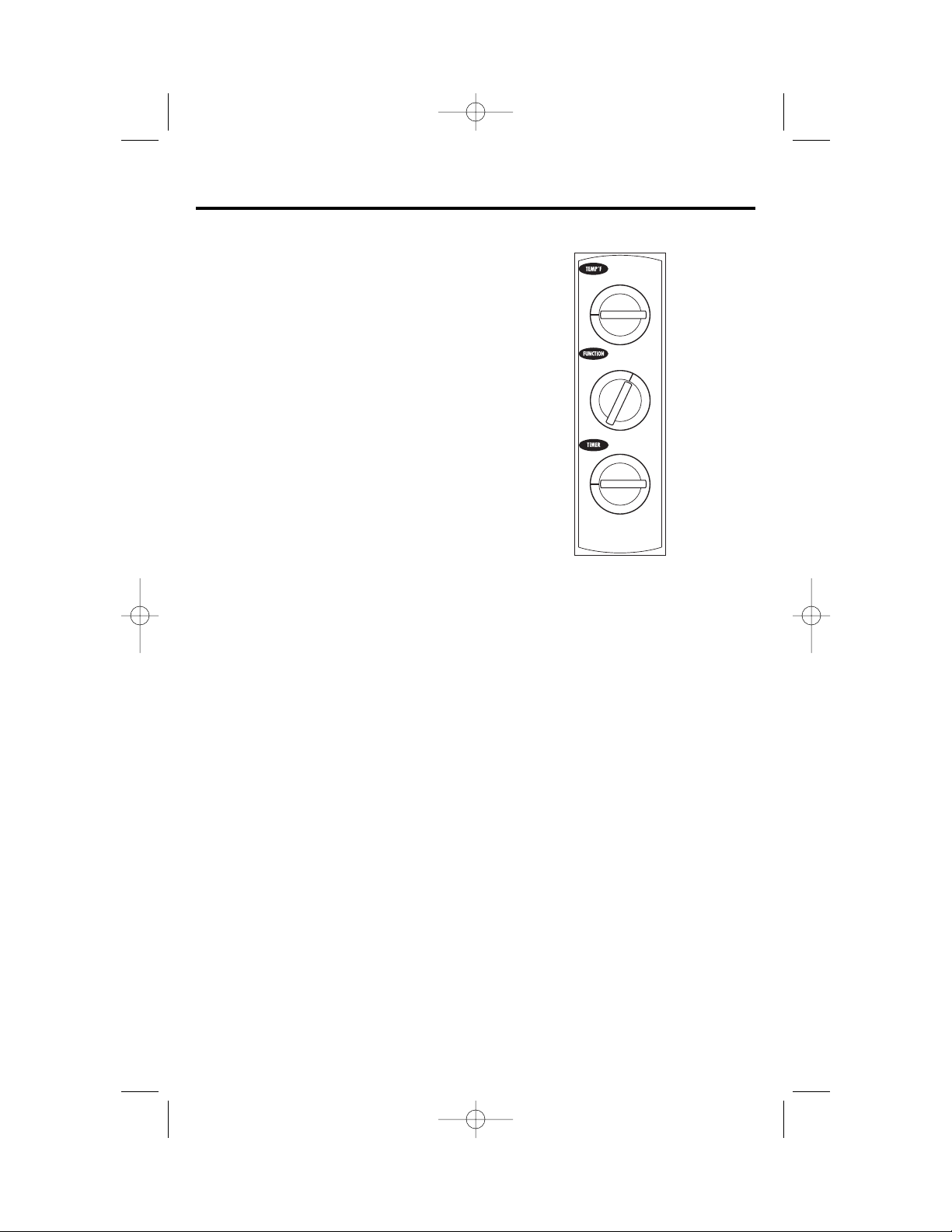

1. Place oven rack in middle or low
position depending on
food to be cooked.
2. Set Temperature Knob to desired
temperature.
3. Set Function Knob to BAKE.
4. Set Timer between 5 and 15 minutes
or to Stay On. Preheat 5 minutes
before beginning to bake.
5. When finished, turn OFF. Unplug
from outlet.
To Bake and Traditional Cook
Warming and Reheating Tips!
• Do not totally enclose foods in aluminum foil. Foil can insulate foods
and slow down heating.
• To reheat rolls or biscuits, place on
baking pan and heat at 300ºF for 10
minutes.
• Reheat leftover roasts or casseroles
at 350ºF for 20 to 30 minutes or until
heated through.
wWARNING
Fire Hazard
• Do not leave oven unattended
during operation.
• Keep one inch between food and
heating element.
• Do not use oven cooking bags.
• Do not heat foods in plastic
containers.
• Follow food manufacturers
instructions.
To Bake and Rapid Convection Cook (Select models only)
1. Place oven rack in middle or low
position depending on food to be
cooked.
2. Set Temperature Knob to desired
temperature.
3. Set Function Knob to Rapid Cook.
4. Set Timer between 5 and 15 minutes
or to Stay On. Preheat 5 minutes
before beginning to bake.
5. When finished, turn OFF. Unplug
from outlet.
Convection Baking Tips!
• The convection method cooks up to
one-third faster than traditional baking.
• When first using, check to determine
if time or temperature should be
adjusted.
• To reduce the risk of fire, do not use
oven cooking bags in the toaster oven.
• “Fan Only” mode operates the con-
vection fan (on selected models)
which circulates air in the oven cavity.
840148200 ENv03 5/22/06 2:54 PM Page 6
7
To Broil
Broiling Tips!
• For best results, do not preheat oven
when broiling.
• Use oven rack in high position for
faster broiling times.
Use low position for foods needing
longer broiling times, like chicken.
• Always allow at least one inch
between the food and the heating
element.
1. Place oven rack in high or middle
position. Place food
on broil rack in the bake pan and
place in oven. Do not preheat oven.
2. Set Temperature Knob to Broil.
3. Set Function Knob to Broil.
4. Set Timer between 5 and 15 minutes
or to Stay On.
5. Halfway through cooking time, or
when food has browned, turn food
over to brown and cook other side.
6. When finished, turn OFF. Unplug
from outlet.
wWARNING
Fire Hazard
Do not leave oven unattended
during toasting or top-browning.
Food
Hamburgers
Bacon
Hot Dogs
Sausage Links or Patties
(pierce casings before cooking)
Fish
Broiling Chart
Approximate Time
20 minutes
10 minutes
15 minutes
15 to 20 minutes
15 minutes
Amount
4, 1-inch thick
4 slices
8
8
4 fillets
These cooking times are an average and should be adjusted to individual preferences. Turn foods halfway through cooking time.
840148200 ENv03 5/22/06 2:54 PM Page 7
8
1. Unplug oven and allow to cool.
2. Wash oven rack and baking pan in
hot, soapy water. Rinse and dry.

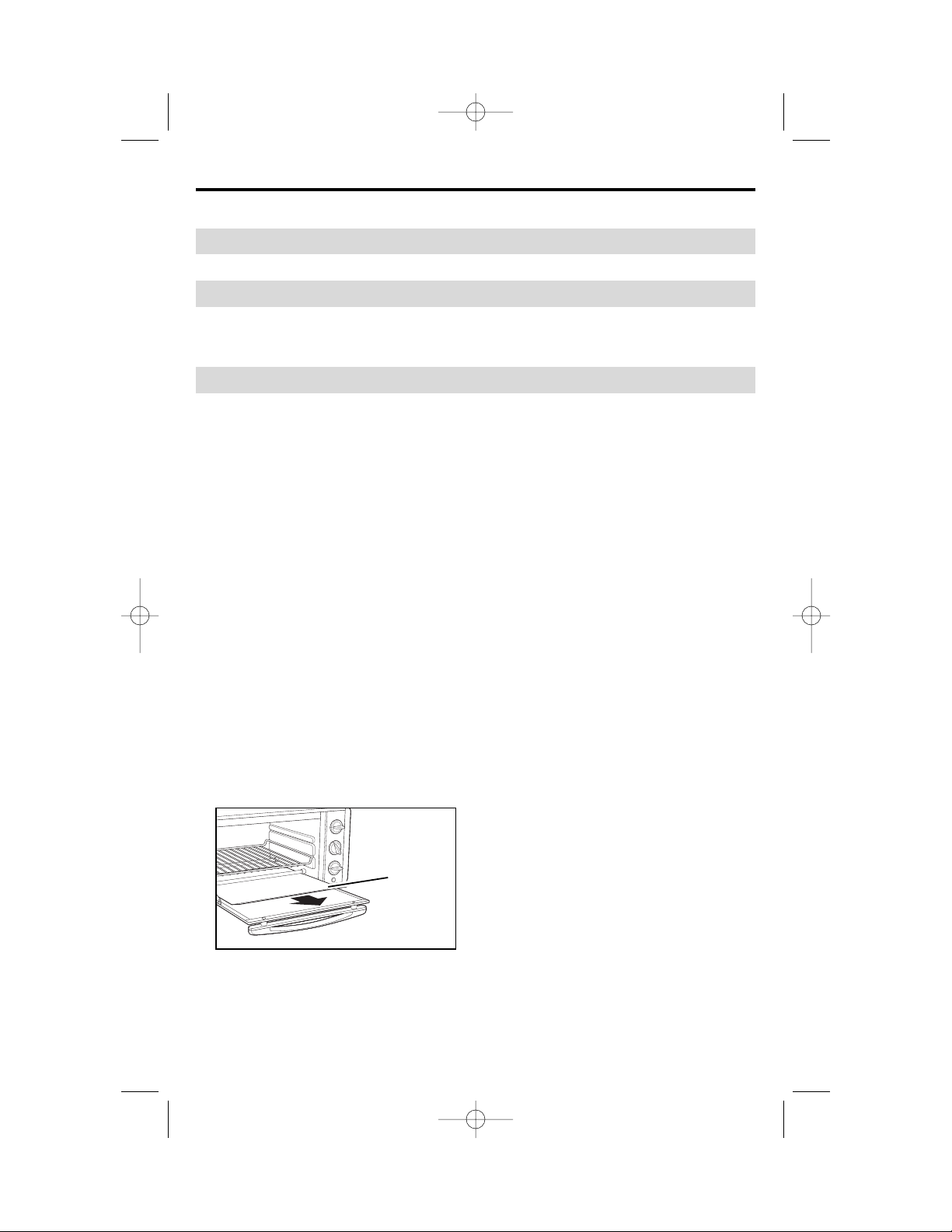

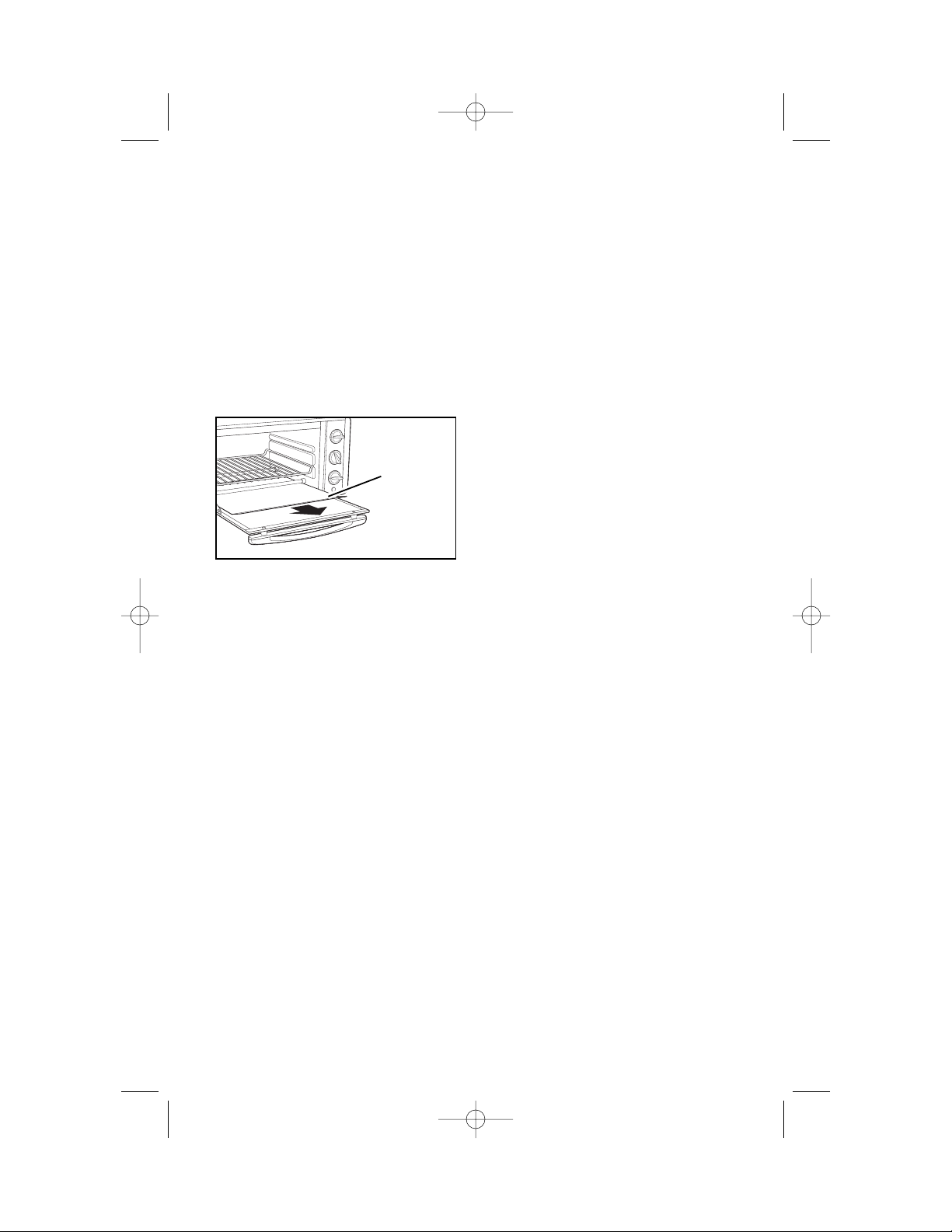

3. To clean the crumb tray, slide out
and wipe crumb tray with a damp
cloth. Slide back into position.
Cleaning Your Toaster Oven
For best performance and long life, clean toaster oven regularly.
Crumb
Tray
4. To clean the outside of the oven,
wipe with a damp cloth. Do not
use abrasive cleansers. Do not clean
with metal scouring pads.
NOTE: Select models are continuous
self-clean. Cleaning the interior oven
walls is not necessary on those
models.
Recipes
Baked Potatoes
2 medium baking potatoes, about 10-ounces (285 g) each
Wash potatoes then pierce skin with a fork. Place potatoes on baking pan and
place in 425ºF (220ºC) oven. Bake for 1 hour or until done. Do not wrap in aluminum foil as this may increase cooking times.
Roast Chicken
To roast a whole chicken in the oven, it must be 4 pounds or smaller. Roast chicken
at 350ºF (180ºC) for 21⁄2 hours or to an internal temperature of 180ºF (82ºC).
Hot Mexican Bean Dip
2 15-ounce cans black beans, well drained
1 teaspoon hot pepper sauce
1
⁄2 cup sour cream
1
⁄2 cup salsa
8 ounces Monterey Jack cheese, grated
Mash black beans. Add hot pepper sauce, sour cream, salsa, and half of the
cheese. Spoon into shallow 1 quart casserole dish. Sprinkle remaining cheese on
top. Bake at 350ºF (180ºC) about 15 minutes, or until bubbly. Serve with tortilla
chips. Makes 8 appetizer servings.
Minute Muffins
1 cup self-rising flour
1
⁄2 cup milk
2 tablespoons mayonnaise or sour cream
Stir together ingredients. Spoon into greased 6 cup muffin pan. Bake at
450°F
(230ºC)
for 12 minutes or until done.
840148200 ENv03 5/22/06 2:54 PM Page 8
9
Troubleshooting
Question
The toaster oven will not heat.
The toaster oven will not toast.
Moisture forms on the inside
of the oven door when toasting.
An odor and smoke comes
from the toaster oven.
Some foods burn and some
are not done.
Answer
Check to make sure the outlet is working
and the oven is plugged in. Next turn the
Temperature Knob to 350°F, turn Function
Knob to Bake, and turn Timer to Stay On.
Check to make sure outlet is working and
oven is plugged in.
1. Turn Temperature Knob to Toast.
2. Turn Function Knob to Toast.
3. Turn Timer/Toast Color Knob to a toast
color.
This is normal when toasting in a toaster
oven. Moisture is slower to escape from the
toaster oven than from a toaster.
The amount of moisture will differ between
fresh bread, bagels, and frozen pastry.
Smoke and odor is normal during the first use
of most heating appliances. This will not be
present after the initial heating period.
Use oven rack position to center food in the
oven. Adjust oven temperature or cooking
time for best results with your recipes.
Mini Meat Loaves
1 pound lean ground beef
1 small onion, finely chopped
3
⁄4 cup fresh bread crumbs
1 egg, beaten
1 tablespoon grated Parmesan cheese
1 tablespoon finely chopped, fresh parsley
1
⁄4 teaspoon each, salt and pepper
Combine all ingredients and mix well. Divide mixture between 6-cup muffin pan.
Bake at
350ºF (180ºC) for 30 minutes or until done. Makes 4 to 6 servings.
5 Minute Pizza
English muffins, split in half
and slightly toasted
Pizza or spaghetti sauce
Grated mozzarella cheese
Pepperoni slices
Place muffin halves on baking pan cut side up. Spread some sauce on top of
each muffin. Sprinkle with cheese then top with pepperoni. Place pan in toaster
oven and bake at 450°F (230ºC) for about 5 minutes or until cheese melts.
840148200 ENv03 5/22/06 2:54 PM Page 9
Customer Service
If you have a question about your appliance, call our toll-free customer service
number. Before calling, please note the model, type, and series numbers and fill in
that information below. These numbers can be found on the bottom of your appliance. This information will help us answer your question much more quickly.
MODEL:___________________ TYPE :___________________ SERIES: __________________
This warranty applies to products purchased in the U.S. or Canada.
LIMITED WARRANTY
This product is warranted to be free from defects in material and workmanship for a period
of one (1) year for Hamilton Beach products or one hundred eighty (180) days for Proctor-
Silex and Traditions products from the date of original purchase, except as noted below.
During this period, we will repair or replace this product, at our option, at no cost. THE
FOREGOING WARRANTY IS IN LIEU OF ANY OTHER WARRANTY OR CONDITION,
WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL INCLUDING, WITHOUT
LIMITATION, ANY STATUTORY WARRANTY OR CONDITION OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. ANY LIABILITY IS EXPRESSLY LIMITED
TO AN AMOUNT EQUAL TO THE PURCHASE PRICE PAID, AND ALL CLAIMS FOR
SPECIAL, INCIDENTAL AND CONSEQUENTIAL DAMAGES ARE HEREBY EXCLUDED.
There is no warranty with respect to the following, which may be supplied with this
product, including without limitation: glass parts, glass containers, cutter/strainers, blades,
seals, gaskets, clutches, motor brushes, and/or agitators, etc. This warranty extends only
to the original consumer purchaser and does not cover a defect resulting from abuse,
misuse, neglect including failure to clean product regularly in accordance with
manufacturer’s instructions, use for commercial purposes, or any use not in conformity
with the printed directions. This warranty gives you specific legal rights, and you may also
have other legal rights which vary from state to state, or province to province. Some states
or provinces do not allow limitations on implied warranties or special, incidental or
consequential damages, so the foregoing limitations may not apply to you.
If you have a claim under this warranty, DO NOT RETURN THE APPLIANCE TO THE
STORE! Please call our CUSTOMER SERVICE NUMBER. (For faster service please have
model, series, and type numbers ready for operator to assist you.)
CUSTOMER SERVICE NUMBERS
In the U.S. 1-800-851-8900
In Canada 1-800-267-2826
hamiltonbeach.com or proctorsilex.com
KEEP THESE NUMBERS FOR FUTURE REFERENCE!
10
840148200 ENv03 5/22/06 2:54 PM Page 10
Loading...
