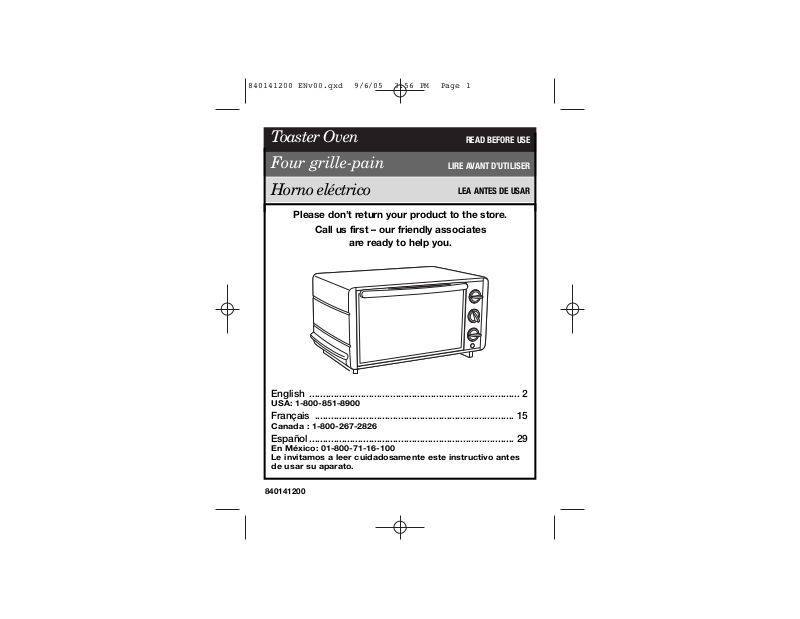

Hamilton Beach 31160 User Manual
Toaster Oven
Four grille-pain
English .............................................................................. 2
USA: 1-800-851-8900
Français .......................................................................... 15
Canada : 1-800-267-2826
Español ............................................................................ 29
En México: 01-800-71-16-100
Le invitamos a leer cuidadosamente este instructivo antes
de usar su aparato.
Horno eléctrico
READ BEFORE USE
LIRE AVANT D’UTILISER
LEA ANTES DE USAR
Please don’t return your product to the store.
Call us first – our friendly associates
are ready to help you.
840141200
840141200 ENv00.qxd 9/6/05 3:56 PM Page 1
3
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should
always be followed, including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock do not immerse cord, plug,
or toaster oven in water or other liquid.
4. Close supervision is necessary when any appliance is used by
or near children.
5. Unplug from outlet when not in use and before cleaning. Allow
to cool before cleaning appliance and putting on or taking off
parts.
6. Do not operate any appliance with a damaged cord or plug, or
after the appliance malfunctions or is dropped or damaged in
any manner. Call our toll-free customer service number for
information on examination, repair or electrical or mechanical
adjustment.
7. The use of accessory attachments not recommended by
Hamilton Beach/Proctor-Silex, Inc. may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch
hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a
heated oven.
11. Extreme caution must be used when moving an appliance
containing hot oil or other hot liquids. Be sure to allow hot oil
or liquids to cool before moving appliance.
12. To disconnect, turn all controls to Off, then remove plug from
wall outlet.
13. Use extreme caution when removing tray or disposing of hot
grease.
14. Do not clean with metal scouring pads. Pieces can break off the
pad and touch electrical parts, creating a risk of electrical shock.
2
SAVE THESE INSTRUCTIONS!
15. Oversize foods or metal utensils must not be inserted in a
toaster oven as they may create a fire or risk of electric shock.
16. A fire may occur if the toaster oven is covered, touching or near
flammable material, including curtains, draperies, walls, and the
like, when in operation. Do not store any item on top of the
appliance when in operation, or before the appliance cools
down.
17. Extreme caution should be exercised when using containers
constructed of other than metal or glass.
18. Do not store any materials, other than Hamilton Beach/
Proctor-Silex, Inc. recommended accessories, in this oven.
19. Do not place any of the following materials in the oven: paper,
cardboard, plastic, and the like.
20. Do not cover crumb tray or any part of the oven with metal foil.
This will cause overheating of the oven.
21. To turn oven off, turn Timer to OFF position. See “Parts and
Features” section.
22. Do not place eyes or face in close proximity with tempered
safety glass door, in the event that the safety glass breaks.
23. Always use appliance with crumb tray securely in place.
24. Do not use appliance for other than intended use.
840141200 ENv00.qxd 9/6/05 3:56 PM Page 2
54
This appliance is intended for household use only.
This appliance is equipped with a polarized plug. This type of plug
has one blade wider than the other. The plug will fit into an electrical
outlet only one way. This is a safety feature intended to help reduce
the risk of electrical shock. If you are unable to insert the plug into
the outlet, try reversing the plug. If the plug should still fail to fit,
contact a qualified electrician to replace the obsolete outlet. Do
not attempt to defeat the safety purpose of the polarized plug by
modifying the plug in any way.
The length of the cord used on this appliance was selected to
reduce the hazards of becoming tangled in, or tripping over a longer
cord. If a longer cord is necessary an approved extension cord may
be used. The electrical rating of the extension cord must be equal
to or greater than the rating of the toaster oven. Care must be
taken to arrange the extension cord so that it will not drape over
the countertop or tabletop where it can be pulled on by children or
accidentally tripped over.
This appliance is equipped with a fully tempered safety glass door.
The tempered glass is four times stronger than ordinary glass and
more resistant to breakage. Tempered glass can break, however it
breaks into pieces with no sharp edges. Care must be taken to
avoid scratching door surface or nicking edges. If the door has a
scratch or nick, call our toll-free customer service number.
Always unplug your toaster oven from the outlet when not in use.
Before First Use
Most heating appliances produce an odor and/or smoke
when used for the first time. Plug the toaster oven into an
outlet. Turn the Temperature Knob to 450°F. Heat at this
temperature for 10 minutes. The odor should not be present
after this initial preheating. Wash baking pan, broil rack,
and oven rack before using.
OTHER CONSUMER SAFETY INFORMATION
Parts and Features
1. Temperature Knob
2. Function Knob
3. ON/OFF Oven
Control/Timer/
Toast Color Knob
4. Oven Rack
5. Slide-Out Crumb Tray
6. Broil Rack
7. Baking Pan
Broil Rack
Baking Pan
When broiling, the broil
rack sits in the baking
pan as shown.
840141200 ENv00.qxd 9/6/05 3:56 PM Page 4
76
Oven Rack Positions
The oven has grooves in the side walls that let the oven rack
be placed in different positions.
Middle Rack Position
• for baking and broiling
High and Low Rack Positions
• use high rack position for broiling and toasting
• use low rack position for baking
To Toast
1. Place the oven rack in high position for bread, pastry, or
frozen waffles. Place oven rack in middle position for
bagels or English muffins (see Toasting Tips).
2. Set Temperature Knob to .
3. Set Function Knob to Toast.
4. Turn Toast Color Knob to at least 5 and then back to desired
toast color setting (for accurate times under 5 minutes).
5. A bell will sound when cycle is completed. When finished,
turn OFF. Unplug from outlet.
Toasting Tips
• When toasting only two slices of bread, place bread
towards front of oven to get even toasting on top and bottom.
• To toast bagels, place oven rack in the middle position
and place bagels cut side facing down. This will toast the
cut side more than the outside of the bagel. Set the Toast
Color Knob to desired setting.
• To toast English muffins, place oven rack in the middle
Do not leave appliance unattended
when in operation.
position and place English muffins with the split side
facing down. Set Toast Color Knob to the dark setting.
• To toast regular toaster pastries, frozen pastry, or
waffles, place oven rack in the middle position. Select a
light color and toast directly on the oven rack. If pastry has
a glaze of frosting, use baking pan.
• When toasting, condensation may form on the oven door.
The moisture will slowly escape from the enclosed oven.
• The number of slices of bread and the bread freshness
will affect toast color. For example, toasting 4 slices of
bread will require a darker toast color setting than 2 slices
of bread. Adjust the Toast Color Knob based on desired
color and number of slices.
• If you are not satisfied with the color balance between the
two sides of your food in the recommended rack position,
select a different rack position.
To Keep Warm (selected models only)
1. Set Temperature Knob to Keep Warm.
2. Set Function Knob to Keep Warm.
3. Set Timer between 5 and 15 minutes or to Stay On.
4. When finished, turn OFF. Unplug from outlet.
To Bake and Traditional Cook
1. Place oven rack in middle or low position depending on
food to be cooked.
2. Set Temperature Knob to desired temperature.
3. Set Function Knob to BAKE.
4. Set Timer between 5 and 15 minutes or to Stay On.
Preheat 5 minutes before beginning to bake.
5. When finished, turn OFF. Unplug from outlet.
840141200 ENv00.qxd 9/6/05 3:56 PM Page 6
9
Broiling Tips
• For best results, do not preheat oven when broiling.
• Use oven rack in high position for faster broiling times.
Use low position for foods needing longer broiling times,
like chicken.
• Always allow at least one inch between the food and the
heating element.
FOOD
Hamburgers
Hot Dogs
Sausage Links or Patties (pierce
casings before cooking)
Fish
APPROXIMATE TIME
20 minutes
15 minutes
15 to 20 minutes
15 minutes
Broiling Chart
To Broil
1. Place oven rack in high or middle position. Place food
on broil rack in the bake pan and place in oven. Do not
preheat oven.
2. Set Temperature Knob to Broil.
3. Set Function Knob to Broil.
4. Set Timer between 5 and 15 minutes or to Stay On.
5. Halfway through cooking time, or when food has browned,
turn food over to brown and cook other side.
6. When finished, turn OFF. Unplug from outlet.
These cooking times are an average and should be adjusted to individual preferences. Turn foods halfway through cooking time.
8
Warming and Reheating Tips
• Do not totally enclose foods in aluminum foil. Foil can
insulate foods and slow down heating.
• To reheat rolls or biscuits, place on baking pan and heat
at 300ºF for 10 minutes.
• Reheat leftover roasts or casseroles at 350ºF for 20 to 30
minutes or until heated through.
To Bake and Rapid Convection Cook
(select models only)
1. Place oven rack in middle or low position
depending on food to be cooked.
2. Set Temperature Knob to desired
temperature.
3. Set Function Knob to Rapid Cook.
4. Set Timer between 5 and 15 minutes
or to Stay On. Preheat 5 minutes before
beginning to bake.
5. When finished, turn OFF. Unplug from
outlet.
Tips
• The convection method cooks up to
one-third faster than traditional baking.
• When first using, check to determine if time
or temperature should be adjusted.
• To reduce the risk of fire, do not use oven
cooking bags in the toaster oven.
• “Fan Only” mode operates the convection
fan (on selected models) which circulates
air in the oven cavity.
840141200 ENv00.qxd 9/6/05 3:56 PM Page 8
1110
Recipes
Roast Chicken
To roast a whole chicken in the toaster oven, it must be
4 pounds or smaller.
Baked Potatoes
2 medium baking potatoes, about 10-ounces each
Wash potatoes then pierce skin with a fork. Place potatoes
on baking pan and place in 425 degree oven. Bake for 1 hour
or until done. Do not wrap in aluminum foil as this may
increase cooking time.
Hot Mexican Bean Dip
15-ounce can black beans, well drained
1 teaspoon hot pepper sauce
1
⁄3 cup sour cream
1
⁄3
cup salsa
4 ounces Monterey Jack cheese, grated
Mash black beans. Add hot pepper sauce, sour cream, salsa
and half of the cheese. Spoon into shallow casserole dish.
Sprinkle remaining cheese on top. Bake at 350°F about 10
minutes, or until bubbly. Serve with tortilla chips.
Minute Muffins
1 cup self-rising flour
1
⁄2 cup milk
2 tablespoons mayonnaise or sour cream
Stir together ingredients. Spoon into greased 6 cup muffin
pan. Bake at 450°F for 12 minutes or until done.
Pan Sizes
The following pans should fit your toaster oven. To be sure,
place the pan in the oven to check the fit before preparing
the recipe.
6-cup muffin pan
8 x 4 loaf pan*
9 x 5 loaf pan*
8-inch round or square baking pan
Most 1 to 1 1⁄2 quart casserole dishes
* The loaf pans will fit but do not fill more than half full.
Cleaning
Your toaster oven’s crumb tray should be cleaned regularly for
best performance and long life. Regular cleaning of the crumb
tray will also reduce the risk of fire hazard.
1. Unplug oven and allow to cool.
2. Wash oven rack and baking pan in
hot, soapy water. Rinse and dry.
3. To clean the crumb tray, slide out
and wipe crumb tray with a damp
cloth. Slide back into position.
4. To clean the outside of the oven,
wipe with a damp cloth. Do not
use abrasive cleansers. Do not clean with metal scouring
pads. Pieces can break off pad and touch electrical parts,
causing a risk of electric shock.
NOTE: This is a continuous self-cleaning oven. Cleaning the
oven’s interior walls is not necessary.
840141200 ENv00.qxd 9/6/05 3:56 PM Page 10
1312
Troubleshooting
The toaster oven will not heat.
Check to make sure the outlet is working and the oven is
plugged in. Next turn the Temperature Knob to 350°F, turn
Function Knob to Bake, and turn Timer to Stay On.
The toaster oven will not toast.
Check to make sure outlet is working and oven is plugged in.
1. Turn Temperature Knob to Toast.
2. Turn Function Knob to Toast.
3. Turn Timer/Toast Color Knob to a toast color.
Moisture forms on the inside of the oven door when toasting.
This is normal when toasting in a toaster oven. Moisture is
slower to escape from the toaster oven than from a toaster.
The amount of moisture will differ between fresh bread, bagels,
and frozen pastry.
An odor and smoke comes from the toaster oven.
Smoke and odor is normal during the first use of most heating
appliances. This will not be present after the initial heating period.
Some foods burn and some are not done.
Use oven rack position to center food in the oven. Adjust oven
temperature or cooking time for best results with your recipes.
Recipes
Mini Meat Loaves
1 pound lean ground beef
1 small onion, finely chopped
3
⁄4 cup fresh bread crumbs
1 egg, beaten
1 tablespoon grated Parmesan cheese
1 tablespoon finely chopped, fresh parsley
1
⁄4 teaspoon each, salt and pepper
Combine all ingredients and mix well. Divide mixture between
6-cup muffin pan. Bake at 350°F for 30 minutes or until done.
Makes 4 to 6 servings.
5 Minute Pizza
English muffins, split in half
and slightly toasted
Pizza or spaghetti sauce
Grated mozzarella cheese
Pepperoni slices
Place muffin halves on baking pan cut side up. Spread some
sauce on top of each muffin. Sprinkle with cheese then top
with pepperoni. Place pan in toaster oven and bake at 450°F
for about 5 minutes or until cheese melts.
840141200 ENv00.qxd 9/6/05 3:56 PM Page 12
14
Customer Service
If you have a question about your toaster oven, call our
toll-free customer service number. Before calling, please note
the model, type, and series numbers and fill in that information
below. These numbers can be found on the bottom of your
toaster oven. This information will help us answer your question
much more quickly.
MODEL:_____________ TYPE:_____________ SERIES: ______________
This warranty applies to product purchased in the U.S.
or Canada.
LIMITED WARRANTY
This product is warranted to be free from defects in material and workmanship for a period of one
(1) year for Hamilton Beach products or one hundred eighty (180) days for Proctor-Silex and Traditions
products from the date of original purchase, except as noted below. During this period, we will repair or
replace this product, at our option, at no cost. THE FOREGOING WARRANTY IS IN LIEU OF ANY OTHER
WARRANTY OR CONDITION, WHETHER EXPRESS OR IMPLIED,WRITTEN OR ORAL INCLUDING, WITHOUT
LIMITATION, ANY STATUTORY WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. ANY LIABILITY IS EXPRESSLY LIMITED TO AN AMOUNT EQUAL TO THE
PURCHASE PRICE PAID, AND ALL CLAIMS FOR SPECIAL, INCIDENTAL AND CONSEQUENTIAL DAMAGES
ARE HEREBY EXCLUDED. There is no warranty with respect to the following, which may be supplied with
this product, including without limitation: glass parts, glass containers, cutter/strainers, blades, seals,
gaskets, clutches, motor brushes, and/or agitators, etc. This warranty extends only to the original
consumer purchaser and does not cover a defect resulting from abuse, misuse, neglect including failure
to clean product regularly in accordance with manufacturer’s instructions, use for commercial purposes,
or any use not in conformity with the printed directions. This warranty gives you specific legal rights, and
you may also have other legal rights which vary from state to state, or province to province. Some states
or provinces do not allow limitations on implied warranties or special, incidental or consequential
damages, so the foregoing limitations may not apply to you.
If you have a claim under this warranty, DO NOT RETURN THE APPLIANCE TO THE STORE! Please call our
CUSTOMER SERVICE NUMBER. (For faster service please have model, series, and type numbers ready
for operator to assist you.)
CUSTOMER SERVICE NUMBERS
In the U.S. 1-800-851-8900
In Canada 1-800-267-2826
hamiltonbeach.com or proctorsilex.com
KEEP THESE NUMBERS FOR FUTURE REFERENCE!
840141200 ENv00.qxd 9/6/05 3:56 PM Page 14
Loading...
