Hamilton Beach 26048R, 26055 User Guide

READ BEFORE USE LIRE AVANT UTILISATION LEA ANTES DE USAR

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online!

Rendez-vous sur www.hamiltonbeach.ca pour notre liste complète de produits et de nos manuels utilisateur – ainsi que nos délicieuses recettes et nos conseils !

¡Visite www.hamiltonbeach.com ( o

www.hamiltonbeach.com.mx (México) para ver otros productos de Hamilton Beach o para contactarnos!

EE. UU.)

Deep Dish Belgium

Waffle Maker

Questions? Please call us – our friendly associates are ready to help. USA: 1.800.851.8900

Questions ? N’hésitez pas à nous appeler – nos associés s’empresseront de vous aider. CAN : 1.800.267.2826

¿Preguntas? Por favor llámenos – nuestros amables representantes están listos para ayudar. EE. UU.: 1.800.851.8900 MEX: 01 800 71 16 100

Le invitamos a leer cuidadosamente este instructivo antes de usar su aparato.

Maître-gaufrier avec

plats profonds

pour gaufres belges

Wafflera Estilo Belga

de Plato Profundo

English ...................... 2

Français ................... 12

Español ................... 22

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.

2. This appliance is not intended for use by persons (including

children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.

3. Close supervision is necessary when any appliance is used by or

near children. Children should be supervised to ensure that they do not play with the appliance.

4. Do not touch hot surfaces. Use handles or knobs.

5. To protect against risk of electrical shock, do not immerse cord,

plug, or any part of the appliance in water or other liquid.

6. Unplug from outlet when not in use and before cleaning. Allow

to cool before putting on or taking off parts and before cleaning.

7. Do not operate any appliance with a damaged supply cord or

plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

8. The use of accessory attachments not recommended by the

appliance manufacturer may cause injuries.

9. Do not use outdoors.

10. Do not let cord hang over edge of table or counter or touch

hot surfaces, including the stove.

11. Do not place on or near a hot gas or electric burner, or in a

heated oven.

12. Extreme caution must be used when moving an appliance

containing hot oil or other hot liquids.

13. Do not use appliance for other than intended use.

14. Do not use appliance unattended.

15. During use, provide 4 to 6 inches air space above, behind, and

on both sides for air circulation.

16. Never remove the food with any kind of cutting device or other

metallic kitchen utensil.

17. Always allow the appliance to cool before putting it away, and

never wrap the cord around the appliance while it is still hot.

18. This appliance is not intended for deep-frying foods.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

w WARNING

with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

Electrical Shock Hazard: This appliance is provided

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another highwattage appliance on the same circuit with this appliance.

Parts and Features

*To order parts: US: 1.800.851.8900 www.hamiltonbeach.com Canada: 1.800.267.2826 Mexico:

01 800 71 16 100

Grid Release Button

Cover

BEFORE FIRST USE: Wash grids in dishwasher or in hot, soapy water. Rinse and dry. Wipe or brush waffle grids with vegetable oil or spray with nonstick spray. This is only recommended before first use and can be done periodically if sticking occurs.

Cover Lock

Temperature Control

Premeasured Scoop

(1/2 cup/118 ml)

Removable Upper Waffle Grid

Removable Lower Waffle Grid

Grips

Red Power

ON Light

The red Power ON light comes on when the appliance is first plugged in.

The green READY light comes on when the appliance has reached the desired temperature. For best results, wait until green READY light comes on before adding waffle batter.

Grid Release Button

Green READY

Light

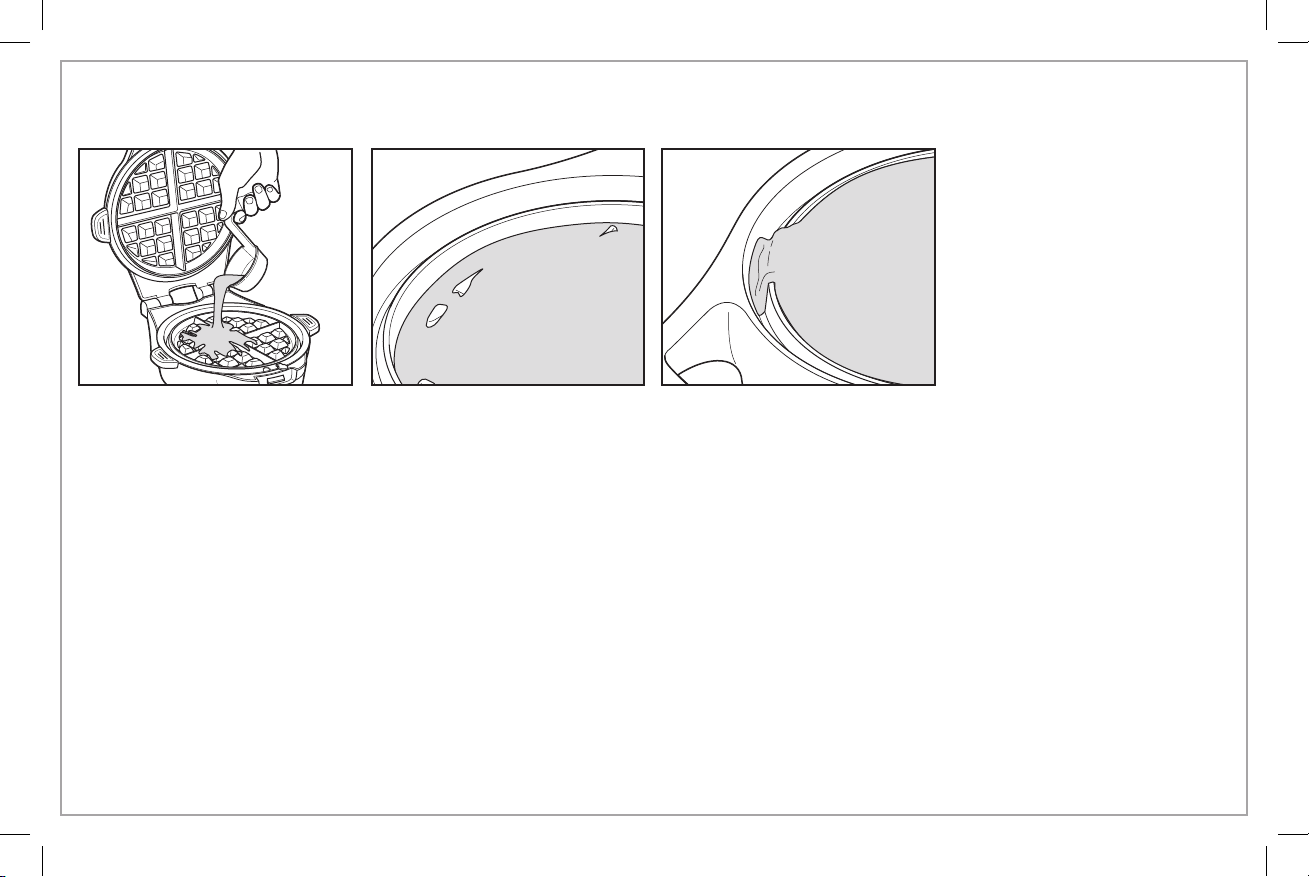

3-Way Mess-Free Waffle Features

1. The premeasured scoop is

the perfect size for measuring and pouring batter. Use two scoops for Belgium waffles.

2. Deep grids leave room for

waffles to rise while baking.

3. Extra-deep overflow channel

gives

excess batter a place to go without dripping outside the waffle maker.

How to Use

w WARNING

when opening a hot waffle maker. Escaping steam can burn.

Burn Hazard. Always use an oven mitt to protect hand

1. Plug into outlet. The red Power

ON light comes on. Do not preheat or operate unit unless grids are in place. TIP: A small amount of nonstick cooking spray can be used on the grids before preheating.

2. Choose desired waffle heat

setting and preheat with cover closed until the green READY light comes on. TIP: Waffle color and crispness are determined by the temperature of the grids. The higher the temperature, the browner and crisper the waffle.

5. Using an oven mitt, open cover. Remove waffle with plastic or

wooden utensil. Never use metal. This will damage the nonstick coating of the appliance. Turn control to “MIN.” Unplug unit when through cooking. Let cool.

3. Raise cover and pour two

FULL scoops of batter onto center of bottom cooking grid. The green READY light goes off. Lower cover. TIP: When adding nuts, fruits, or chocolate chips to your waffle, reduce the waffle batter by 2 tablespoons (30 ml).

4. Waffles are done in about

6 to 8 minutes, depending on the heat setting and type of recipe. Waffles are done when the green READY light turns back on, or when steaming begins to stop.

Usage Tips

• To make your family a quick, hot breakfast, use any of the waffle mixes currently available on the market.

• Use a cooking spray before pouring batter into the grids, especially for dessert waffles or recipes with a lot of sugar.

• If your waffles start to stick, the grids may need to be scrubbed with a nylon brush to remove any cooked-on food particles.

• If using nuts in waffle batter, use chopped nuts and/or evenly spread batter to allow lid to fully close.

• Waffles can be made ahead of time and kept warm in a 200ºF (93ºC) oven.

• Reheat in a microwave oven, a toaster oven, or a regular oven.

• Most waffles are done in about 6–8 minutes, depending on the heat setting selected. Some of the recipes which are made from scratch may take a little longer. Check for doneness at about 5 minutes. If the cover of the waffle maker doesn’t lift up easily, then let the waffle cook a minute more before checking again. Another indicator that the waffle is done is when the green READY light comes on or when the steaming slows or stops.

• To store, let waffles cool and pack in an airtight container; store in refrigerator or freezer for reheating later.

Care and Cleaning

1. Turn control to “MIN.” Unplug

unit when through cooking. Let cool.

2. Remove installed grids by

pressing the release buttons in the direction of the small arrow, pulling out grids.

Troubleshooting

PROBLEM PROBABLE CAUSE/SOLUTION

Low, poor, or slow heating.

Cooking too slow. • Ensure grids are fully installed. Waffles are too

light.

• Allow waffle maker to heat for 5 to 7 minutes before use.

• Adjust temperature towards MAX (darker setting).

w WARNING

Disconnect power before cleaning. Do not immerse cord, plug, or base in any liquid.

3. Wipe outside of unit with a

damp, soapy cloth. Do not use steel wool, scouring pads, or abrasive cleansers on any part of the unit. Never use sharp or pointed objects for cleaning.

Electrical Shock Hazard.

DISHWASHER-SAFE

4. DO NOT use the “SANI”

setting when washing in the dishwasher. “SANI” cycle temperatures could damage your product. The back sides of waffle and skillet grids may discolor. This is normal.

Suggested Toppings and Spreads for Waffles

Maple Syrup Chocolate Syrup Powdered Sugar

Honey

Jams and Jellies

Suggested ideas to stir into batter before cooking: small pieces of fresh fruit, dried fruit, chocolate chips, chocolate covered raisins, or nuts.

TIP: Certain fresh fruits like blueberries will turn batter blue. Do not stir into batter; sprinkle over batter before cooking.

Cinnamon Sugar

Maple Butter

Apple Butter

Whipped Cream

Applesauce

Brown Sugar

Chocolate Sprinkles

Cake Frosting Peanut Butter

Recipes

Basic Waffles

Ingredients:

2 cups (473 ml) flour 2 tablespoons (30 ml) sugar 1 tablespoon (15 ml) baking powder 1 teaspoon (5 ml) salt 1 3/4 cups (414 ml) milk 1/3 cup (79 ml) vegetable oil 2 eggs

Directions:

Combine flour, sugar, baking powder and salt. Stir together milk, oil and eggs. Gradually add milk mixture to the dry ingredients. Stir until just blended. Pour two premeasured scoops of batter into the middle of the waffle maker. Serves: 6 (1/2 waffle each)

Blueberry Waffles: After pouring batter onto waffle grids, sprinkle fresh blueberries over batter; then close lid. Do not stir berries into batter; this makes blue-gray waffles.

To Make a Savory Waffle: Add your favorite freshly chopped or dried savory spices to the batter. Follow How to Use.

Notes
